CBT-20-8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> CBT-20-8

Preview

CBT-20-8: DescriptionRF/Microwave Termination, 0MHz Min, 4000MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size104KB，1 Pages; ManufacturerComponent General Inc

Download Datasheet Parametric View All

CBT-20-8 Overview

RF/Microwave Termination, 0MHz Min, 4000MHz Max,

CBT-20-8 Parametric

Parameter Name	Attribute value
Maker	Component General Inc
Reach Compliance Code	unknown
Is Samacsys	N
structure	COMPONENT
Maximum input power (CW)	43.01 dBm
JESD-609 code	e4
Maximum operating frequency	4000 MHz
Minimum operating frequency
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

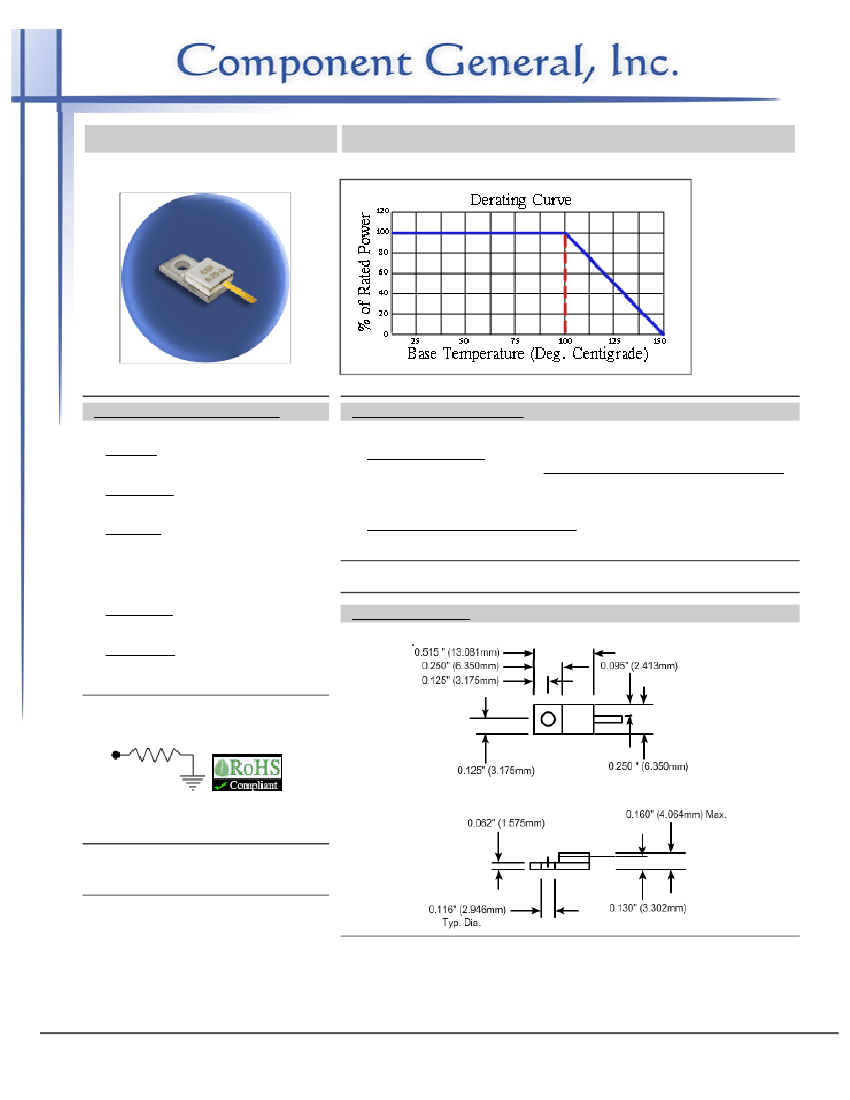

P/N: CBT-20-8

Stripline Base Mounted Terminations

Mechanical Specifications

Covers:

Alumina Ceramic.

Electrical Specifications

Resistance Value:

10 - 1000

Ω

or as

required. Other values

available upon request.

Frequency Range:

DC - 4.0 GHz

VSWR (Max.):

1.25:1

Substrate:

Beryllium Oxide Ceramic.

Contact:

Beryllium Copper, Gold Plated per MIL-

G-45204.

Length: 0.250" Min., Width: 0.060",

Thickness 0.004" ± 0.002".

Standard Resistance Tolerance:

± 5% Other tolerances available upon request.

Heat Sink:

Copper, Nickel Plated per QQ-N-290.

Part Dimensions

Tolerance:

± 0.010" unless specified.

Note: The use of thermal mounting

compound is recommended.

2445 Success Drive Odessa, FL 33556

727-376-6655 or 800-246-4084
