BC846F
NPN Silicon Transistor
Descriptions
•
General purpose application
•
Switching application
PIN Connection
3
Features
•
High voltage : V
CEO
=55V
•
Complementary pair with BC856F
1
2

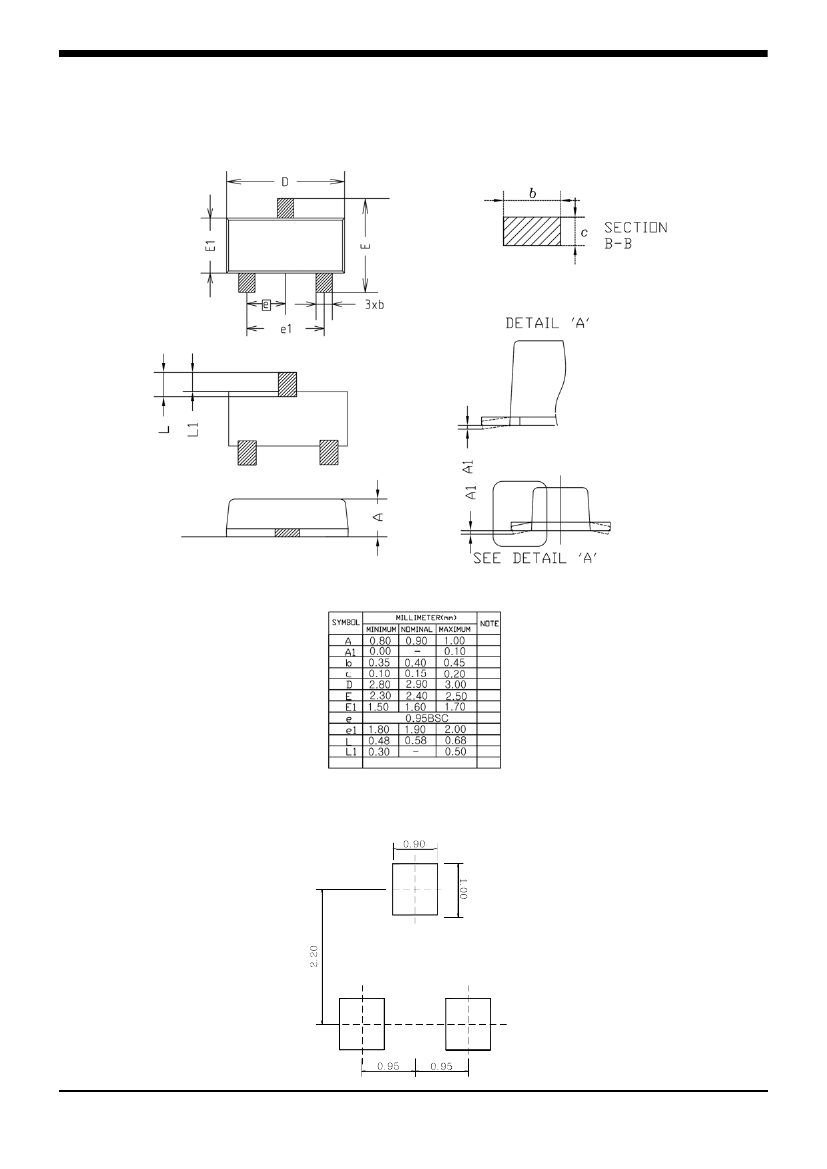

SOT-23F
Ordering Information
Type NO.
BC846F
Marking
QA
□ □
① ② ③
①
Device Code
②
hFE Rank
③
Year&Week Code
Package Code
SOT-23F
Absolute maximum ratings
Characteristic
Collector-Base voltage
Collector-Emitter voltage
Emitter-base voltage
Collector current
Collector dissipation
Junction temperature
Storage temperature
(Ta=25°C)
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j
T
stg
Ratings
80
55
5
100
200
150
-55~150
Unit
V
V
V
mA
mW
°C
°C
Electrical Characteristics
Characteristic
Collector-Emitter breakdown voltage
Base-Emitter turn on voltage
Base-Emitter saturation voltage
Collector-Emitter saturation voltage
Collector cut-off current
DC current gain
Transition frequency
Collector output capacitance
Noise figure
(Ta=25°C)
Symbol
BV
CEO
V
BE(ON)
V
BE(sat)
V
CE(sat)
I
CBO
h
FE
*
f
T
C
ob
NF
Test Condition
I
C
=1mA, I
B
=0
V
CE
=5V, I
C
=2mA
I
C
=100mA, I
B
=5mA
I
C
=100mA, I
B
=5mA
V
CB
=35V, I
E
=0
V
CE
=5V, I
C
=2mA
V
CE
=5V, I
C
=10mA
V
CB
=10V, I
E
=0, f=1MHz
V
CE
=5V, I
C
=200μA,
f=1KHz, Rg=2KΩ
Min. Typ. Max.
55
550
-
-
-
110
-
-
-
-
-
900
-
-
-
150
-
-
-
700
-
600
15
800
-
4.5
10
Unit
V
mV
mV
mV
nA
-
MHz
pF
dB
* : h
FE
rank / A : 110 ~ 220, B : 200 ~ 450, C : 420 ~ 800
KSD-T5C072-000
1
BC846F
The AUK Corp. products are intended for the use as components in general electronic
equipment (Office and communication equipment, measuring equipment, home
appliance, etc.).
Please make sure that you consult with us before you use these AUK Corp. products
in equipments which require high quality and / or reliability, and in equipments which
could have major impact to the welfare of human life(atomic energy control, airplane,
spaceship, transportation, combustion control, all types of safety device, etc.). AUK
Corp. cannot accept liability to any damage which may occur in case these AUK Corp.
products were used in the mentioned equipments without prior consultation with AUK
Corp..
Specifications mentioned in this publication are subject to change without notice.
KSD-T5C072-000
