BUK565-200A,118 datasheet, PDF

BUK565-200A,118: Description14A, 200V, 0.23ohm, N-CHANNEL, Si, POWER, MOSFET; CategoryDiscrete semiconductor The transistor; File Size232KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

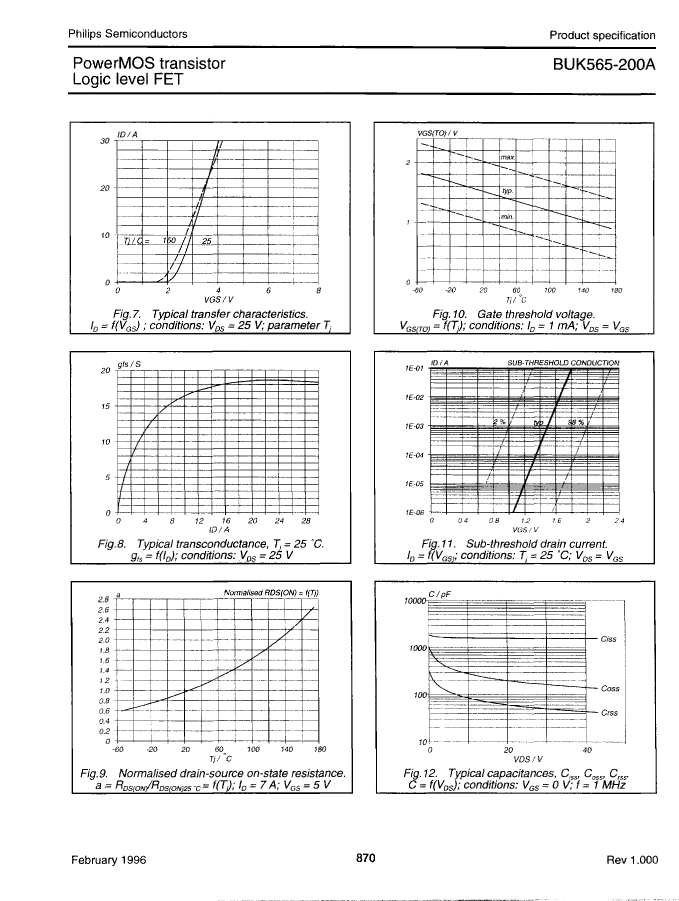

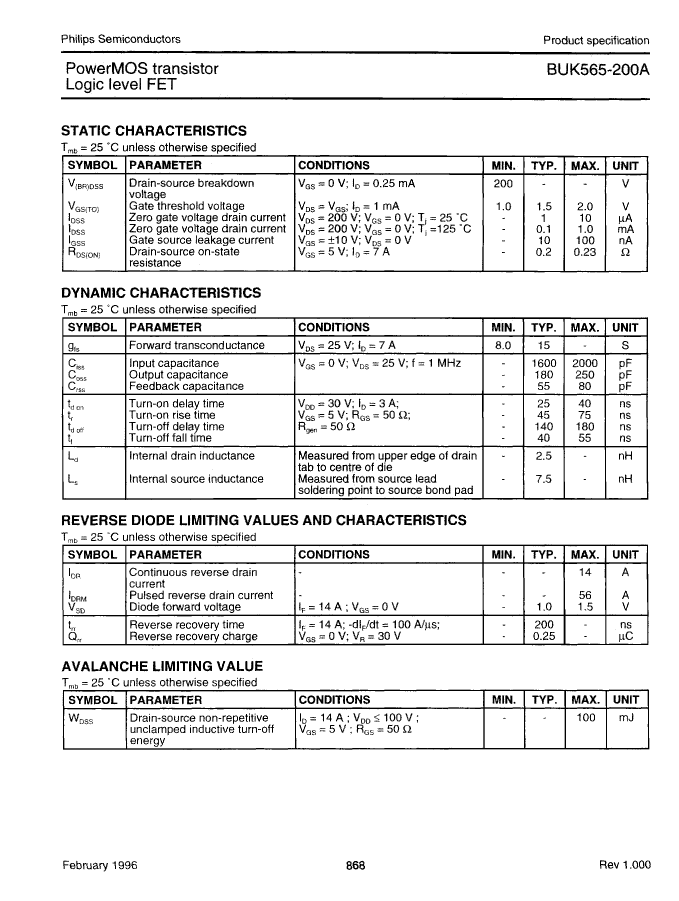

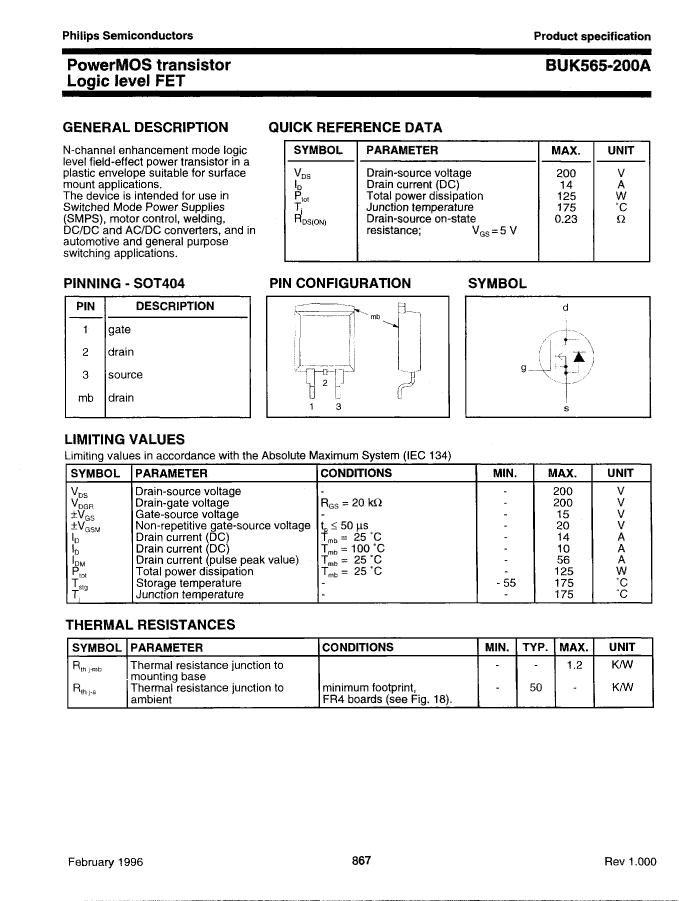

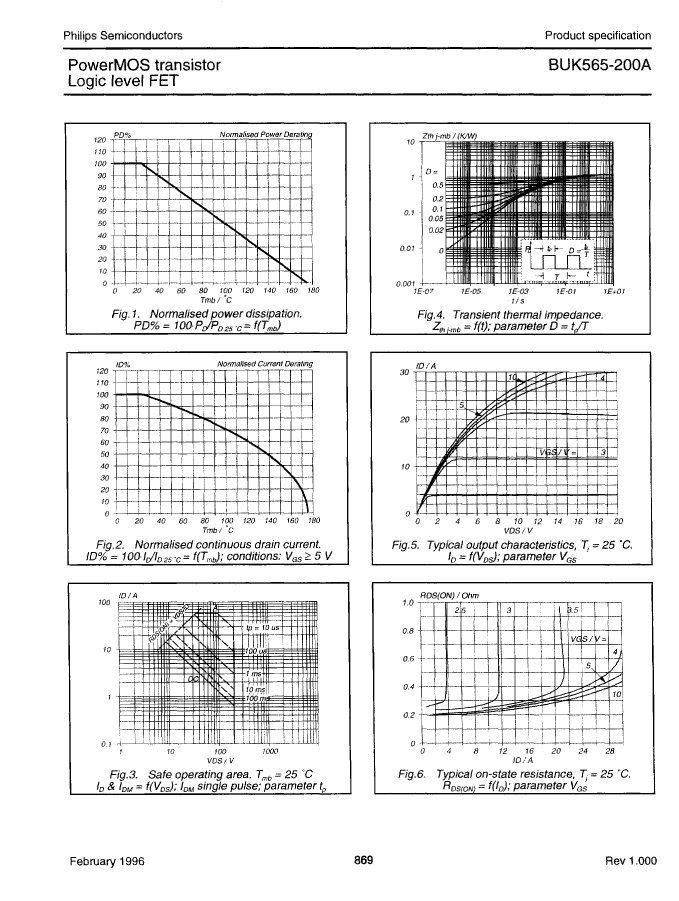

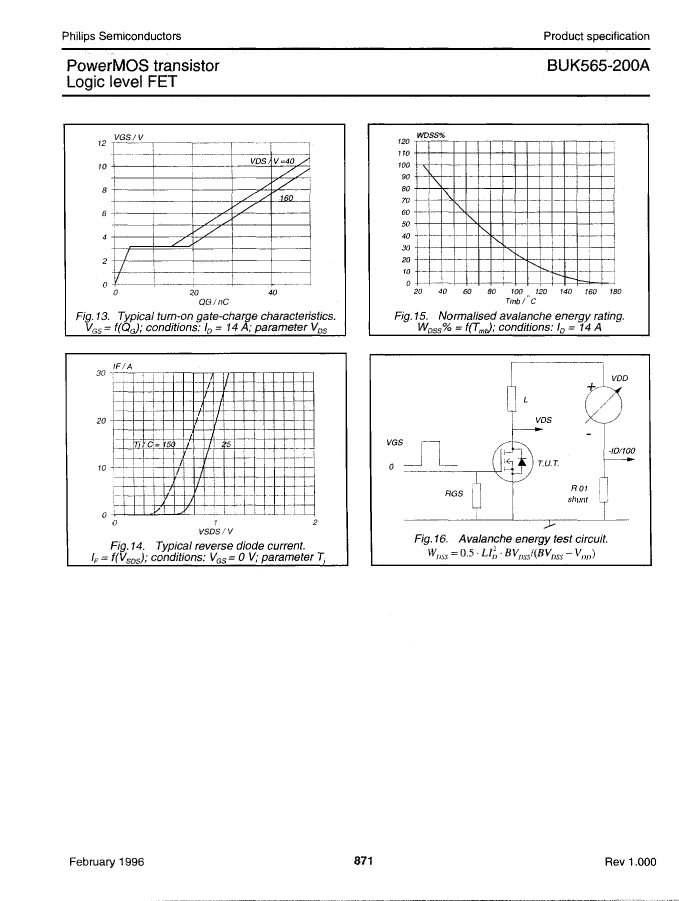

BUK565-200A,118 Overview

14A, 200V, 0.23ohm, N-CHANNEL, Si, POWER, MOSFET

Parameter Name	Attribute value
Maker	NXP
package instruction	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	LOGIC LEVEL COMPATIBLE
Avalanche Energy Efficiency Rating (Eas)	100 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V
Maximum drain current (ID)	14 A
Maximum drain-source on-resistance	0.23 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	56 A
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

	BUK565-200A,118	BUK565-200A118
Description	14A, 200V, 0.23ohm, N-CHANNEL, Si, POWER, MOSFET	TRANSISTOR 14 A, 200 V, 0.23 ohm, N-CHANNEL, Si, POWER, MOSFET, FET General Purpose Power
Maker	NXP	NXP
package instruction	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Is Samacsys	N	N
Other features	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE
Avalanche Energy Efficiency Rating (Eas)	100 mJ	100 mJ
Shell connection	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V	200 V
Maximum drain current (ID)	14 A	14 A
Maximum drain-source on-resistance	0.23 Ω	0.23 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSSO-G2	R-PSSO-G2
Number of components	1	1
Number of terminals	2	2
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	175 °C	175 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum pulsed drain current (IDM)	56 A	56 A
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Base Number Matches	1	1
