LVX Series Connector
Outline
This series of connectors is best suited to for wiring within ultra miniature electronic equipment such as cellular phones,
notebook-type personal computers, personal digital assistants PDA (PDA: Personal Digital Assistants). Wiring in the
moving hinge part of the newest two-axis rotation type cellular phones, can be more easily designed than with
conventional flexible print circuits FPC (FPC: Flexible Print Circuits). Further, by narrowing the width of the cable plug to its
utmost limit, these assembled connectors can be passed through the inside diameter of a hinge, so that workability during
assembly can be improved.
5.1mm
Mating height: 1.2 mm
Mating width: 5.1 mm
1.2mm
Address :
6-18-12, Megurohoncho, Meguro-Ku, Tokyo 152-8520, Japan /
Telephone :
+81-3-3714-1151/1161 /
Fax :
+81-3-5721-7090
Specifications are subject to change without notice.
Printed in Japan
Features
Ultra-miniature type connector, one of the
lowest profiles in this industry; Mating height:
1.2 mm (Refer to Figure below)
This connector achieves 0.4 mm pitch and low profile 1.2
mm mating height. Therefore the connector contributes to
reduced equipment thickness.
Structure permits easy designing of PCB
circuits
By adopting vertical mating of connectors, flexibility is
increased for connector mounting position. Further, by
attaching an insulator on the bottom surface of the
connector, circuit patterns can be designed on the
surface., and structure permits easy designing of PCB
circuits.
Assembly workability is improved.
By narrowing the width of the cable plug to its utmost limit
of 2.8 mm, an assembled connector can be passed
through the inside diameter of a hinge. Further, vertical
mating of connectors improves assembly workability.
Structure takes into account electrical noise
prevention
Ultra thin coaxial cable (42 AWG) can be used, and by
covering the connector with a metal shell, electrical noise
can be prevented.
Mounting
Setting up a suction surface on the receptacle allows for
automatic mounting with PCB, and utilizes pulse-heat
soldering technique, which minimizes cable damage
during attachment.

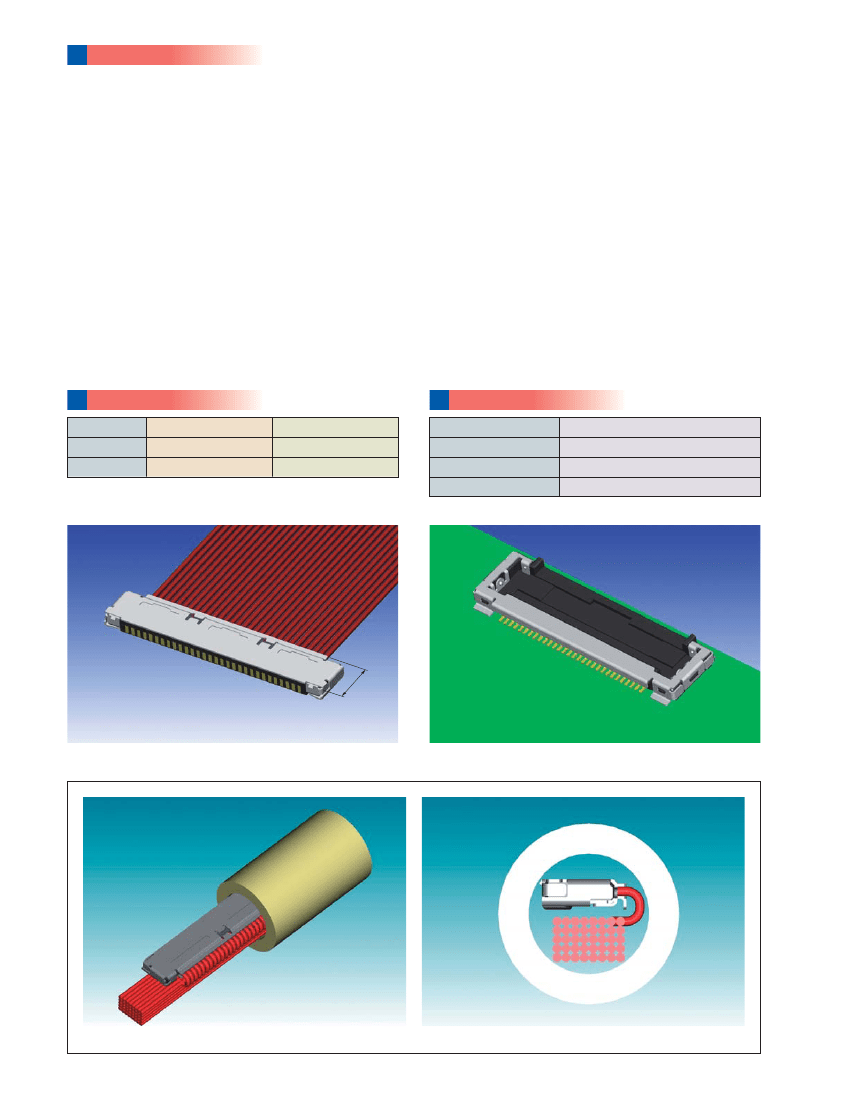

Product Part No.
Contact No.
30
40
Cable plug
LVX-A30LMSG
LVX-A40LMSG
Receptacle
LVX-A30SFYG
LVX-A40SFYG
Specifications
Rated current
Rated voltage
Temperature range
Relative humidity
0.2 A/contact
100V AC (rms)
-20 to +70 ˚C
95 RH or less
2.8mm
Cable plug (Width: 2.8 mm)
Receptacle
Assembled cable plug passing through hinge hole (1)
Assembled cable plug passing through hinge hole (2)
