BAS28TRLEADFREE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS28TRLEADFREE

Preview

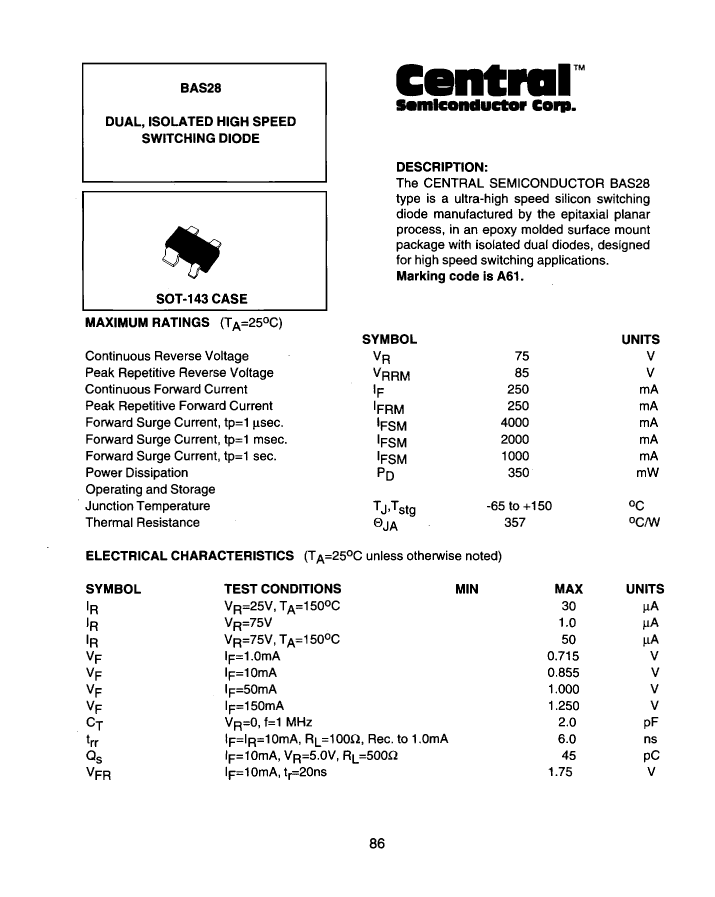

BAS28TRLEADFREE: DescriptionRectifier Diode, 2 Element, 0.25A, 85V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size33KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

BAS28TRLEADFREE Overview

Rectifier Diode, 2 Element, 0.25A, 85V V(RRM), Silicon,

BAS28TRLEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Configuration	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-PDSO-G4
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	4 A
Number of components	2
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	0.25 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	85 V
Maximum reverse current	1 µA
Maximum reverse recovery time	0.006 µs
Reverse test voltage	75 V
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Base Number Matches	1

Preview

Download Datasheet

View All

BAS28TRLEADFREE Related Products

	BAS28TRLEADFREE	BAS28BKLEADFREE	BAS28TR	BAS28TR13LEADFREE	BAS28TR13	BAS28BK
Description	Rectifier Diode, 2 Element, 0.25A, 85V V(RRM), Silicon,	Rectifier Diode, 2 Element, 0.25A, 85V V(RRM), Silicon,	Rectifier Diode, 2 Element, 0.25A, 85V V(RRM), Silicon,	Rectifier Diode, 2 Element, 0.25A, 85V V(RRM), Silicon,	Rectifier Diode, 2 Element, 0.25A, 85V V(RRM), Silicon,	Rectifier Diode, 2 Element, 0.25A, 85V V(RRM), Silicon,
Is it lead-free?	Lead free	Lead free	Contains lead	Lead free	Contains lead	Contains lead
Is it Rohs certified?	conform to	conform to	incompatible	conform to	incompatible	incompatible
Reach Compliance Code	compliant	compliant	not_compliant	compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
JESD-609 code	e3	e3	e0	e3	e0	e0
Maximum non-repetitive peak forward current	4 A	4 A	4 A	4 A	4 A	4 A
Number of components	2	2	2	2	2	2
Number of terminals	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	0.25 A	0.25 A	0.25 A	0.25 A	0.25 A	0.25 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	NOT SPECIFIED	260	NOT SPECIFIED	NOT SPECIFIED
Maximum power dissipation	0.35 W	0.35 W	0.35 W	0.35 W	0.35 W	0.35 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	85 V	85 V	85 V	85 V	85 V	85 V
Maximum reverse current	1 µA	1 µA	1 µA	1 µA	1 µA	1 µA
Maximum reverse recovery time	0.006 µs	0.006 µs	0.006 µs	0.006 µs	0.006 µs	0.006 µs
surface mount	YES	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	MATTE TIN (315)	TIN LEAD	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	NOT SPECIFIED	10	NOT SPECIFIED	NOT SPECIFIED
Maker	Central Semiconductor	-	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor
Reverse test voltage	75 V	75 V	75 V	-	-	75 V
