BZX84-V-Series
Vishay Semiconductors
Small Signal Zener Diodes
Features
• These diodes are also available in other
case styles and other configurations
including: the SOD-123 case with type
e3
designation BZT52 series, the dual zener
diode common anode configuration in the
SOT-23 case with type designation AZ23 series
and the dual zener diode common cathode config-
uration in the SOT-23 case with type designation
DZ23 series.
• The Zener voltages are graded according to the
international E 24 standard. Standard Zener volt-
age tolerance is ± 5 %. Replace "C" with "B" for
± 2 % tolerance.
• Silicon Planar Power Zener Diodes
3
1
2
18078
Mechanical Data
Case:
SOT-23 Plastic case
Weight:
approx. 8.8 mg
Packaging Codes/Options:
GS18 / 10 k per 13" reel (8 mm tape), 10 k/box
GS08 / 3 k per 7" reel (8 mm tape), 15 k/box
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Power dissipation
1)
Test condition
Symbol
P
tot
Value
300
1)
Unit
mW
Device on fiberglass substrate, see layout.
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Thermal resistance junction to ambient air
Junction temperature
Storage temperature range
1)
Test condition
Symbol
R
thJA
T
j
T
S
Value
420
1)
150
- 65 to + 150
Unit
°C/W
°C
°C
Device on fiberglass substrate, see layout.
Document Number 85763
Rev. 1.6, 10-Mar-05
www.vishay.com
1
BZX84-V-Series
Vishay Semiconductors
Typical Characteristics (Tamb = 25
°C
unless otherwise specified)
VISHAY
18114
18117

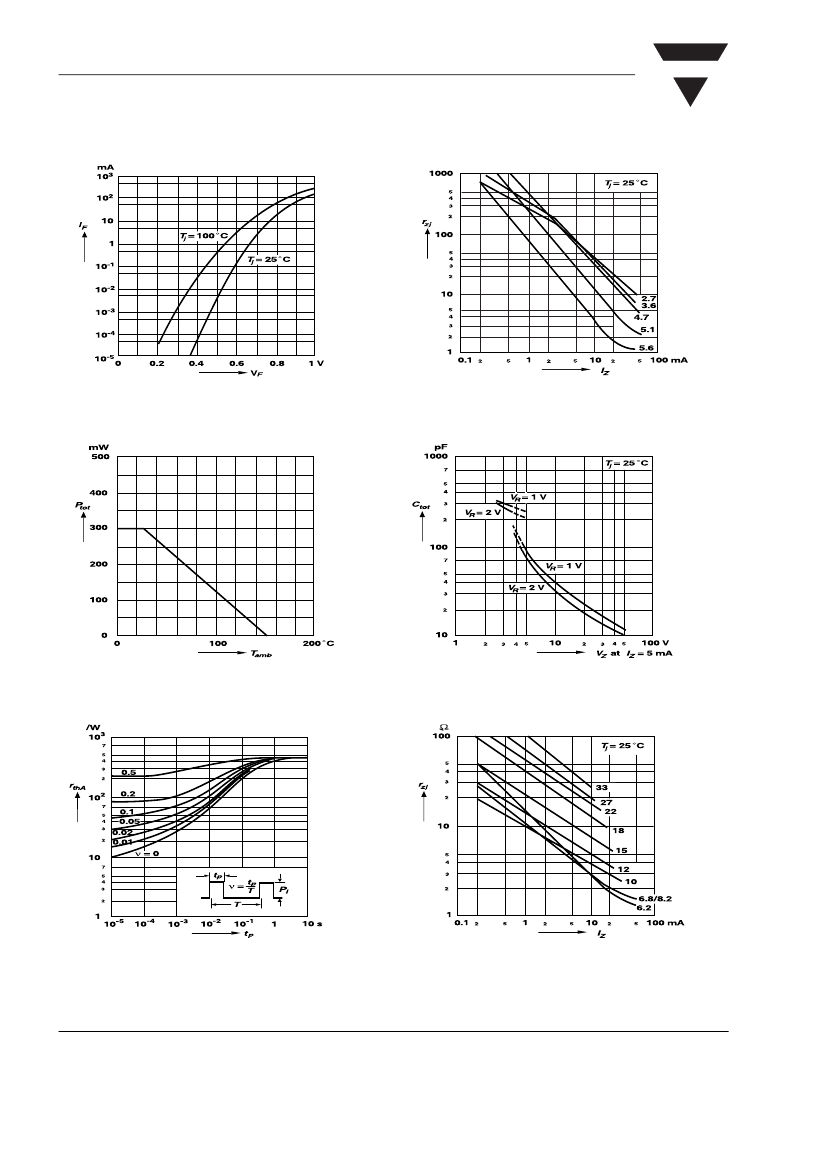

Figure 1. Forward characteristics
Figure 4. Dynamic Resistance vs. Zener Current
18115
18118
Figure 2. Admissible Power Dissipation vs. Ambient Temperature
Figure 5. Capacitance vs. Zener Voltage
°
C
18116
18119
Figure 3. Pulse Thermal Resistance vs. Pulse Duration
Figure 6. Dynamic Resistance vs. Zener Current
www.vishay.com
4
Document Number 85763
Rev. 1.6, 10-Mar-05
VISHAY
BZX84-V-Series
Vishay Semiconductors
°C
18120
18135
, =

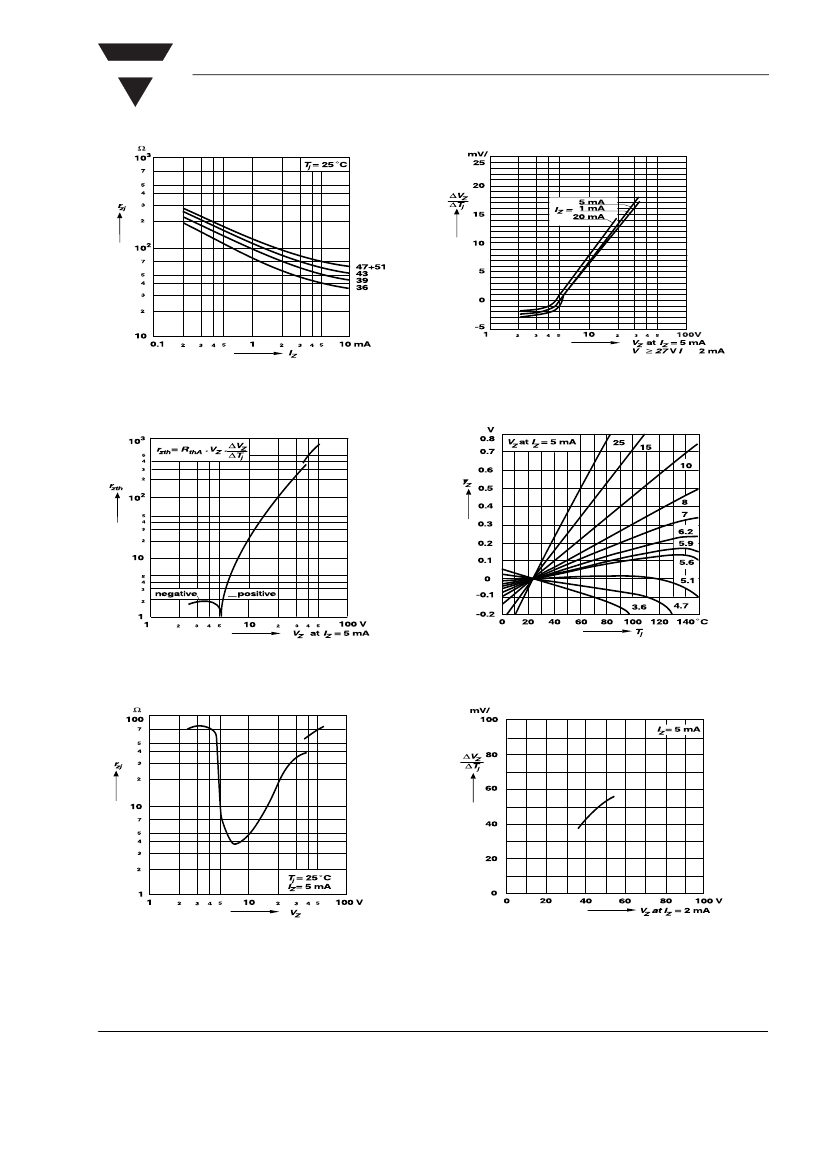

Figure 7. Dynamic Resistance vs. Zener Current
Figure 10. Temperature Dependence of Zener Voltage vs. Zener
Voltage
°C/W
18121
18124
Figure 8. Thermal Differential Resistance vs. Zener Voltage
Figure 11. Change of Zener Voltage vs. Junction Temperature
°C
18122
18136
Figure 9. Dynamic Resistance vs. Zener Voltage
Figure 12. Temperature Dependence of Zener Voltage vs. Zener
Voltage
Document Number 85763
Rev. 1.6, 10-Mar-05
www.vishay.com
5
