DH2-H-68 datasheet, PDF - EEWORLD Datasheet

DH2-H-68: DescriptionBoard Connector, 68 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Plug; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

DH2-H-68 Overview

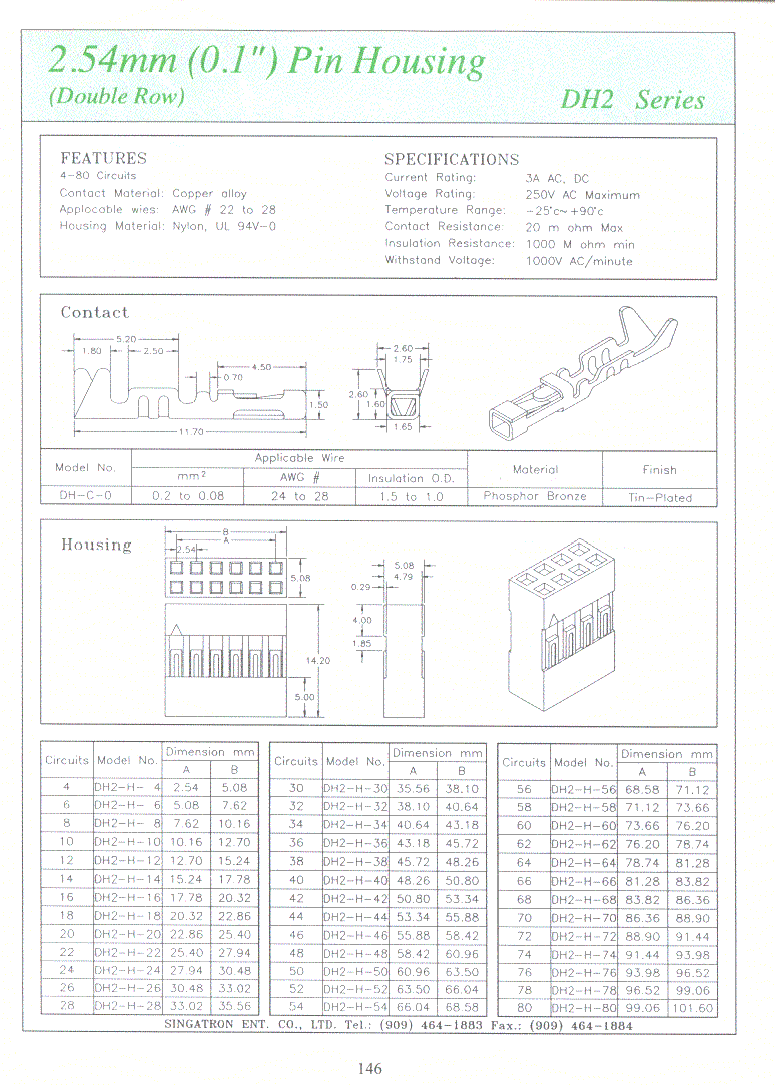

Board Connector, 68 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Plug

Parameter Name	Attribute value
Maker	Singatron Enterprises Co
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	COMPATIBLE CONTACT: DH-C-0
body width	0.2 inch
subject depth	0.559 inch
body length	3.4 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	STAMPED, LOOSE
Contact point gender	FEMALE
contact mode	RECTANGULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Minimum insulation diameter	0.039 inch
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	DH2
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	90 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	68
UL Flammability Code	94V-0
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1
