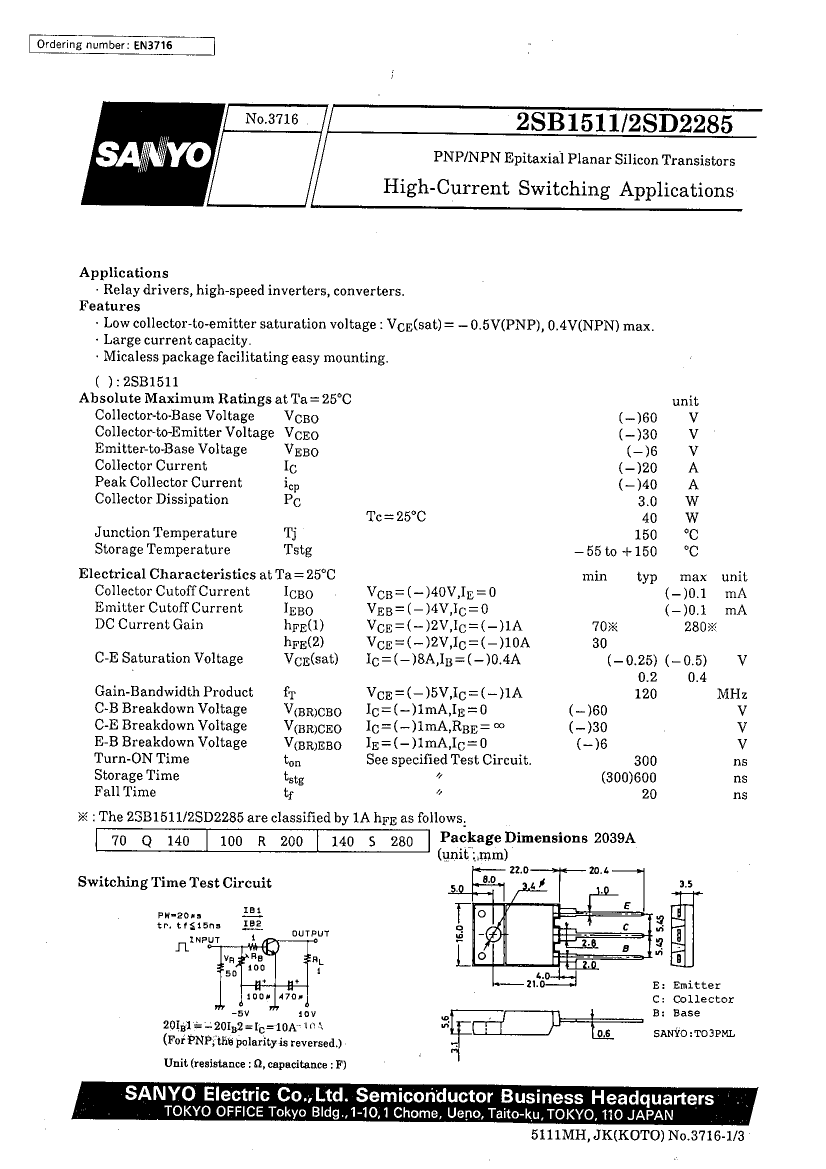

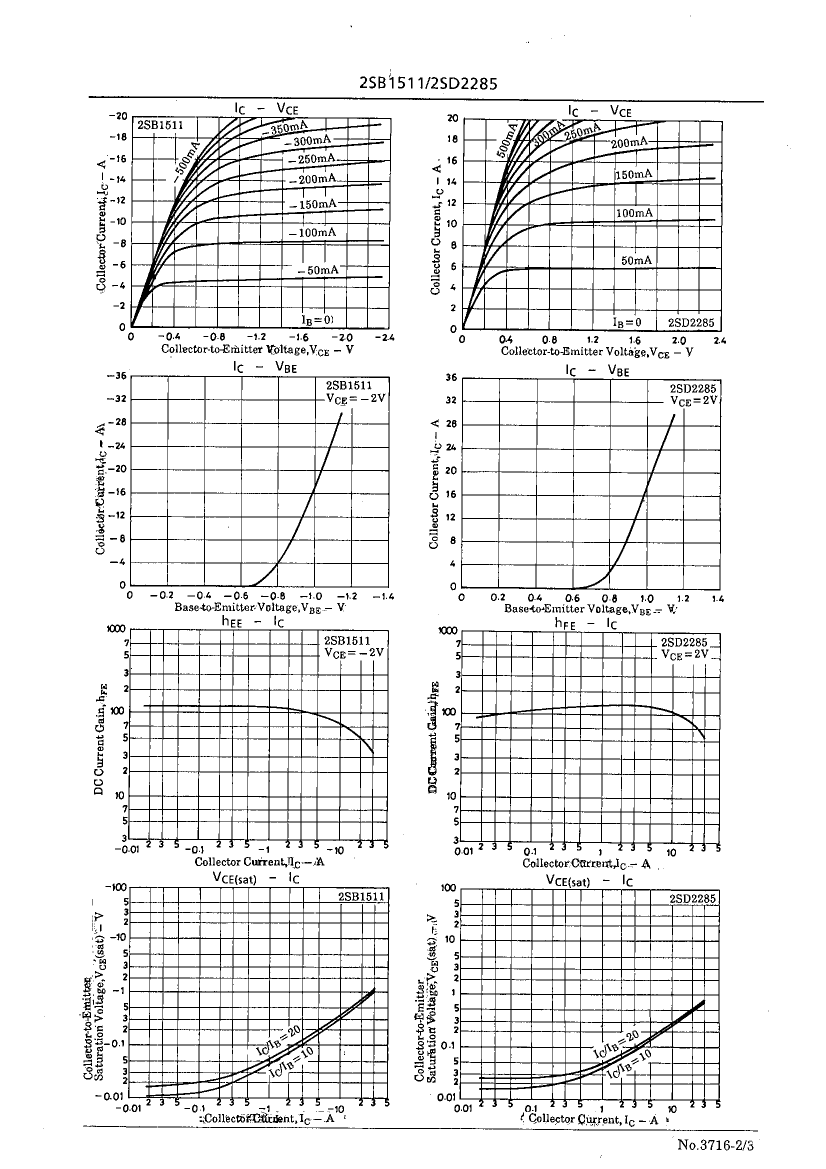

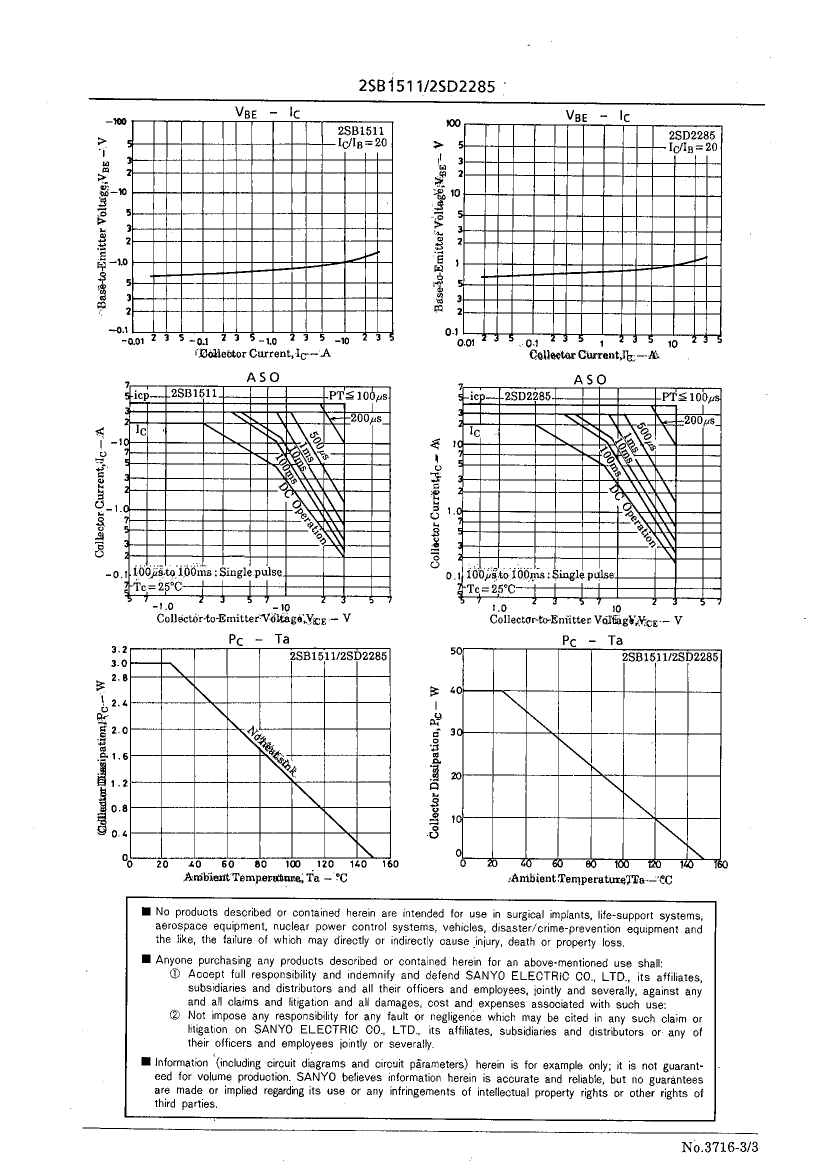

Power Bipolar Transistor, 20A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, TO-3PML, 3 PIN
| Parameter Name | Attribute value |
| Objectid | 1481156937 |
| Parts packaging code | TO-3PML |
| package instruction | FLANGE MOUNT, R-PSFM-T3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Shell connection | ISOLATED |
| Maximum collector current (IC) | 20 A |
| Collector-emitter maximum voltage | 30 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 30 |
| JESD-30 code | R-PSFM-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Polarity/channel type | PNP |
| Maximum power consumption environment | 40 W |
| Maximum power dissipation(Abs) | 40 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 120 MHz |
| VCEsat-Max | 0.5 V |
| 2SB1511 | 2SD2285 | |
|---|---|---|
| Description | Power Bipolar Transistor, 20A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, TO-3PML, 3 PIN | High-Current Switching Applications |
| Parts packaging code | TO-3PML | TO-3PML |
| package instruction | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 |
| Contacts | 3 | 3 |
| Reach Compliance Code | unknown | unknown |
| ECCN code | EAR99 | EAR99 |
| Shell connection | ISOLATED | ISOLATED |
| Maximum collector current (IC) | 20 A | 20 A |
| Collector-emitter maximum voltage | 30 V | 30 V |
| Configuration | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 30 | 30 |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 |
| Number of components | 1 | 1 |
| Number of terminals | 3 | 3 |
| Maximum operating temperature | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT |
| Polarity/channel type | PNP | NPN |
| Maximum power consumption environment | 40 W | 40 W |
| Maximum power dissipation(Abs) | 40 W | 40 W |
| Certification status | Not Qualified | Not Qualified |
| surface mount | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE |
| transistor applications | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON |
| Nominal transition frequency (fT) | 120 MHz | 120 MHz |
| VCEsat-Max | 0.5 V | 0.4 V |
