CD74ACT299EX datasheet, PDF - EEWORLD Datasheet

CD74ACT299EX: DescriptionParallel In Parallel Out, ACT Series, 8-Bit, Bidirectional, True Output, CMOS, PDIP20,; Categorylogic logic; File Size236KB，9 Pages; ManufacturerGE Solid State

Download Datasheet Parametric View All

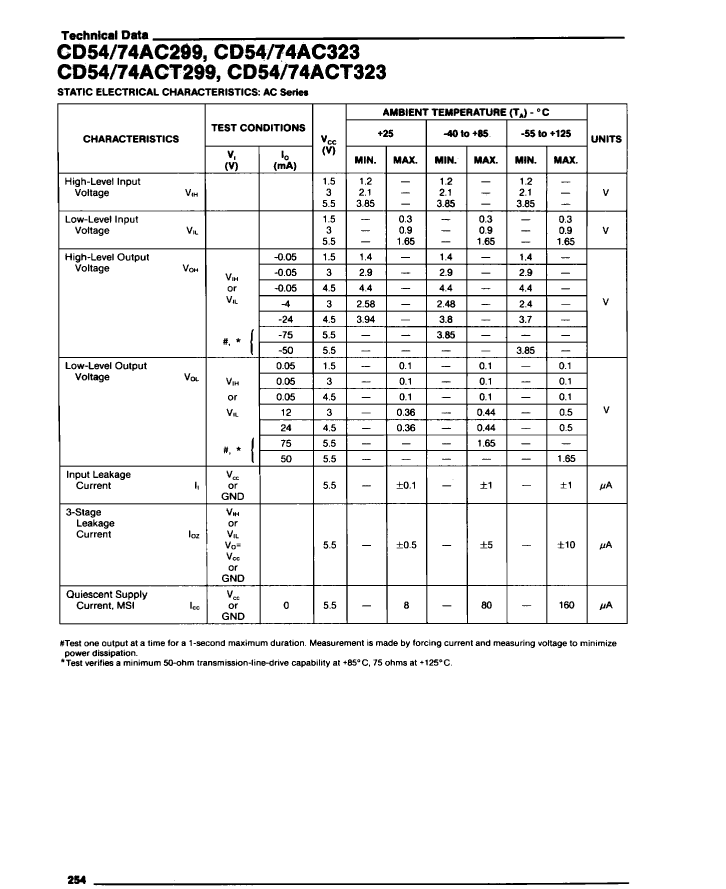

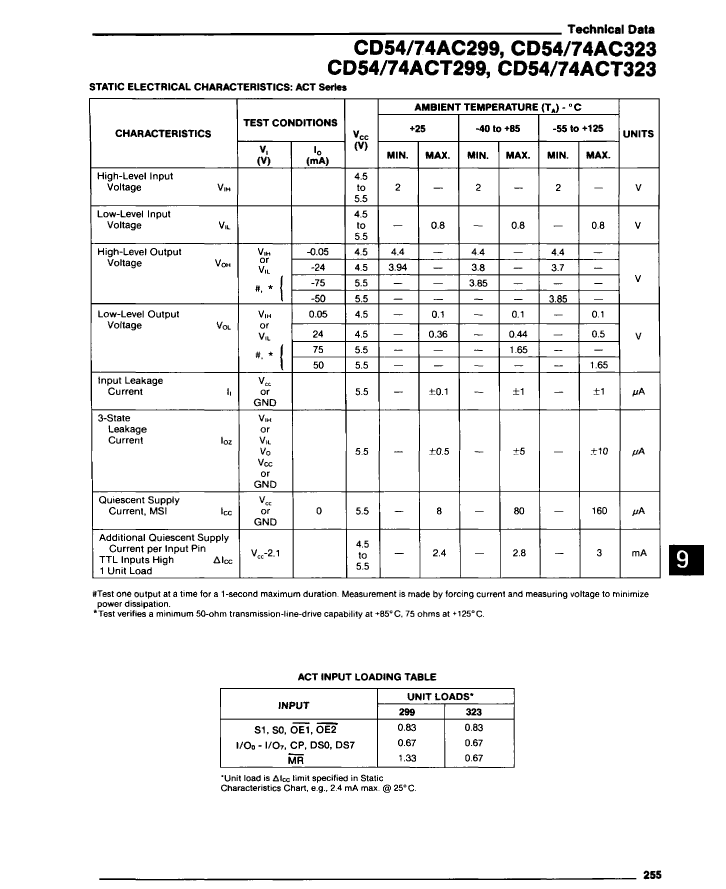

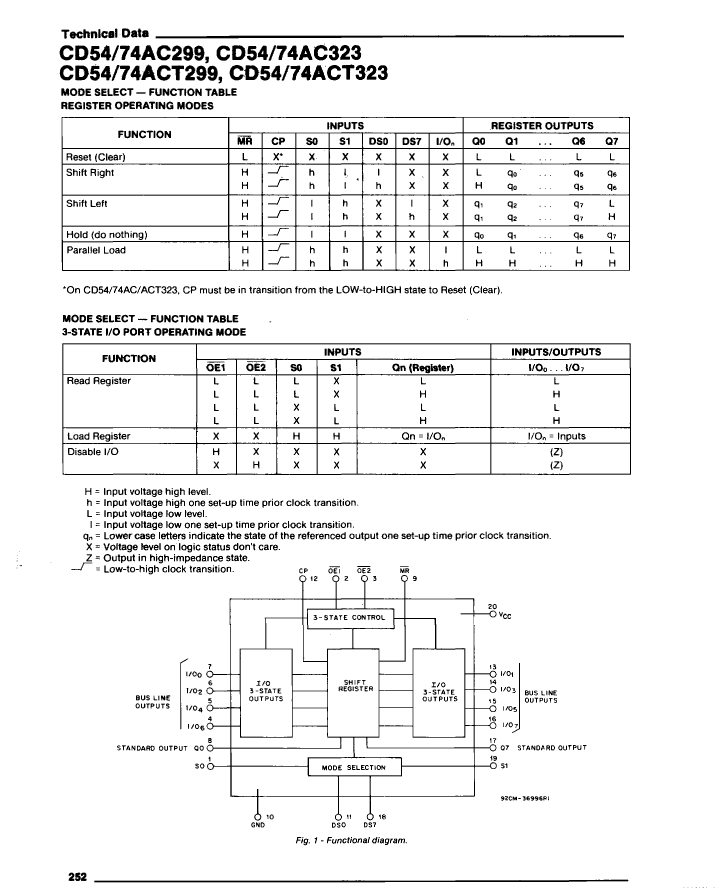

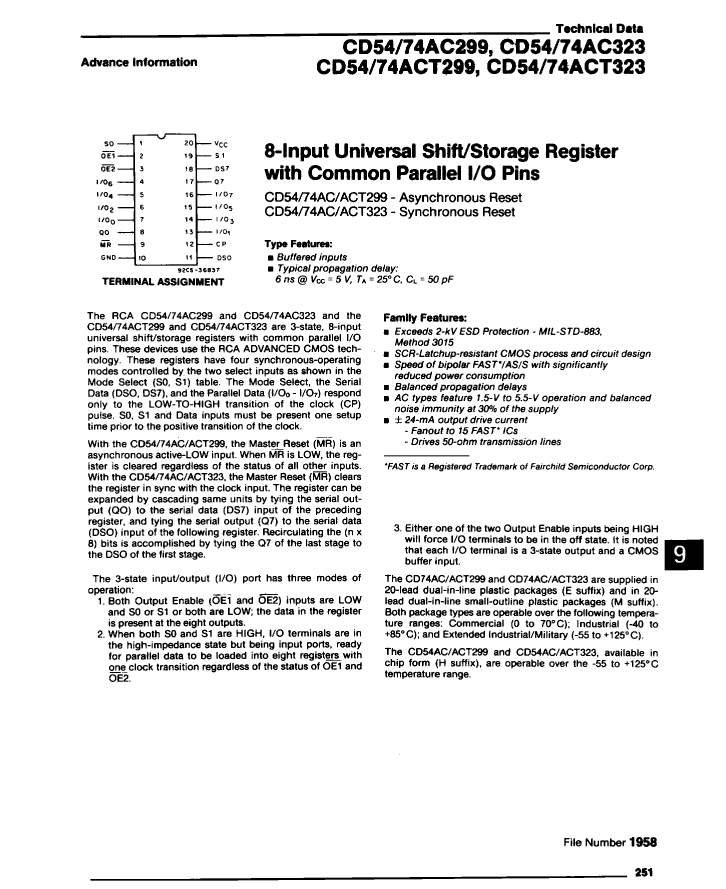

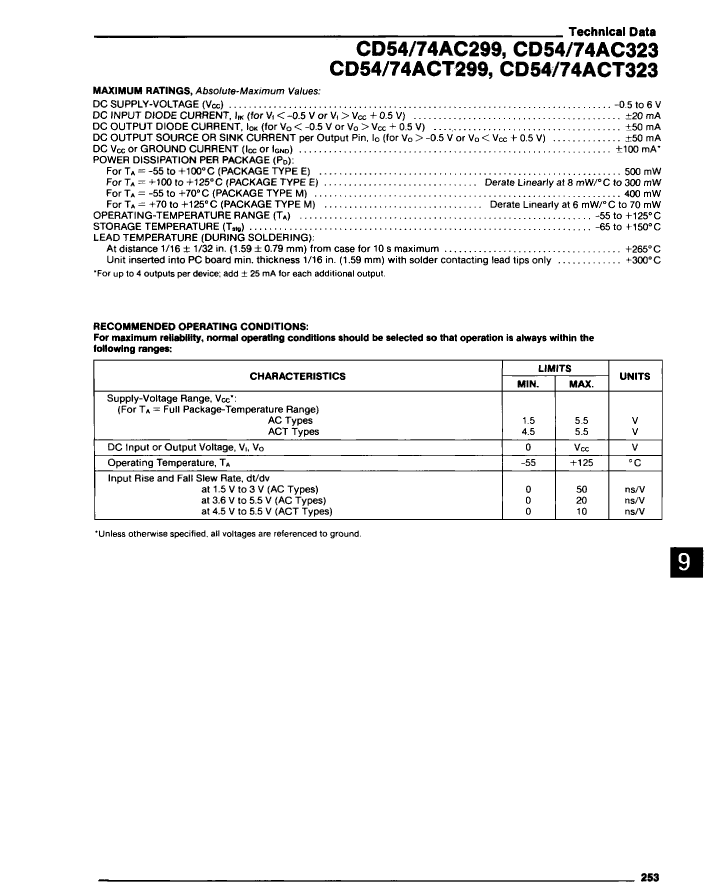

CD74ACT299EX Overview

Parallel In Parallel Out, ACT Series, 8-Bit, Bidirectional, True Output, CMOS, PDIP20,

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N
Other features	HOLD MODE; COMMON I/O PINS; TOTEMPOLE SERIAL SHIFT RIGHT & SHIFT LEFT OUTPUTS; GATED OUTPUT CONTROL
Counting direction	BIDIRECTIONAL
series	ACT
JESD-30 code	R-PDIP-T20
Load capacitance (CL)	50 pF
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	14.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	90 MHz
Base Number Matches	1
