SMAJ170C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMAJ170C

SMAJ170C: DescriptionTrans Voltage Suppressor Diode, 400W, 170V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size464KB，6 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/; Environmental Compliance

Download Datasheet Parametric View All

SMAJ170C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SMAJ170C	-	-	View	Buy Now

SMAJ170C Overview

Trans Voltage Suppressor Diode, 400W, 170V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, PLASTIC PACKAGE-2

SMAJ170C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Maximum breakdown voltage	231 V
Minimum breakdown voltage	189 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	400 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	265
polarity	BIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	170 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

TVS

TFMAJ

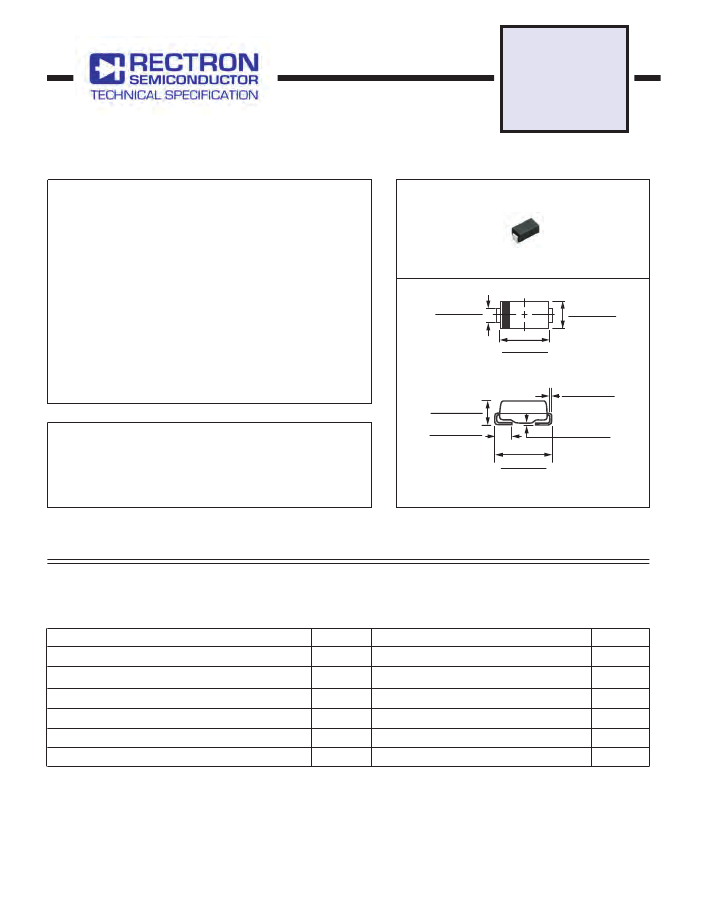

SURFACE MOUNT GPP

GPP TRANSIENT VOLTAGE SUPPRESSOR

FEATURES

SERIES

400 WATT PEAK POWER 1.0 WATT STEADY STATE

Plastic package has underwriters laboratory

Glass passivated chip construction

400 watt surage capability at 1ms

Excellent clamping capability

Low zener impedance

Fast response time

0.067 (1.70 )

0.051 (1.29 )

0.180 (4.57 )

0.160 (4.06 )

DO-214AC

0.110 (2.79 )

0.086 (2.18 )

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

C ambient temperature unless otherwise specified.

0.091

0.067

0.059

0.035

(2.31 )

(1.70 )

(1.50 )

(0.89 )

0.209 (5.31 )

0.185 (4.70 )

0.012 (0.305 )

0.006 (0.152 )

0.008 (0.203 )

0.004 (0.102 )

Dimensions in inches and (millimeters)

DEVICES FOR BIPOLAR APPLICATIONS

For Bidirectional use C or CA suffix for types TFMAJ5.0 thru TFMAJ170

Electrical characteristics apply in both direction

MAXIMUM RATINGS (At T

= 25

C unless otherwise noted)

RATINGS

Peak Power Dissipation with a 10/1000uS (Note 1,2,5 Fig.1)

Peak Pulse Current with a 10/1000uS waveform ( Note 1, Fig.2 )

Steady State Power Dissipation (Note 3)

Peak Forward Surge Current per Fig.5 (Note 3)

Maximum Instantaneous Forward Voltage at 25A (Note 4)

Operating and Storage Temperature Range

SYMBOL

PPM

(

)

FSM

, T

STG

VALUE

Minimum 400

SEE TABLE 1

1.0

3.5

-55 to + 150

UNITS

Watts

Amps

Watts

Amps

Volts

2008-10

NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T

= 25

C per Fig.2.

2. Mounted on 0.2 X 0.2”( 5.0 X 5.0mm ) copper pad to each terminal.

3. Lead temperature at T

= 25 C

4. Measured on 8.3mS single half sine-wave duty cycle = 4 pules per minute maximum.

5. Peak pulse power waveform is 10/1000uS.
