U001-1600-203-Z datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> U001-1600-203-Z

Preview

U001-1600-203-Z: DescriptionUSB Connector, 4+4+4+4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle; CategoryThe connector The connector; File Size530KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

U001-1600-203-Z Overview

USB Connector, 4+4+4+4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle

U001-1600-203-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
Board mount options	SOLDERABLE RETENTION CLIPS
body width	1.311 inch
subject depth	0.973 inch
body length	0.587 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	50 mΩ
Contact style	USB, SER A FLAT
Dielectric withstand voltage	1050VAC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	FOUR
PCB row number	1+1+1+1
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	BRASS
Terminal length	0.102 inch
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

14.90

13.30

12.50

11.20

5.12

A

13.30

11.18

24.72

8.88

24.72

5.33

4-Ø2.3

2.71

2.00

5.12

8.50

4

3

2

1

8 12 16

7 11 15

6 10 14

5

9 13

10.57

7.95

PCB EDGE

13.14

33.30

32.84

5.12

8.50

32.59

8.50

16-Ø0.92

2.30

10.28

5.68

1.20

3.50

2.60

A

5.12

10.28

4.13

2.71

5.33

5.68

7.95

10.57

11.18

0.25

2.50

2.00

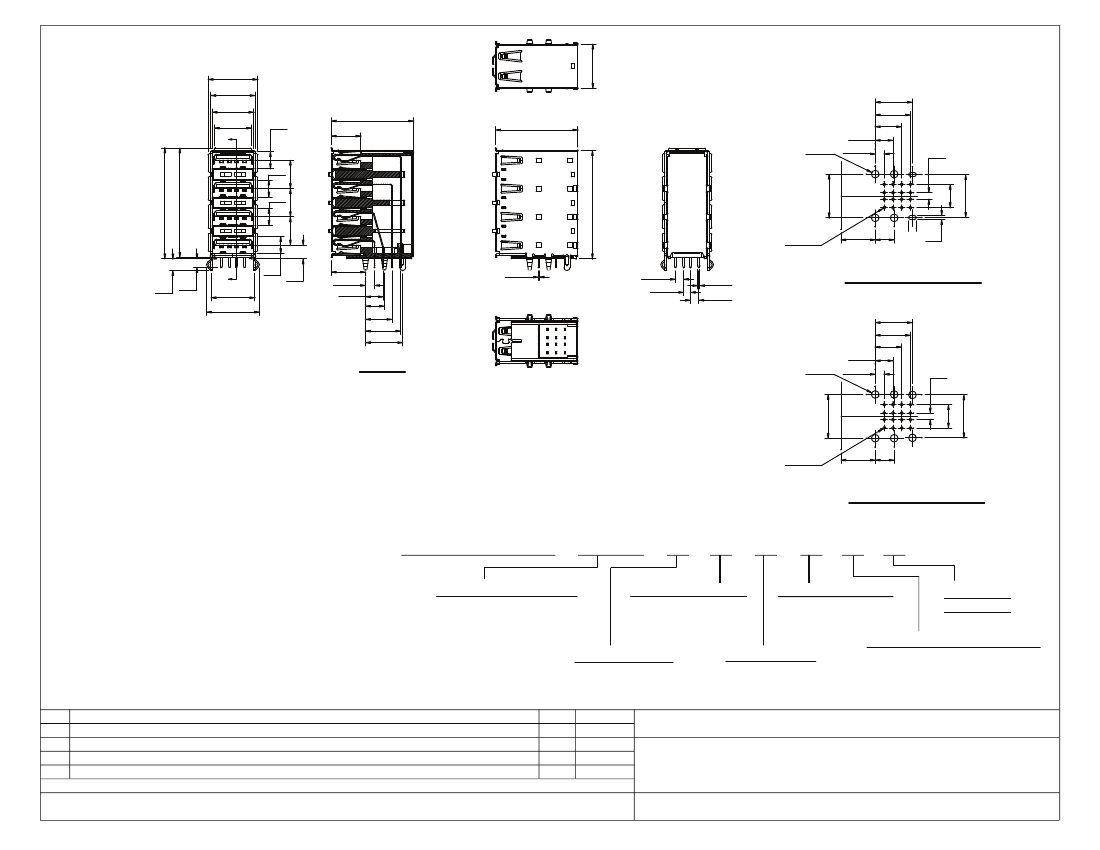

BOTTOM VIEW

RECOMMENDED PCB LAYOUT A

0.60

2.50

11.18

10.57

7.95

5.33

6-Ø2.3

2.71

2.00

4

3

2

1

8 12 16

7 11 15

6 10 14

5

9 13

13.14

15.86

SECTION A-A

PCB EDGE

13.14

16-Ø0.92

10.28

5.68

ELECTRICAL:

BOTTOM VIEW

RECOMMENDED PCB LAYOUT B

CURRENT RATING: 1.5A @ 250VAC Min.

CONTACT RESISTANCE: Before life test: 30m ohm max.

After life test: 50m ohm max.

INSULATION RESISTANCE: 1000 M ohm min.

DIELETRIC WITHSTANDING VOLTAGE:

750V (rms) AC for 1 Minute

CAPACITANCE: 2pF Max.

HOW TO ORDER:

U

0

1

-

1

2

0

-

2

0

X

-

Z

NUMBER OF CONTACTS:

16 - 16 Pin Quad Port

INSULATOR COLOR:

0 - Black

MATERIAL:

NUMBER OF LOCKS:

0 - Standard 2 Locks

(Top, Bottom, Sides)

RoHS

COMPLIANT

INSULATOR: Thermoplastic UL94V-0

CONTACTS: Material: Phosphor Bronze t:0.25mm

CONTACT PLATING: Gold/Tin Plating

SHELL: Brass t:0.3mm

SHELL PLATING: Tin or Nickel Plated

Rev

0 Issued

Apv.

WHS

DEFINITION:

0 - Right Angle, Thru Hole

SHELL STYLE:

2 - 2 Front Springs

SELECTIVE CONTACT PLATING:

1 - Gold

3 - 15



" AuGold

4 - 30



" AuGold

Date

6/1/06

SMP TECHNOLOGY, INC.

USB Connector, 16 Position, Right Angle Thru Hole,

2 Locks

SCALE

TOL. DEC.

.X +/- 0.2

MAT'L

.XX +/-

.XXX +/-

FINISH

ANGLE +/-

UNIT: mm

SERIES: U 0 0 1 - 1 6 0 0 - 2 0 X - Z

12.90

7.00

12.90

7.00

Pg: 1

U001-1600-203-Z Related Products

	U001-1600-203-Z	U001-1600-201-Z	U001-1600-204-Z
Description	USB Connector, 4+4+4+4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle	USB Connector, 4+4+4+4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle	USB Connector, 4+4+4+4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle
Reach Compliance Code	unknow	unknow	unknow
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Board mount options	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS
body width	1.311 inch	1.311 inch	1.311 inch
subject depth	0.973 inch	0.973 inch	0.973 inch
body length	0.587 inch	0.587 inch	0.587 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR
Contact to complete cooperation	AU	AU	AU
Contact point gender	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	50 mΩ	50 mΩ	50 mΩ
Contact style	USB, SER A FLAT	USB, SER A FLAT	USB, SER A FLAT
Dielectric withstand voltage	1050VAC V	1050VAC V	1050VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	FOUR	FOUR	FOUR
PCB row number	1+1+1+1	1+1+1+1	1+1+1+1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Shell material	BRASS	BRASS	BRASS
Terminal length	0.102 inch	0.102 inch	0.102 inch
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	16	16	16
Base Number Matches	1	1	1
Plating thickness	15u inch	-	30u inch
