SIGC81T120R2C
IGBT Chip in NPT-technology
Features:
1200V NPT technology
low turn-off losses
positive temperature coefficient
easy paralleling
integrated gate resistor
This chip is used for:
power module
BSM 50GD120DN2
Applications:
drives
C
G
E
Chip Type
SIGC81T120R2C
V
CE
1200V
I
C
50A
Die Size
9.08 X 8.98 mm
2
Package
sawn on foil
Mechanical Parameter
Raster size
Emitter pad size
Gate pad size
Area total
Thickness
Wafer size
Max.possible chips per wafer
Passivation frontside
Pad metal
Backside metal
Die bond
Wire bond
Reject ink dot size
Recommended storage environment
9.08 X 8.98
8 x ( 2.6 x 1.78 )
mm
1.46 x 0.8
81.5
200
150
167
Photoimide
3200 nm AlSiCu
Ni Ag –system
suitable for epoxy and soft solder die bonding
Electrically conductive glue or solder
Al, <500µm
0.65mm ; max 1.2mm
Store in original container, in dry nitrogen, in dark
environment, < 6 month at an ambient temperature of 23°C
µm
mm
2
Edited by INFINEON Technologies, AIM PMD D CID CLS, L7161MM, Edition 2.1, 14.10.2008
SIGC81T120R2C
Maximum Ratings
Parameter
Collector-Emitter voltage,
T
vj
=25
C
DC collector current, limited by
T
vj max
Pulsed collector current,
t
p
limited by
T
vj max
Gate emitter voltage
Junction temperature range
Operating junction temperature
Short circuit data
2 )
V
GE
= 15V,
V
CC
= 900V,
T
vj
= 150°C
Reverse bias safe operating area
2 )
(RBSOA)
1)
2)
Symbol
V
CE
I
C
I
c,puls
V
GE
T
vj
T
vj
t
SC
Value
1200
1)
Unit
V
A
A
V
°C
C
µs
150
20
-55 ... +175
-55...+150
10
I
C , m a x
= 100A,
V
C E , m a x
= 1200V
T
vj
150 °C
depending on thermal properties of assembly
not subject to production test - verified by design/characterization
Static Characteristic
(tested on wafer),
T
vj
=25
C
Value
Parameter
Collector-Emitter breakdown voltage
Collector-Emitter saturation voltage
Gate-Emitter threshold voltage
Zero gate voltage collector current
Gate-Emitter leakage current
Integrated gate resistor
Symbol
V
(BR)CES
V
CEsat
V
GE(th)
I
CES
I
GES
r
G
Conditions
min.
V
GE
=0V ,
I
C
= 3mA
V
GE
=15V,
I
C
=50A
I
C
=2mA ,
V
GE
=V
CE
V
CE
=1200V ,
V
GE
=0V
V
CE
=0V ,
V
GE
=20V
5
1200
2.0
4.5
2.5
5.5
3.0
6.5
6.1
300
µA
nA
V
typ.
max.
Unit
Dynamic Characteristic
(not subject to production test - verified by design / characterization),
T
vj
=25
C
Parameter
Input capacitance
Output capacitance
Reverse transfer capacitance
Symbol
C
ies
C
oes
C
res
Conditions
V
C E
= 25 V ,
V
G E
= 0V ,
f=
1 MH z
Value
min.
typ.
3300
500
220
pF
max.
Unit
Edited by INFINEON Technologies, AIM PMD D CID CLS, L7161MM, Edition 2.1, 14.10.2008
SIGC81T120R2C
Further Electrical Characteristic
Switching characteristics and thermal properties are depending strongly on module design and mounting
technology and can therefore not be specified for a bare die.
Edited by INFINEON Technologies, AIM PMD D CID CLS, L7161MM, Edition 2.1, 14.10.2008
SIGC81T120R2C

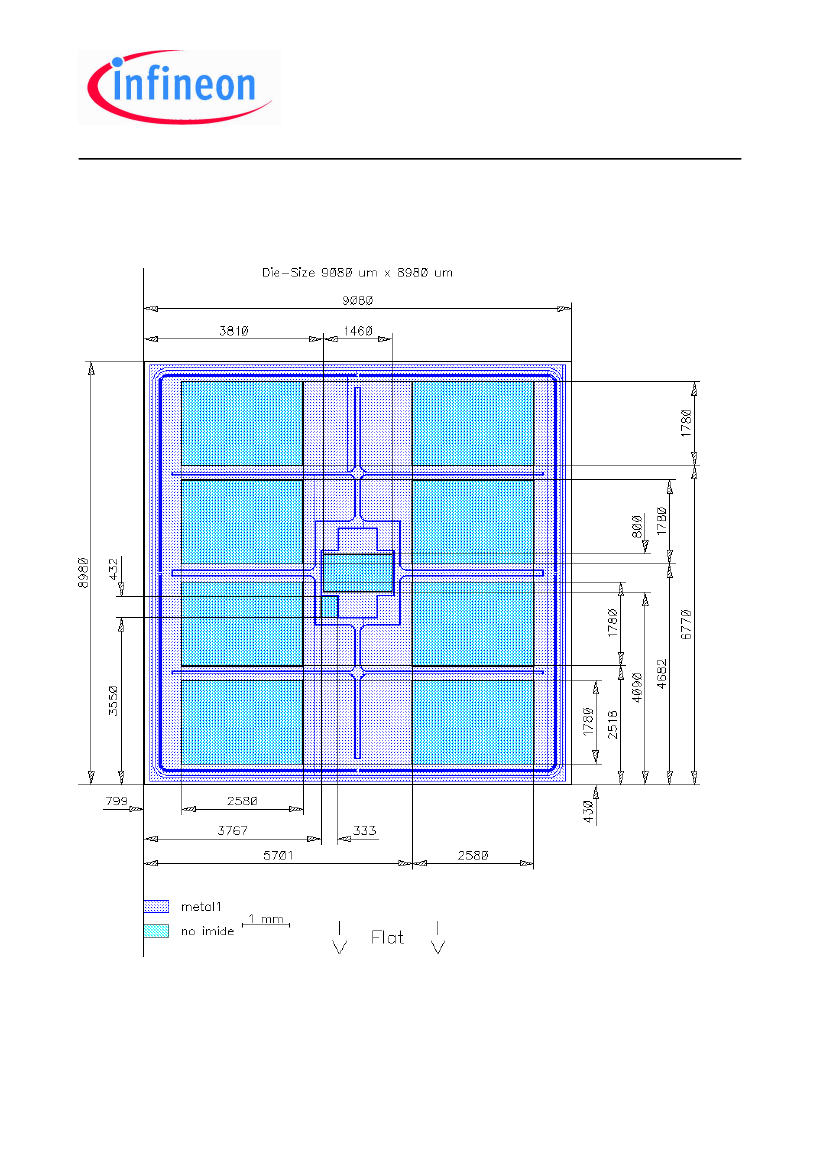

Chip Drawing
G
T
E
E =
Emitter pad
G
= Gate pad
T
= Test pad do not contact
Edited by INFINEON Technologies, AIM PMD D CID CLS, L7161MM, Edition 2.1, 14.10.2008
SIGC81T120R2C
Description
AQL 0,65 for visual inspection according to failure catalogue
Electrostatic Discharge Sensitive Device according to MIL-STD 883
Published by
Infineon Technologies AG
81726 Munich, Germany
© 2008 Infineon Technologies AG
All Rights Reserved.
Legal Disclaimer
The information given in this document shall in no event be regarded as a guarantee of conditions or
characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or
any information regarding the application of the device, Infineon Technologies hereby disclaims any and all
warranties and liabilities of any kind, including without limitation, warranties of non-infringement of intellectual
property rights of any third party.
Information
For further information on technology, delivery terms and conditions and prices, please contact the nearest
Infineon Technologies Office (www.infineon.com).
Warnings
Due to technical requirements, components may contain dangerous substances. For information on the
types in question, please contact the nearest Infineon Technologies Office. Infineon Technologies
components may be used in life-support devices or systems only with the express written approval of
Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure of
that life-support device or system or to affect the safety or effectiveness of that device or system. Life support
devices or systems are intended to be implanted in the human body or to support and/or maintain and
sustain and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other
persons may be endangered.
Edited by INFINEON Technologies, AIM PMD D CID CLS, L7161MM, Edition 2.1, 14.10.2008
