BTB12-700C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BTB12-700C

BTB12-700C: Description700V, 12A, TRIAC, TO-220AB; CategoryAnalog mixed-signal IC Trigger device; File Size202KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BTB12-700C Overview

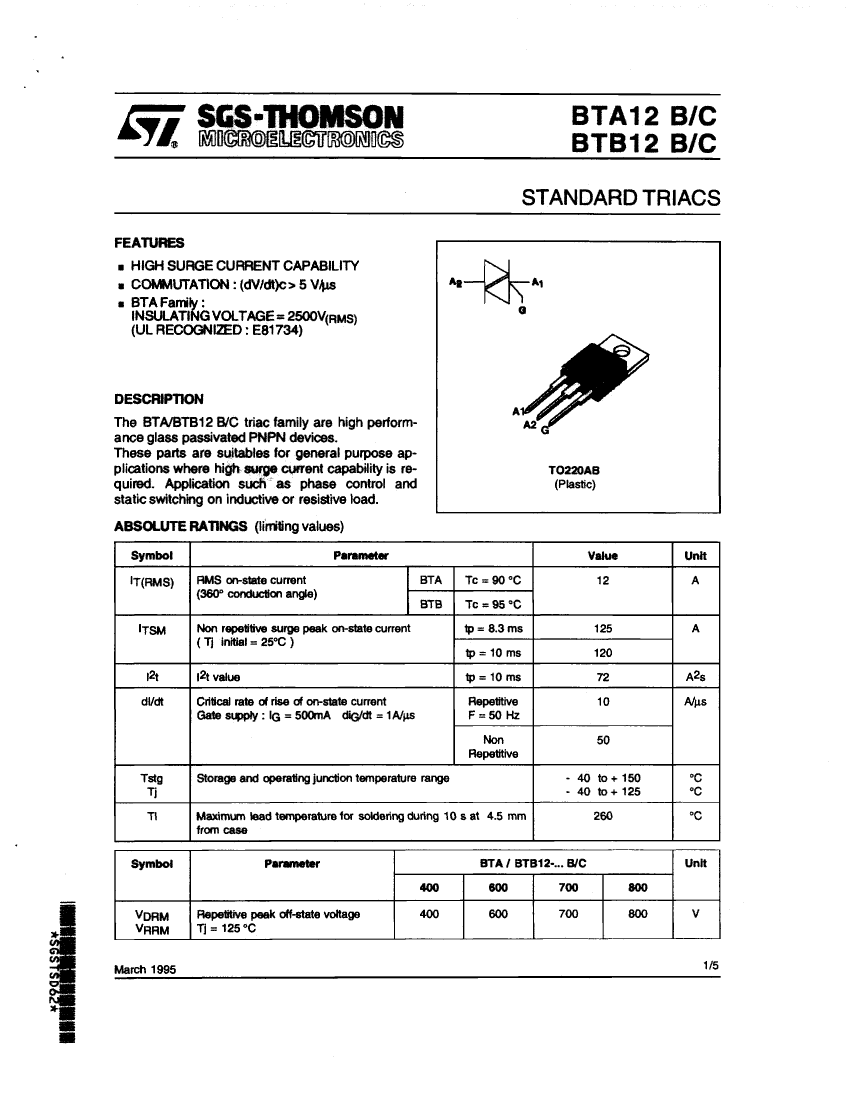

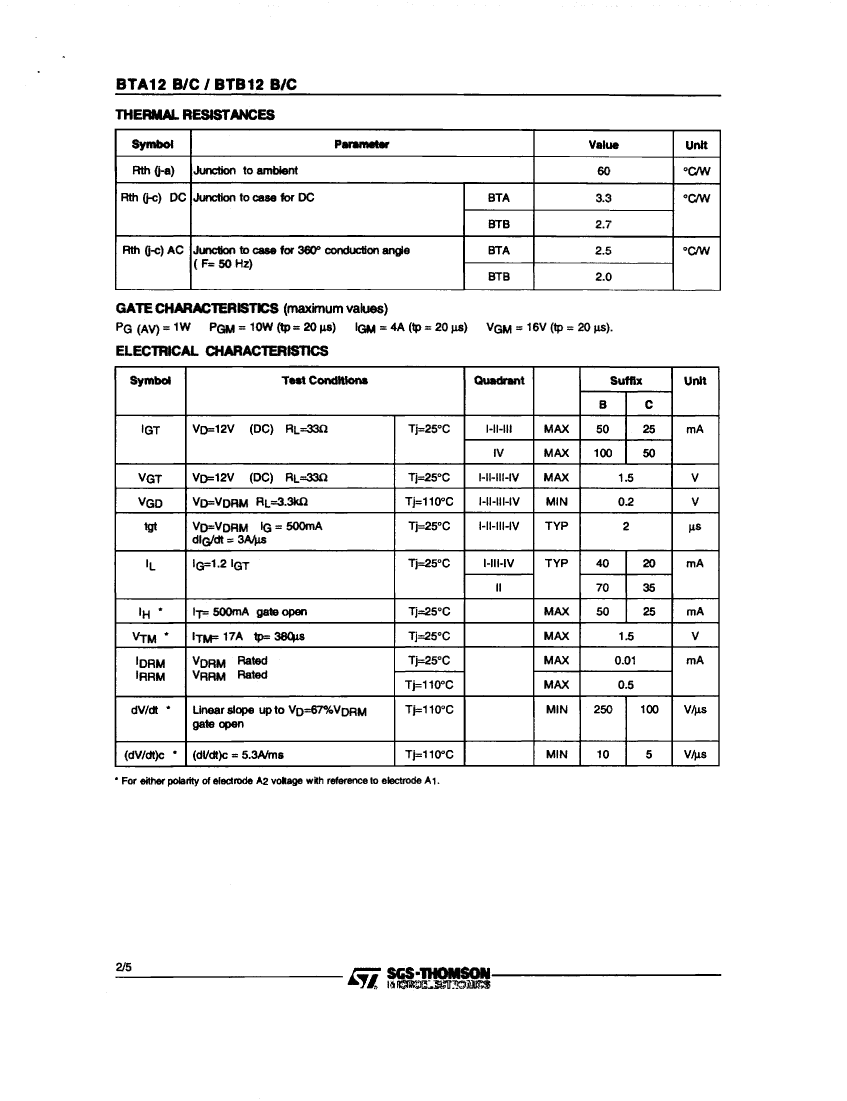

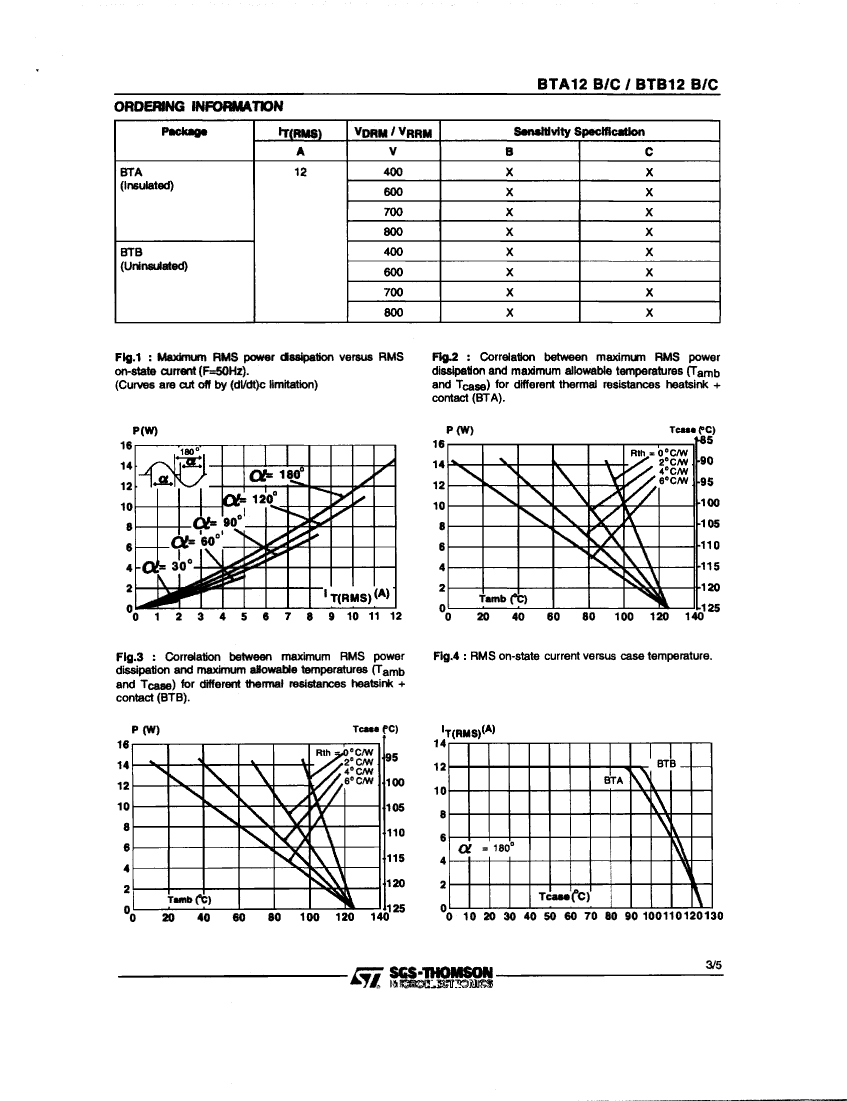

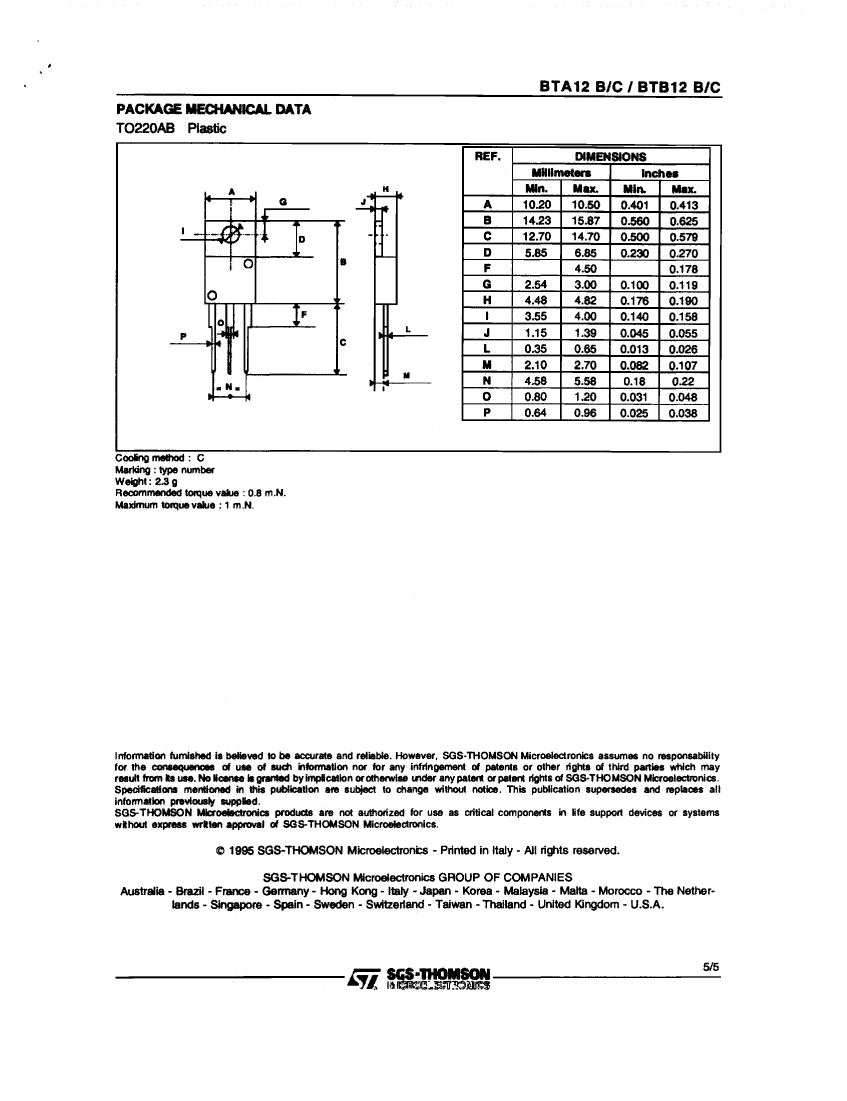

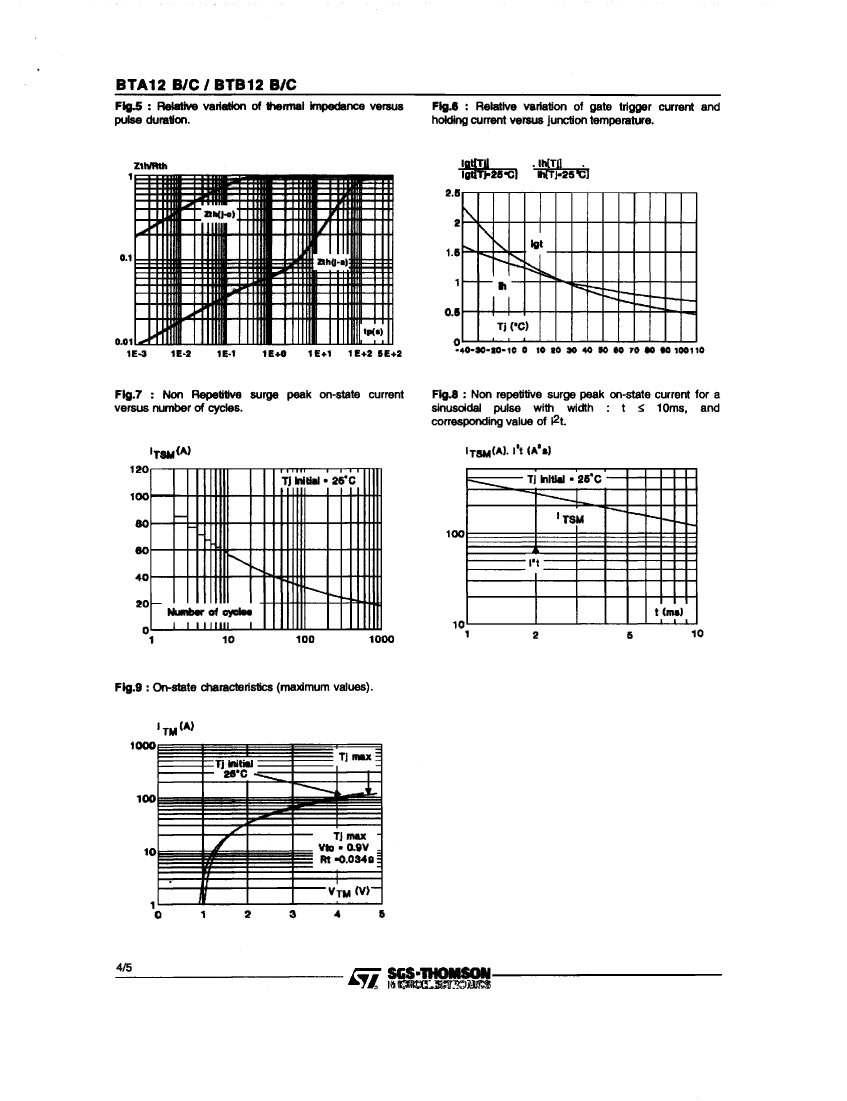

700V, 12A, TRIAC, TO-220AB

BTB12-700C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	not_compliant
Is Samacsys	N
Configuration	SINGLE
Critical rise rate of commutation voltage - minimum value	5 V/us
Critical rise rate of minimum off-state voltage	100 V/us
Maximum DC gate trigger current	25 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	25 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Maximum leakage current	0.5 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	12 A
Maximum repetitive peak off-state leakage current	10 µA
Off-state repetitive peak voltage	700 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	TRIAC
Base Number Matches	1

Preview

Download Datasheet

View All

BTB12-700C Related Products

	BTB12-700C	BTB12-700B	BTA12-400C	BTA12-400B	BTB12-400C	BTB12-400B
Description	700V, 12A, TRIAC, TO-220AB	700V, 12A, TRIAC, TO-220AB	400V, 12A, TRIAC, TO-220AB	400V, 12A, TRIAC, TO-220AB	400V, 12A, TRIAC, TO-220AB	400V, 12A, TRIAC, TO-220AB
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	not_compliant	compliant	not_compliant	not_compliant	not_compliant	not_compliant
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of commutation voltage - minimum value	5 V/us	10 V/us	5 V/us	10 V/us	5 V/us	10 V/us
Critical rise rate of minimum off-state voltage	100 V/us	250 V/us	100 V/us	250 V/us	100 V/us	250 V/us
Maximum DC gate trigger current	25 mA	50 mA	25 mA	50 mA	25 mA	50 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	25 mA	50 mA	25 mA	50 mA	25 mA	50 mA
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e3	e3	e3	e3	e3	e3
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	12 A	12 A	12 A	12 A	12 A	12 A
Maximum repetitive peak off-state leakage current	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA
Off-state repetitive peak voltage	700 V	700 V	400 V	400 V	400 V	400 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	-	-
Maker	-	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
