NFI15K3R3TRF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> NFI15K3R3TRF

NFI15K3R3TRF: DescriptionGeneral Purpose Inductor, 3.3uH, 10%, 1 Element, Ferrite-Core, SMD, 1210, CHIP, 1210, ROHS COMPLIANT; CategoryPassive components inductor; File Size243KB，8 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NFI15K3R3TRF Overview

General Purpose Inductor, 3.3uH, 10%, 1 Element, Ferrite-Core, SMD, 1210, CHIP, 1210, ROHS COMPLIANT

NFI15K3R3TRF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	1210
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	1210
core material	FERRITE
DC Resistance	1.2 Ω
Nominal inductance(L)	3.3 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	30
Maximum rated current	0.12 A
self resonant frequency	60 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	7.96 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

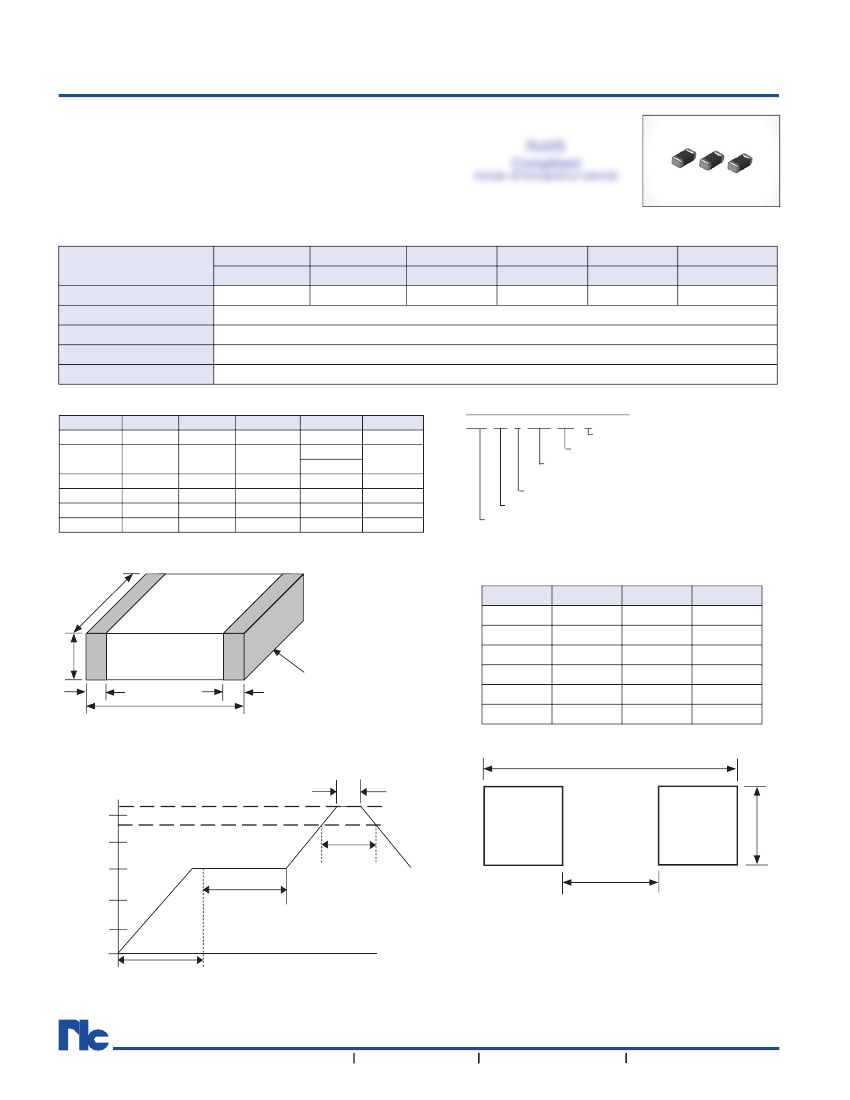

Ferrite Chip Inductor

FEATURES

• SURFACE MOUNT CASE SIZES (0603 ~ 1812)

• DURABLE MULTILAYER CONSTRUCTION

• MAGNETICALLY SHEILDED

• TAPE & REEL PACKAGING FOR AUTOMATIC INSERTION

• BOTH FLOW AND REFLOW SOLDERABLE

• Pb-FREE/RoHS COMPLIANT

SPECIFICATIONS

Case Size

Inductance Range

Available Tolerance

Temperature Range

Resistance to Solder Heat

Temperature Rise

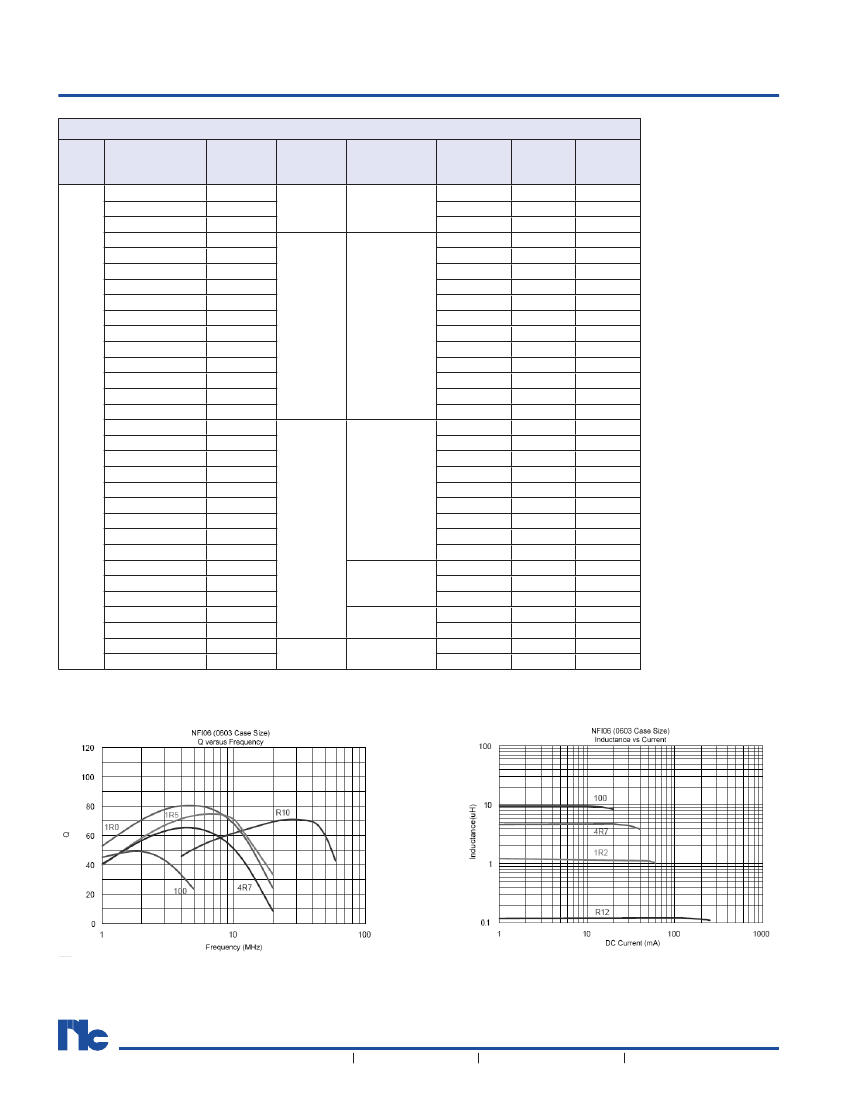

NFI06

0603

0.047µH ~ 18µH

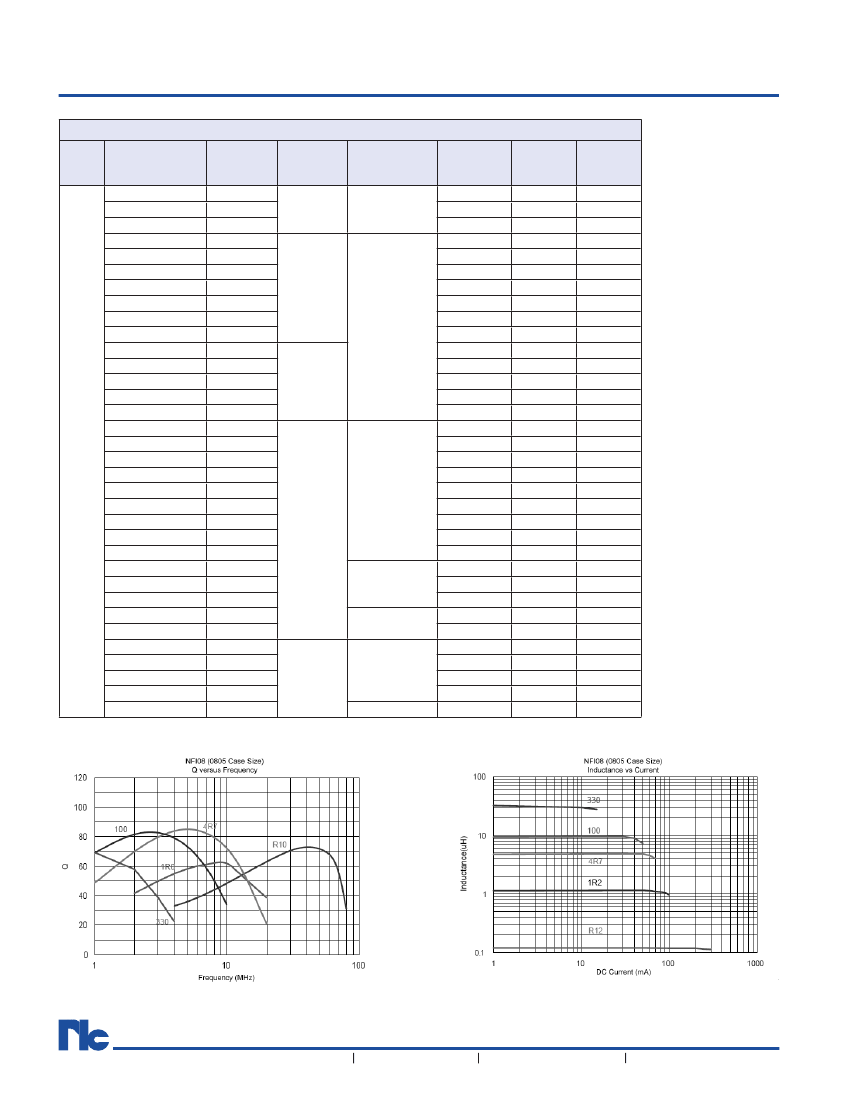

NFI08

0805

0.047µH ~ 33µH

NFI Series

RoHS

Compliant

includes all homogeneous materials

*See Part Number System for Details

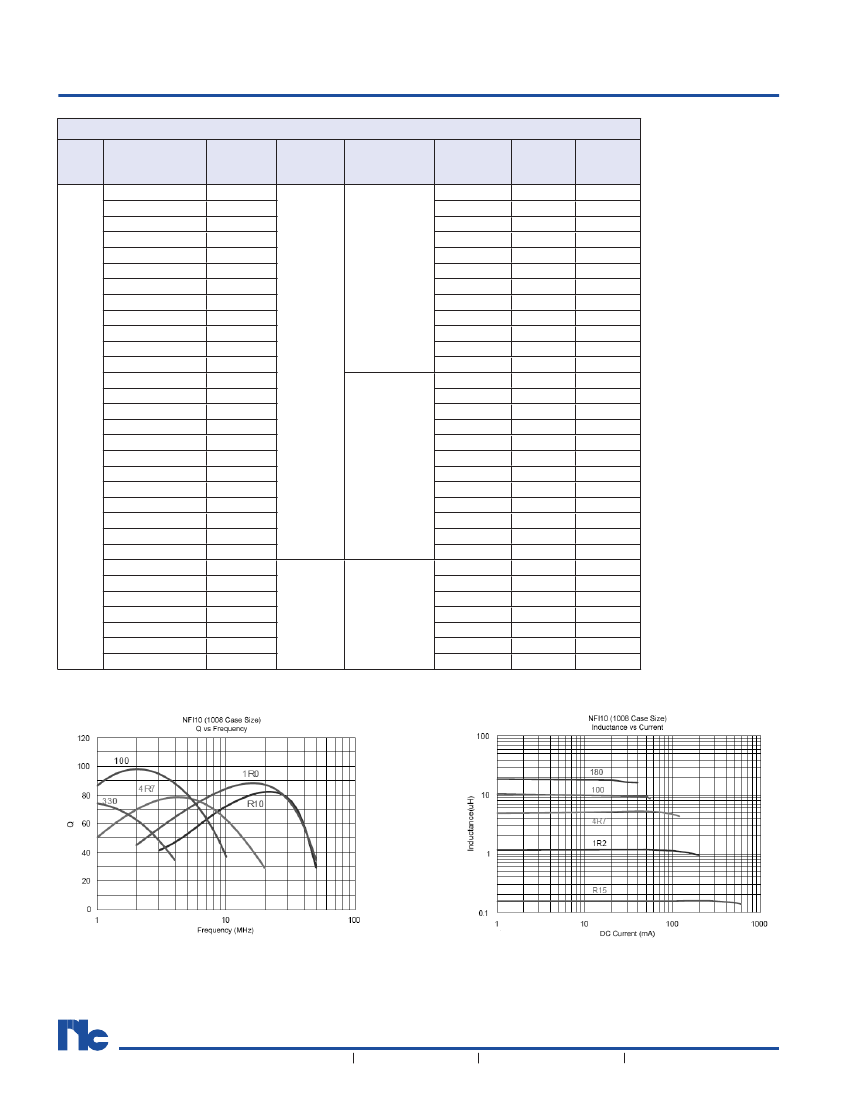

NFI10

1008

0.10µH ~ 33µH

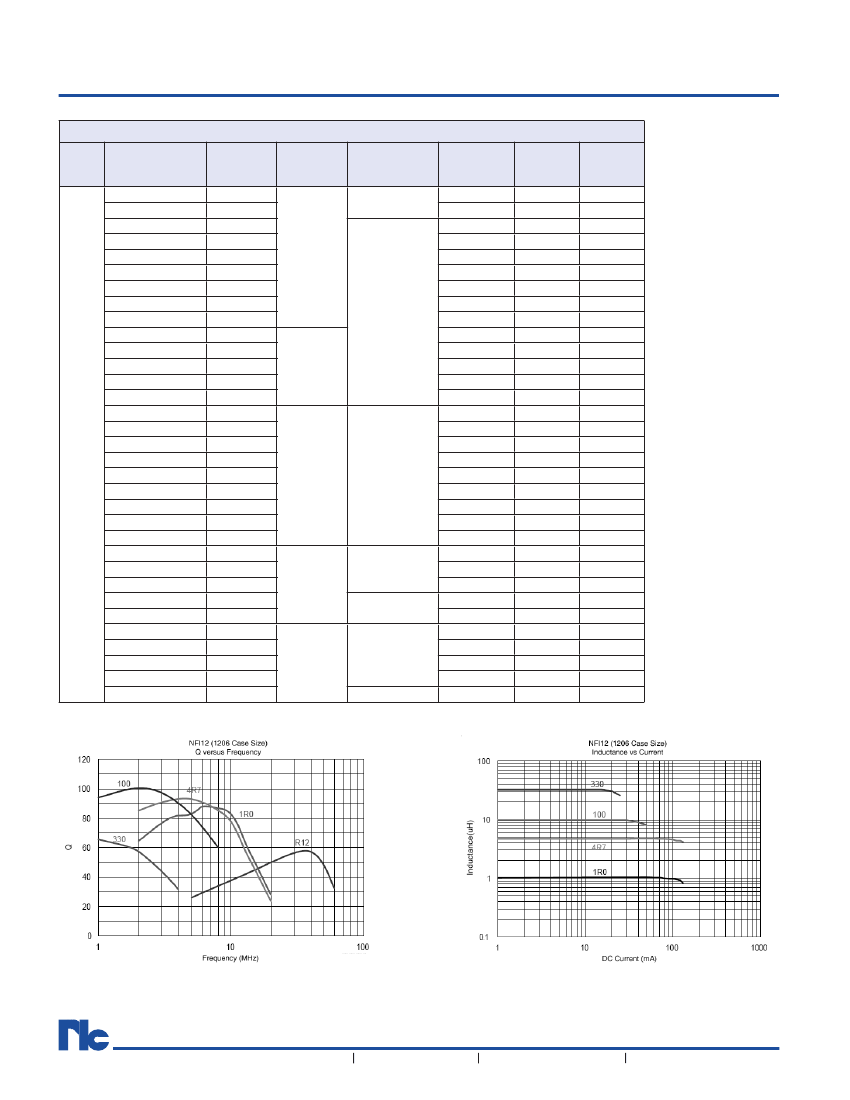

NFI12

1206

0.12µH ~ 33µH

NFI15

1210

0.12µH ~ 33µH

NFI18

1812

0.10µH ~ 33µH

5% (J), 10% (K), 15% (L), 20% (M), 25% (N)

-40°C ~ +85°C

260°C for 10 seconds

Delta T at IDC +30°C max.

CASE SIZE DIMENSIONS (mm)

Type

NFI06

NFI08

NFI10

NFI12

NFI15

NFI18

Case Size

0603

1.6 ± 0.15 0.8 ± 0.15

0805

1008

1206

1210

1812

2.0 ± 0.15 1.25 ± 0.15

2.5 ± 0.20

3.2 ± 0.20

4.5 ± 0.20

2.0 ± 0.20

1.6 ± 0.20

2.5 ± 0.15

3.2 ± 0.20

0.8 ± 0.15

0.85 ± 0.20

1.25 ± 0.20

1.6 ± 0.20

1.1 ± 0.30

1.3 ± 0.20

1.5 ± 0.20

0.3 ± 0.2

0.5 ± 0.3

0.5 ± 0.5

0.5 ± 0.3

PART NUMBER SYSTEM

NFI 06 J R22 TR F

Pb-free/RoHS Compliant

Tape & Reel Packaging

Inductance Code, value in µH,

R = decimal point

Tolerance Code (see speciﬁcations table)

Case Code (see available values tables)

Series

DIMENSIONS (mm)

LAND PATTERN DIMENSIONS (mm)

Case Size

0603

0805

TERMINATION:

(Nickel Barrier

with Sn Finish)

2.6

3.9

4.4

5.9

0.6

1.5

2.2

2.57

0.8

1.5

1.4

3.4

4.22

1008

1206

1210

1812

RECOMMENDED REFLOW SOLDERING PROFILE

Peak Temperature

(260°C for 10 sec.)

Temperature - Deg. C

250

200

150

100

60 sec.

150°C 60 sec.

Time above 230°C

60 sec.

Time (Seconds)

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com
