1-11313-4 datasheet, PDF - EEWORLD Datasheet

1-11313-4: DescriptionCONNECTOR, 168 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size24KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

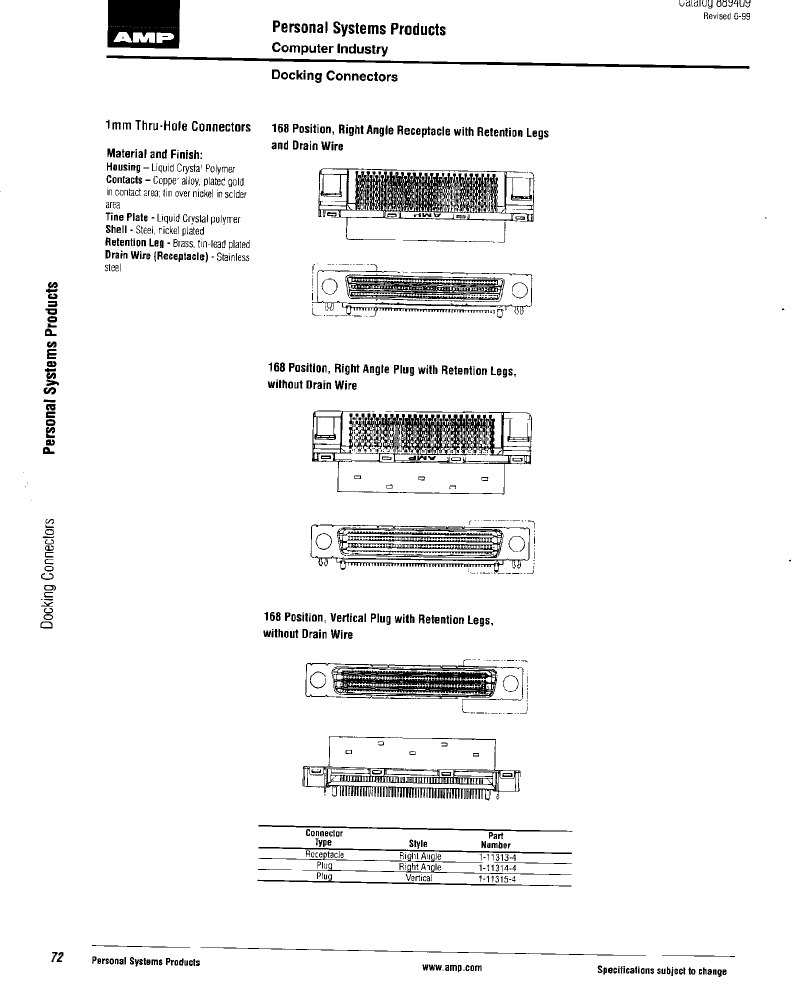

1-11313-4 Overview

CONNECTOR, 168 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	CHAMP, ESD PROTECTED, HIGH DENSITY, POLARIZED
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	11313
Plug information	1-11314-4
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	STEEL
Termination type	SOLDER
Total number of contacts	168
Base Number Matches	1

	1-11313-4	1-11315-4	1-11314-4
Description	CONNECTOR, 168 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE	168 CONTACT(S), MALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, PLUG	CONNECTOR, 168 CONTACT(S), MALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, PLUG
Reach Compliance Code	unknow	unknow	unknown
Other features	CHAMP, ESD PROTECTED, HIGH DENSITY, POLARIZED	PANEL MOUNT	CHAMP, ESD PROTECTED, HIGH DENSITY, POLARIZED
Body/casing type	RECEPTACLE	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE	MALE	MALE
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO
Manufacturer's serial number	11313	11315	11314
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	168	168	168
Plug information	1-11314-4	-	1-11313-4
Base Number Matches	1	1	-
