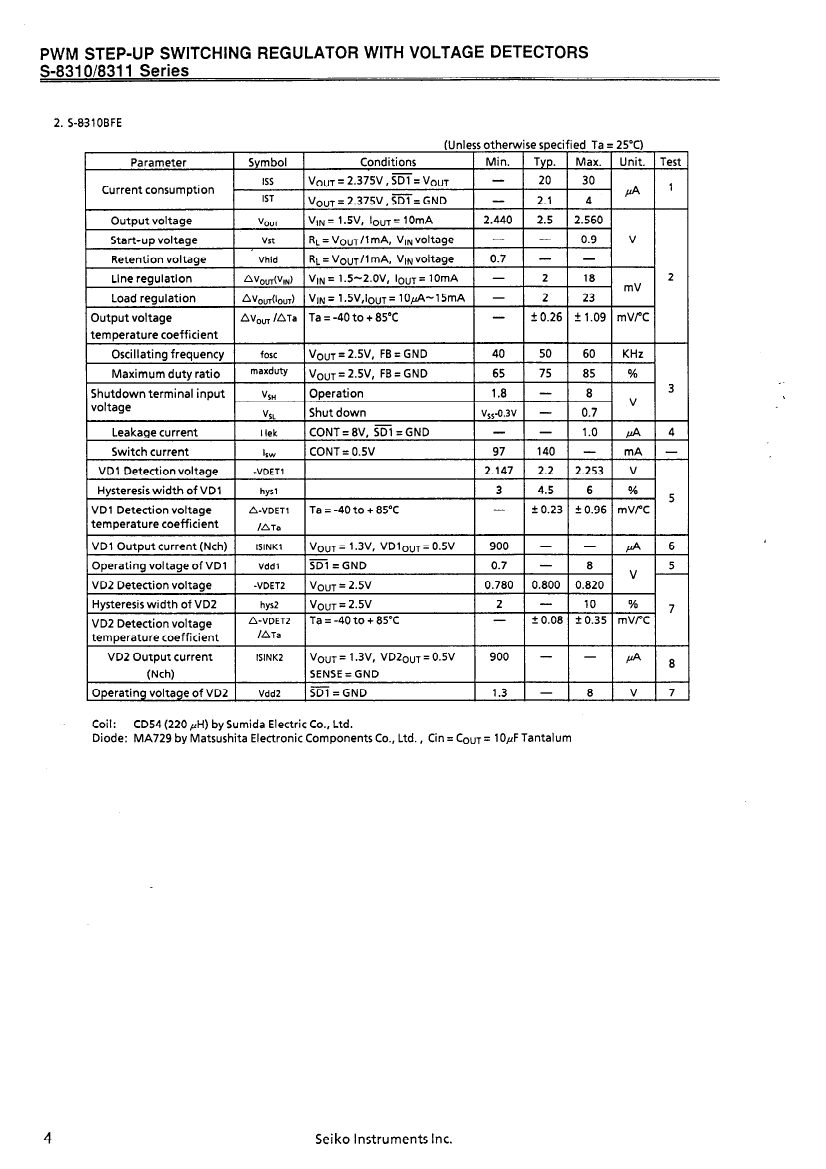

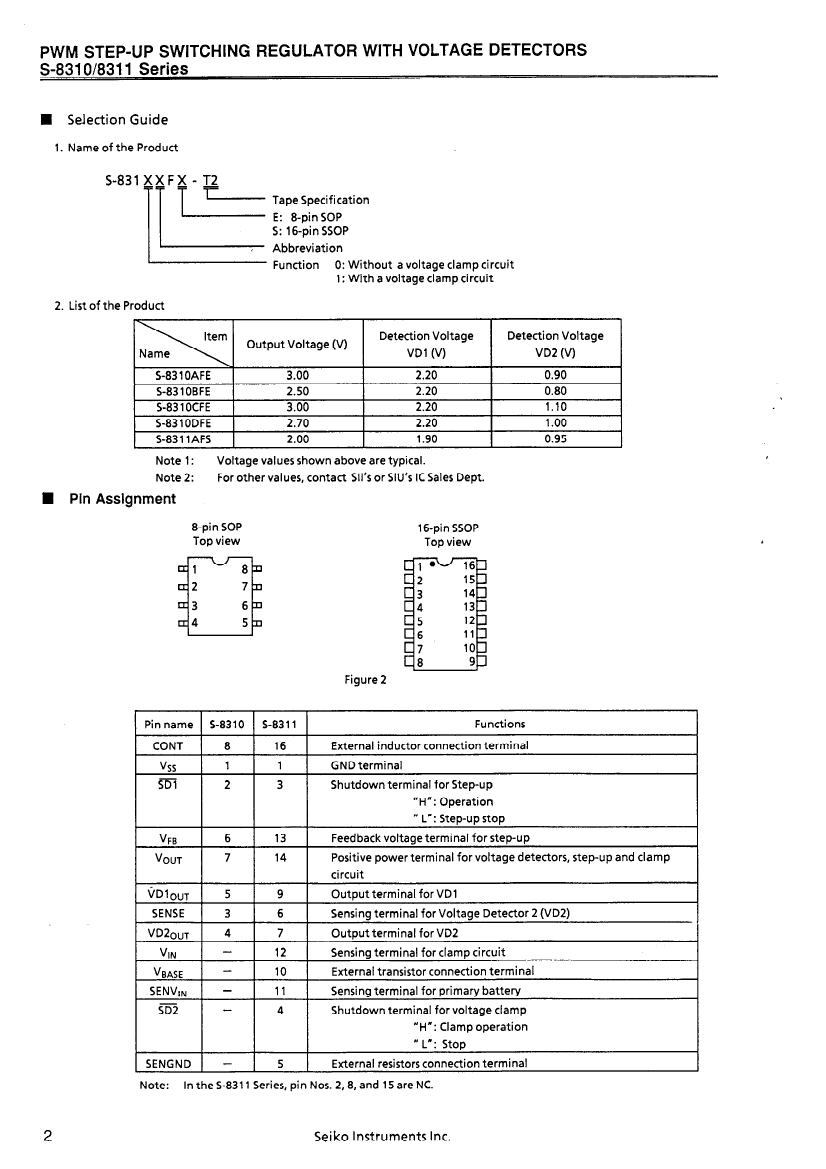

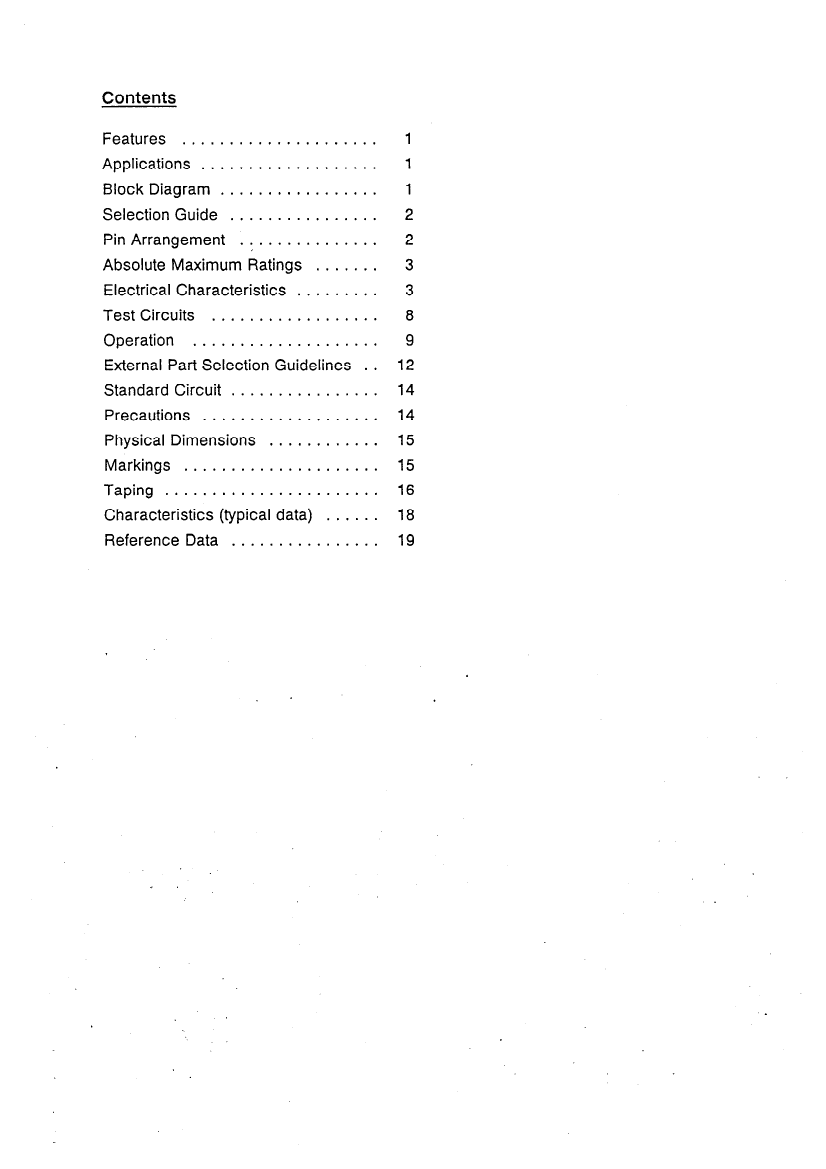

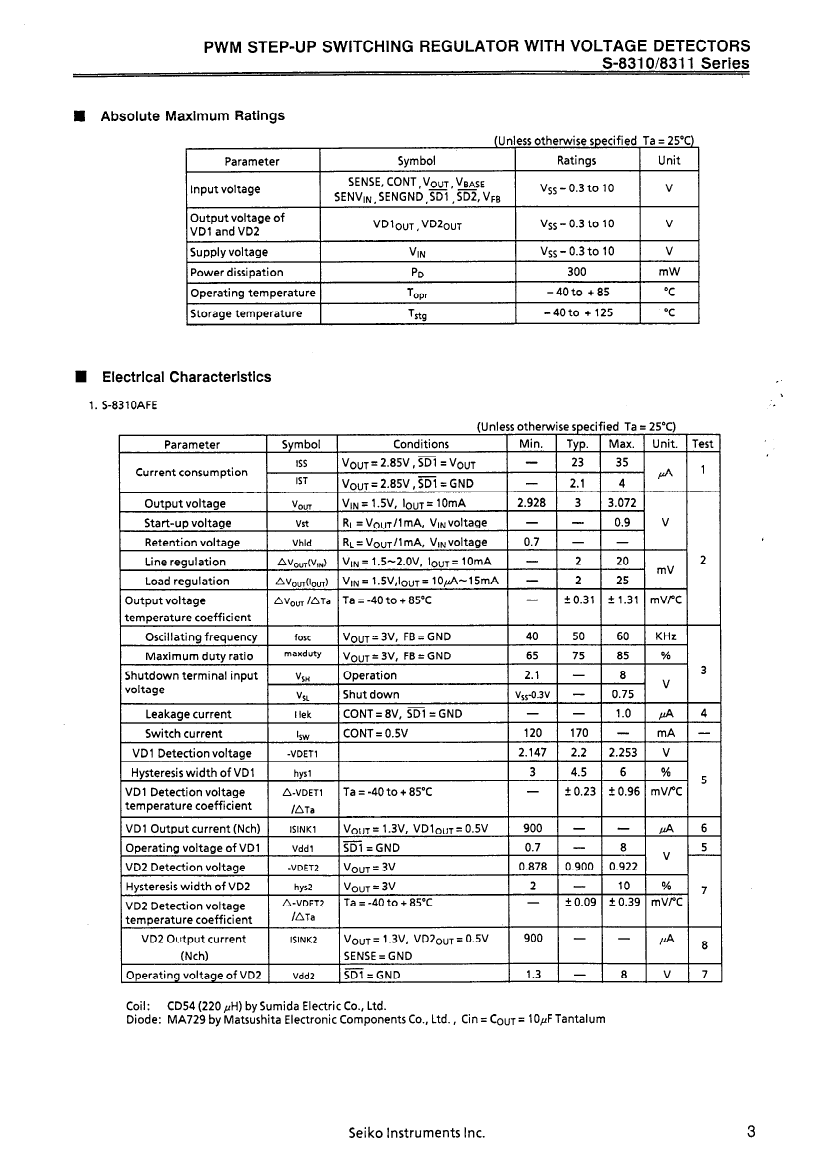

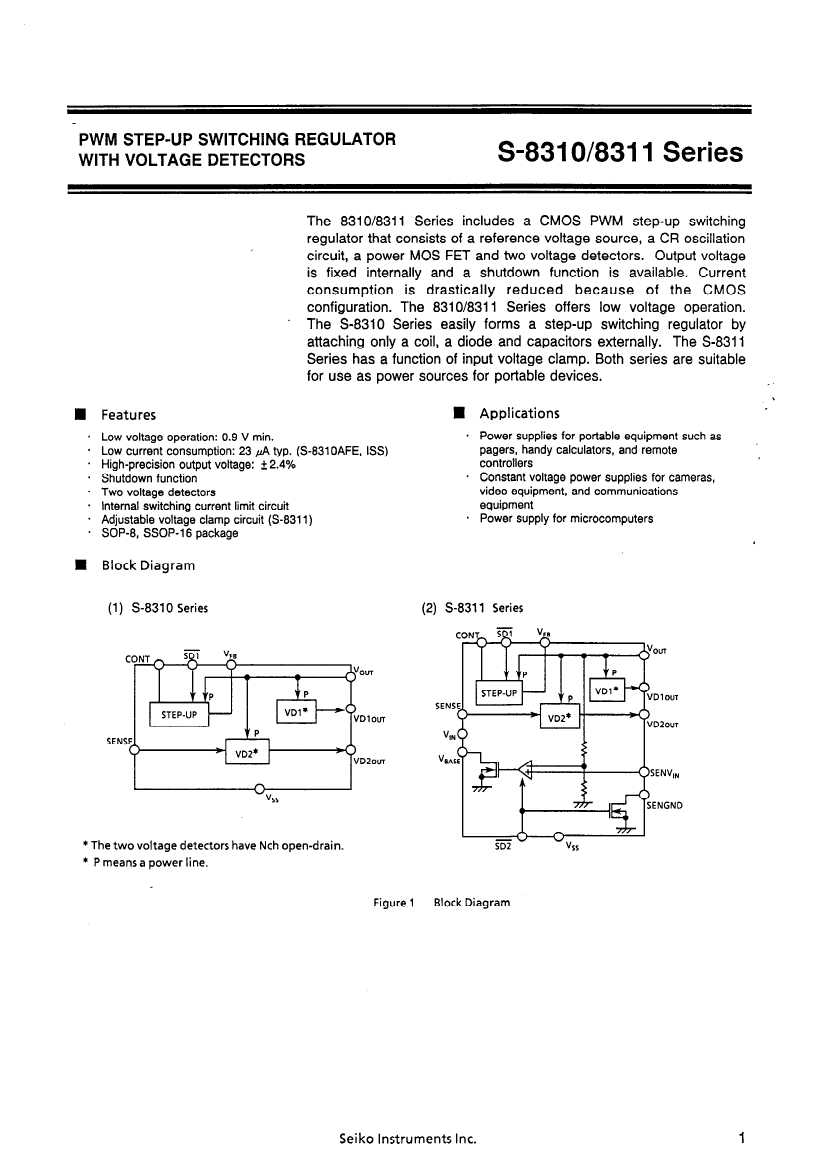

Preview

S-8310DFE-T2: DescriptionSwitching Regulator, Voltage-mode, 50kHz Switching Freq-Max, CMOS, PDSO8, SOP-8; CategoryPower/power management The power supply circuit; File Size2MB，32 Pages; ManufacturerABLIC

Download Datasheet Parametric Compare View All

S-8310DFE-T2 Overview

Switching Regulator, Voltage-mode, 50kHz Switching Freq-Max, CMOS, PDSO8, SOP-8

S-8310DFE-T2 Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
Minimum input voltage	0.9 V
JESD-30 code	R-PDSO-G8
length	5.2 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	2.7 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum supply current (Isup)	0.032 mA
surface mount	YES
Switch configuration	BOOST
Maximum switching frequency	50 kHz
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

S-8310DFE-T2 Related Products

	S-8310DFE-T2	S-8310BFE-T2	S-8311AFS	S-8311AFS-T2
Description	Switching Regulator, Voltage-mode, 50kHz Switching Freq-Max, CMOS, PDSO8, SOP-8	Switching Regulator, Voltage-mode, 50kHz Switching Freq-Max, CMOS, PDSO8, SOP-8	Switching Regulator, Voltage-mode, 50kHz Switching Freq-Max, CMOS, PDSO16, SSOP-16	Switching Regulator, Voltage-mode, 50kHz Switching Freq-Max, CMOS, PDSO16, SSOP-16
Parts packaging code	SOIC	SOIC	SOIC	SOIC
package instruction	LSOP,	LSOP,	LSSOP,	LSSOP,
Contacts	8	8	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	N
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Minimum input voltage	0.9 V	0.9 V	0.9 V	0.9 V
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G16	R-PDSO-G16
length	5.2 mm	5.2 mm	6.8 mm	6.8 mm
Number of functions	1	1	1	1
Number of terminals	8	8	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Nominal output voltage	2.7 V	2.5 V	2 V	2 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSOP	LSSOP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.7 mm	1.7 mm	1.7 mm
Maximum supply current (Isup)	0.032 mA	0.03 mA	0.085 mA	0.085 mA
surface mount	YES	YES	YES	YES
Switch configuration	BOOST	BOOST	BOOST	BOOST
Maximum switching frequency	50 kHz	50 kHz	50 kHz	50 kHz
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	4.4 mm	4.4 mm	4.4 mm	4.4 mm
Base Number Matches	1	1	1	1
