BA6138FE1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> Consumption circuit> BA6138FE1

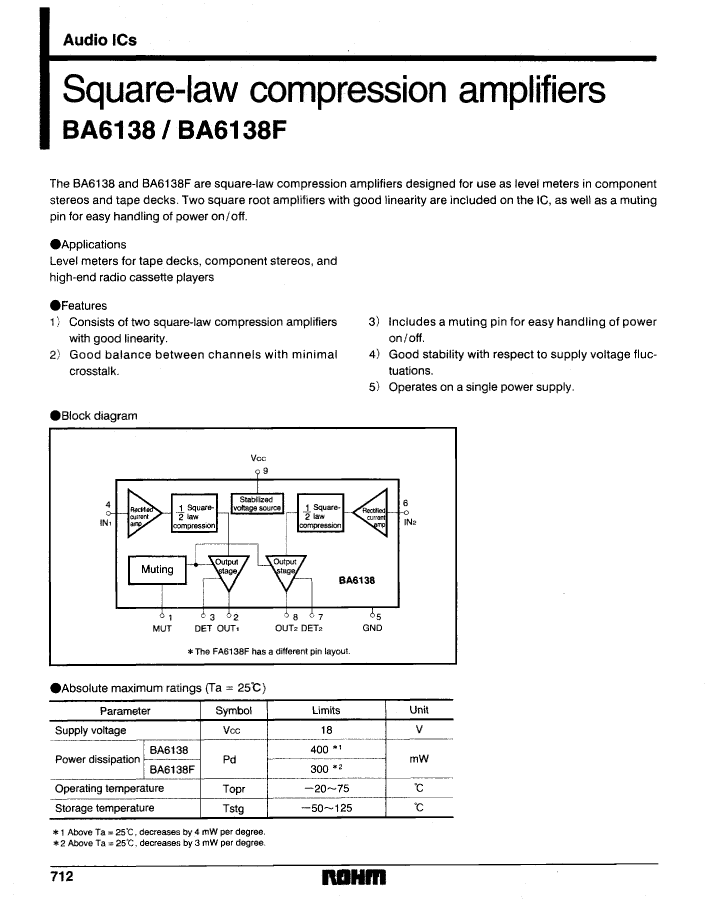

Preview

BA6138FE1: DescriptionSPECIALTY CONSUMER CIRCUIT, PDSO14, SOP-14; CategoryOther integrated circuit (IC) Consumption circuit; File Size141KB，4 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BA6138FE1 Overview

SPECIALTY CONSUMER CIRCUIT, PDSO14, SOP-14

BA6138FE1 Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	14
Reach Compliance Code	unknown
Is Samacsys	N
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G14
length	8.7 mm
Number of functions	1
Number of terminals	14
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	16 V
Minimum supply voltage (Vsup)	8.5 V
surface mount	YES
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

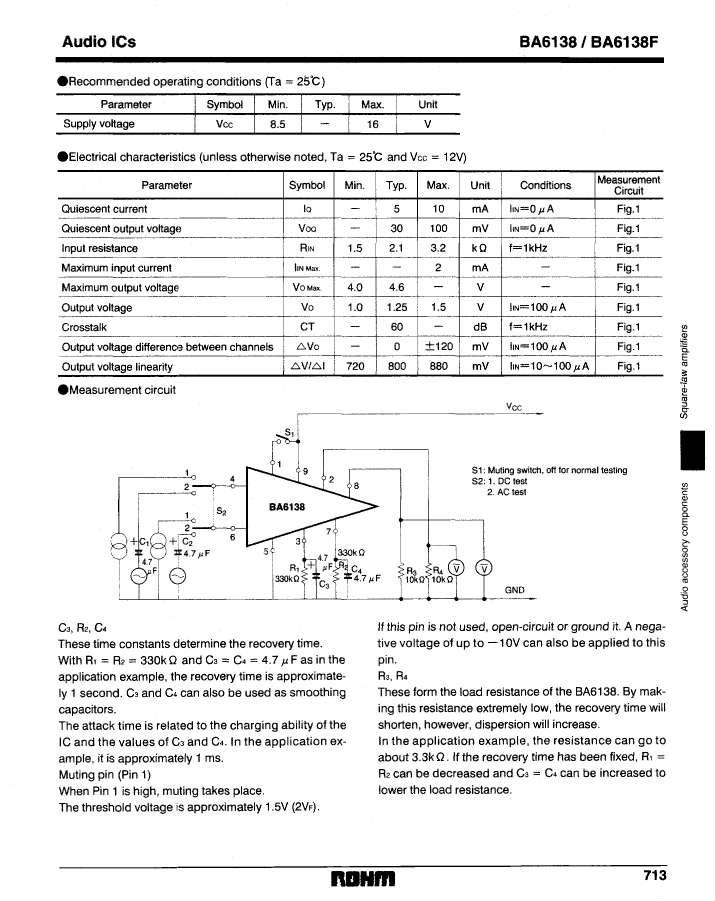

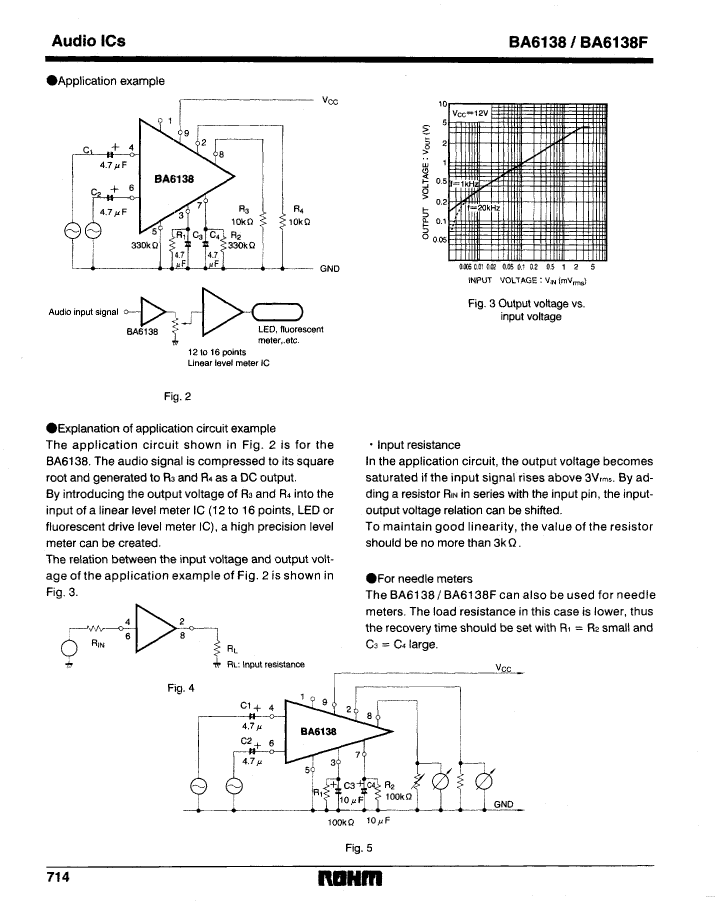

Preview

Download Datasheet

View All

BA6138FE1 Related Products

	BA6138FE1	BA6138F-E1	BA6138F-E2	BA6138FE2	BA6138F-T1	BA6138FT1
Description	SPECIALTY CONSUMER CIRCUIT, PDSO14, SOP-14	Consumer Circuit, PDSO14, SOP-14	Consumer Circuit, PDSO14, SOP-14	SPECIALTY CONSUMER CIRCUIT, PDSO14, SOP-14	Consumer Circuit, PDSO14, SOP-14	SPECIALTY CONSUMER CIRCUIT, PDSO14, SOP-14
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	LSOP,	LSOP,	LSOP,	LSOP,	LSOP,	LSOP,
Contacts	14	14	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N	N	N
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
length	8.7 mm	8.7 mm	8.7 mm	8.7 mm	8.7 mm	8.7 mm
Number of terminals	14	14	14	14	14	14
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSOP	LSOP	LSOP	LSOP	LSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Maximum supply voltage (Vsup)	16 V	16 V	16 V	16 V	16 V	16 V
Minimum supply voltage (Vsup)	8.5 V	8.5 V	8.5 V	8.5 V	8.5 V	8.5 V
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	4.4 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm
Base Number Matches	1	1	1	1	1	1
