Chip Beads
For signal line
Overview of the MMZ Series
FEATURES
Noise reduction solution for general signal lines.
Lineup includes 5 sizes from 0402 to 2012.
Achieves various frequency characteristics by using 8 materials with different features.
Multilayer integration monolithic structure makes it highly reliable.
There is no directivity.
APPLICATION
Smart phones, tablets, portable memory audio devices, various modules, PCs, note PCs, TVs, STBs, Blu-ray recorders, DSCs, and
DVCs
Signal line noise removal for game machines, smart grids, industrial equipment, etc.
PART NUMBER CONSTRUCTION
MMZ
Series name
0402
L×W×T Dimensions
(mm)
0402
0.4×0.2x0.2
0603
0.6×0.3x0.3
1005
1.0×0.5x0.5
1.6×0.8x0.6
1608
1.6×0.8x0.8
2012
2.0×1.25x0.85
S
Material name
A
B
D
F
Q
R
S
Y
121
Impedance
(:) at 100MHz
121
120
C
Characteristic
type
C
A
B
H
T
T
Packaging style
Taping
□□□
Internal code
OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
Temperature range
Operating
Storage
Type
temperature
temperature
（°C）
（°C）
MMZ0402
–55 to +125
–55 to +125
MMZ0603
–55 to +125
–55 to +125
MMZ1005
–55 to +125
–55 to +125
t=0.6mm
–55 to +125
–55 to +125
MMZ1608
t=0.8mm
–55 to +125
–55 to +125
MMZ2012
–55 to +125
–55 to +125
Operating temperature range includes self-temperature rise.
The Storage temperature range is for after the circuit board is mounted.
Package quantity
（pieces/reel）
20,000
15,000
10,000
4,000
4,000
4,000
Individual weight
（mg）
0.08
0.3
1
3
4
8
RoHS Directive Compliant Product: See the following for more details related to RoHS Directive compliant products. http://www.tdk.co.jp/rohs/
Halogen-free: Indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm.
• All specifications are subject to change without notice.
001-01 / 20130722 / e9412_mmz.fm
(5/33)
E M C
C o m p o n e n t s
Overview of the MMZ Series
MATERIAL CHARACTERISTICS
B material: This type is perfectly suited for fast digital signals. By equalizing R components and X components that beads possess at a
frequency of 5MHz, it is able to suppress overshooting, undershooting and ringing of fast digital signals.
R material: For wide frequency applications calling for broad impedance characteristics. For digital signal line applications calling
requiring good waveform integrity. Impedance values selected for effectiveness at 10 to 200MHz.
S material: Standard type that features impedance characteristics similar to those of a typical ferrite core. For signal line applications in
which the blocking region is near 100MHz. Impedance values selected for effectiveness at 40 to 300MHz.
Y material: High frequency range type intended for the 100MHz region and above.
For signal line applications in which the signal frequency is far from the cutoff frequency. Impedance values selected for
effectiveness at 80 to 400MHz.
A material: This high-impedance product is based on the impedance frequency characteristics of our Y-material. The product offers
excellent impedance characteristics, which is greater than 2500:, in the vicinity of 100MHz range (MMZ1608A252B).
Q material: For high-band applications designed for 100MHz and above. Impedance values selected for effectiveness at 100 to 800MHz.
D material: For applications calling for low insertion loss at low frequencies and sharply increasing impedance at high frequencies.
Designed for high impedance at high frequencies (300MHz to 1GHz) for signal line applications.
F material: This new product inherits the characteristic of our D-material, namely its sharp impedance rise time, and its impedance peak
frequency has been shifted higher into range. The product offers excellent noise suppression from 600MHz to as high as in
the GHz range.

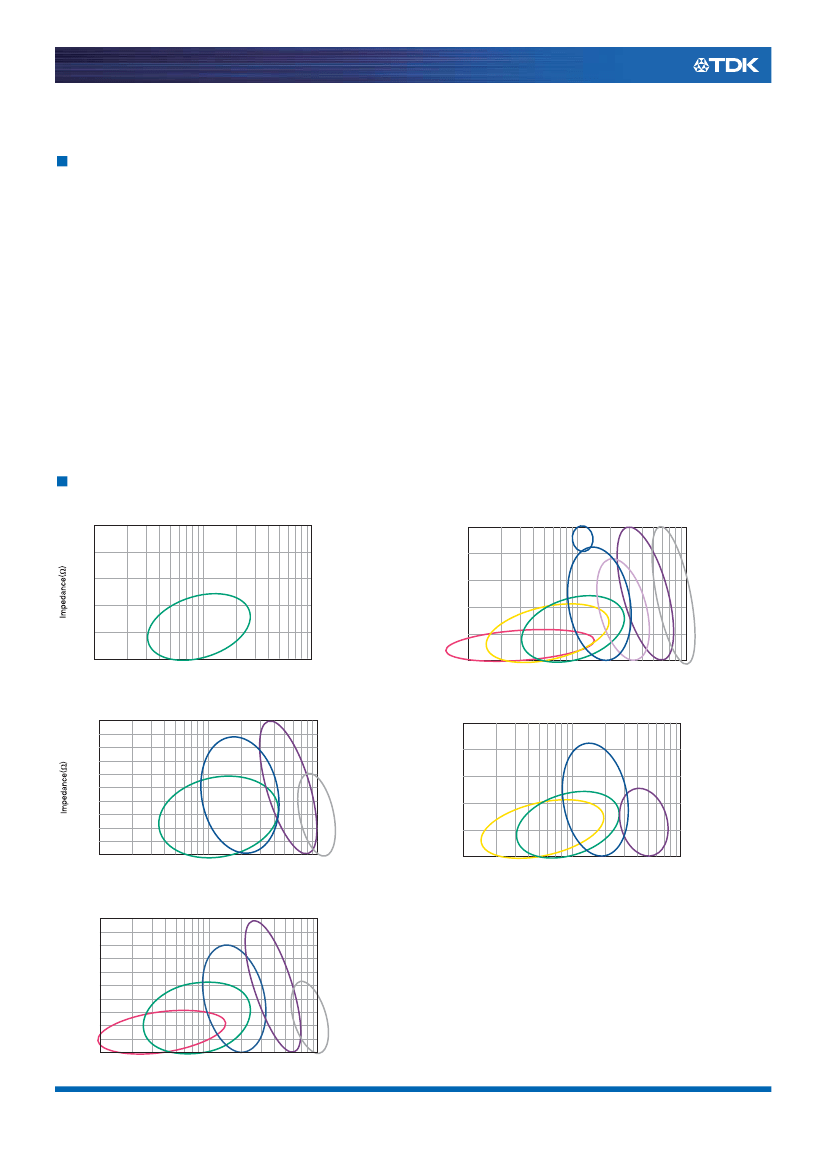

TYPICAL MATERIAL IMPEDANCE CHARACTERISTICS
MMZ0402 Type
500
400
Impedance(
Ω
)
300
200
100
0
10
MMZ1608 Type
2500
A
2000
1500
1000
500
B
100
Frequency(MHz)
1000
0
10
100
Frequency(MHz)
1000
R
S
Y
Q
D
F
S
MMZ0603 Type
2000
1800
1600
1400
1200
1000
800
600
400
200
0
10
100
Frequency(MHz)
1000
S
F
Y
D
MMZ2012 Type
2500
2000
Impedance(
Ω
)
1500
1000
500
0
10
R
Y
S
D
100
Frequency(MHz)
1000
MMZ1005 Type
2000
1800
1600
Impedance(
Ω
)
1400
1200
1000
800
600
400
200
0
10
100
Frequency(MHz)
1000
B
S
F
Y
D
