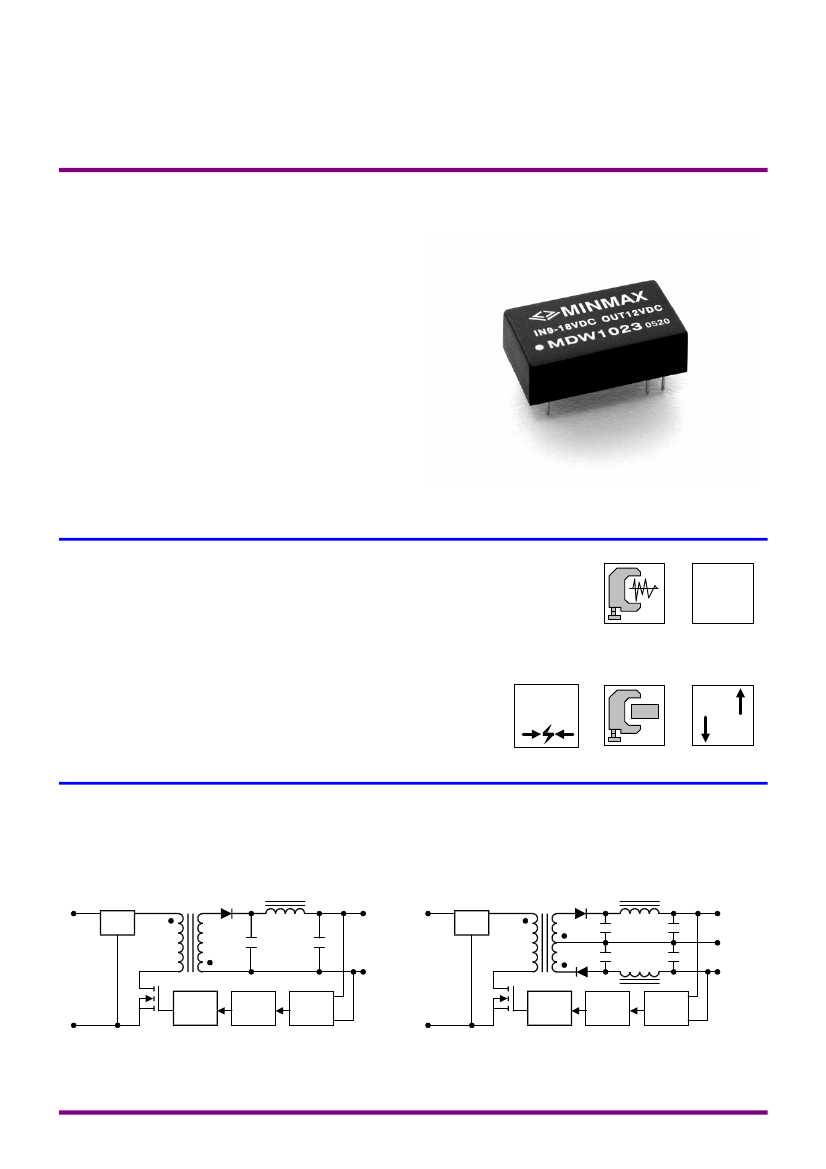

MDW1000 Series
2W, Wide Input Range DIP, Single & Dual Output DC/DC Converters
Key Features
Efficiency up to 81%
1500VDC Isolation
MTBF > 1,000,000 Hours
2:1 Wide Input Range
CSA1950 Safety Approval
Low Ripple and Noise
Short Circuit Protection
Complies with EN55022 Class A
UL 94V-0 Package Material
Internal SMD Construction
Minmax's MDW1000-Series power modules are low-profile
dc-dc converters that operate over input voltage ranges of
4.5-9VDC, 9-18VDC, 18-36VDC and 36-75VDC which provide
precisely regulated output voltages of 3.3V, 5V, 12V, 15V, {5V,
{12V and {15VDC.
The MDW1000 series is an excellent selection for data
communication equipments, mobile battery driven equipments,
distributed power systems, telecommunication equipments, mixed
analog/digital subsystems, process/machine control equipments,
computer peripheral systems and industrial robot systems.
The modules have a maximum power rating of 2W and a typical
full-load efficiency of 81%, continuous short circuit, 30mV output
ripple, built-in filtering for both input and output minimize the need for
external filtering.
I/O Isolation
Low Noise
EMI
EN55022
1500
VDC
Low Profile
2:1
Wide Range
Block Diagram
Single Output
Dual Output
+Vin
LC
Filter
+Vo
+Vin
LC
Filter
+Vo
Com.
-Vo
PFM
Isolation
Ref.Amp
PFM
Isolation
Ref.Amp
-Vo
-Vin
-Vin
1
MINMAX
REV:1 2006/03
MDW1000 Series
Model Selection Guide
Model
Number
Input
Voltage
VDC
MDW1011
MDW1012
MDW1013
MDW1014
MDW1015
MDW1016
MDW1017
MDW1021
MDW1022
MDW1023
MDW1024
MDW1025
MDW1026
MDW1027
MDW1031
MDW1032
MDW1033
MDW1034
MDW1035
MDW1036
MDW1037
MDW1041
MDW1042
MDW1043
MDW1044
MDW1045
MDW1046
MDW1047
Output
Voltage
VDC
3.3
5
12
15
{5
{12
{15
3.3
5
12
15
{5
{12
{15
3.3
5
12
15
{5
{12
{15
3.3
5
12
15
{5
{12
{15
Output Current
Max.
mA
500
400
167
134
{200
{83
{67
500
400
167
134
{200
{83
{67
500
400
167
134
{200
{83
{67
500
400
167
134
{200
{83
{67
Min.
mA
125
100
42
33
{50
{21
{17
125
100
42
33
{50
{21
{17
125
100
42
33
{50
{21
{17
125
100
42
33
{50
{21
{17
Input Current
@Max. Load
mA (Typ.)
471
548
534
582
667
615
598
184
217
209
220
242
224
226
96
109
109
108
119
112
110
49
57
53
55
62
57
57
@No Load
mA (Typ.)
Reflected
Ripple
Current
mA (Typ.)
Efficiency
@Max. Load
% (Typ.)
70
73
75
73
64
69
71
73
77
80
80
73
78
78
72
77
80
81
74
78
80
71
73
79
79
71
77
77
5
( 4.5 ~ 9 )
40
100
12
( 9 ~ 18 )
20
25
24
( 18 ~ 36 )
10
15
48
( 36 ~ 75 )
8
10
Absolute Maximum Ratings
Parameter
5VDC Input Models
12VDC Input Models
Input Surge Voltage
( 1000 mS )
24VDC Input Models
48VDC Input Models
Lead Temperature (1.5mm from case for 10 Sec.)
Internal Power Dissipation
Min.
-0.7
-0.7
-0.7
-0.7
---
---
Max.
11
25
50
100
260
1,800
Unit
VDC
VDC
VDC
VDC
]
mW
NoteS :
1. Specifications typical at Ta=+25], resistive load,
nominal input voltage, rated output current unless
otherwise noted.
2. Transient recovery time is measured to within 1%
error band for a step change in output load of 75%
to 100%.
3. Ripple & Noise measurement bandwidth is 0-20
MHz.
4. These power converters require a minimum output
loading to maintain specified regulation.
5. Operation under no-load conditions will not
damage these modules; however, they may not
meet all specifications listed.
6. All DC/DC converters should be externally fused
on the front end for protection.
7. Other input and output voltage may be available,
please contact factory.
8. Specifications subject to change without notice.
Exceeding the absolute maximum ratings of the unit could cause damage.
These are not continuous operating ratings.
Environmental Specifications
Parameter
Operating Temperature
Operating Temperature
Storage Temperature
Humidity
Cooling
Conducted EMI
Conditions
Ambient
Case
Min.
Max.
-40
+65
-40
+90
-40
+125
---
95
Free-Air Convection
EN55022 Class A
Unit
]
]
]
%
REV:1 2006/03
MINMAX
2
MDW1000 Series
Input Specifications
Parameter
Start Voltage
Model
5V Input Models
12V Input Models
24V Input Models
48V Input Models
Under Voltage Shutdown
5V Input Models
12V Input Models
24V Input Models
48V Input Models
Reverse Polarity Input Current
Short Circuit Input Power
Input Filter
All Models
Min.
3.5
4.5
8
16
---
---
---
---
---
---
Typ.
4
7
12
24
3.5
6.5
11
22
---
---
Pi Filter
Max.
4.5
9
18
36
4
8.5
17
34
1
1500
A
mW
VDC
Unit
Output Specifications
Parameter
Output Voltage Accuracy
Output Voltage Balance
Line Regulation
Load Regulation
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Over Power Protection
Transient Recovery Time
Transient Response Deviation
Temperature Coefficient
Output Short Circuit
25% Load Step Change
Over Line, Load & Temp.
Dual Output, Balanced Loads
Vin=Min. to Max.
Io=25% to 100%
Conditions
Min.
---
---
---
---
---
---
---
120
---
---
---
Continuous
Typ.
{1.0
{1.0
{0.3
{0.5
30
---
---
---
100
{3
{0.01
Max.
{2.0
{2.0
{0.5
{0.75
50
75
15
---
300
{5
{0.02
Unit
%
%
%
%
mV P-P
mV P-P
mV rms
%
uS
%
%/]
General Specifications
Parameter
Isolation Voltage Rated
Isolation Voltage Test
Isolation Resistance
Isolation Capacitance
Switching Frequency
MTBF
MIL-HDBK-217F @ 25], Ground Benign
Conditions
60 Seconds
Flash Tested for 1 Second
500VDC
100KHz,1V
Min.
1500
1650
1000
---
---
1000
Typ.
---
---
---
250
300
---
Max.
---
---
---
420
---
---
Unit
VDC
VDC
M[
pF
KHz
K Hours
Capacitive Load
Models by Vout
Maximum Capacitive Load
# For each output
3.3V
2200
5V
1000
12V
170
15V
110
{5V
#
470
{12V
#
100
{15V
#
47
Unit
uF
3
MINMAX
REV:1 2006/03
MDW1000 Series
Input Fuse Selection Guide
5V Input Models
1000mA Slow - Blow Type
12V Input Models
500mA Slow - Blow Type
24V Input Models
250mA Slow - Blow Type
48V Input Models
120mA Slow - Blow Type
Input Voltage Transient Rating
150
140
130
120
110
100
Vin ( VDC )
90
80
70
60
50
40
30
20
10
0
10uS
100uS
1mS
10mS
100mS
5VDC Input Models
12VDC Input Models
24VDC Input Models
48VDC Input Models
REV:1 2006/03
MINMAX
4
MDW1000 Series
100
90
Efficiency (%)
Efficiency (%)
100
90
80
70
60
50
80
70
60
50
Low
Nom
Input Voltage (V)
High
Low
Nom
Input Voltage (V)
High
Efficiency vs Input Voltage ( Single Output )
Efficiency vs Input Voltage ( Dual Output )
90
80
Efficiency (%)
70
60
50
40
30
20
10
20
40
60
80
100
90
80
70
Efficiency (%)
60
50
40
30
20
10
20
40
60
Load Current (%)
80
100
Load Current (%)
Efficiency vs Output Load ( Single Output )
Efficiency vs Output Load ( Dual Output )
100
80
Output Power (%)
100LFM
400LFM
200LFM
60
Natural
convection
40
20
0
-40
〜
50
60
70
80
]
90
100
110
Ambient Temperature
Derating Curve
5
MINMAX
REV:1 2006/03
