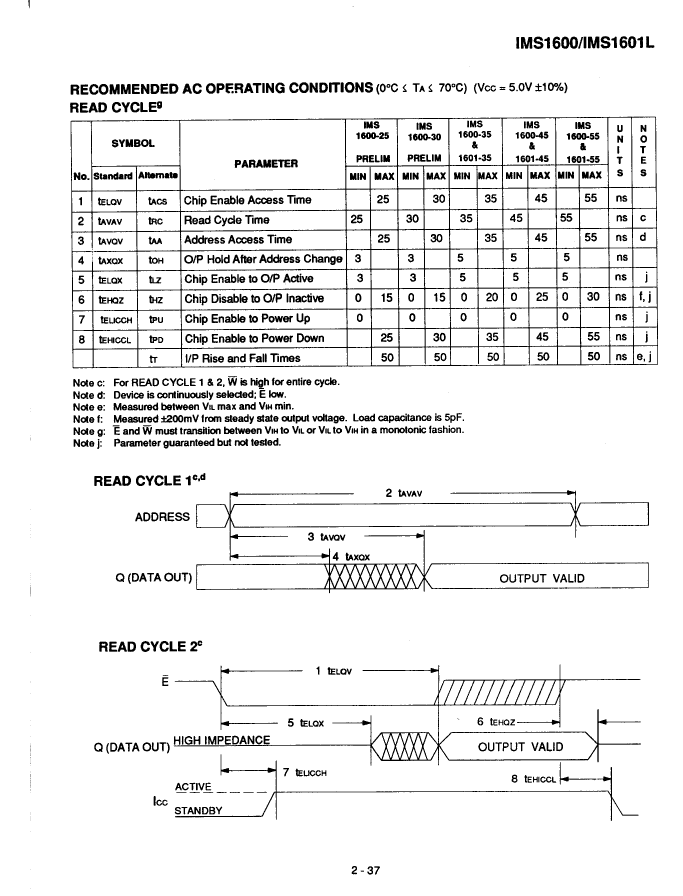

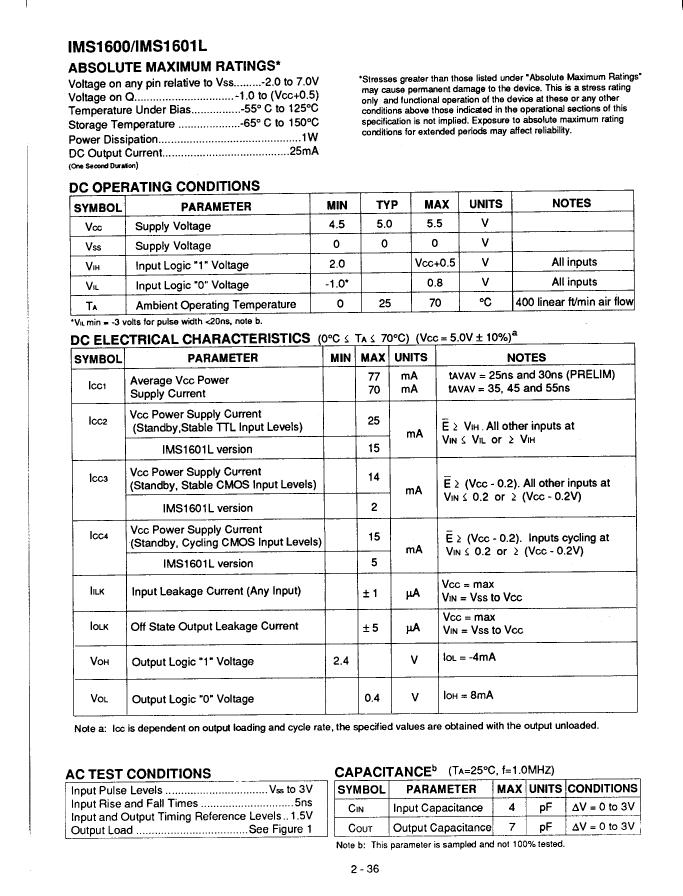

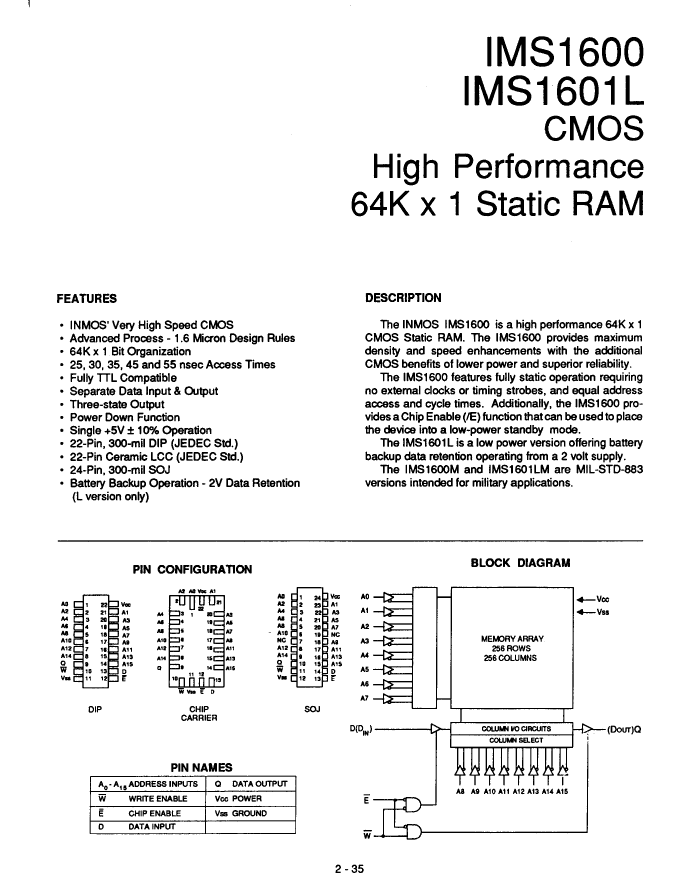

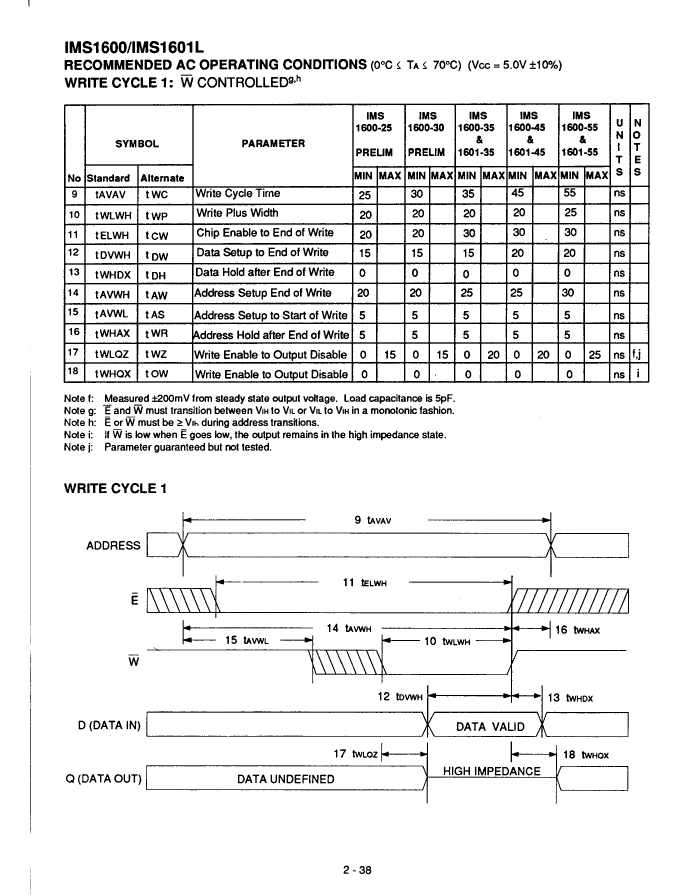

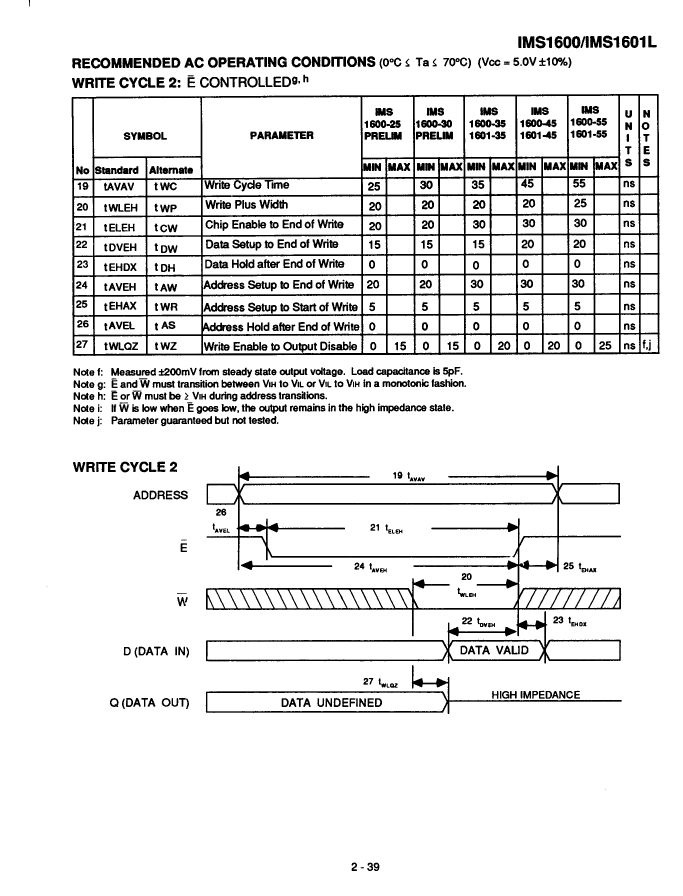

Preview

IMS1601LS-45: DescriptionStandard SRAM, 64KX1, 45ns, CMOS, CDIP22,; Categorystorage storage; File Size536KB，8 Pages; ManufacturerInmos Corporation

Download Datasheet Parametric Compare View All

IMS1601LS-45 Overview

Standard SRAM, 64KX1, 45ns, CMOS, CDIP22,

IMS1601LS-45 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Is Samacsys	N
Maximum access time	45 ns
I/O type	SEPARATE
JESD-30 code	R-XDIP-T22
JESD-609 code	e0
memory density	65536 bit
Memory IC Type	STANDARD SRAM
memory width	1
Number of terminals	22
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX1
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP22,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.00007 A
Minimum standby current	2 V
Maximum slew rate	0.07 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

IMS1601LS-45 Related Products

	IMS1601LS-45	IMS1601LS-55	IMS1601LP-45	IMS1601LW-55	IMS1601LP-55	IMS1601LW-45
Description	Standard SRAM, 64KX1, 45ns, CMOS, CDIP22,	Standard SRAM, 64KX1, 55ns, CMOS, CDIP22,	Standard SRAM, 64KX1, 45ns, CMOS, PDIP22,	Standard SRAM, 64KX1, 55ns, CMOS, CQCC22,	Standard SRAM, 64KX1, 55ns, CMOS, PDIP22,	Standard SRAM, 64KX1, 45ns, CMOS, CQCC22,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Maximum access time	45 ns	55 ns	45 ns	55 ns	55 ns	45 ns
I/O type	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE
JESD-30 code	R-XDIP-T22	R-XDIP-T22	R-PDIP-T22	R-XQCC-N22	R-PDIP-T22	R-XQCC-N22
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	1	1	1	1	1	1
Number of terminals	22	22	22	22	22	22
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX1	64KX1	64KX1	64KX1	64KX1	64KX1
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	QCCN	DIP	QCCN
Encapsulate equivalent code	DIP22,.3	DIP22,.3	DIP22,.3	LCC22,.3X.5	DIP22,.3	LCC22,.3X.5
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.00007 A	0.00007 A	0.00007 A	0.00007 A	0.00007 A	0.00007 A
Minimum standby current	2 V	2 V	2 V	2 V	2 V	2 V
Maximum slew rate	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	DUAL	QUAD
Base Number Matches	1	1	1	1	-	-
