the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
1

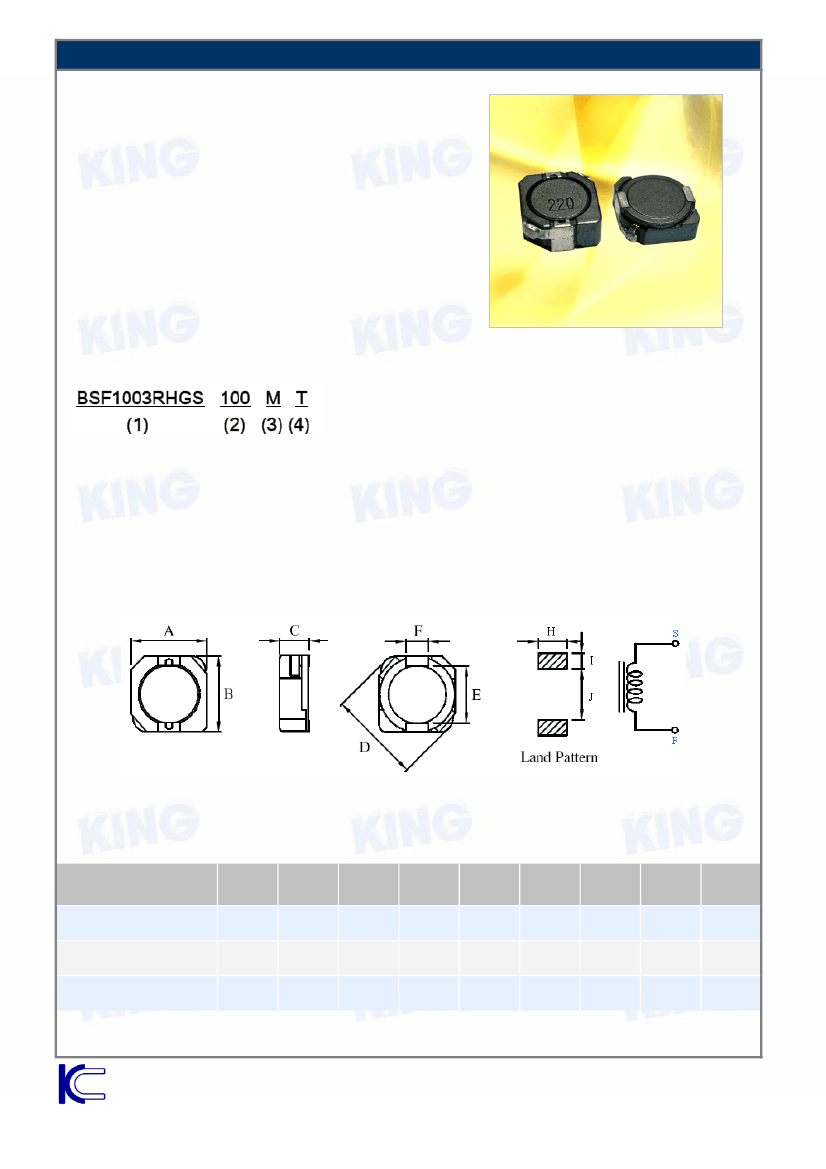

BSF1003RHGS.A01
SMD POWER INDUCTORS
→
BSF□□□□RHGS SERIES

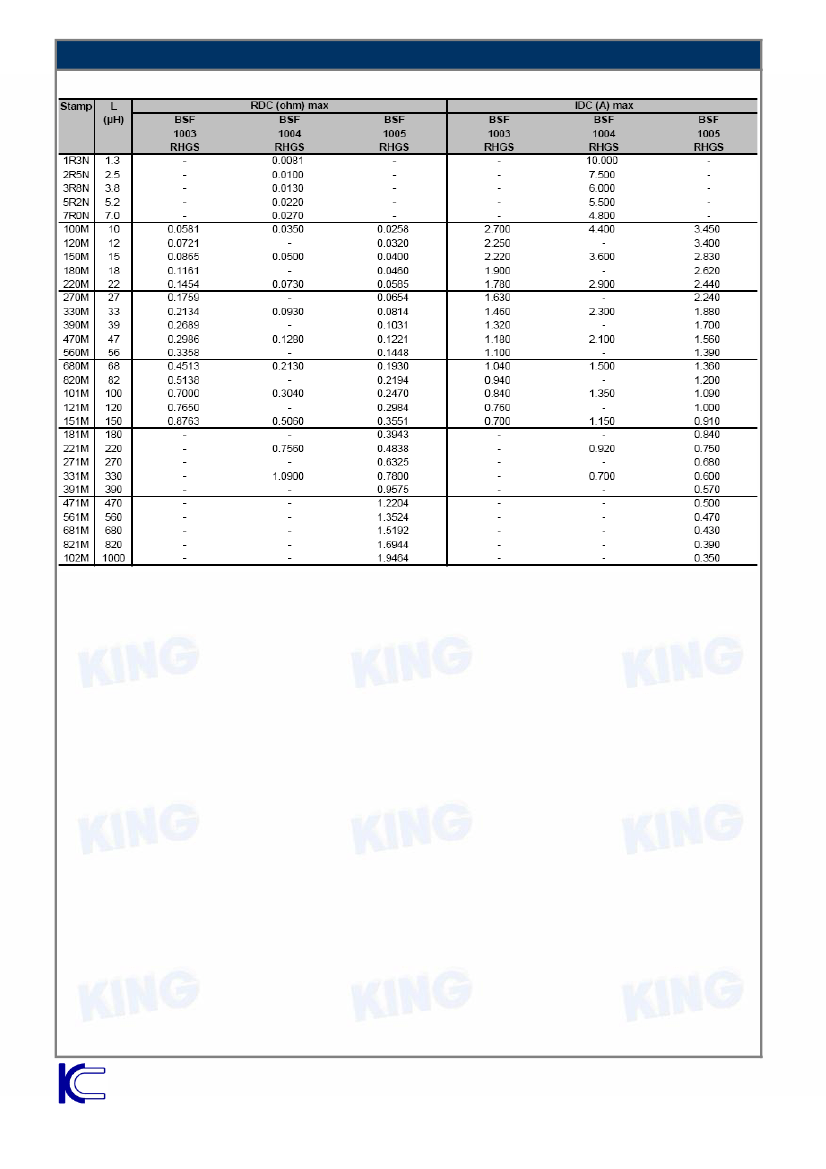

ELECTRICAL CHARACTERISTIC
Test Freq. : 100KHz /1V
Tolerance : M± 20% ,N± 30%
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
2
BSF1003RHGS.A01
SMD POWER INDUCTORS
→
BSF1003RHGS SERIES
ELECTRICAL CHARACTERISTIC
ORDERING CODE
BSF1003RHGS100MT
BSF1003RHGS120MT
BSF1003RHGS150MT
BSF1003RHGS180MT
BSF1003RHGS220MT
BSF1003RHGS270MT
BSF1003RHGS330MT
BSF1003RHGS390MT
BSF1003RHGS470MT
BSF1003RHGS560MT
BSF1003RHGS680MT
BSF1003RHGS820MT
BSF1003RHGS101MT
BSF1003RHGS121MT
BSF1003RHGS151MT
Test Freq.:100KHz/1V
Tolerance : M± 20% ,N± 30%
Inductance
(μH)
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0
150.0
Test Frequency
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DC Resistance
(Ω)max
0.0581
0.0721
0.0865
0.1161
0.1454
0.1759
0.2134
0.2689
0.2986
0.3358
0.4513
0.5138
0.7000
0.7650
0.8763
IDC
(A)max
2.70
2.25
2.22
1.90
1.78
1.63
1.46
1.32
1.18
1.10
1.04
0.94
0.84
0.76
0.70
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
