SM-TC-R-H-L-26 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> SM-TC-R-H-L-26

SM-TC-R-H-L-26: DescriptionRF Coaxial Relay, SPDT, Latched, 0.5A (Coil), 12VDC (Coil), 6000mW (Coil), 26500MHz, DC Input, DC Output, Panel Mount,; CategoryMechanical and electronic products relay; File Size92KB，1 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric View All

SM-TC-R-H-L-26 Overview

RF Coaxial Relay, SPDT, Latched, 0.5A (Coil), 12VDC (Coil), 6000mW (Coil), 26500MHz, DC Input, DC Output, Panel Mount,

SM-TC-R-H-L-26 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	ISOLATION MIN: 40
body width	33.78 mm
body height	38.1 mm
Body length or diameter	33.78 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.5 A
Coil power	6000 mW
Coil resistance	24 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Electrical life	1000000 Cycle(s)
Maximum insertion loss	0.7 dB
Maximum isolation	40 dB
Manufacturer's serial number	SM
Installation features	PANEL MOUNT
Maximum operating frequency	26500 MHz
Minimum operating frequency
physical size	33.78mm X 33.78mm X 38.1mm
Relay action	LATCHED
Relay function	SPDT
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	20 ms
Termination type	CONNECTOR
voltage standing wave ratio	1.8
Base Number Matches	1

Preview

Download Datasheet

View All

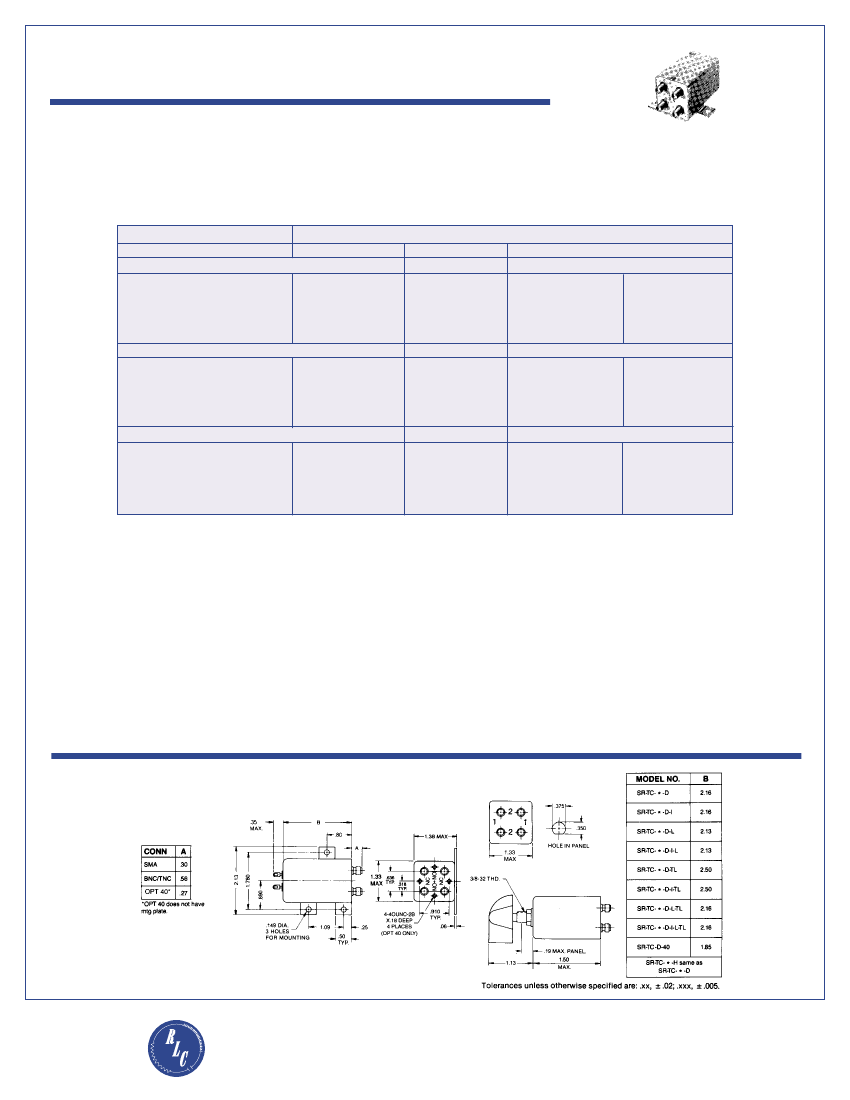

Type C Transfer Coaxial Switch

This RLC Electronics' Type C mid-size Transfer Switch line

provides extremely high reliability, long life and outstanding

electrical performance features extremely low insertion loss

and VSWR over the entire DC-18 GHz range, with option to

40 GHz, while maintaining high isolation.

Specifications

-2-3-4-5-6-7

Switch Type:

Frequency Range:

DC-18 GHz

Insertion Loss (Max dB)

DC-4.0 GHz

4.0-12.4 GHz

12.4-18 GHz

18-26.5 GHz (option 26)

VSWR (Max)

DC-4 GHz

4.0-12.4 GHz

12.4-18 GHz

18-26.5 GHz (option)

Isolation (dB Min)

DC-4 GHz

4.0-12.4 GHz

12.4-18 GHz

18-26.5 GHz (option)

0.20

0.30

0.40

–

TRANSFER

(Opt. 26)

DC-40 GHz (Opt. 40)

Ins. Loss: (dB Max)

DC-6.0 GHz

0.25

6.0-12 GHz

0.40

12-18.5 GHz

0.50

18.5-26.5 GHz

0.70

26.5-40 GHz

0.90

VSWR: (Max)

DC-6.0 GHz

1.30

6.0-12 GHz

1.40

12-18.5 GHz

1.50

18.5-26.5 GHz

1.70

26.5-40 GHz

2.00

Insolation: (dB Min)

DC-6.0 GHz

6.0-12 GHz

12-18.5 GHz

18.5-26.5 GHz

26.5-40 GHz

0.20

0.30

0.40

0.70

1.20

1.30

1.50

–

1.20

1.30

1.50

1.80

–

Power Rating, RF Cold Switching:

See page 5.

Impedance:

50 Ohms

Operating Power 25°C:

(Failsafe):

12Vdc at 500 ma nom.

28Vdc at 200 ma nom. 115 Vac at 40 ma nom.

(Latching)

12 Vdc at 500 ma nom.

28 Vdc at 300 ma nom. 115 Vac at 225 ma nom. Current

applied Cutthroat circuitry(standard), recovery time 100ms nom.

Connectors, RF:

SMA, TNC*, BNC*

Connectors, Power:

Feed through solder lugs.

Life:

1,000,000 operations.

Switching Time:

20 mS Max.

Weight:

6oz.

Environmental Conditions:

MIL-S-3928

Operating Mode:

Manual, failsafe or latching.

Switching Sequence:

Break before make.

*BNC not recommended above 1GHz

*TNC not recommended above 12.4GHz

To designate the switch desired use:

(1) “M” for Manual, “R” for Remote.

(5) “L” for latching cutthroat if desired

(2) “B” for BNC, “T” for TNC, “R” for SMA type connectors

(6) “TL” for TTL Driver if desired

(3) “A” for 115 Vac, “D” for 28 Vdc or “H” for 12 Vdc.

(7) “26” for 26.5GHz option “40” for 40 GHz option

(4) “I” for indicators if desired.

Example: SR-TC-T-D-I-L is a remote, TNC, 28 Vdc; with indicators, latching cutthroat switch

Outline Drawing

RLC ELECTRONICS, INC.

83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753

e-mail: sales@rlcelectronics.com • www.rlcelectronics.com
