Plug-in connectors

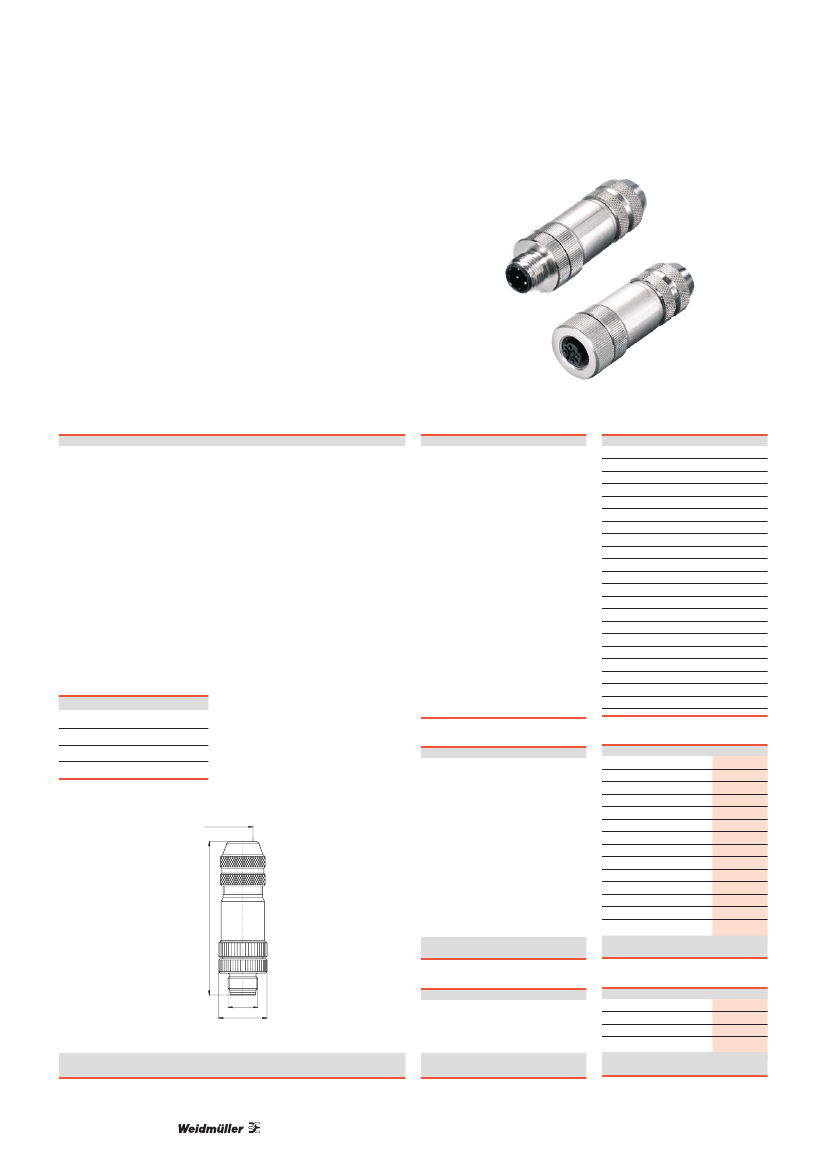

Plug-in connector M12 for assembly in the field, d-coded
• Cat.5
• IP67
Technical data
Use:
For assembly of your Ethernet cables in harsh industrial environments.
Assemble your 4-core cable exactly at the place of use.
Class of protection
Category
Type of connection
Housing material
Operating temperature
IP67
Cat.5
tension clamp
brass / stainless steel
-25 °C … +85 °C
The benefits for you:
• When routing the cable, you can guide it through tight spaces without
the connector causing difficulties.
• You can achieve the cable length you need quickly and flexibly without
having to take a large selection of pre-assembled cables of different
lengths with you.
• The connecting cable is of exactly the right length and you avoid cable
loops.
Pin assignment M12
TD+
RD+
TD–
RD–
●
yellow
❍
white
●
orange
●
blue
Pin 1
Pin 2
Pin 3
Pin 4
Plug, straight, brass
Plug, straight, stainless steel
Plug, 90°, brass
Ordering data
Type
SAISM-4/8S-M12 4P D-ZF
SAIS 5/9-VA D-COD
SAISW-4/8S-M12 4P D-ZF
Order No.
1892120001
1920700001
1803930001
Cable entry
Ø 6–8 mm
ca. 62
Note
You can find the right cable on Page 13 of this
product information.
Accessories
Type
M12x1
Ø 19.6
Order No.
Note
12
