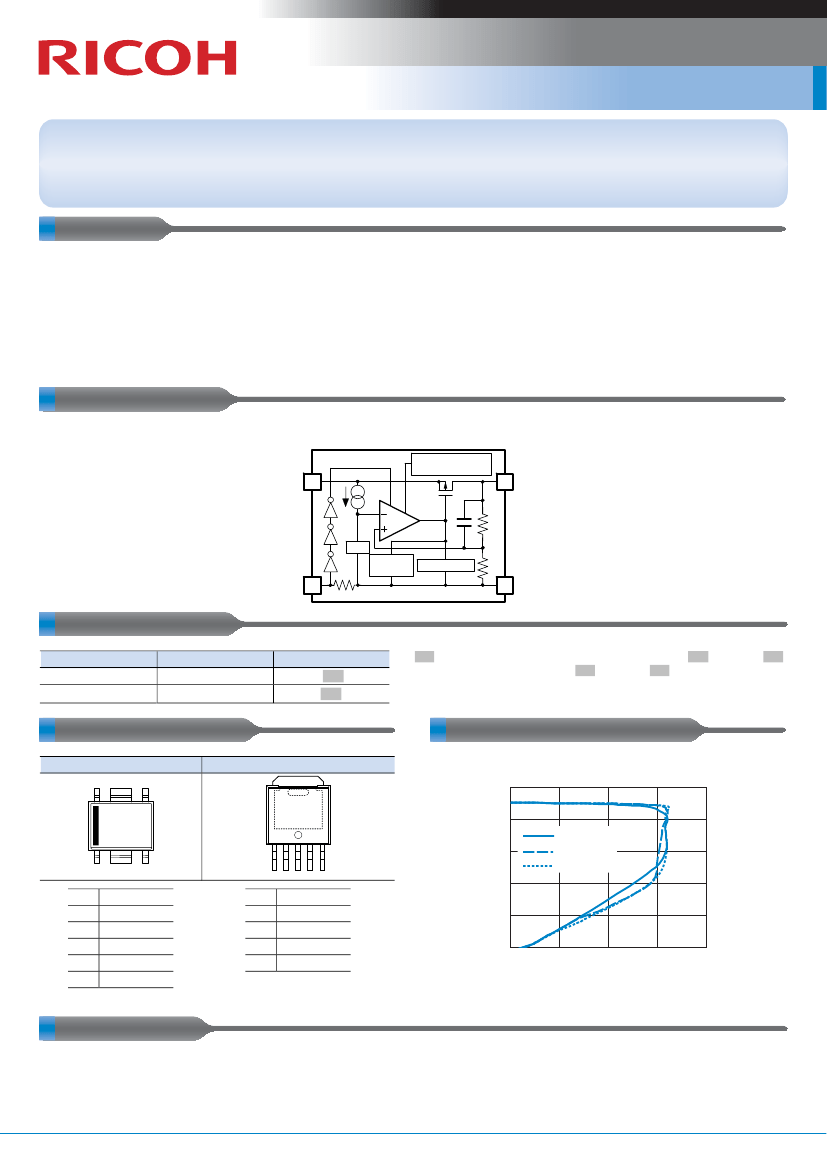

R1501x Series
1A 24V Input VR
The R1501x Series are CMOS-based voltage regulators featuring 1A output current and 24V input voltage. The R1501x series
provides high input voltage operation and low on-resistance (at V
OUT
= 10V, below 0.6Ω) because of using CMOS transistor. In addition
to a fold-back protection circuit built into conventional regulators, R1501x contains a thermal shutdown circuit. Besides the low
supply current by CMOS, the operating temperature is -40°C to 105°C and the maximum input voltage is 24V, the R1501x series are
very suitable for power source of car accessories.
FEATURES
•
Supply Current (I
SS
) ························Typ. 70μA (V
IN
=24V)
•
Standby Current (I
standby
) ·················Typ. 0.1μA (V
IN
=24V, CE="L")
•
Dropout Voltage (V
DIF
) ····················Typ. 0.575V (I
OUT
=1A, V
OUT
=5V)
•
Input Voltage Range (V
IN
) ···············3V to 24V (Absolute maximum rating: 36V)
•
Ripple Rejection(RR) ····················Typ. 60dB (f=1kHz, V
OUT
<
6V)
=
•
•
Typ. 50dB (f=1kHz, V
OUT
>6V)
Output Voltage Range (V
OUT
)··········3.0V to 18.0V (internally fixed)
Output Voltage Accuracy ················± 2%
•
Temp. coeff of Output Voltage ··················· Typ.
±
100ppm/°C
•
Line Regulation········································ Typ. 0.05%/V
•
Fold-back Protection Circuit····················· Current limit Typ. 65mA
•
Thermal Shutdown Circuit ······················· Stops at Typ. 160°C.
•
Packages ···················································· HSOP-6J, TO-252-5-P2
•
Ceramic capacitors can be used. ············ 10μF or more
(The above shows specification at Topt=25
°
C. Design assurance value at -40
°
C
<
Topt
<
105
°
C is also available. For details, please refer to the datasheet.)
=
=
BLOCK DIAGRAM
R1501xxxxB
Thermal Shutdown
Circuit
V
DD
V
OUT
Vref
Short
Current Limit
Protection
CE
GND
SELECTION GUIDES
Package
HSOP-6J
TO-252-5-P2
Quantity per Reel
Part No.
1,000 pcs
R1501S.xxx B-E2-F
3,000 pcs
R1501J.xxx B-T1-F
.xxx
: Specify the output voltage within the range 3.0V (.030.) to 12.0V (.120.)
in 0.1V steps and 12.5V (.125.) to 18.0V (.180.) in 0.5V steps.
PACKAGES (Top View)
HSOP-6J
6
5
4
TYPICAL CHARACTERISTIC
TO-252-5-P2
R1501x180B
20.0
Output Voltage vs. Output Current
Output Voltage V
OUT
(V)
16.0
12.0
8.0
4.0
0
1
2
3
V
IN
=18.5V
V
IN
=19.0V
V
IN
=20.0V
1
2
3
4
5
1
2
3
4
5
6
V
DD
GND
∗
GND
∗
CE
GND
∗
V
OUT
1
2
3
4
5
V
DD
GND
∗
GND
∗
CE
V
OUT
0
0.5
1.0
1.5
Output Current I
OUT
(A)
2.0
∗
) The GND pin must be wired together when it is mounted on board.
APPLICATIONS
•
Power source for home appliances such as refrigerators, rice cookers, electric water warmers, etc
•
Power source for car audio equipment, car navigation systems, ETC systems, etc
•
Power source for laptop personal computers, digital TVs, cordless phones, and private LAN systems for home, etc
•
Power source for office equipment machines such as copiers, printers, facsimiles, scanners, etc
