MB05F: DescriptionLow Profile Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier; File Size593KB，2 Pages; ManufacturerPFS; Websitehttp://www.ps-pfs.com/ENG/main.asp

Download Datasheet Compare View All

MB05F Overview

Low Profile Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier

Preview

Download Datasheet

View All

Low Profile Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier

MB05F

thru

M B10F

VOLTAGE - 50 TO 1000 VOLTS

CURRENT - 0.5 AMPERES

FEATURES

●

MBF

●

Low profile space

Ideal for automated placement

Glass passivated chip junction

Low forward voltage drop

Low leakage current

High forward surge capability

High temperature soldering：

260℃/10 seconds at terminals

Component in accordance to

RoHS 2002/95/1 and WEEE 2002/96/EC

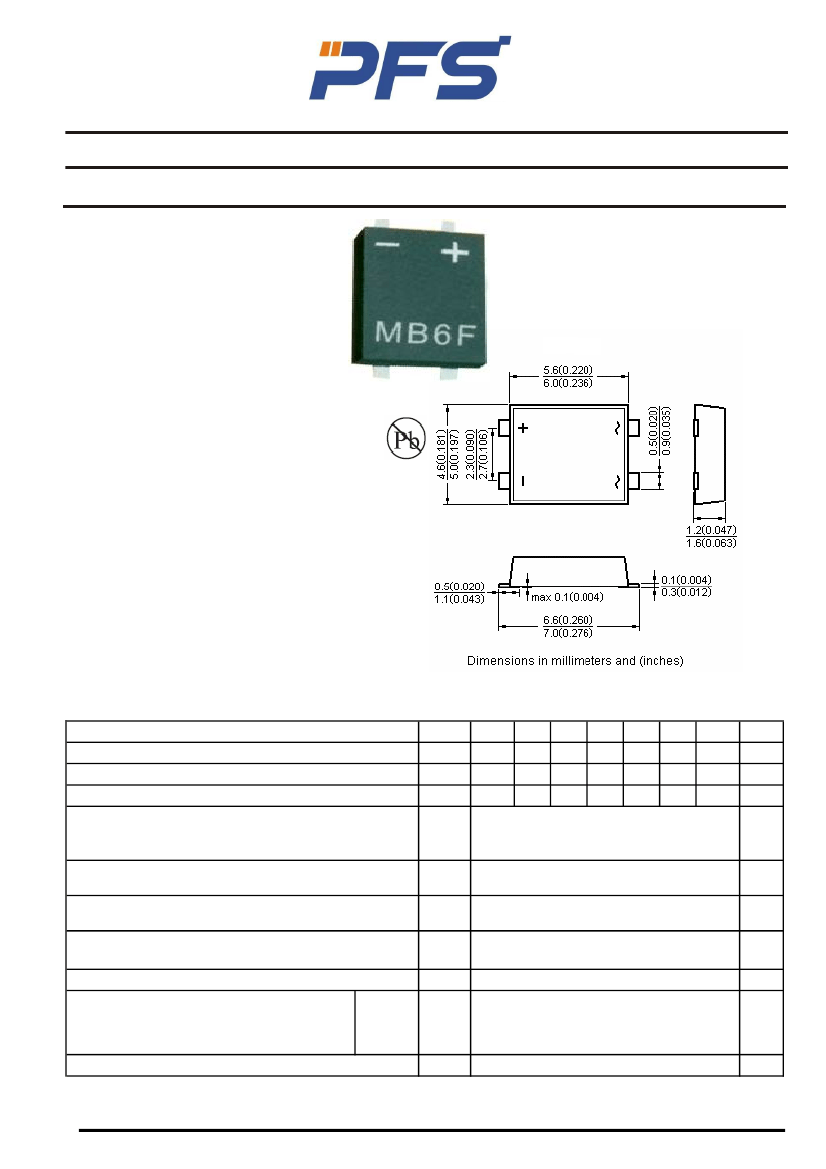

MECHANICAL DATA

●

Case: MBF Molded plastic

over glass passivated chip

Terminals: Solder plated, solderable per

J-STD-002B and JESD22-B102D

Polarity: Polarity symbols marked on body

MAXIMUM RATIXGS AND ELECTRICAL CHARACTERISTICS

= 25 C unless otherwise noted)

Symbol MB05F MB1F MB2F MB4F MB6F MB8F MB10F UNIT

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward output rectified

current at T

=30℃

-on glass-epoxy P.C.B

(NOTE 1)

-on aluminum substrate

(NOTE 2)

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load(JEDEC Method)

Maximum instantaneous forwad voltage drop

per leg at 0.4A

Maximum DC reverse current at T

= 25

℃

rated DC blocking voltage per leg T

= 125℃

Typical junction capacitance per leg at 4.0 V ,1MHz

(NOTE 1)

RRM

RMS

F(AV)

FSM

θJA

θJL

100 200 400 600 800 1000

140 280 420 560

700

100 200 400 600 800 1000

0.5

0.8

5.0

100

μA

℃/

℃

Thermal resistance per leg

(NOTE 2)

(NOTE 1)

, T

STG

Operating junction and storage temperature range

–55

to +150

NOTE1

:On glass epoxy P.C.B. mounted on 0.05×0.05″(1.3×1.3mm) pads

NOTE2

:On aluminum substrate P.C.B. with an area of 0.8″×0.8″(20×20mm) mounted

on 0.05×0.05″(1.3×1.3mm) solder pad

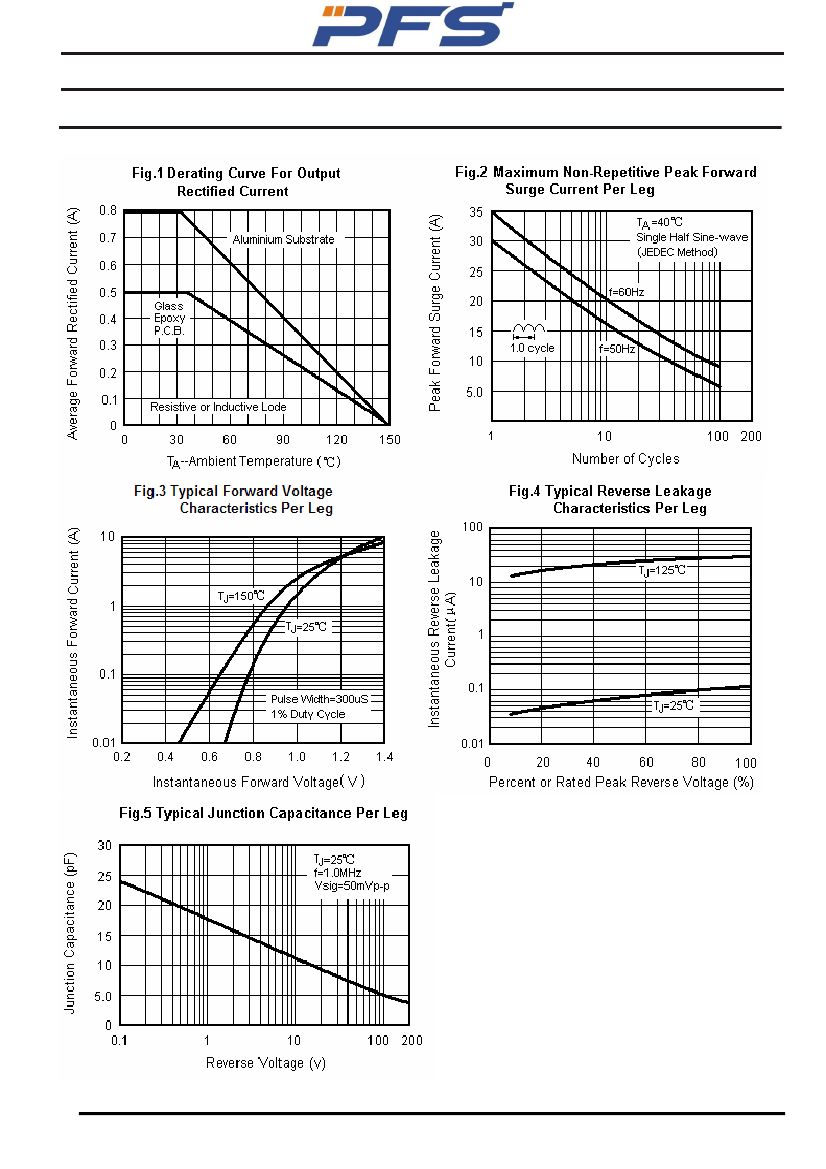

Web Site: WWW.PS-PFS.COM
