52233-1710 datasheet, PDF - EEWORLD Datasheet

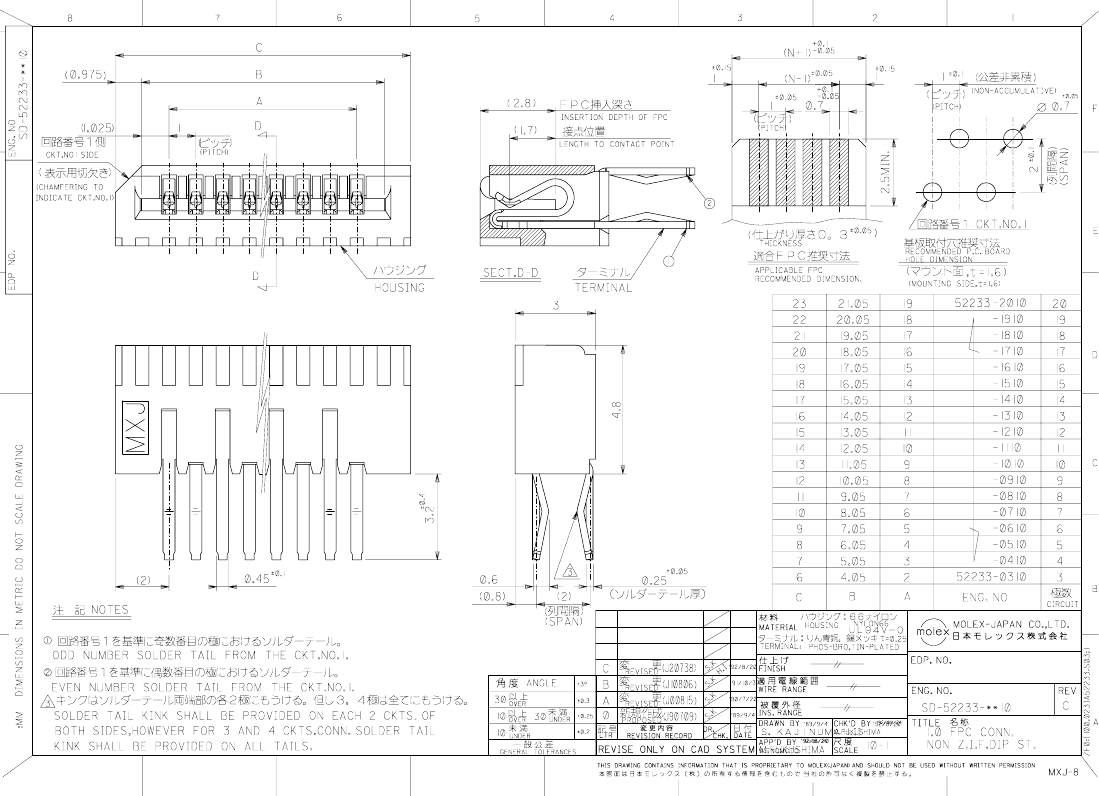

52233-1710: DescriptionCard Edge Connector, 17 Contact(s), 1 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size97KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52233-1710 Overview

Card Edge Connector, 17 Contact(s), 1 Row(s), Female, Straight, Solder Terminal

	52233-1710	52233-0510	52233-1110	52233-1310	52233-1510	52233-1910
Description	Card Edge Connector, 17 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 5 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 11 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 13 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 15 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 19 Contact(s), 1 Row(s), Female, Straight, Solder Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N	N	N
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	17	5	11	13	15	19
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
