M228-P25-102-53: DescriptionD Subminiature Connector, 25 Contact(s), Male, Solder Terminal,; CategoryThe connector The connector; File Size289KB，3 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

M228-P25-102-53 Overview

D Subminiature Connector, 25 Contact(s), Male, Solder Terminal,

M228-P25-102-53 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	EMI SHIELDED
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD FLASH
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

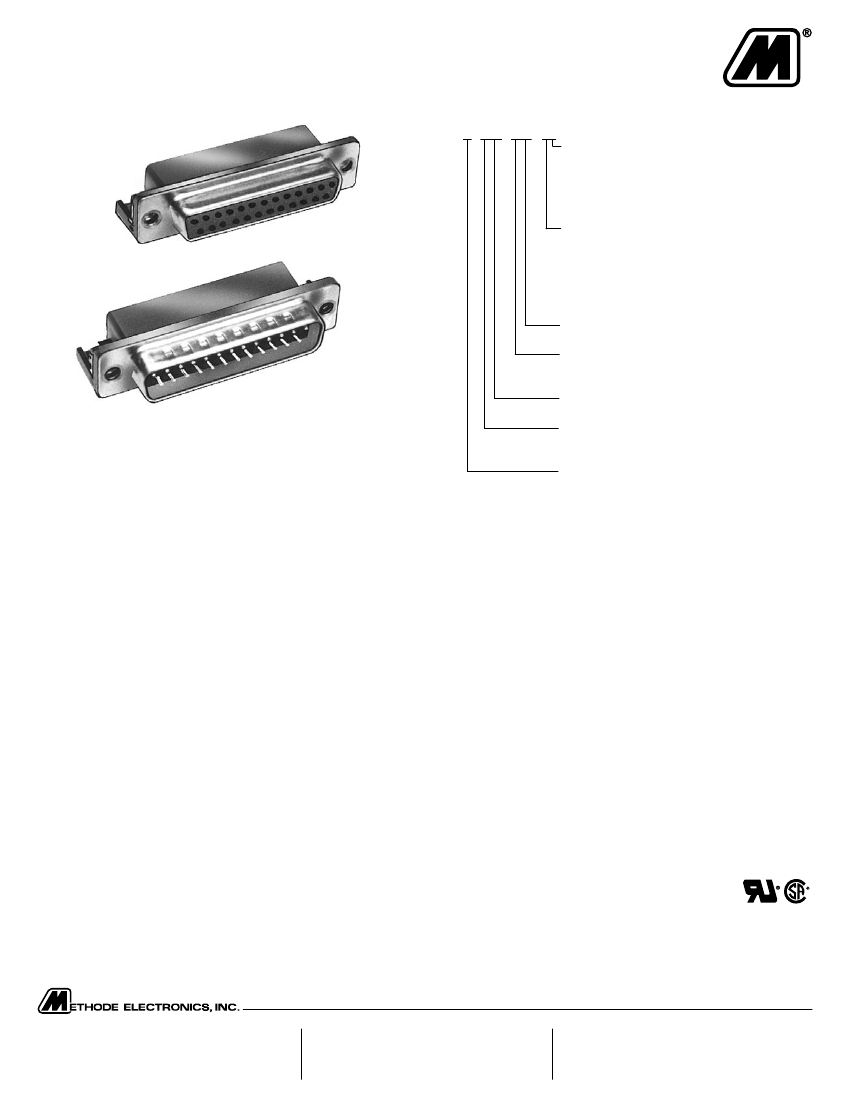

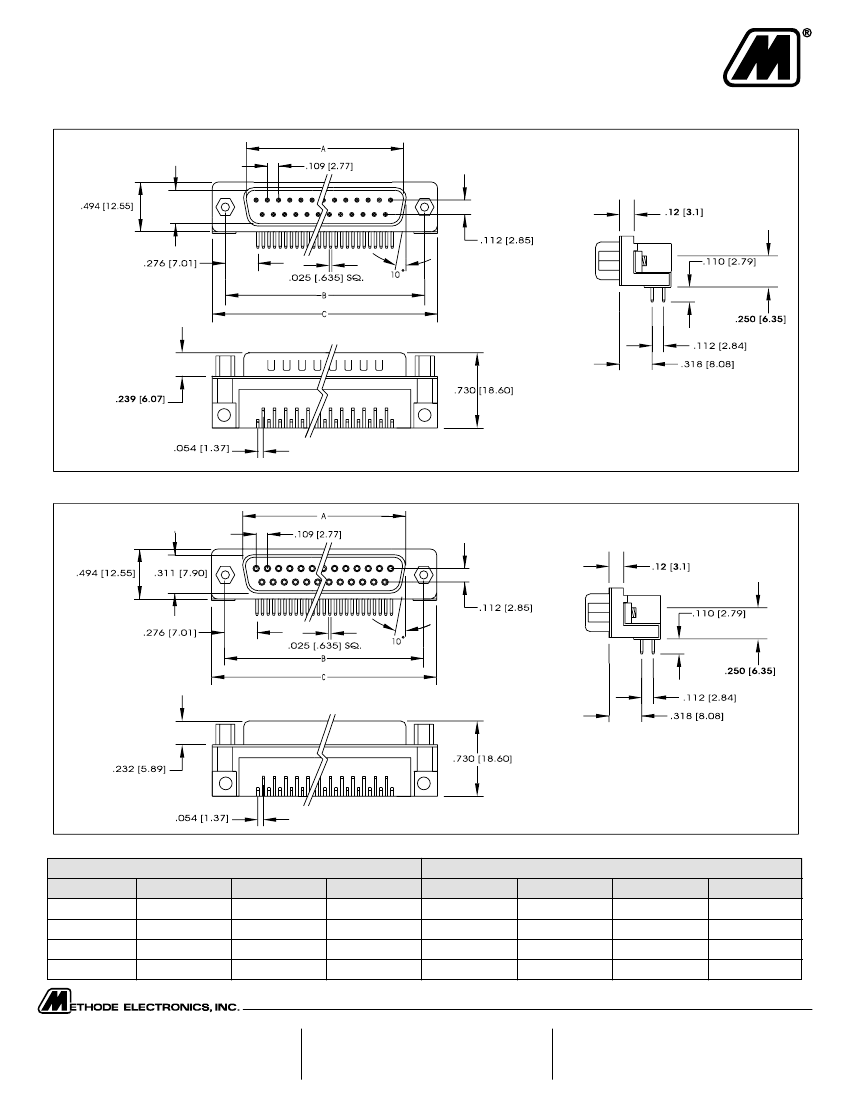

D-Subminiature Right Angle .318" (8.08) Mount

M22 Series

PART NUMBER LEGEND

M22X - XXX - XXX - XX

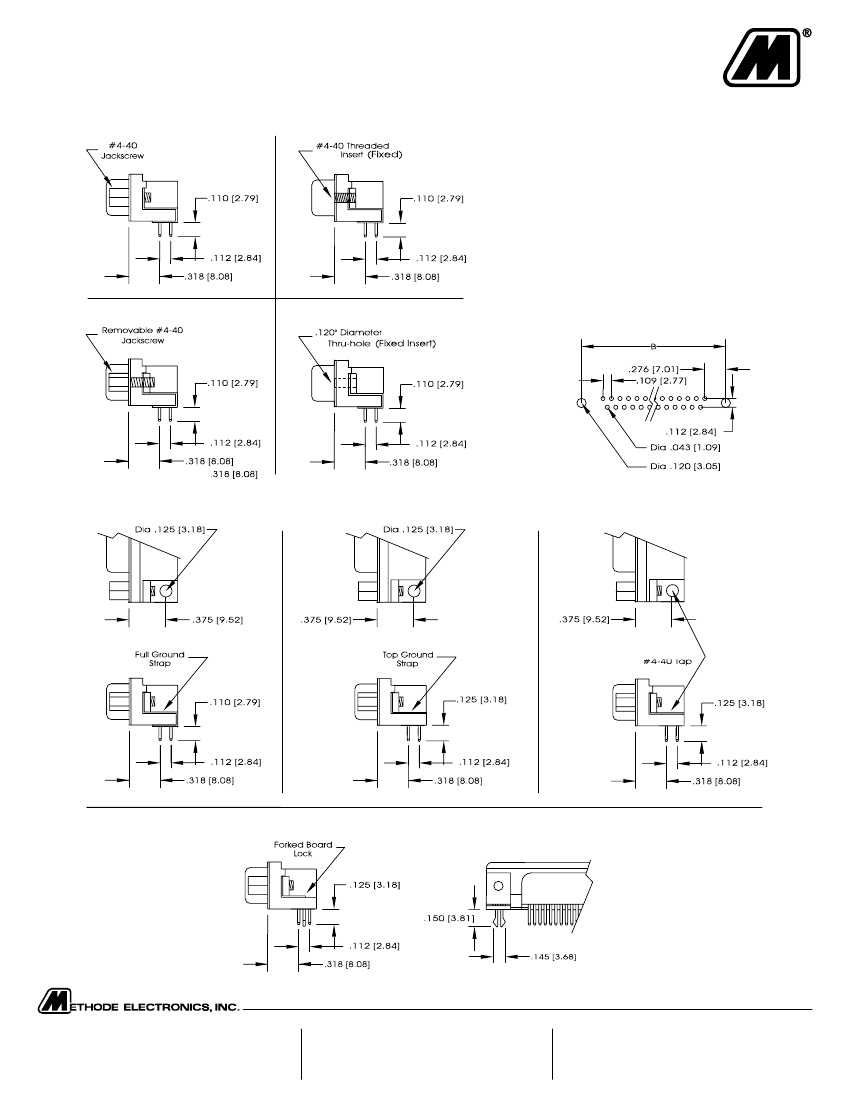

MATING FACE MOUNTING OPTIONS:

3 = #4-40 jackscrews secures shield & insulator together

4 = #4-40 flush threaded inserts

5 = #4-40 flush threaded inserts with removable jack

screws installed

6 = .120" non-threaded through holes

BOARD MOUNTING OPTIONS

1 = Wrap around ground straps with holes

2 = Forked board locks

3 = Top side only ground straps with holes

4 = Top side only ground straps with #4-40 threaded

screw holes

5 = 4 pronged board locks

TAIL

02 = .180" Solder Tail

PROFILE/FILTERING

0 = .318"

1 = .318" EMI

NUMBER OF POSITIONS

09, 15, 25, 37

CONTACT TYPE

P = Plug

S = Socket

PLATING

S = 5 µin. Gold Nominal

8 = 30 µin. Select Gold Nominal

SPECIFICATIONS:

Material:

Shell: Steel, tin-plated

Insulator: Polybutylene Terephthalate (PBT), glass reinforced

thermoplastic, rated UL 94V-0

Insulator color: Black

Contacts: Plug - Brass; Socket - Phosphor Bronze

Ground Strap or Boardlocks: Brass, tin-plated

Rivet insert: Brass, nickel-plated

Plating:

Per MIL-G-45204, Type II, Grade C on contact area over 50 µin

nominal nickel underplate to QQ-N-290, Class 2, Grade C, gold

flash on soldertails

Electrical:

Operation voltage: 250 VDC max

Current rating: 3 Amps max

Contact resistance: 20 mΩ max

Insulation resistance: 3000 MΩ min @ 500 VDC between

adjacent contacts

Dielectric withstanding voltage: 1000 VAC RMS (sea level)

Capacitance: 2 pF max between adjacent contacts

Environmental:

Operating temperature: -55°C to +105°C

OPTIONS:

(add to the end of part number)

= Hi-Temp insulator for IR reﬂow or Vapor Phase soldering process

MATING OPTIONS:

Mates with Methode D-Sub Series M21 and M23 and all industry

standard D-Subminiature connectors.

ACCESSORIES:

Dustcovers, hardware

PACKAGING:

Anti-static plastic trays available

APPROVALS AND CERTIFICATIONS:

Select parts recognized under the component program

of Underwriters Laboratories, Inc. No. E167232

Certified by Canadian Standards Association No. LR75112
