BF-A516RD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BF-A516RD

BF-A516RD: DescriptionSmart/Normal 7 Seg Numeric LED Display, Super Red, 14.224mm, SD-30, 10 PIN; CategoryLED optoelectronic/LED photoelectric; File Size242KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BF-A516RD Overview

Smart/Normal 7 Seg Numeric LED Display, Super Red, 14.224mm, SD-30, 10 PIN

BF-A516RD Parametric

Parameter Name	Attribute value
package instruction	SD-30, 10 PIN
Reach Compliance Code	unknown
Is Samacsys	N
color	SUPER RED
Configuration	COMMON ANODE, 0.5 DIGIT WITH DECIMAL POINT
Display height	14.224 mm
Maximum forward current	0.02 A
Number of functions	0.5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

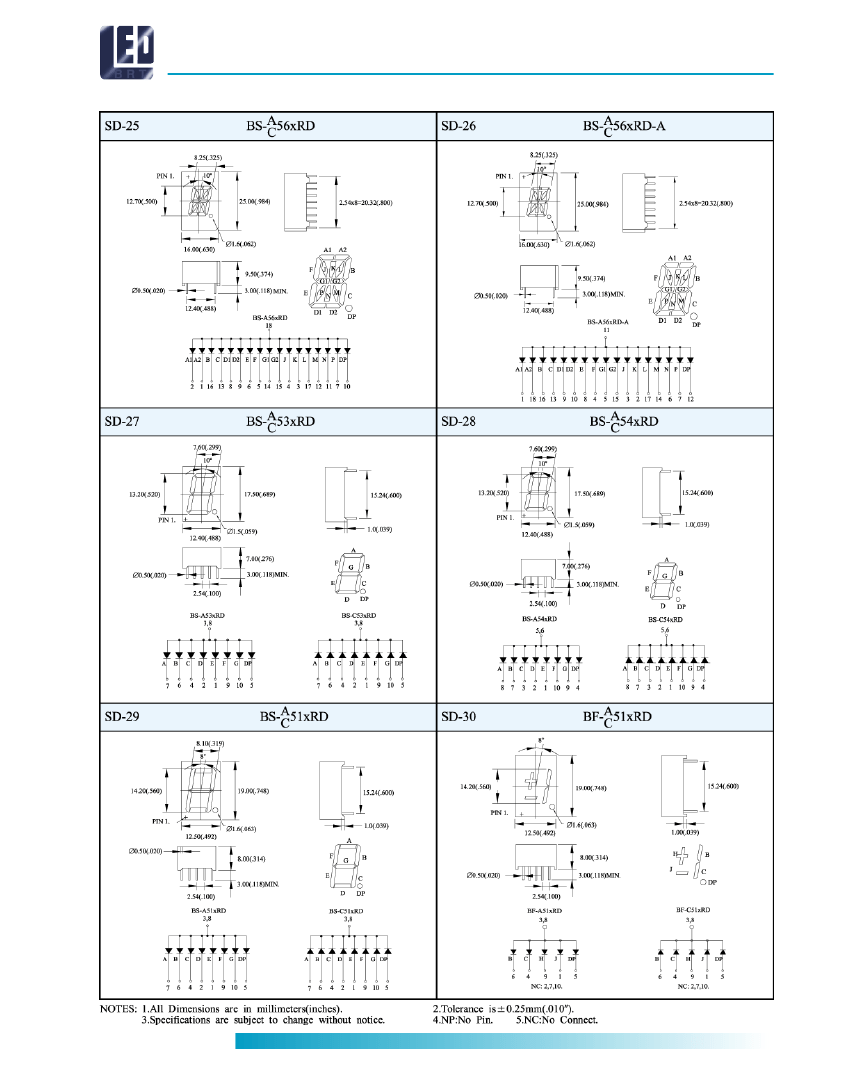

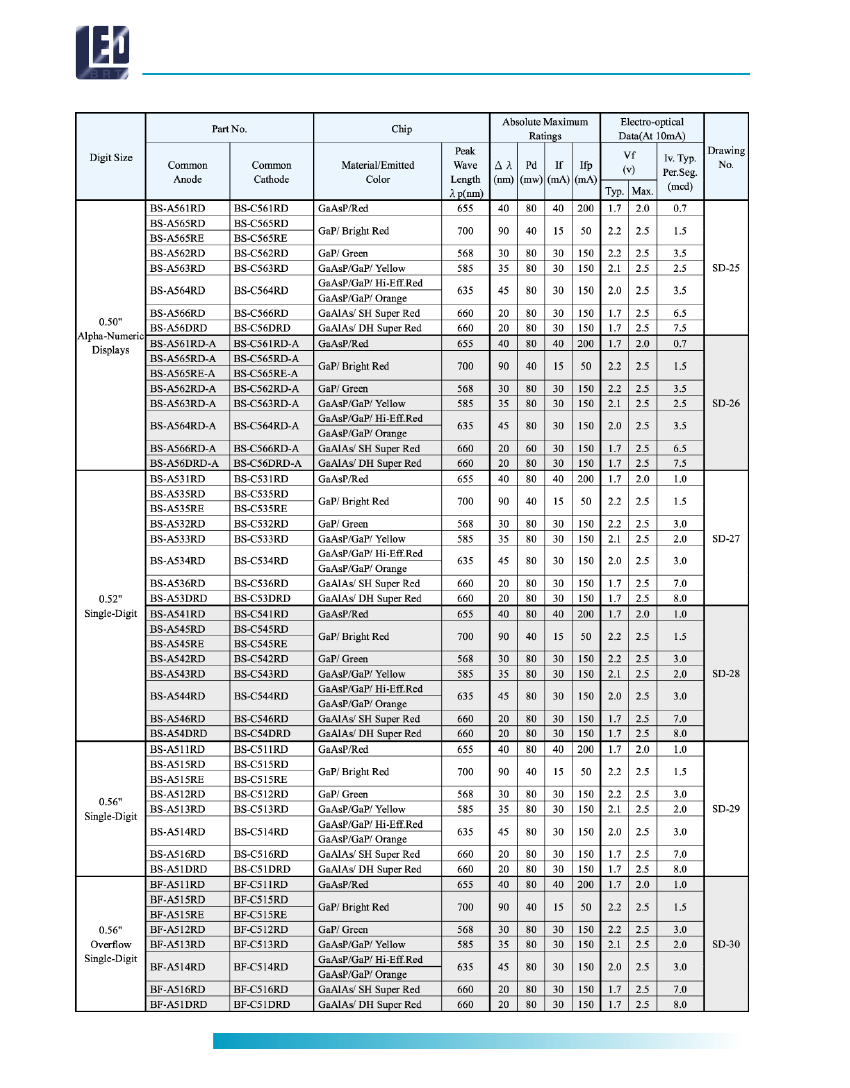

Single Digit LED Displays

BS-A/C, BF-A/C Series

16-segment, 7-segment, ±1 overflow

AMERICAN BRIGHT

118

w w w. a m e r i c a n b r i g h t l e d . c o m

BF-A516RD Related Products

	BF-A516RD	BF-C515RE	BF-A512RD	BF-A515RE	BF-A51DRD	BF-C512RD	BF-C516RD	BF-C515RD	BF-C511RD	BF-C51DRD
Description	Smart/Normal 7 Seg Numeric LED Display, Super Red, 14.224mm, SD-30, 10 PIN	Smart/Normal 7 Seg Numeric LED Display, Bright Red, 14.224mm, SD-30, 10 PIN	Smart/Normal 7 Seg Numeric LED Display, Green, 14.224mm, SD-30, 10 PIN	Smart/Normal 7 Seg Numeric LED Display, Bright Red, 14.224mm, SD-30, 10 PIN	Smart/Normal 7 Seg Numeric LED Display, SD-30, 10 PIN	Smart/Normal 7 Seg Numeric LED Display, Green, 14.224mm, SD-30, 10 PIN	Smart/Normal 7 Seg Numeric LED Display, Super Red, 14.224mm, SD-30, 10 PIN	Smart/Normal 7 Seg Numeric LED Display, Bright Red, 14.224mm, SD-30, 10 PIN	Smart/Normal 7 Seg Numeric LED Display, Red, 14.224mm, SD-30, 10 PIN	Smart/Normal 7 Seg Numeric LED Display, SD-30, 10 PIN
package instruction	SD-30, 10 PIN	SD-30, 10 PIN	SD-30, 10 PIN	SD-30, 10 PIN	SD-30, 10 PIN	SD-30, 10 PIN	SD-30, 10 PIN	SD-30, 10 PIN	SD-30, 10 PIN	SD-30, 10 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
color	SUPER RED	BRIGHT RED	GREEN	BRIGHT RED	-	GREEN	SUPER RED	BRIGHT RED	RED	-
Configuration	COMMON ANODE, 0.5 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 0.5 DIGIT WITH DECIMAL POINT	COMMON ANODE, 0.5 DIGIT WITH DECIMAL POINT	COMMON ANODE, 0.5 DIGIT WITH DECIMAL POINT	-	COMMON CATHODE, 0.5 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 0.5 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 0.5 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 0.5 DIGIT WITH DECIMAL POINT	-
Display height	14.224 mm	14.224 mm	14.224 mm	14.224 mm	-	14.224 mm	14.224 mm	14.224 mm	14.224 mm	-
Maximum forward current	0.02 A	0.015 A	0.03 A	0.015 A	-	0.03 A	0.02 A	0.015 A	0.04 A	-
Number of functions	0.5	0.5	0.5	0.5	-	0.5	0.5	0.5	0.5	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	85 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-
Base Number Matches	1	1	1	1	1	1	1	-	-	-
