IBM13N4734MC-10T datasheet, PDF

Datasheet> All Categories > storage> storage> IBM13N4734MC-10T

IBM13N4734MC-10T: DescriptionSynchronous DRAM Module, 4MX72, 9ns, CMOS, GOLD CONTACTS, TSOP2, DIMM-168; Categorystorage storage; File Size998KB，17 Pages; ManufacturerIBM; Websitehttp://www.ibm.com

Download Datasheet Parametric Compare View All

IBM13N4734MC-10T Overview

Synchronous DRAM Module, 4MX72, 9ns, CMOS, GOLD CONTACTS, TSOP2, DIMM-168

IBM13N4734MC-10T Parametric

Parameter Name	Attribute value
Parts packaging code	DMA
package instruction	DIMM, DIMM168
Contacts	168
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
access mode	FOUR BANK PAGE BURST
Maximum access time	9 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	100 MHz
I/O type	COMMON
JESD-30 code	R-XDMA-N168
memory density	301989888 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE
memory width	72
Number of functions	1
Number of ports	1
Number of terminals	168
word count	4194304 words
character code	4000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX72
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM168
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
self refresh	YES
Maximum standby current	0.005 A
Maximum slew rate	0.55 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

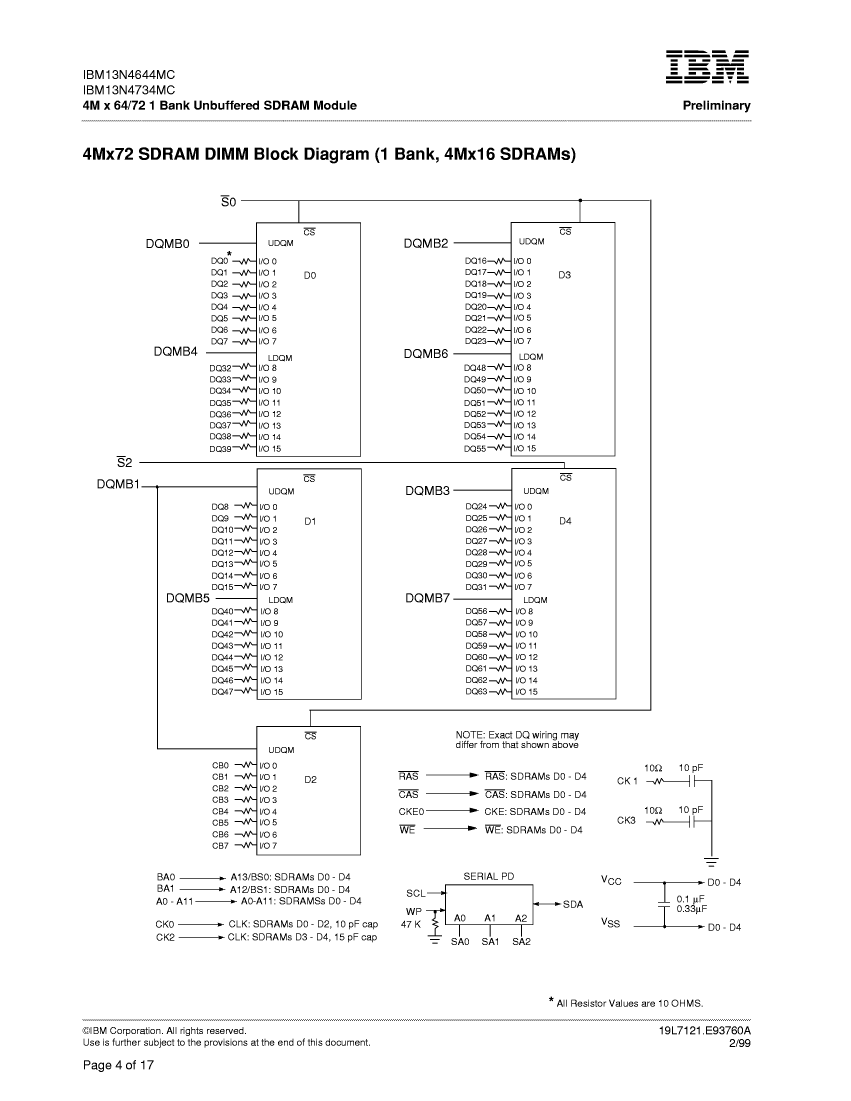

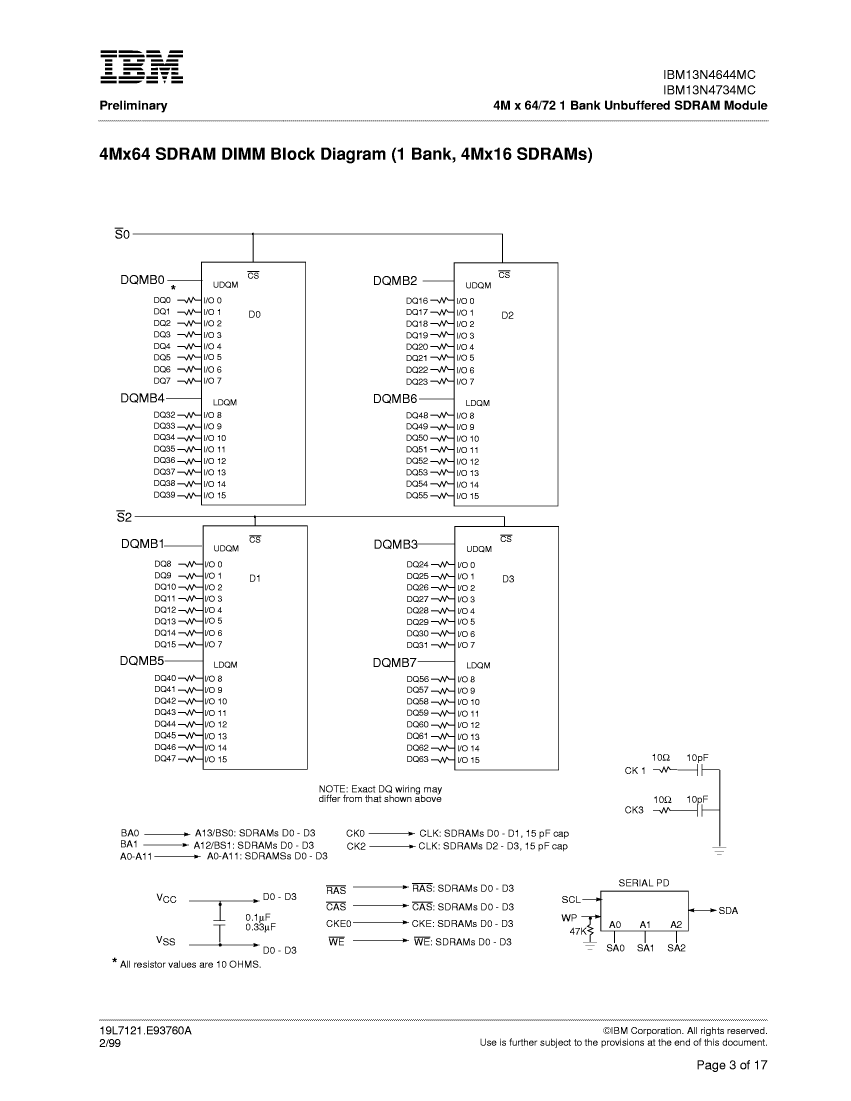

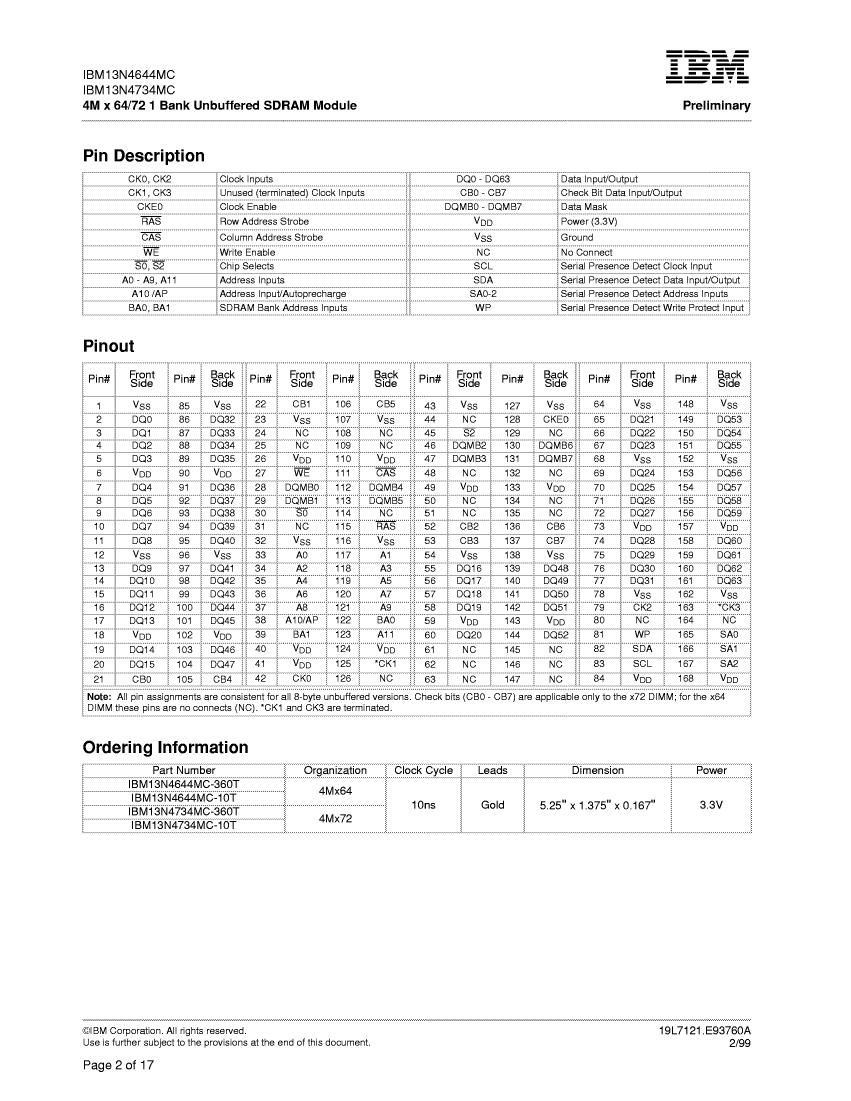

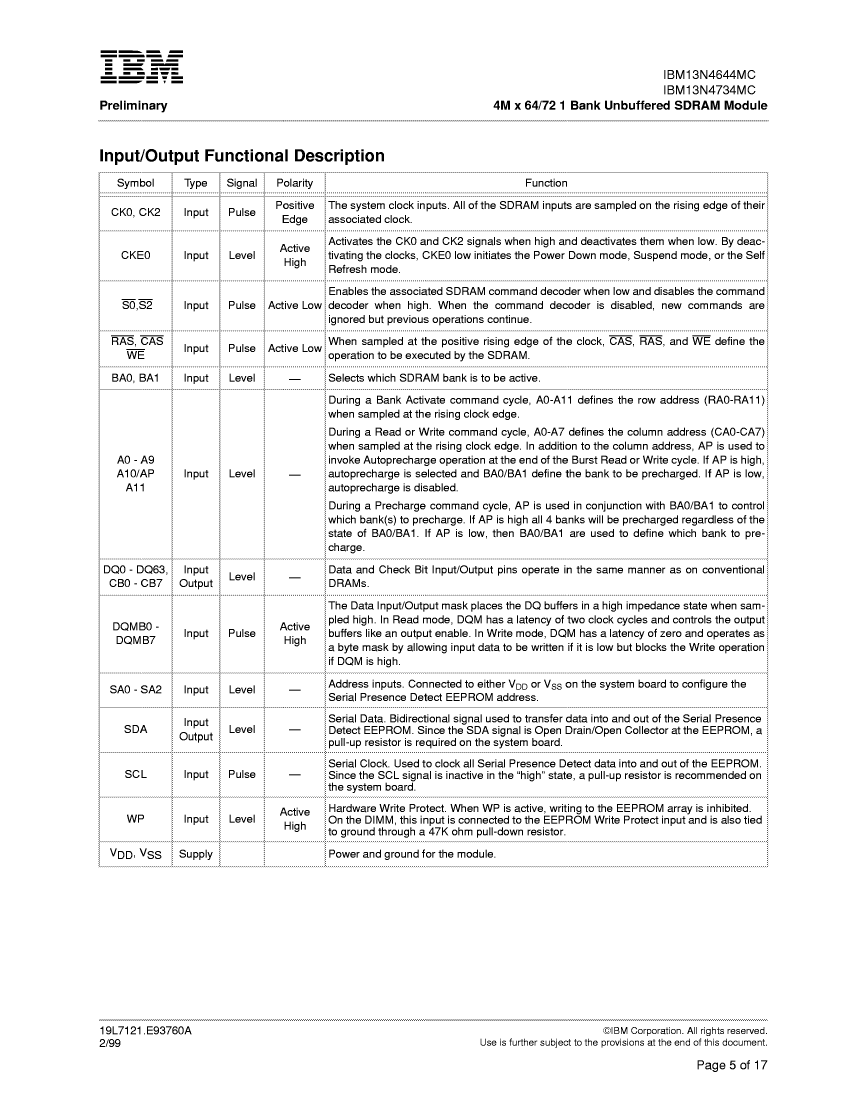

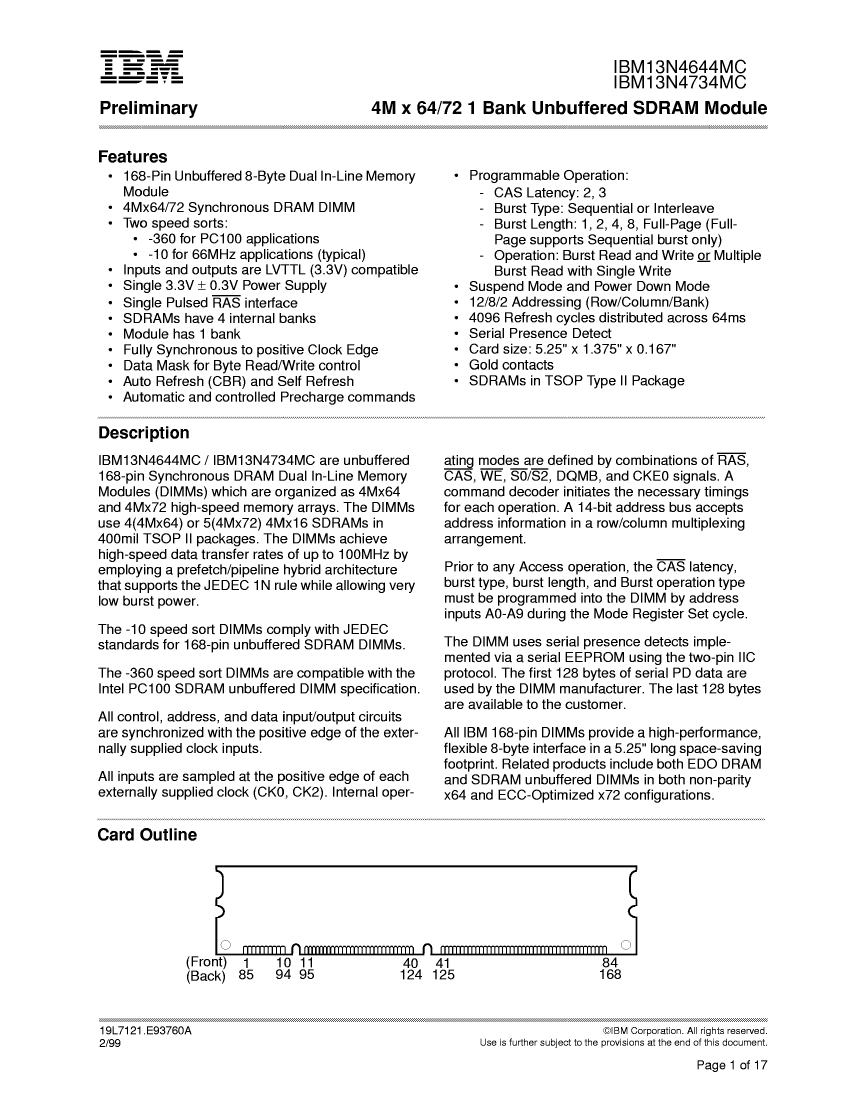

Preview

Download Datasheet

View All

IBM13N4734MC-10T Related Products

	IBM13N4734MC-10T	IBM13N4644MC-10T	IBM13N4644MC-360T	IBM13N4734MC-360T
Description	Synchronous DRAM Module, 4MX72, 9ns, CMOS, GOLD CONTACTS, TSOP2, DIMM-168	Synchronous DRAM Module, 4MX64, 9ns, CMOS, GOLD CONTACTS, TSOP2, DIMM-168	Synchronous DRAM Module, 4MX64, 6ns, CMOS, GOLD CONTACTS, TSOP2, DIMM-168	Synchronous DRAM Module, 4MX72, 6ns, CMOS, GOLD CONTACTS, TSOP2, DIMM-168
Parts packaging code	DMA	DMA	DMA	DMA
package instruction	DIMM, DIMM168	DIMM, DIMM168	DIMM, DIMM168	DIMM, DIMM168
Contacts	168	168	168	168
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST
Maximum access time	9 ns	9 ns	6 ns	6 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	100 MHz	100 MHz	100 MHz	100 MHz
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168
memory density	301989888 bit	268435456 bit	268435456 bit	301989888 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE
memory width	72	64	64	72
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	168	168	168	168
word count	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	4MX72	4MX64	4MX64	4MX72
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM	DIMM	DIMM
Encapsulate equivalent code	DIMM168	DIMM168	DIMM168	DIMM168
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096
self refresh	YES	YES	YES	YES
Maximum standby current	0.005 A	0.004 A	0.004 A	0.005 A
Maximum slew rate	0.55 mA	0.44 mA	0.54 mA	0.675 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maker	-	IBM	IBM	IBM
