HCC40xxx, HCC45xxx
Rad-hard, high voltage, CMOS logic series
Datasheet
-
production data
Description
The HCC40xxx and HCC45xxx series are
composed of 70 types of high voltage CMOS
functions, offering a set of highly noise tolerant
gates, Flip-Flops, multiplexers, counters, bus
interfaces, and several other functions. The
radiation hardness, single event latch-up (SEL),
single event upset (SEU) immunity, and the
housing in hermetic packages of all types of both
series make them usable in the most difficult
environmental conditions.
The complete specification of each type is
available from the European Space Components
Coordination (ESCC) website:
https://spacecomponents.org/. ST guarantees full
compliance of qualified parts with these ESCC
detailed specifications.

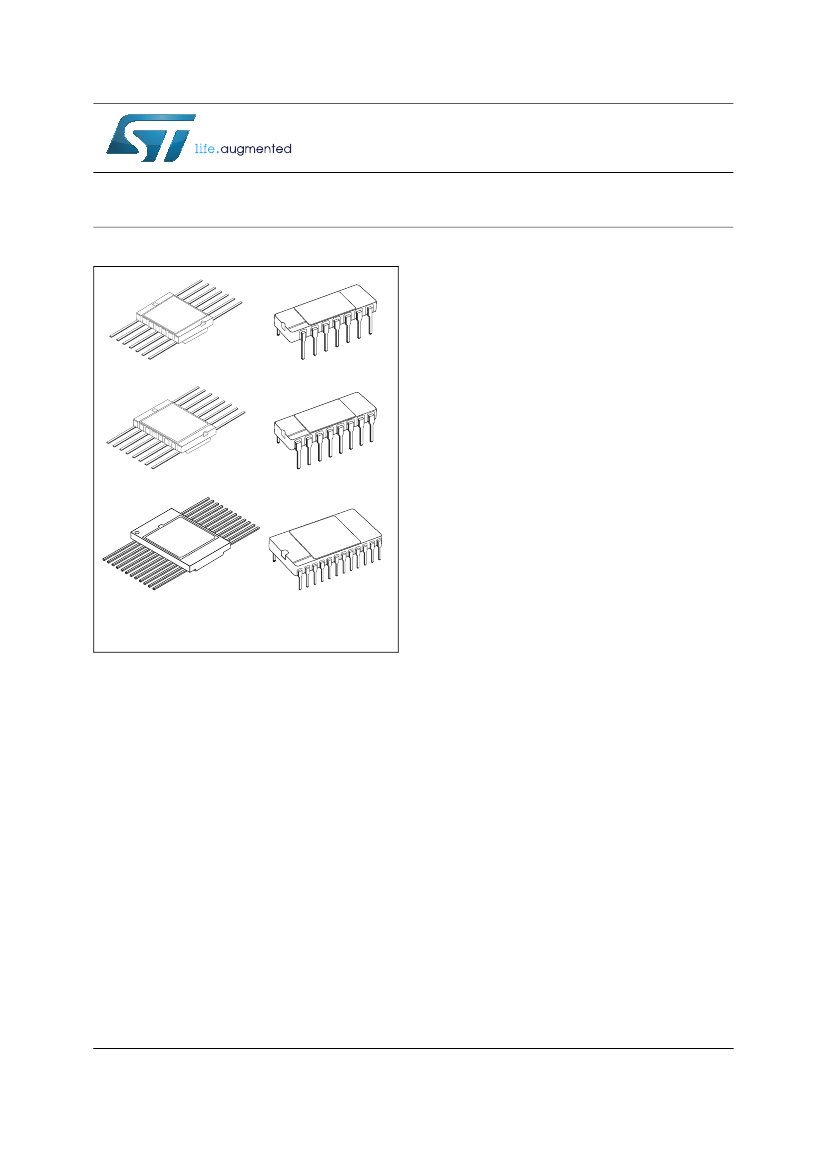

Flat-14
DIL-14
Flat-16
DIL-16
Flat-24
DIL-24
The upper metallic lid is not electrically connected to any
pins, nor to the IC die inside the package.
Features
•
3 to 20 V max operating voltage
•
Buffered inputs and outputs
•
Standardized symmetrical outputs
characteristic
•
50 ns typical propagation delays
•
100 nA max 25 °C input current
•
100 % tested 20 V quiescent current
•
5-10-15 V parametric testing
•
Hermetic packages
•
Rad-hard 100 kRad TID at 11rad/sec dose rate
•
SEL and SET immune up to 119 MeV/cm²/mg
•
SEU immune up to 36 or 119 MeV/cm²/mg
•
ESCC qualified
August 2017
This is information on a product in full production.
DocID17102 Rev 7
1/34
www.st.com
Contents
HCC40xxx, HCC45xxx
Contents
1
2
3
HCC family overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Input equivalent circuit diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1
Recommended operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4
Radiations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1
4.2
Total ionizing dose (TID) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Single event effects (SEE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5
Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1
5.2
5.3
5.4
5.5
5.6
Ceramic Flat-14 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Ceramic DIL-14 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Ceramic Flat-16 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Ceramic DIL-16 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Ceramic Flat-24 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Ceramic DIL-24 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6
7
Order codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Other information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.1
7.2
Date code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
8
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2/34
DocID17102 Rev 7
HCC40xxx, HCC45xxx
List of tables
List of tables
Table 1.
Table 2.
Table 3.
Table 4.
Table 5.
Table 6.
Table 7.
Table 8.
Table 9.
Table 10.
Table 11.
Table 12.
Table 13.
Table 14.
Table 15.
Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Recommended operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
TID test conditions for the CMOS4000B family . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
HCC series, SEE class summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
SEE performance of SEE classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Ceramic Flat-14 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Ceramic DIL-14 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Ceramic Flat-16 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Ceramic DIL-16 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Ceramic Flat-24 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Ceramic DIL-24 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Documentation provided for ESCC flight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
DocID17102 Rev 7
3/34
3
List of figures
HCC40xxx, HCC45xxx
List of figures
Figure 1.
Figure 2.
Figure 3.
Figure 4.
Figure 5.
Figure 6.
Figure 7.
Figure 8.
Input equivalent circuit diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Irradiation test flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Ceramic Flat-14 package outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Ceramic DIL-14 package outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Ceramic Flat-16 package outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Ceramic DIL-16 package outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Ceramic Flat-24 package outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Ceramic DIL-24 package outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4/34
DocID17102 Rev 7
1
HCC family overview
Table 1. Device summary
HCC40xxx, HCC45xxx
Part number
HCC4001B
HCC4002B
HCC4008B
HCC4011B
HCC4012B
HCC4013B
HCC4014B
HCC4015B
HCC4017B
HCC4018B
HCC4019B
HCC4020B
HCC4021B
HCC4022B
HCC4023B
HCC4024B
HCC4025B
HCC4027B
HCC4028B
HCC4029B
5/34
DocID17102 Rev 7
Description
Rad-hard quad 2-input NOR gate
Rad-hard dual 4-input NOR gate
Rad-hard 4-bit full adder
Rad-hard quad 2-input NAND gate
Rad-hard dual 4-input NAND gate
Rad-hard dual D Flip-Flop
Rad-hard 8-stage static synchronous shift register
Rad-hard dual 4-stage static shift register
Rad-hard decade counter/divider
Rad-hard presettable divide-by N counter
Rad-hard quad AND/OR select gate
Rad-hard 14-stage binary/ripple counter
Rad-hard 8-stage static shift register
Rad-hard divide-by-8 counter/divider
Rad-hard triple 3-input NAND gate
Rad-hard 7-stage binary/ripple counter
Rad-hard triple 3-input NOR gate
Rad-hard dual J-K master-slave Flip-Flop
Rad-hard BCD-to-decimal decoder
Rad-hard presettable up/down counter
Radiation
level
Agency
qualification
SEE
class
(1)
EPPL ESCC specification
Y
-
9201/041
9201/042
Package
Flat-14 and
DIL-14
Flat-16 and
DIL-16
Flat-14 and
DIL-14
3
Y
-
9202/039
9201/043
9201/044
9203/023
1
Y
9306/014
9306/015
9204/020
2
100 krad (Si)
ESCC
3
4
1
2
3
4
-
9204/021
9202/051
Flat-16 and
DIL-16
Y
9204/022
9306/016
-
Y
-
9204/023
9201/045
9204/024
9201/046
9203/022
Flat-16 and
DIL-16
Flat-14 and
DIL-14
HCC family overview
3
Y
9205/010
9204/025
