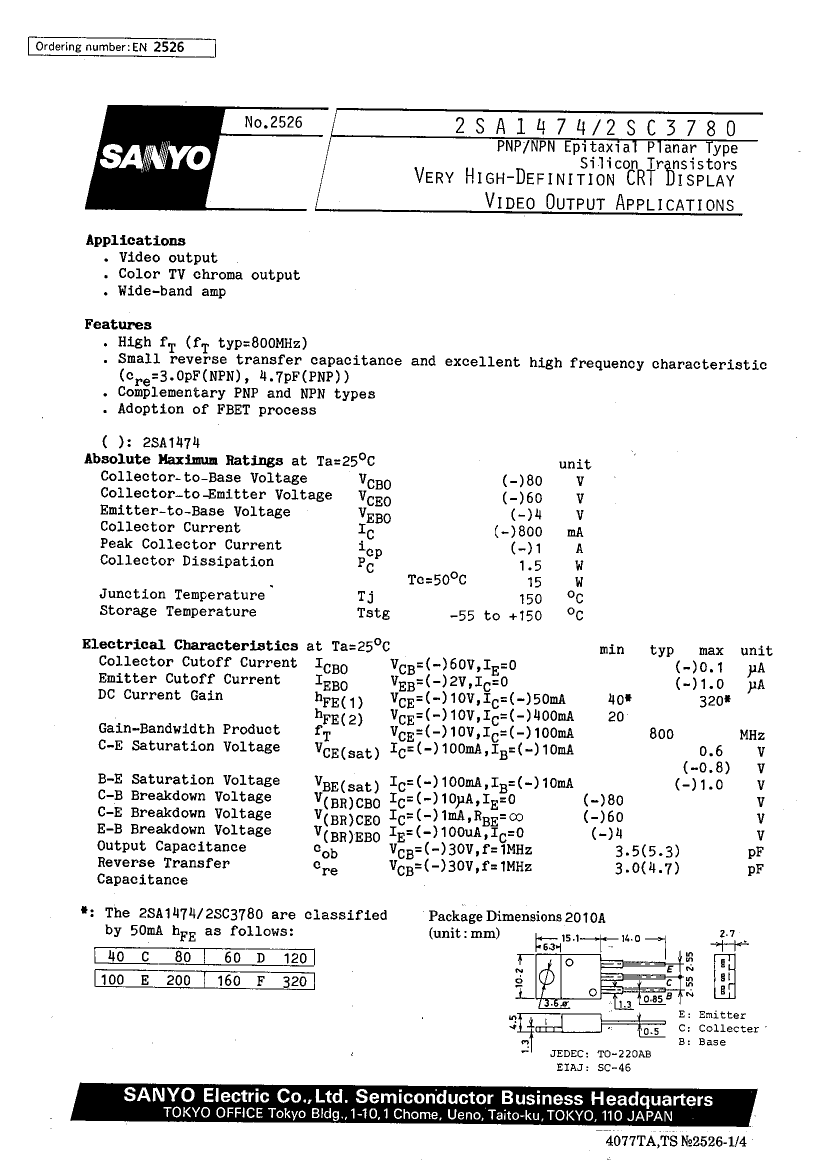

2SC3780 datasheet, PDF - EEWORLD Datasheet

2SC3780: DescriptionRF POWER TRANSISTOR; CategoryDiscrete semiconductor The transistor; File Size114KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

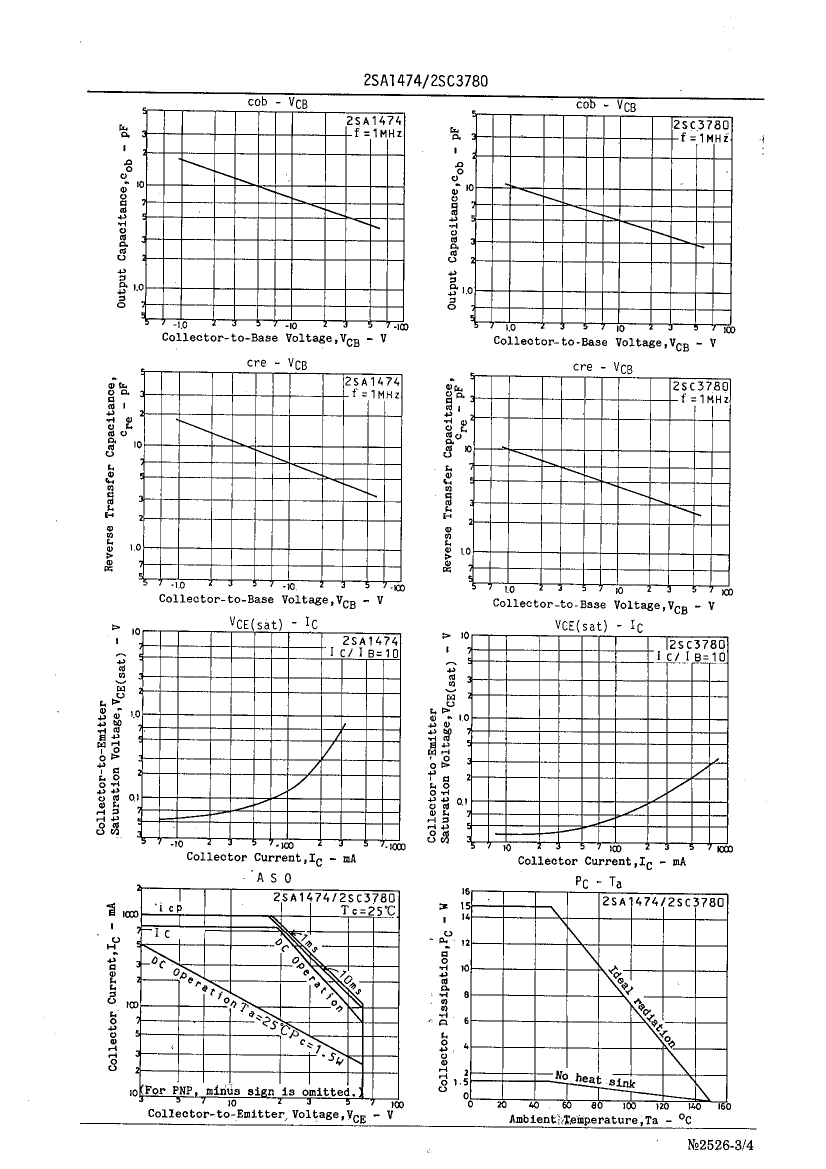

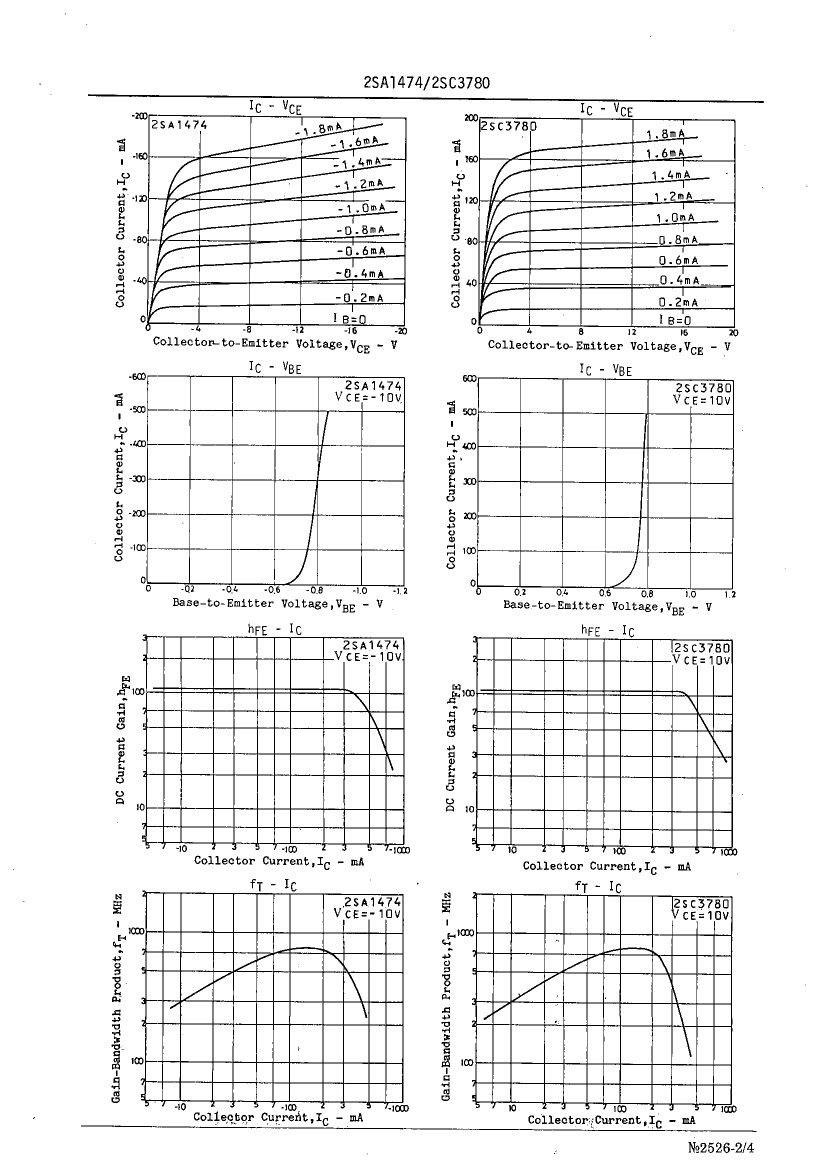

2SC3780 Overview

RF POWER TRANSISTOR

Parameter Name	Attribute value
Parts packaging code	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.8 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Maximum power consumption environment	15 W
Maximum power dissipation(Abs)	15 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	800 MHz
Base Number Matches	1

	2SC3780	2SA1474
Description	RF POWER TRANSISTOR	RF POWER TRANSISTOR
Parts packaging code	TO-220AB	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Maximum collector current (IC)	0.8 A	0.8 A
Collector-emitter maximum voltage	60 V	60 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	40	40
JEDEC-95 code	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	140 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	NPN	PNP
Maximum power consumption environment	15 W	15 W
Maximum power dissipation(Abs)	15 W	15 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	800 MHz	800 MHz
Base Number Matches	1	1
