BAV19W-BAV21W
Technical Data
Data Sheet N0591, Rev. C
BAV19W-BAV21W SURFACE MOUNT
FAST SWITCHING DIODE

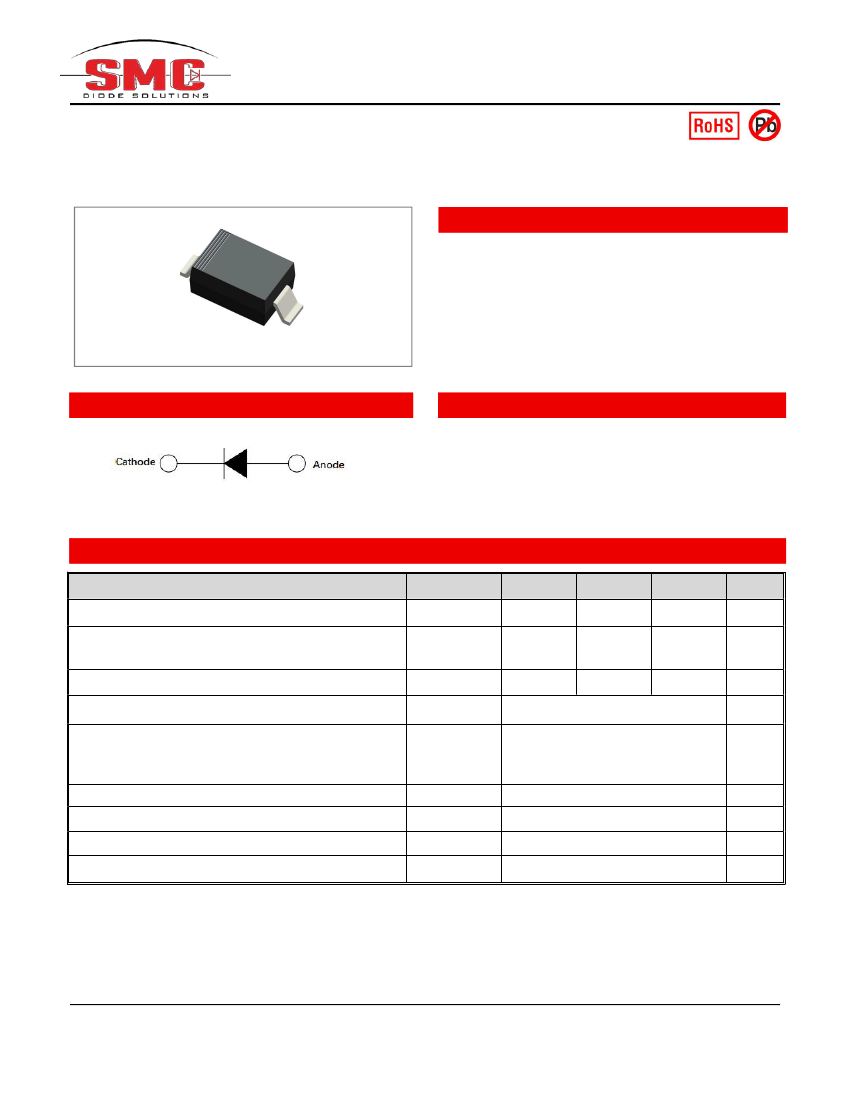

Features
High Conductance
Fast Switching
Surface Mount Package Ideally Suited for Automatic
Insertion
For General Purpose Switching Applications
This is a Pb - Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
SOD-123
Schematic & Pin Configuration
Mechanical Characteristics
Case: SOD-123, Molded Plastic
Terminals: Plated Leads Solderable per MIL-STD-
202, Method 208
Polarity: Cathode Band
Weight: 0.01 grams(approx)
Maximum Ratings
@T
A
=25°C unless otherwise specified
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on
rated load (JEDEC Method)
@t=8.3ms
Power Dissipation
Typical Thermal Resistance Junction to Ambient
Junction Temperature Range
Storage Temperature Range
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
P
d
R
θJA
T
J
T
STG
BAV19W
120
100
71
BAV20W
200
150
106
200
BAV21W
250
200
141
mA
A
mW
°C/W
°C
°C
Units
V
V
2.0
500
250
150
-65 to +150
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
BAV19W-BAV21W
Technical Data
Data Sheet N0591, Rev. C
Electrical Characteristics
@T
A
=25°C unless otherwise specified
Characteristic
Forward Voltage*
Reverse Leakage Current*
BAV19W
BAV20W
BAV21W
Symbol
V
F
I
R
C
T
t
rr
Test Condition
I
F
=100mA
I
F
=200mA
V
R
=100V
V
R
=150V
V
R
=200V
V
R
=0V,f=1.0MHz
I
F
= I
R
=30mA, I
rr
=0.1×I
R,
R
L
=100Ω
Min
-
-
-
-
Typ
-
-
-
-
Max
1.0
1.25
0.1
0.1
0.1
5
50
Units
V
μA
pF
ns
Diode capacitance
Reverse recovery time
* Pulse width < 300 µs, duty cycle < 2%

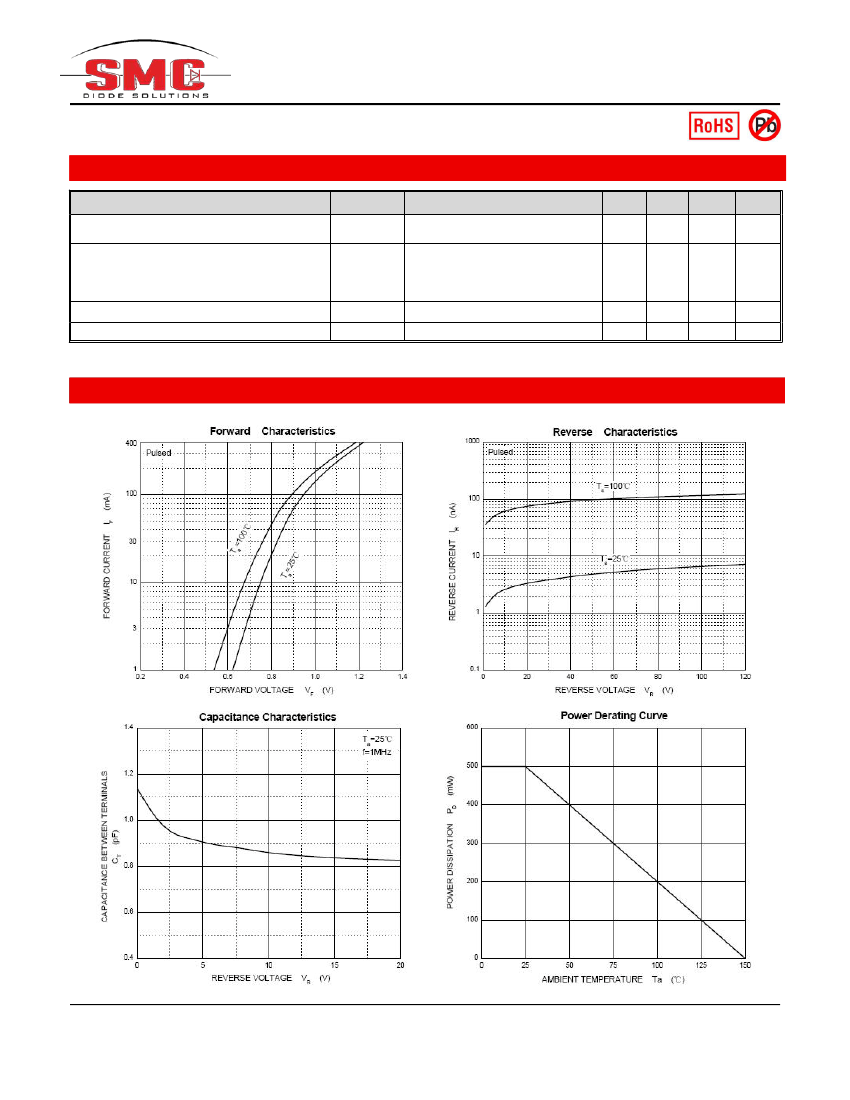

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
BAV19W-BAV21W
Technical Data
Data Sheet N0591, Rev. C

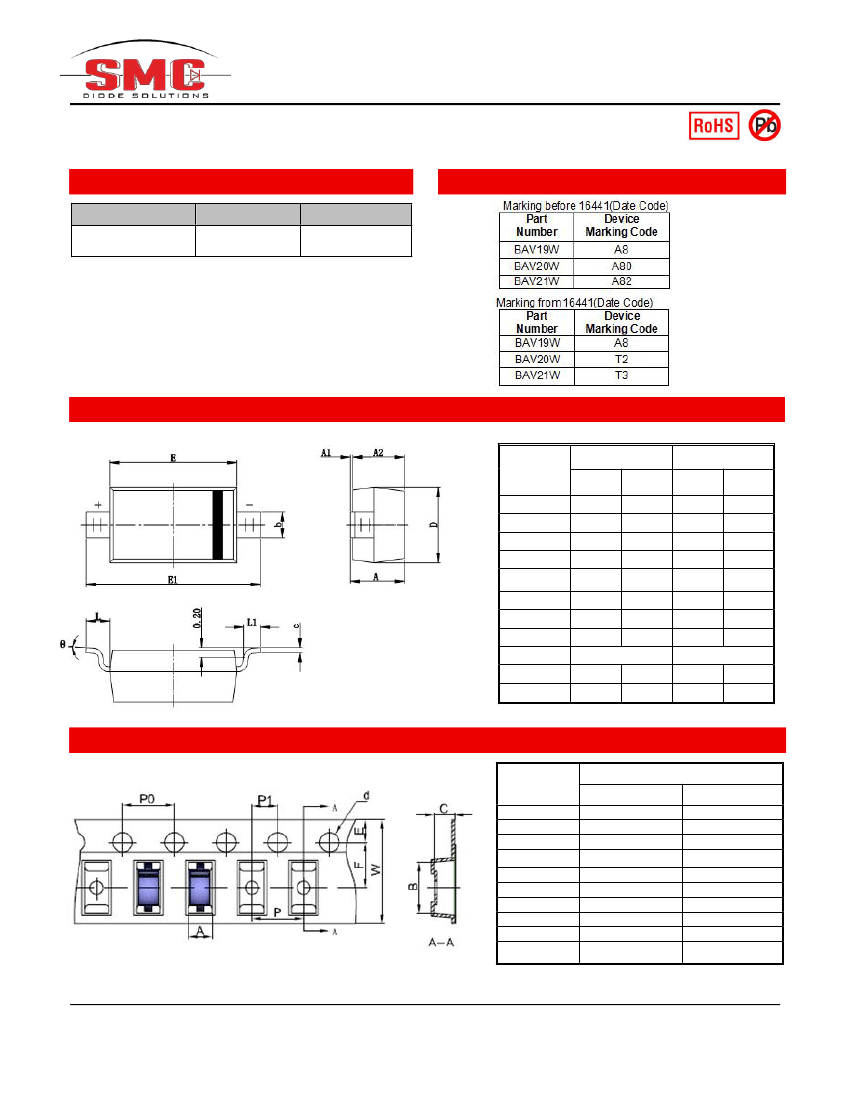

Ordering Information
Device
BAV19W-BAV21W
Marking Diagram
Shipping
3000pcs / reel
Package
SOD-123
(Pb-Free)
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Mechanical Dimensions SOD-123
SYMBOL
A
A1
A2
b
c
D
E
E1
L
L1
θ
Millimeters
MIN.
1.050
0.000
1.050
0.450
0.080
MAX.
1.250
0.100
1.150
0.650
0.150
Inches
MIN.
0.041
1
0.000
0.041
0.018
0.003
MAX.
0.049
0.004
0.045
0.026
0.006
1.500
1.700
2.600
2.800
3.550
3.850
0.500 REF.
0.250
0.450
0°
8°
0.059
0.067
0.102
0.110
0.140
0.152
0.020 REF.
0.010
0.018
0°
8°
Carrier Tape Specification SOD-123
SYMBOL
A
B
C
d
E
F
P
P0
P1
W
Millimeters
Min.
Max.
1.80
3.89
1.52
1.45
1.65
3.40
3.90
3.90
1.90
7.90
1.90
3.99
1.62
1.65
1.85
3.60
4.10
4.10
2.10
8.30
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
BAV19W-BAV21W
Technical Data
Data Sheet N0591, Rev. C
