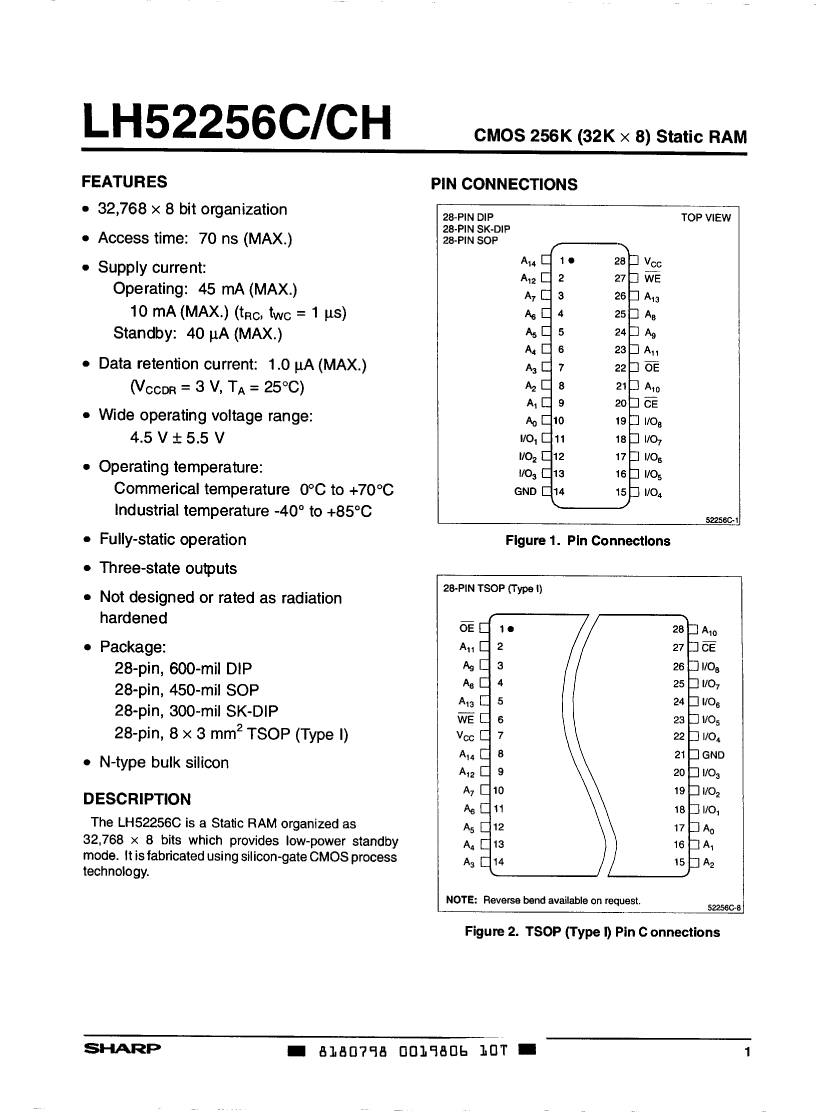

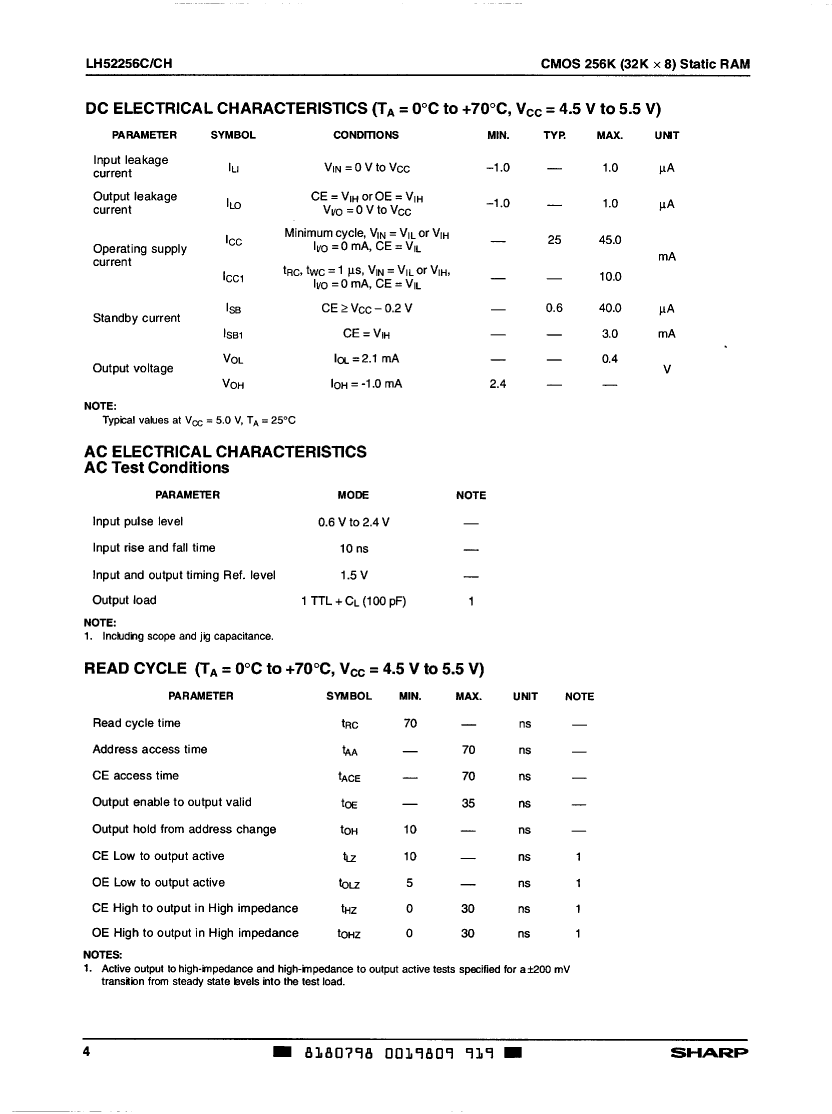

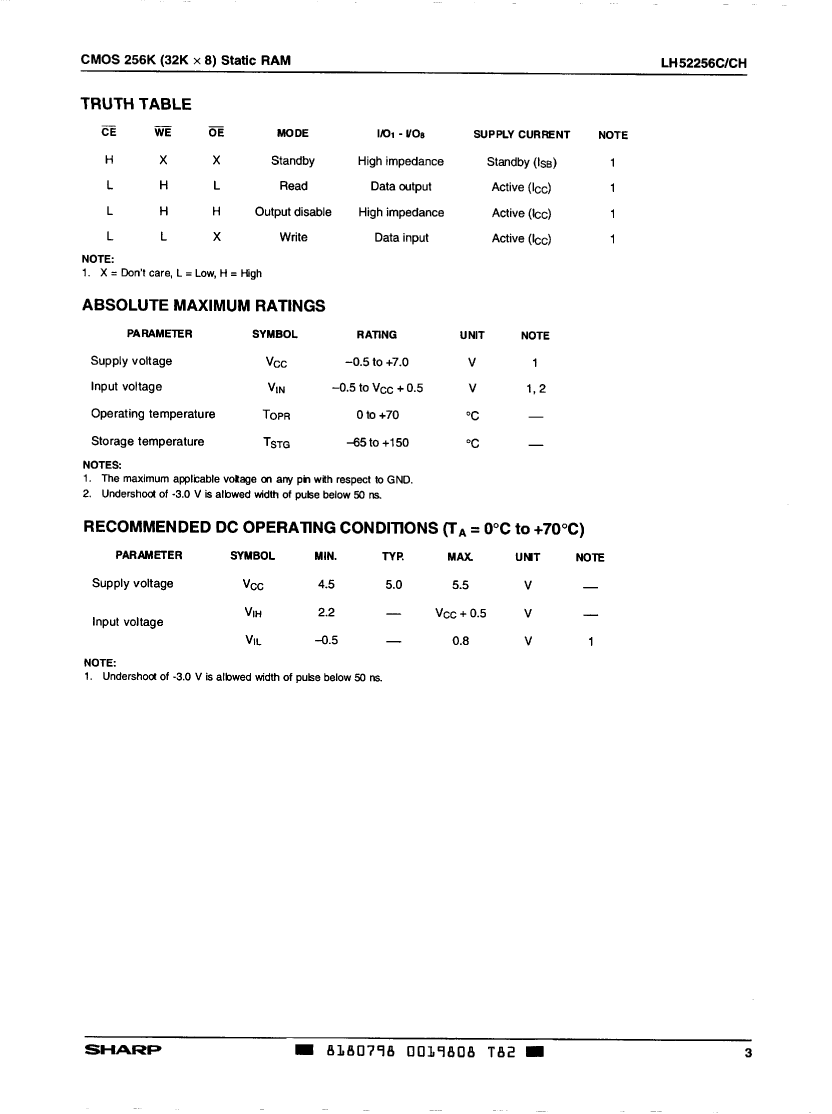

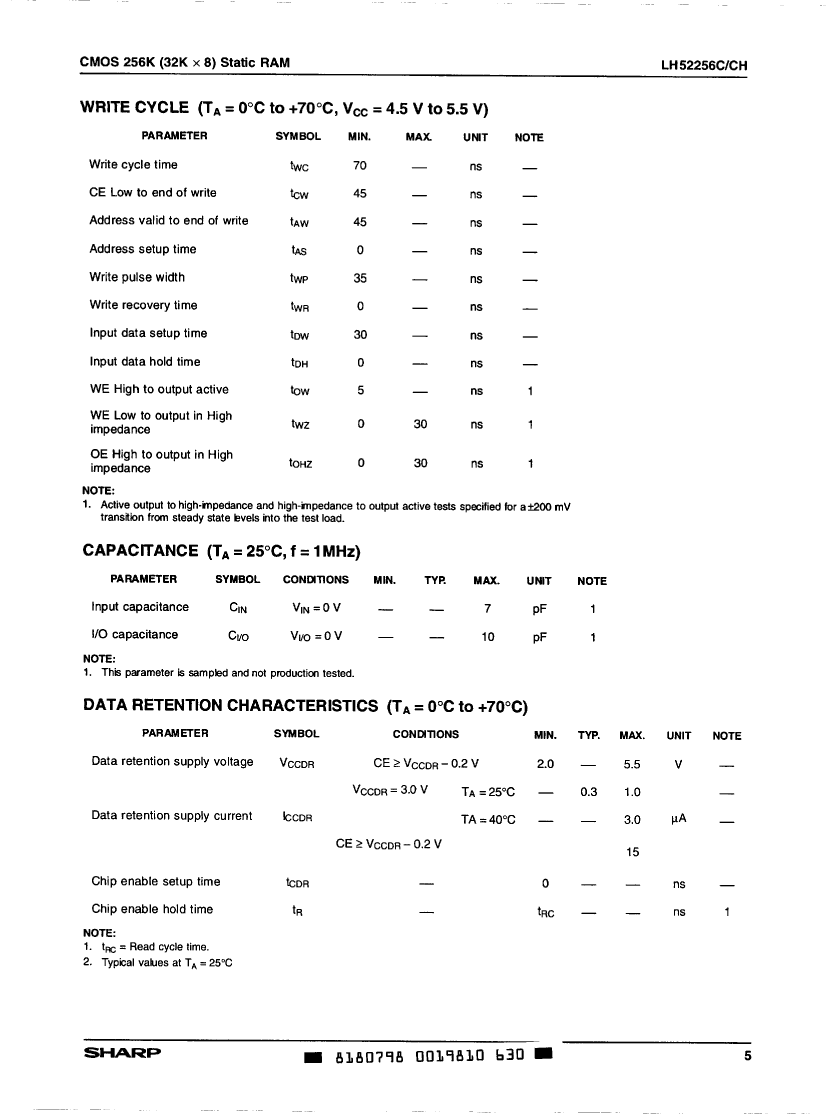

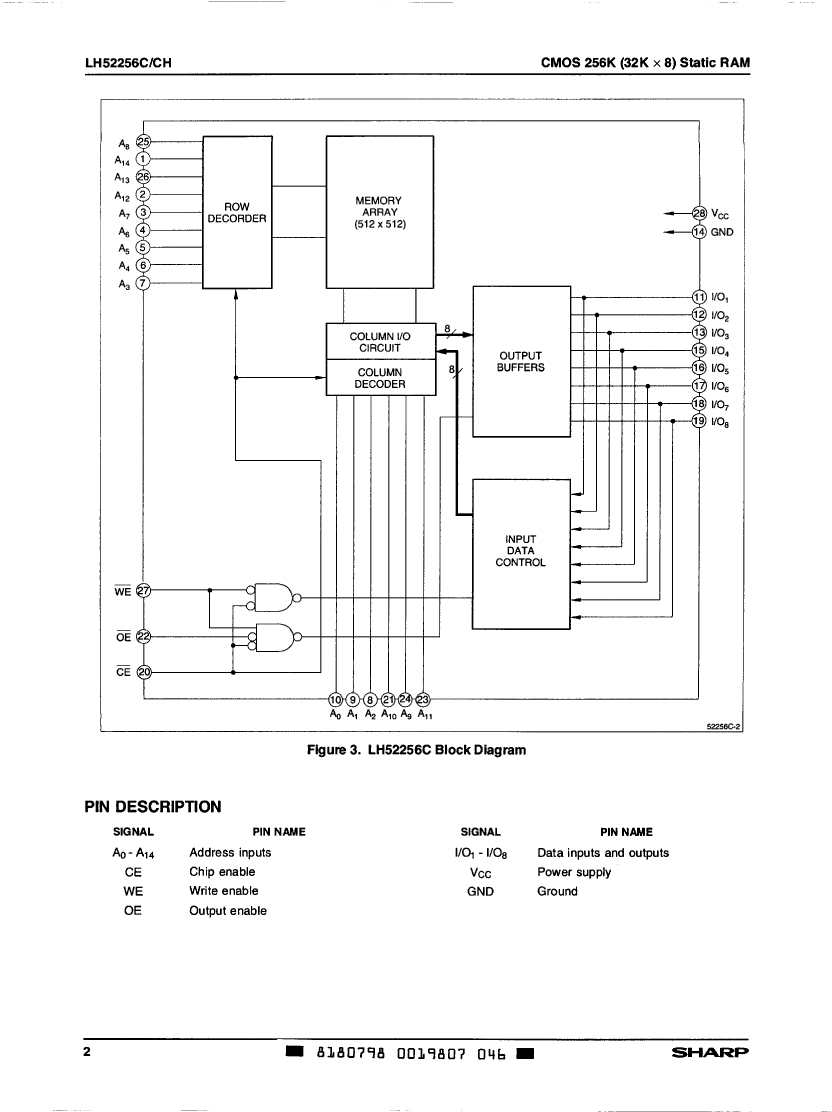

Preview

LH52B256T-90LL: DescriptionStandard SRAM, 32KX8, 90ns, CMOS, PDSO28, 8 X 13 MM, PLASTIC, TSOP1-28; Categorystorage storage; File Size502KB，11 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH52B256T-90LL Overview

Standard SRAM, 32KX8, 90ns, CMOS, PDSO28, 8 X 13 MM, PLASTIC, TSOP1-28

LH52B256T-90LL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	8 X 13 MM, PLASTIC, TSOP1-28
Reach Compliance Code	unknown
Is Samacsys	N
Maximum access time	90 ns
Other features	AUTOMATIC POWER-DOWN
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	11.8 mm
memory density	262144 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.2 mm
Minimum standby current	2 V
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.55 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

LH52B256T-90LL Related Products

	LH52B256T-90LL	LH52B256T-100LL	LH52256N-90	LH52256N-12	LH52256N-70
Description	Standard SRAM, 32KX8, 90ns, CMOS, PDSO28, 8 X 13 MM, PLASTIC, TSOP1-28	Standard SRAM, 32KX8, 100ns, CMOS, PDSO28, 8 X 13 MM, PLASTIC, TSOP1-28	Standard SRAM, 32KX8, 90ns, CMOS, PDSO28,	Standard SRAM, 32KX8, 120ns, CMOS, PDSO28,	Standard SRAM, 32KX8, 70ns, CMOS, PDSO28,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	8 X 13 MM, PLASTIC, TSOP1-28	8 X 13 MM, PLASTIC, TSOP1-28	SOP, SOP28,.5	SOP, SOP28,.5	SOP, SOP28,.5
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Maximum access time	90 ns	100 ns	90 ns	120 ns	70 ns
JESD-30 code	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28
JESD-609 code	e0	e0	e0	e0	e0
memory density	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8
Number of terminals	28	28	28	28	28
word count	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	32KX8	32KX8	32KX8	32KX8	32KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	TSOP1	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Minimum standby current	2 V	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.55 mm	0.55 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
ECCN code	-	-	EAR99	EAR99	EAR99
I/O type	-	-	COMMON	COMMON	COMMON
Encapsulate equivalent code	-	-	SOP28,.5	SOP28,.5	SOP28,.5
power supply	-	-	5 V	5 V	5 V
Maximum standby current	-	-	0.00005 A	0.00005 A	0.00005 A
Maximum slew rate	-	-	0.07 mA	0.07 mA	0.08 mA
