FFC-26T4LBW2B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FFC-26T4LBW2B

FFC-26T4LBW2B: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.

Download Datasheet Parametric View All

FFC-26T4LBW2B Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,

FFC-26T4LBW2B Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (118) OVER COPPER
Contact completed and terminated	TIN LEAD (118) OVER COPPER
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

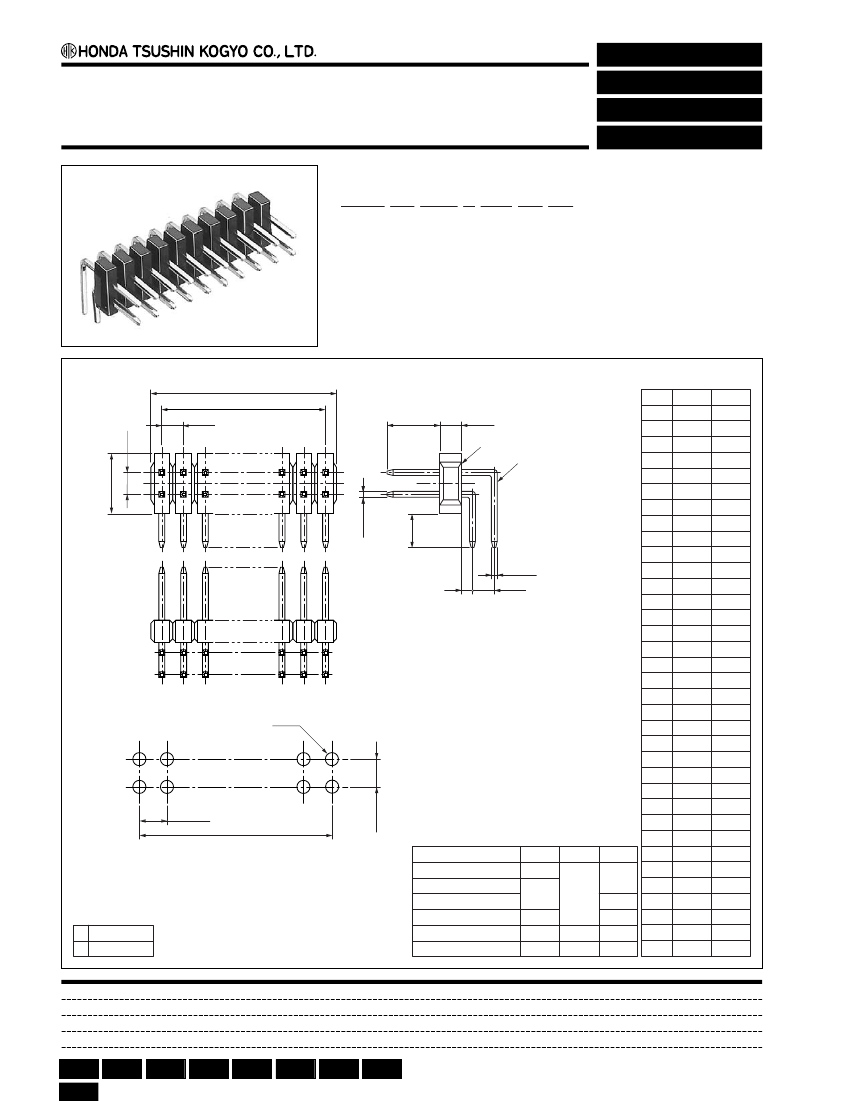

2.54 mm pitch connector

Right angle DIP type male connector for PCBs

(Taller insulator type)

FFC-( )(T )LBW( )( )

●

Configuration of product Part No.

For PCBs

Right angle DIP

FFC- ( ) (T ) L BW ( ) ( )

➀

➁

➂

➃

➄

➅

➆

➄

Type of contact

BW: 0.635 square contacts, double

row type, wide insulator type

➅

Contact plating

1: Gold plate

2: Solder plate

➆

Insulator color

Blank: Blue

: Black

●

Dimensions

No. of

contacts

➀

Series name

➁

No. of contacts: 2–144

➂

Length of contact

Blank: Standard

T, T1–T4 (Refer to the following

dimension table.)

➃

Type of contact

L: Right angle

2.54

–

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

➀

➁

6.5

œ0.635

2.54

– 0.05

Part No.

FFC- (2~70) LBW( )( )

FFC- (2~70)TLBW( )( )

FFC- (2~70)T1LBW( )( )

8.2

6.1

8.2

1.52

1.27

3.54

1.27

2.8

3.05

3.54

ø1

+0.1

2.54

– 0.05

– 0.1

PCB layout for reference only

●

Components

➀

Insulator

➁

Contacts

FFC- (2~70)T2LBW( )( )

FFC- (2~70)T3LBW( )( )

FFC- (2~70)T4LBW( )( )

Mating connectors:

DIC series or HKP series of female connectors

DIP

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others
