8
7
6
5
4
REV
A
B
C
D
3
DESCRIPTION
RELEASED FOR PRODUCTION
ECN#2357: CORRECTED WIRING MAP
ECN 3199: UPDATE DWG FORMAT
ECN 4078: CN RELEASE AND NEW FORMAT
2
REVISIONS
DATE
1
APPROVED
TJC
D. PARHAM
D.GRIFFIN
D.FRISIELLO
9/26/01
03/30/06
2/15/08
6/24/09
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
D
2X, 2-56 UNC-2A
THUMBSCREW
LENGTH
MOLDED PVC HOOD AND
STRAIN RELIEF, LIGHT GRAY
25
50
D
35
1
C
68
34
1
C
26
"P1"
MALE 68 PIN HIGH DENSITY
D-SUB CONNECTOR
(.050" [1.27 MM] PIN SPACING)
UL TYPE CL2, 25 TWISTED PAIRS 28AWG
STRANDED COPPER, ALUMINIZED POLYESTER
SHIELD PLUS COPPER BRAID SHIELD. OUTER
JACKET: LIGHT GRAY PVC (400C)
"P2"
MALE CN50 PIN
RIBBON CONNECTOR
B
B
RoHS Compliant
NOTES:
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm]
OVERALL CABLE LENGTH TOLERANCE:
≤12 [305] = +1 [25] / -0
>12 [305] ≤60 [1524] = +2 [51] / -0
>60 [1524] ≤120 [3048] = +4 [102] / -0
>120 [3048] ≤300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0%
ALL OTHER DIMENSIONAL TOLERANCES:
.X = ± .2
.XX = ± .02
.XXX = ±.005
PROJECTION
APPROVALS
DRAWN BY
DATE
9/21/01
9/24/01
9/25/01
CATEGORY
A
1. SEE SHEET 2 FOR WIRING MAP AND PAIR PIN ASSIGNMENTS.
2. MOLDED HOODS HAVE INTERNAL 360 FOIL SHIELDS SOLDERED TO
CONNECTOR FRAMES AND CABLE DRAIN WIRE.
3. CONNECTORS ARE GOLD PLATED.
4. CABLE ASSEMBLY SHALL BE TESTED FOR CONTINUITY.
5. CABLE ASSEMBLY SHALL BE INDIVIDUALLY PACKAGED IN A POLY BAG.
TJC
CHECKED BY
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
DFP
APPROVED BY
RC
DATA CABLING
PRODUCT DESCRIPTION
A
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR
REF
CABLE SCSI-3 HPDB68M/CN50M
SIZE
A
43321
2
FSCM NO.
DWG. NO.
CA950MM
1
REV.
SHEET 1 OF 2
SCALE: NONE
CAD FILE:
CA950MM.SLDDRW
D
8
7
6
5
4
3
8
7
6
5
4
3
2
1
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
D
D
C
C
B
B
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
A
CATEGORY
DATA CABLING
A
PRODUCT DESCRIPTION

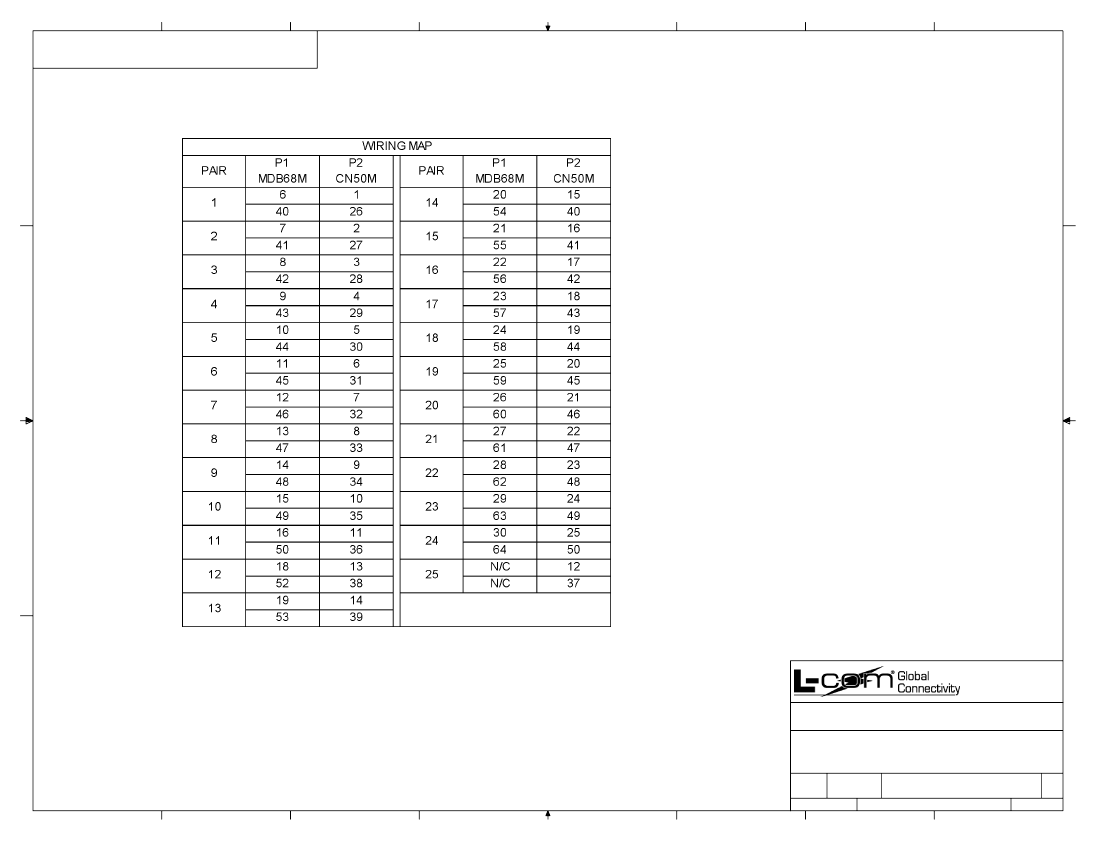

CABLE SCSI-3 HPDB68M / CN50M
SCALE:
A
SIZE
43321
2
FSCM NO.
DWG. NO.
CA950MM
1
REV.
SHEET 2 OF 2
NONE CAD FILE:
CA950MM.SLDDRW
D
8
7
6
5
4
3
