TPSMC30ATRTB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> TPSMC30ATRTB

TPSMC30ATRTB: DescriptionTrans Voltage Suppressor Diode, 1500W, 25.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN; CategoryDiscrete semiconductor diode; File Size364KB，5 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric View All

TPSMC30ATRTB Overview

Trans Voltage Suppressor Diode, 1500W, 25.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN

TPSMC30ATRTB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	R-PDSO-C2
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	EXCELLENT CLAMPING CAPABILITY
Maximum breakdown voltage	31.5 V
Minimum breakdown voltage	28.5 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	185 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	25.6 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

TPSMC6.8A ........... TPSMC47A

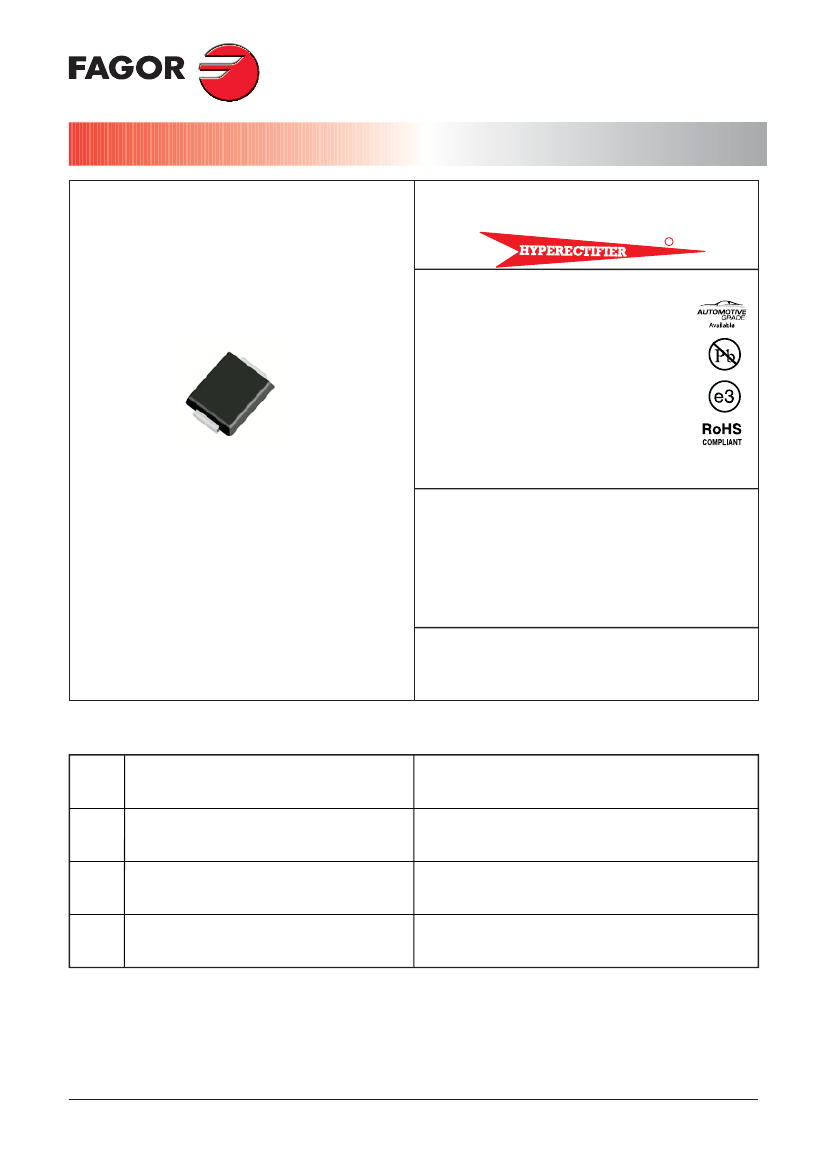

1500 W Surface Mount Unidirectional Transient Voltage Suppressor

Voltage

6.8 V to 47 V (Uni)

DO-214AB (SMC)

FEATURES

Low profile package

Ideal for automated placement

1500 W peak pulse power capability with a

10/1000 µs waveform, repetitive rate (duty

cycle): 0.01 %

Excellent clamping capability

Very fast response time

Low incremental surge resistance

Available in unidirectional

AEC-Q101 qualified

Solder dip 260ºC, 10s

Component in accordance to RoHS 2011/65/EU

and WEEE 2002/96/EC

Meets MSL level 1, per J-STD-020, LF maximum

peak of 260º C

MECHANICAL DATA

Case

DO-214AB (SMC). Epoxy meets UL 94V-0

flammability rating.

Polarity

For unidirectional types color band denotes

cathode end.

Terminals

Matte tin plated leads, solderable per

MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.

Consumer grade, meets JESD 201 class 1A whisker test.

HE3

suffix

for high reliability grade, meets JESD 201

class 2 whisker test.

TYPICAL APPLICATIONS

Used in sensitive electronics protection against voltage

transients induced by inductive load switching and lighting

on ICs, MOSFET, signal lines of sensor units for consumer,

computer, industrial, automotive and telecommunication.

Power

1500 W /ms

Maximun Ratings and Electrical Characteristics at 25°C

PPM

FSM

Peak Pulse Power Dissipation

with 10/1000 µs exponential pulse

Peak Forward Surge Current 8.3 ms.

(Note 1)

(Jedec Method)

Max. forward voltage drop

at I

= 100 A

Operating Junction and Storage

Temperature Range

1500 W

200 A

3.5 V

- 65 to + 185 ºC

-T

STG

Note:

1. Mounted on 0.31 x 0.31" (8.0 x 8.0 mm) copper pads to each terminal

www.fagorelectronica.com

Document Name: tpsmc

Version: Oct-14

Page Number: 1/5

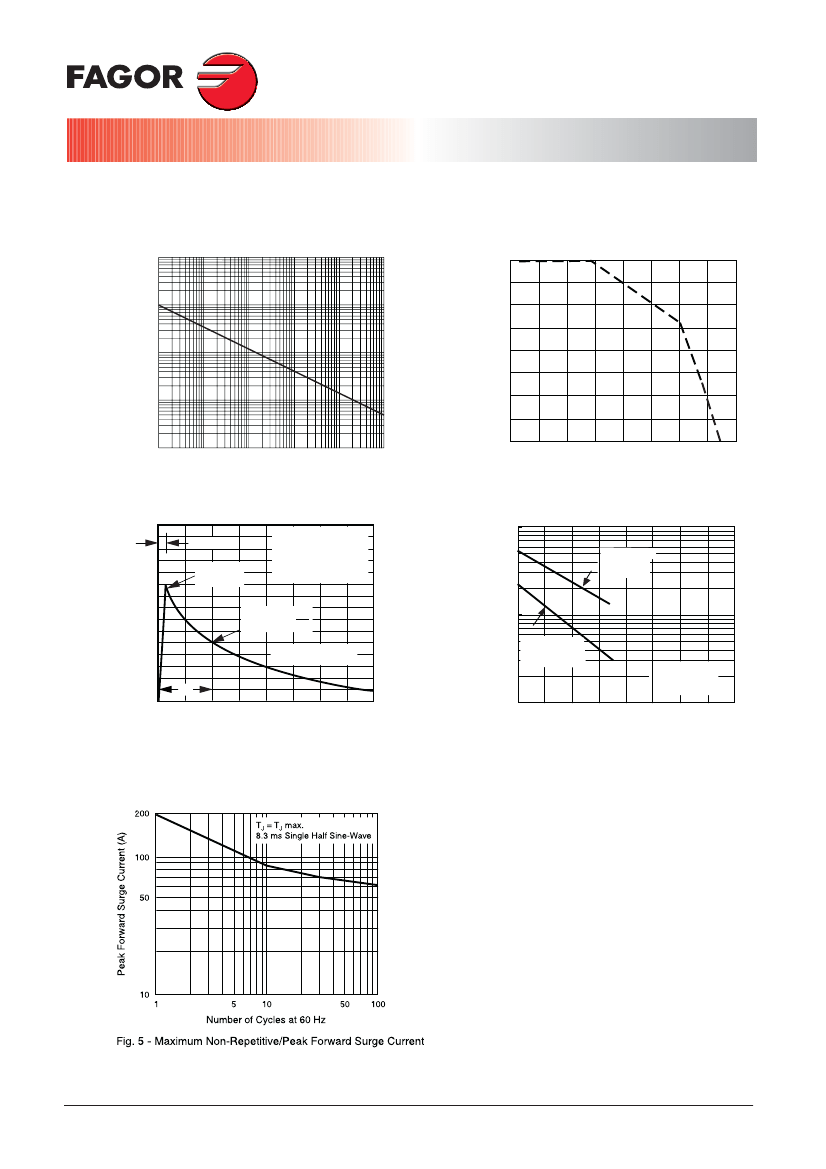

TPSMC6.8A ........... TPSMC47A

1500 W Surface Mount Unidirectional Transient Voltage Suppressor

Disclaimer

All product, product specifications and data are subject to change without notice to improve reliability,

function or design or otherwise.

Fagor Electrónica, S.Coop., its affiliates, agents, and employees, and all persons acting on its or their

behalf (collectively, "Fagor"), disclaim any and all liability for any errors, inaccuracies or incompleteness contained

in any datasheet or in any other disclosure relating to any product.

Fagor makes no warranty, representation or guarantee regarding the suitability of the products for any particular

purpose or the continuing production of any product. To the maximum extent permitted by applicable law,

Fagor disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all

liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied

warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Fagor's knowledge

of typical requirements that are often placed on Fagor products in generic applications. Such statements are not

binding statements about the suitability of products for a particular application. It is the customer's responsibility

to validate that a particular product with the properties described in the product specification is suitable for use in a

particular application. Parameters provided in datasheets and/or specifications may vary in different applications

and performance may vary over time. All operating parameters, including typical parameters, must be validated

for each customer application by the customer's technical experts. Product specifications do not expand or

otherwise modify Fagor's terms and conditions of purchase, including but nos limited to the warranty expressed

therein.

Except as expressly indicated in writing. Fagor products are not designed for use in medical, life-saving, or

life-sustaining applications or for any other application in which the failure of the Fagor product could result in

personal injury or death. Customers using or selling Fagor products not expressly indicated for use in such

applications do so at their own risk and agree to fully indemnify and hold Fagor and its distributors harmless from

and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use

or sale, including attomeys fees, even if such claim alleges that Fagor or its distributor was negligent regarding

the design or manufacture of the part. Please contact authorized Fagor personnel to obtain written terms and

conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this

document or by any conduct of Fagor, Product names and markings noted herein may be trademarks of their

respective owners.

www.fagorelectronica.com

Document Name: tpsmc

Version: Oct-14

Page Number: 5/5
