PSOT15LC-LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> PSOT15LC-LF

PSOT15LC-LF: DescriptionTrans Voltage Suppressor Diode, 500W, 15V V(RWM), Unidirectional, 2 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor diode; File Size892KB，9 Pages; ManufacturerProTek Devices; Websitehttp://www.protekdevices.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PSOT15LC-LF Overview

Trans Voltage Suppressor Diode, 500W, 15V V(RWM), Unidirectional, 2 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-3

PSOT15LC-LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	ULTRA LOW CAPACITANCE
Minimum breakdown voltage	16.7 V
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	500 W
Number of components	2
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	270
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	15 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

05066

Only One Name Means ProTek’Tion™

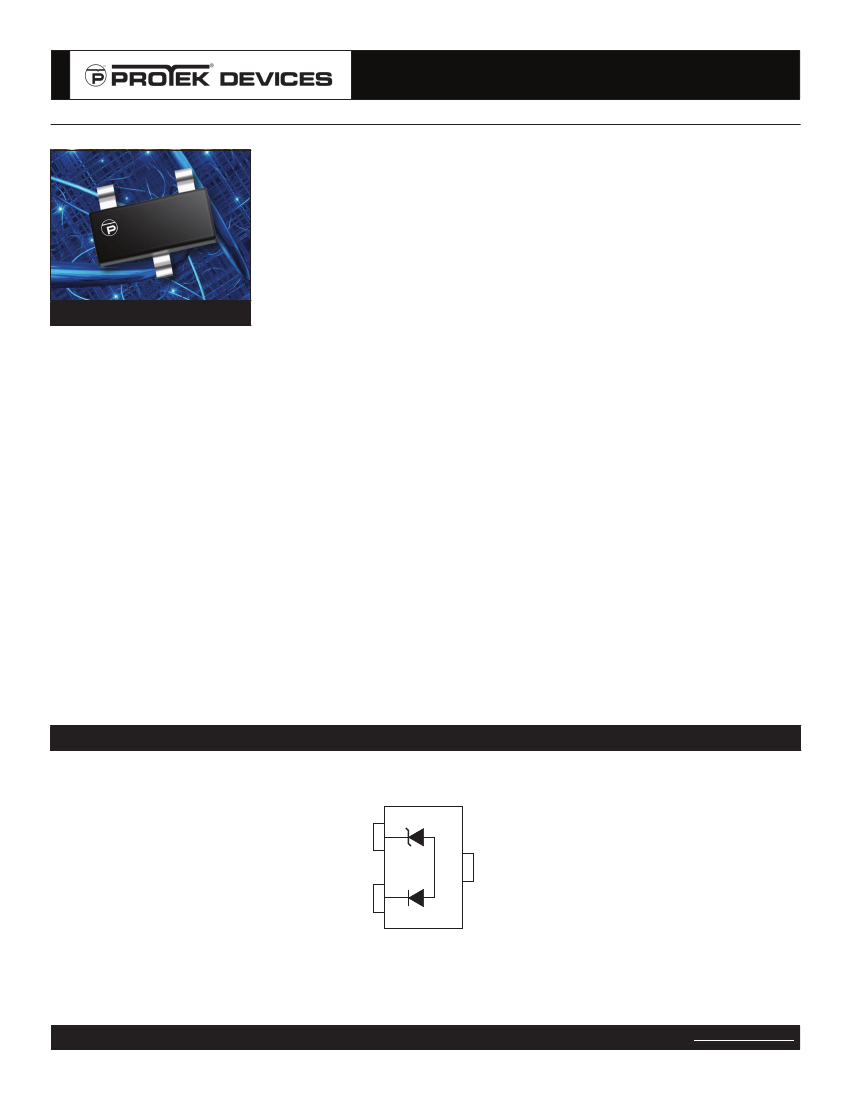

PSOT03LC - PSOT36LC

500 WATT ULTRA LOW CAPACITANCE TVS ARRAY

DESCRIPTION

The PSOTxxLC series are ultra low capacitance transient voltage suppressor (TVS) arrays, designed for power or data

line applications that provide protection against ESD, tertiary lightning and switching transients. This series offers low

clamping voltage for the protection of sensitive components.

The PSOTxxLC series has a peak pulse power of 500 Watts for an 8/20µs waveshape and is available in a SOT-23 pack-

age configuration. This series meets the IEC 61000-4-2, 61000-4-4 and IEC 61000-4-5 requirements.

SOT-23 PACkAGE

FEATURES

• Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV

• Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns

• Compatible with IEC 61000-4-5 (Surge): 12A, 8/20µs - Level 1(Line-

Ground) & Level 2(Line-Line)

• 500 Watts Peak Pulse Power per Line(tp = 8/20µs)

• Low Clamping Voltage

• Ultra Low Capacitance

• Available in Multiple Voltages Ranging from 3V to 36V

• RoHS Compliant

• REACH Compliant

APPLICATIONS

•

Ethernet 10/100 Base T

Cellular Phones

FireWire

Audio/Video Inputs

Portable Electronics

mEChANICAL ChARACTERISTICS

Molded JEDEC SOT-23 Package

Approximate Weight: 8 milligrams

Lead-Free Pure-Tin Plating (Annealed)

Solder Reflow Temperature:

Pure-Tin - Sn, 100: 260-270°C

• Flammability Rating UL 94V-0

• 8mm Tape and Reel per EIA Standard 481

•

PIN CONFIGURATION

05066.R8 10/12

Page 1

www.protekdevices.com

PSOT15LC-LF Related Products

	PSOT15LC-LF	PSOT03LC-LF	PSOT36LC-LF	PSOT24LC-LF	PSOT12LC-LF	PSOT05LC-LF	PSOT08LC-LF
Description	Trans Voltage Suppressor Diode, 500W, 15V V(RWM), Unidirectional, 2 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-3	Trans Voltage Suppressor Diode, 500W, 3.3V V(RWM), Unidirectional, 2 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-3	Trans Voltage Suppressor Diode, 500W, 36V V(RWM), Unidirectional, 2 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-3	Trans Voltage Suppressor Diode, 500W, 24V V(RWM), Unidirectional, 2 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-3	Trans Voltage Suppressor Diode, 500W, 12V V(RWM), Unidirectional, 2 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-3	Trans Voltage Suppressor Diode, 500W, 5V V(RWM), Unidirectional, 2 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-3	Trans Voltage Suppressor Diode, 500W, 8V V(RWM), Unidirectional, 2 Element, Silicon, ROHS AND REACH COMPLIANT, PLASTIC PACKAGE-3
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Contacts	3	3	3	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ULTRA LOW CAPACITANCE	ULTRA LOW CAPACITANCE	ULTRA LOW CAPACITANCE	ULTRA LOW CAPACITANCE	ULTRA LOW CAPACITANCE	ULTRA LOW CAPACITANCE	ULTRA LOW CAPACITANCE
Minimum breakdown voltage	16.7 V	4 V	40 V	26.7 V	13.3 V	6 V	8.5 V
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Maximum non-repetitive peak reverse power dissipation	500 W	500 W	500 W	500 W	500 W	500 W	500 W
Number of components	2	2	2	2	2	2	2
Number of terminals	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	270	270	270	270	270	270	270
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	15 V	3.3 V	36 V	24 V	12 V	5 V	8 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	-	ProTek Devices	-	ProTek Devices	ProTek Devices	ProTek Devices	ProTek Devices
