BCR20BL

Description
TRIAC, 400V V(DRM), 20A I(T)RMS
CategoryAnalog mixed-signal IC    Trigger device
File Size91KB,5 Pages
ManufacturerMitsubishi
Websitehttp://www.mitsubishielectric.com/semiconductors/
Download Datasheet Parametric Compare View All

BCR20BL Overview

TRIAC, 400V V(DRM), 20A I(T)RMS

BCR20BL Parametric

Parameter NameAttribute value
package instructionFLANGE MOUNT, O-MUFM-D2
Reach Compliance Codeunknown
Is SamacsysN
Shell connectionMAIN TERMINAL 2
ConfigurationSINGLE
JESD-30 codeO-MUFM-D2
Number of components1
Number of terminals2
Package body materialMETAL
Package shapeROUND
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum rms on-state current20 A
Off-state repetitive peak voltage400 V
surface mountNO
Terminal formSOLDER LUG
Terminal locationUPPER
Trigger device typeTRIAC
Base Number Matches1

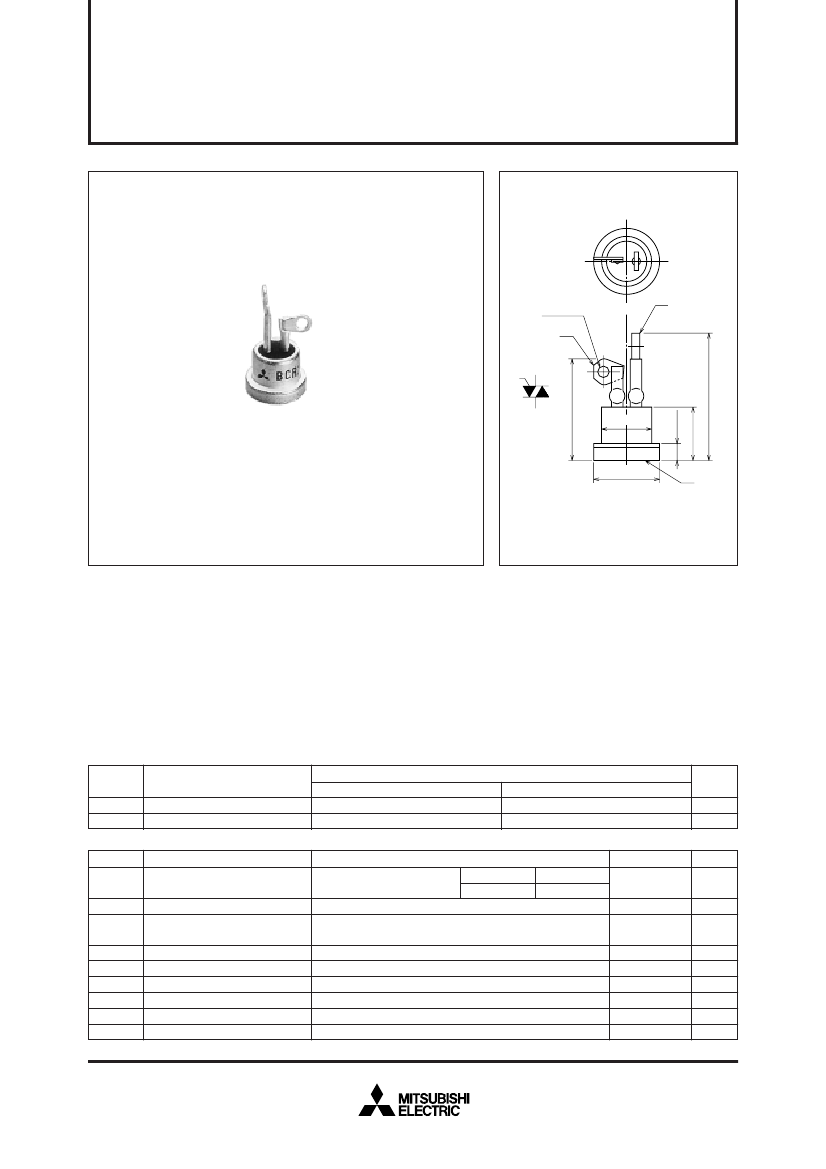

MITSUBISHI SEMICONDUCTOR
〈TRIAC〉
BCR20A, BCR20B, BCR20C, BCR20E
MEDIUM POWER USE
A, B, C : NON-INSULATED TYPE, E : INSULATED TYPE, GLASS PASSIVATION TYPE
BCR20A, BCR20B, BCR20C, BCR20E

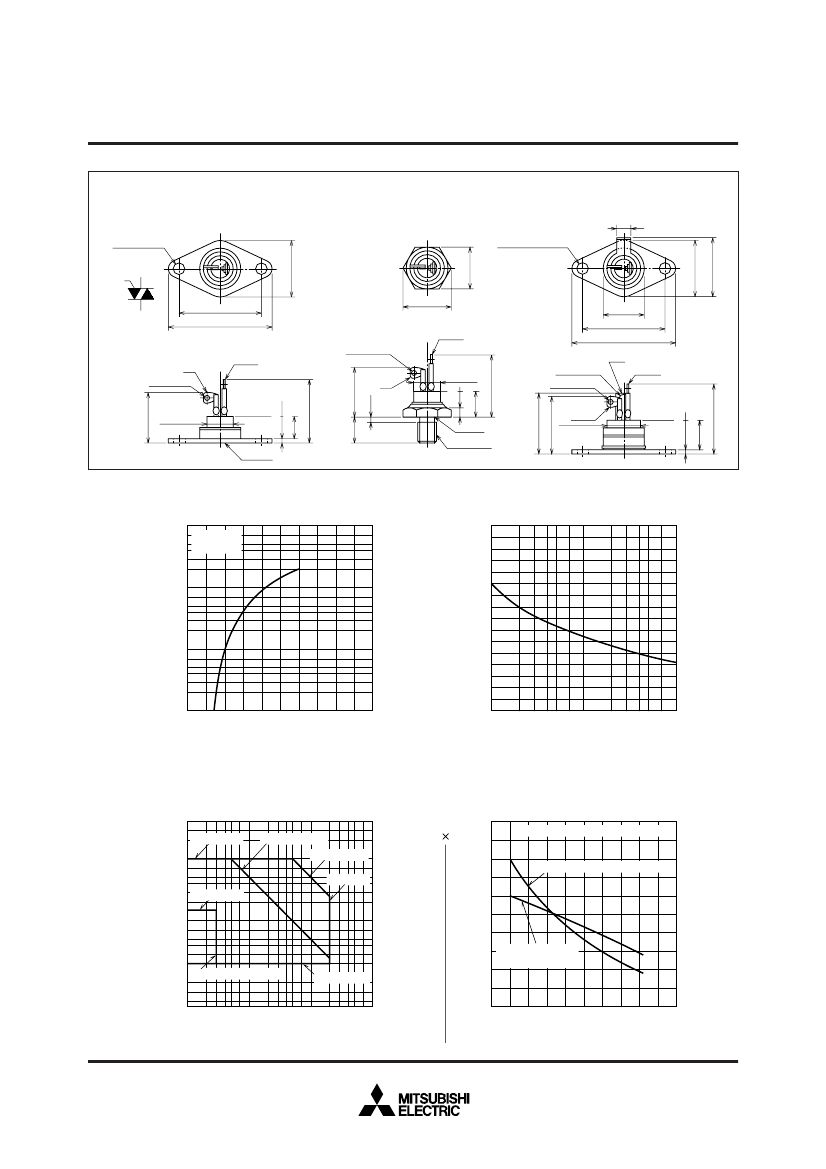

OUTLINE DRAWING
Dimensions
in mm
φ2.0
MIN
3
1
φ11
MAX
1
T
1
TERMINAL
2
T
2
TERMINAL
3
GATE TERMINAL
2
• I
T (RMS)
...................................................................... 20A
• V
DRM
..............................................................400V/500V
• I
FGT
!
, I
RGT
!
, I
RGT
#
........................................... 30mA
BCR20A
APPLICATION
Contactless AC switches, light dimmer,
on/off control of traffic signals, on/off control of copier lamps, microwave ovens,
solid state relay

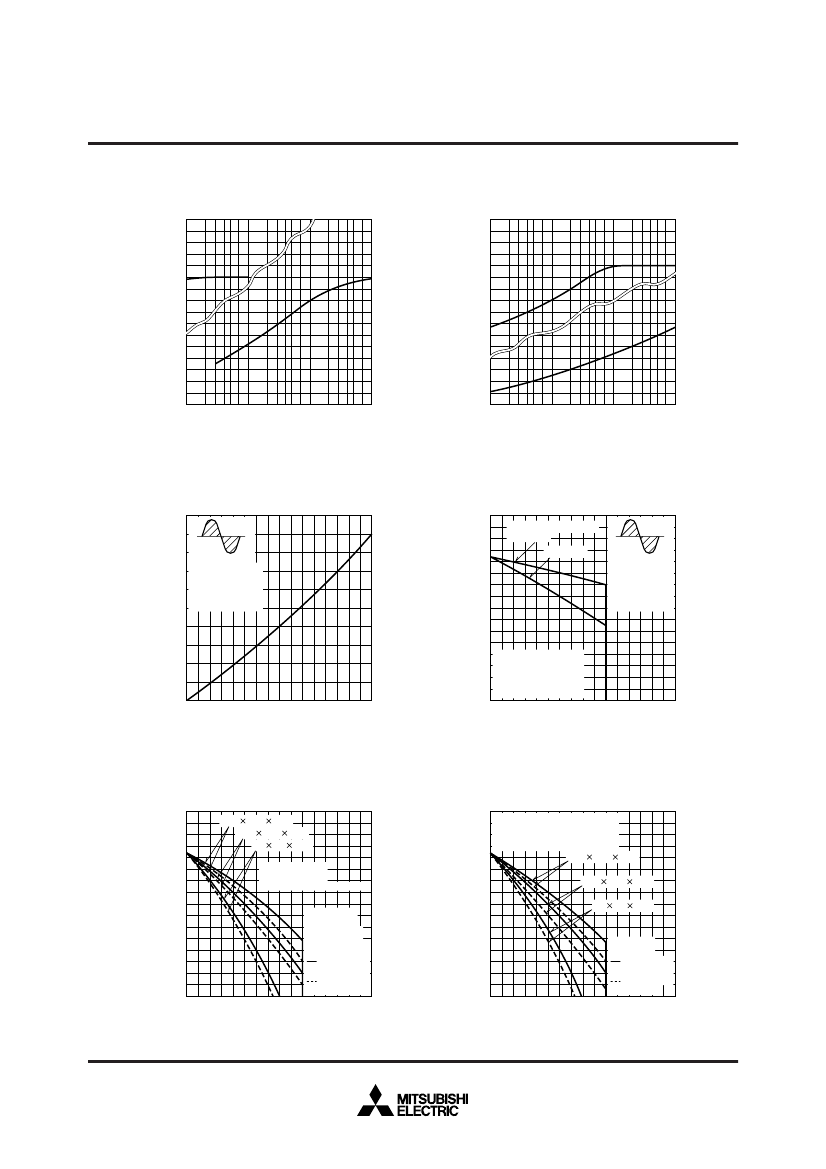

MAXIMUM RATINGS
Symbol
V
DRM
V
DSM
Parameter
Repetitive peak off-state voltage
V1
Non-repetitive peak off-state
voltage
V1
Voltage class
8
400
600
12
500
700
Unit
V
V
Symbol
I
T (RMS)
I
TSM
I
2t
P
GM
P
G (AV)
V
GM
I
GM
T
j
T
stg
Parameter
RMS on-state current
Surge on-state current
I
2t
for fusing
Peak gate power dissipation
Average gate power dissipation
Peak gate voltage
Peak gate current
Junction temperature
Storage temperature
Conditions
Commercial frequency, sine full
wave, 360° conduction
BCR20A, B, C
BCR20E
T
c
=98°C
T
b
=64°C
Ratings
20
220
203
5.0
0.5
10
2.0
–20 ~ +125
–20 ~ +125
9 MAX
Unit
A
A
A
2
s
W
W
V
A
°C
°C
φ8.7
MAX
60Hz sinewave 1 full cycle, peak value, non-repetitive
Value corresponding to 1 cycle of half wave 60Hz, surge on-state
current
V1.
Gate open.
3 MAX
2
17.5 MAX
Feb.1999
24 MAX
3
1

BCR20BL Related Products

BCR20BL BCR20E-8L BCR20AL BCR20CL BCR20E-12L
Description TRIAC, 400V V(DRM), 20A I(T)RMS TRIAC, 400V V(DRM), 20A I(T)RMS TRIAC, 400V V(DRM), 20A I(T)RMS TRIAC, 400V V(DRM), 20A I(T)RMS TRIAC, 500V V(DRM), 20A I(T)RMS
package instruction FLANGE MOUNT, O-MUFM-D2 FLANGE MOUNT, O-MUFM-D2 PRESS FIT, O-MUPF-D2 POST/STUD MOUNT, O-MUPM-D2 FLANGE MOUNT, O-MUFM-D2
Reach Compliance Code unknown unknown unknown unknown unknown
Is Samacsys N N N N N
Shell connection MAIN TERMINAL 2 ISOLATED MAIN TERMINAL 2 MAIN TERMINAL 2 ISOLATED
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE
JESD-30 code O-MUFM-D2 O-MUFM-D2 O-MUPF-D2 O-MUPM-D2 O-MUFM-D2
Number of components 1 1 1 1 1
Number of terminals 2 2 2 2 2
Package body material METAL METAL METAL METAL METAL
Package shape ROUND ROUND ROUND ROUND ROUND
Package form FLANGE MOUNT FLANGE MOUNT PRESS FIT POST/STUD MOUNT FLANGE MOUNT
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum rms on-state current 20 A 20 A 20 A 20 A 20 A
Off-state repetitive peak voltage 400 V 400 V 400 V 400 V 500 V
surface mount NO NO NO NO NO
Terminal form SOLDER LUG SOLDER LUG SOLDER LUG SOLDER LUG SOLDER LUG
Terminal location UPPER UPPER UPPER UPPER UPPER
Trigger device type TRIAC TRIAC TRIAC TRIAC TRIAC
Base Number Matches 1 1 1 1 1
