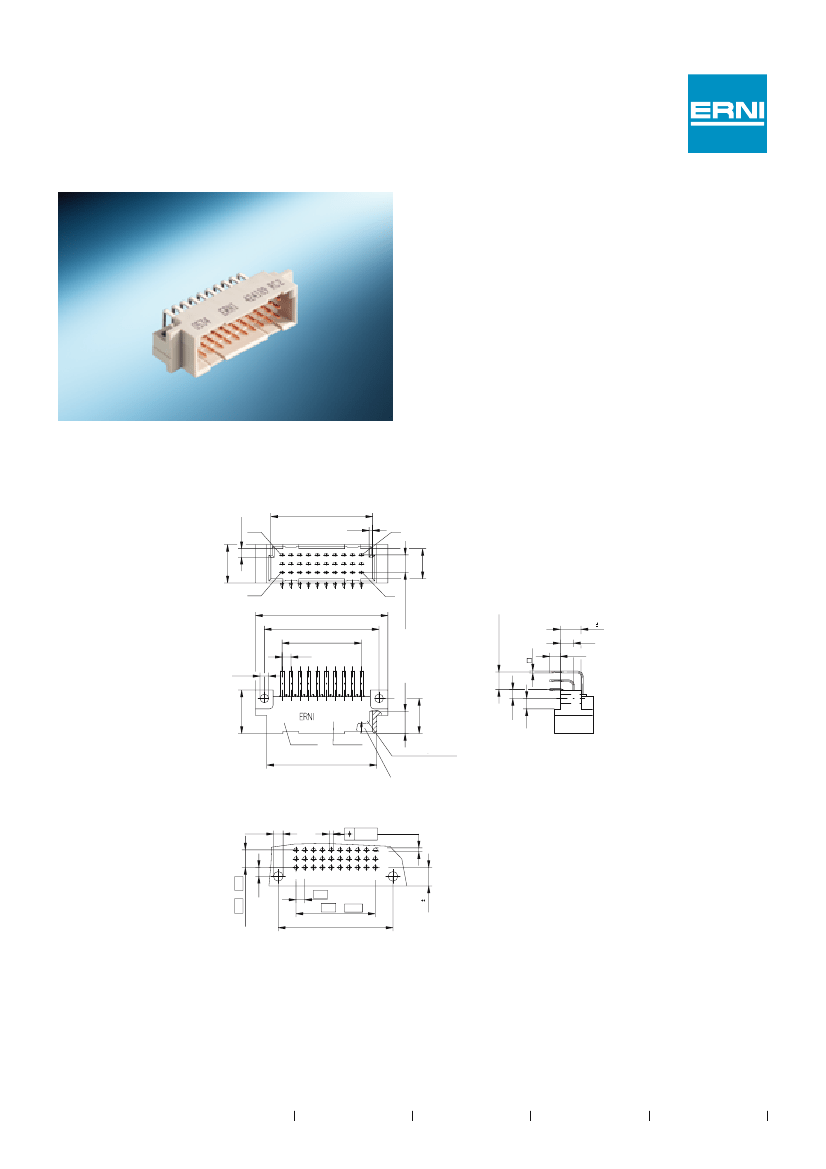

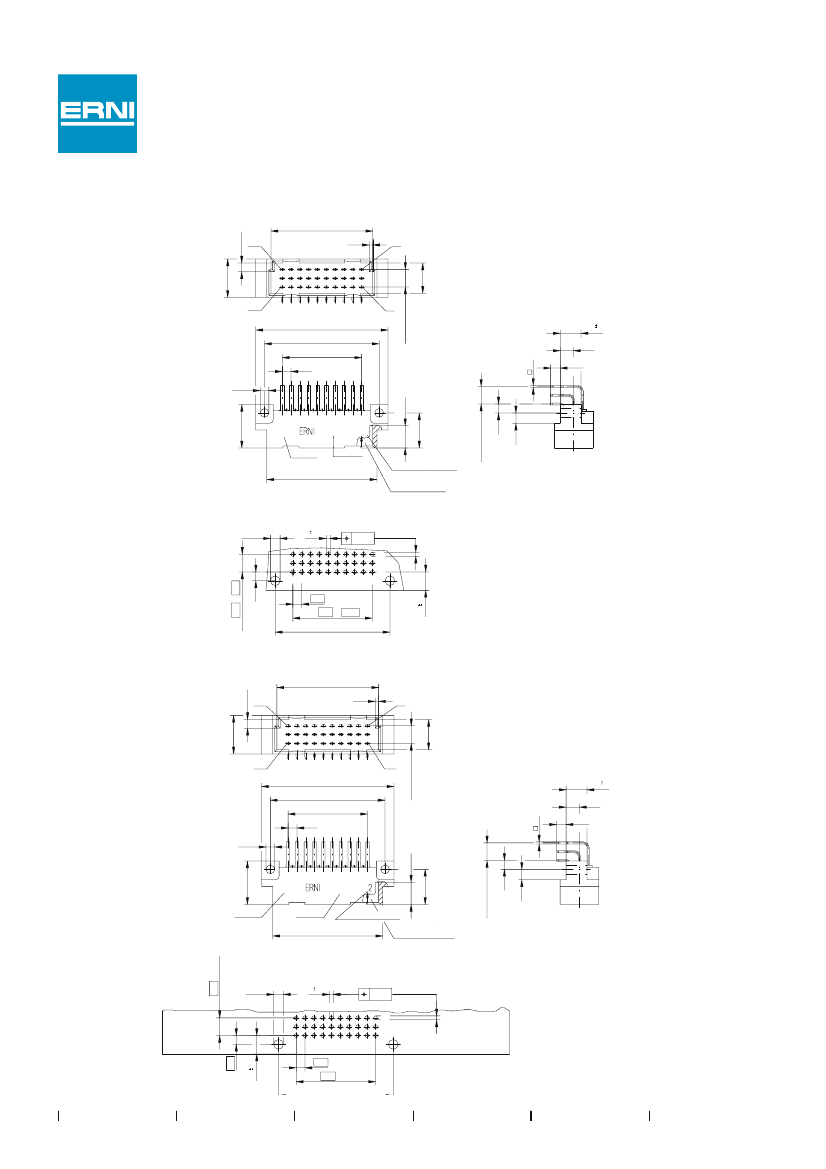

Board Euro Connector, 30 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
| Parameter Name | Attribute value |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Other features | STANDARDS: DIN 41612; IEC 60603-2 |
| body width | 0.437 inch |
| subject depth | 0.713 inch |
| body length | 1.5 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD EURO CONNECTOR |
| Contact to complete cooperation | TIN |
| Contact completed and terminated | GOLD |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | YES |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 400 Cycles |
| Filter function | NO |
| IEC compliance | YES |
| maximum insertion force | .9452 N |
| Insulation resistance | 10000000000 Ω |
| insulator material | POLYAMIDE |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Manufacturer's serial number | 154957 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Loaded row name | A,B,C |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| polarization key | ENDS |
| Rated current (signal) | 2.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.118 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 30 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .9452 N |
| Base Number Matches | 1 |
| 154957 | 123589 | 424188 | 1812J0500392FXR | 424189 | 004362 | 013134 | |
|---|---|---|---|---|---|---|---|
| Description | Board Euro Connector, 30 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle | Board Euro Connector, 30 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal | Board Euro Connector, 30 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal | Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, X7R, 15% TC, 0.0039uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT | Board Euro Connector, 30 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Guide Slot, Receptacle | Board Euro Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal | Board Euro Connector, 30 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Press Fit Terminal, Receptacle |
| Reach Compliance Code | compli | unknow | unknown | compliant | compliant | unknown | compliant |
| JESD-609 code | e4 | e4 | e4 | e3 | e4 | e4 | e4 |
| ECCN code | EAR99 | - | - | EAR99 | EAR99 | - | EAR99 |
| Other features | STANDARDS: DIN 41612; IEC 60603-2 | STANDARDS: DIN 41612; IEC 60603-2 | STANDARDS: DIN 41612; IEC 60603-2 | - | STANDARDS: DIN 41612; IEC 60603-2 | STANDARDS: DIN 41612; IEC 60603-2 | STANDARDS: DIN 41612; IEC 60603-2 |
| Connector type | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | - | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR |
| Contact to complete cooperation | TIN | TIN | TIN | - | TIN | TIN | TIN |
| Contact completed and terminated | GOLD | GOLD | GOLD | - | GOLD | GOLD | GOLD |
| Contact point gender | MALE | MALE | MALE | - | MALE | MALE | MALE |
| DIN compliance | YES | YES | YES | - | YES | YES | YES |
| Filter function | NO | NO | NO | - | NO | NO | NO |
| IEC compliance | YES | YES | YES | - | YES | YES | YES |
| MIL compliance | NO | NO | NO | - | NO | NO | NO |
| Manufacturer's serial number | 154957 | 123589 | 424188 | - | 424189 | 004362 | 013134 |
| Mixed contacts | NO | NO | NO | - | NO | NO | NO |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | - | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | - | BOARD | BOARD | BOARD |
| Number of rows loaded | 3 | 3 | 3 | - | 3 | 2 | 3 |
| Maximum operating temperature | 125 °C | - | - | 125 °C | 125 °C | - | 125 °C |
| Minimum operating temperature | -55 °C | - | - | -55 °C | -60 °C | - | -65 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | - | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | - | SOLDER | SOLDER | PRESS FIT |
| Total number of contacts | 30 | 30 | 30 | - | 30 | 20 | 30 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | - | 94V-0 | 94V-0 | 94V-0 |
