R135-BL/20 datasheet, PDF - EEWORLD Datasheet

R135-BL/20: DescriptionRotary Switch, 1 Positions, SPST, Latched, 5A, 12VDC, Wire Terminal, Knob Type Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size749KB，2 Pages; ManufacturerCarling Technologies

Download Datasheet Parametric Compare View All

R135-BL/20 Overview

Rotary Switch, 1 Positions, SPST, Latched, 5A, 12VDC, Wire Terminal, Knob Type Actuator, Panel Mount-threaded

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Actuator type	KNOB TYPE
body height	6.73 mm
Body length or diameter	15.24 mm
Contact (AC) maximum rated R load	3A@125VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@12VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	12 V
Electrical life	100000 Cycle(s)
Manufacturer's serial number	R135
Installation features	PANEL MOUNT-THREADED
Number of positions	1
Number of switching segments	1
Maximum operating temperature	85 °C
Minimum operating temperature
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	ROTARY SWITCH
Termination type	WIRE
Base Number Matches	1

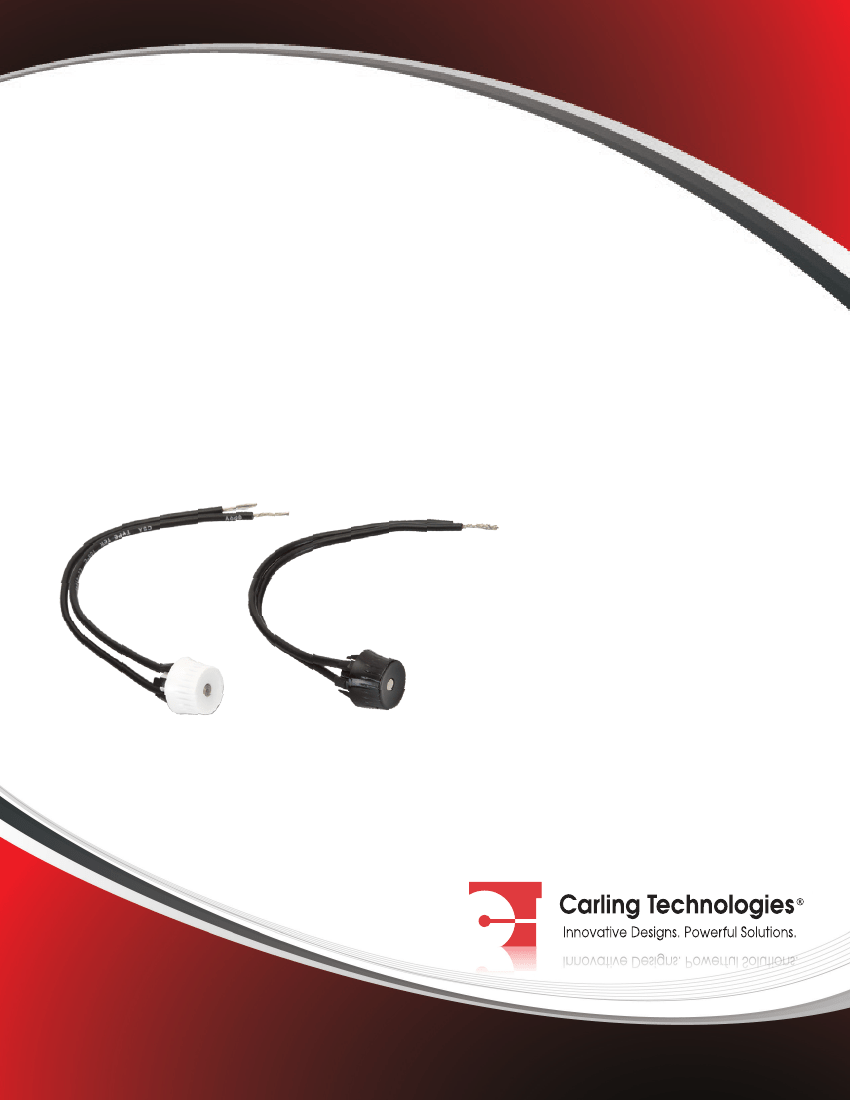

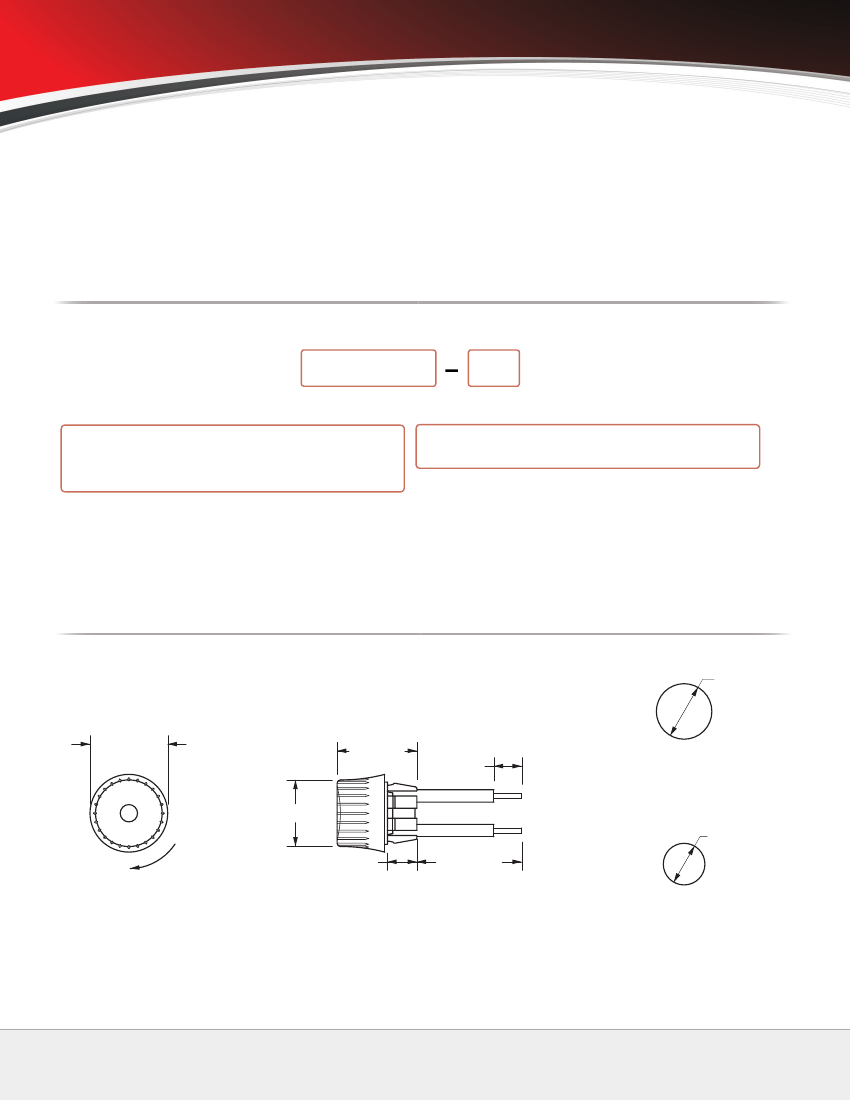

R135-Series

Rotary Switches

The R135 and R135A-Series rotary switches are single pole, single throw “L” rated up to

3A, feature an ON-OFF repeating action, and are available with a nylon actuating knob;

nylon snap-in bracket or nickel-plated brass bushing. These switches are typically used

to control lighting functions.

Carling Technologies, Inc.

60 Johnson Avenue • Plainville, CT 06062-1177

Phone: (860) 793-9281 • Fax: (860) 793-9231

Email: sales@carlingtech.com • www.carlingtech.com

	R135-BL/20	R135-WH/20
Description	Rotary Switch, 1 Positions, SPST, Latched, 5A, 12VDC, Wire Terminal, Knob Type Actuator, Panel Mount-threaded	Rotary Switch, 1 Positions, SPST, Latched, 5A, 12VDC, Wire Terminal, Knob Type Actuator, Panel Mount-threaded
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Actuator type	KNOB TYPE	KNOB TYPE
body height	6.73 mm	6.73 mm
Body length or diameter	15.24 mm	15.24 mm
Contact (AC) maximum rated R load	3A@125VAC	3A@125VAC
Maximum contact current (AC)	3 A	3 A
Maximum contact current (DC)	5 A	5 A
Contact (DC) maximum rated R load	5A@12VDC	5A@12VDC
Maximum contact voltage (AC)	125 V	125 V
Maximum contact voltage (DC)	12 V	12 V
Electrical life	100000 Cycle(s)	100000 Cycle(s)
Manufacturer's serial number	R135	R135
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Number of positions	1	1
Number of switching segments	1	1
Maximum operating temperature	85 °C	85 °C
surface mount	NO	NO
Switch action	LATCHED	LATCHED
switch function	SPST	SPST
Switch type	ROTARY SWITCH	ROTARY SWITCH
Termination type	WIRE	WIRE
