MC74HC4066AFEL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MC74HC4066AFEL

MC74HC4066AFEL: DescriptionQUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14; CategoryAnalog mixed-signal IC The signal circuit; File Size185KB，14 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance; Related ProductsFound18parts with similar functions to MC74HC4066AFEL

Download Datasheet Parametric Compare View All

MC74HC4066AFEL Overview

QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14

MC74HC4066AFEL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	SOIC
package instruction	SOP, SOP14,.3
Contacts	14
Reach Compliance Code	unknow
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G14
JESD-609 code	e4
length	10.2 mm
normal position	NO
Number of channels	1
Number of functions	4
Number of terminals	14
Nominal off-state isolation	40 dB
On-state resistance matching specifications	20 Ω
Maximum on-state resistance (Ron)	120 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	2/12 V
Certification status	Not Qualified
Maximum seat height	2.05 mm
Maximum supply voltage (Vsup)	12 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
Maximum disconnect time	60 ns
Maximum connection time	45 ns
switch	MAKE-BEFORE-BREAK
technology	CMOS
Temperature level	MILITARY
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	5.275 mm

Preview

Download Datasheet

View All

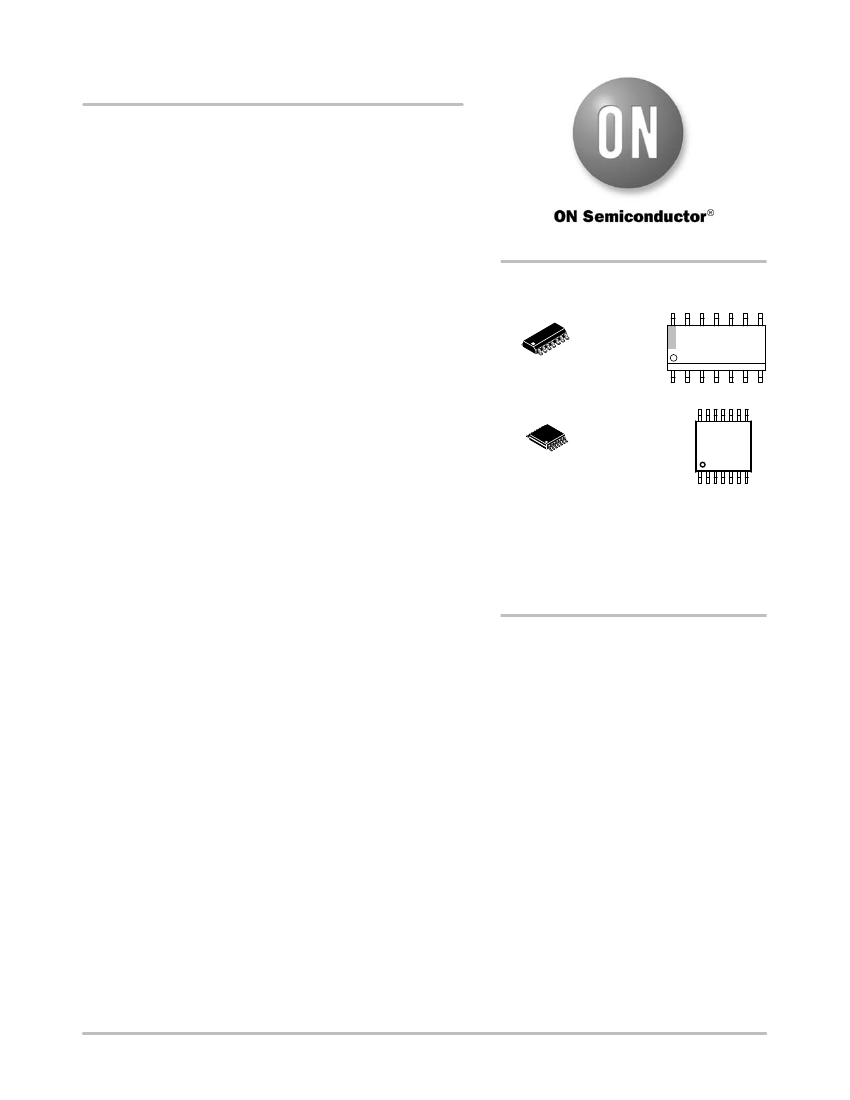

MC74HC4066A

Quad Analog Switch/

Multiplexer/Demultiplexer

High−Performance Silicon−Gate CMOS

The MC74HC4066A utilizes silicon−gate CMOS technology to

achieve fast propagation delays, low ON resistances, and low

O F F

−c

h a n n e l l e a k a g e c u r r e n t . T h i s b i l a t e r a l s w i t c h /

multiplexer/demultiplexer controls analog and digital voltages that

may vary across the full power−supply range (from V

to GND).

The HC4066A is identical in pinout to the metal−gate CMOS

MC14016 and MC14066. Each device has four independent switches.

The device has been designed so the ON resistances (R

) are more

linear over input voltage than R

of metal−gate CMOS analog

switches.

The ON/OFF control inputs are compatible with standard CMOS

outputs; with pullup resistors, they are compatible with LSTTL outputs.

For analog switches with voltage−level translators, see the HC4316A.

Features

http://onsemi.com

MARKING

DIAGRAMS

SOIC−14

D SUFFIX

CASE 751A

TSSOP−14

DT SUFFIX

CASE 948G

WL, L

WW, W

G or

= Assembly Location

= Wafer Lot

= Year

= Work Week

= Pb−Free Package

4066A

ALYWG

HC4066AG

AWLYWW

•

Fast Switching and Propagation Speeds

High ON/OFF Output Voltage Ratio

Low Crosstalk Between Switches

Diode Protection on All Inputs/Outputs

Wide Power−Supply Voltage Range (V

−

GND) = 2.0 to 12.0 V

Analog Input Voltage Range (V

−

GND) = 2.0 to 12.0 V

Improved Linearity and Lower ON Resistance over Input Voltage

than the MC14016 or MC14066

Low Noise

Chip Complexity: 44 FETs or 11 Equivalent Gates

These Devices are Pb−Free, Halogen Free and are RoHS Compliant

NLV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements; AEC−Q100

Qualified and PPAP Capable

(Note: Microdot may be in either location)

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 2 of this data sheet.

Semiconductor Components Industries, LLC, 2014

March, 2014

−

Rev. 12

Publication Order Number:

MC74HC4066A/D

MC74HC4066AFEL Related Products

	MC74HC4066AFEL	MC74HC4066A_06	MC74HC4066A
Description	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14
Number of functions	4	4	4
Number of terminals	14	14	14
Maximum operating temperature	125 °C	125 Cel	125 Cel
Minimum operating temperature	-55 °C	-55 Cel	-55 Cel
surface mount	YES	Yes	Yes
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	pair	pair
Maximum supply/operating voltage	-	12 V	12 V
Minimum supply/operating voltage	-	2 V	2 V
Rated supply voltage	-	3 V	3 V
Processing package description	-	HALOGEN FREE AND ROHS COMPLIANT, Plastic, SOIC-14	HALOGEN FREE AND ROHS COMPLIANT, Plastic, SOIC-14
Lead-free	-	Yes	Yes
EU RoHS regulations	-	Yes	Yes
China RoHS regulations	-	Yes	Yes
state	-	ACTIVE	ACTIVE
Craftsmanship	-	CMOS	CMOS
packaging shape	-	Rectangle	Rectangle
Package Size	-	SMALL OUTLINE	SMALL OUTLINE
Terminal spacing	-	1.27 mm	1.27 mm
terminal coating	-	MATTE Tin	MATTE Tin
Packaging Materials	-	Plastic/Epoxy	Plastic/Epoxy
Number of inputs	-	1	1
Maximum on-time	-	45 ns	45 ns
Maximum off time	-	60 ns	60 ns
Analog IC other types	-	Single Pole Single Throw Switch	Single Pole Single Throw Switch
Isolation Rating in Off State	-	40 dB	40 dB
Maximum limit analog input voltage	-	3 V	3 V
Forward conduction resistance matching rating	-	20 ohm	20 ohm
Maximum on-state resistance	-	120 ohm	120 ohm
