133389: DescriptionTelecom and Datacom Connector, 24 Contact(s), Female, Straight, Solder Terminal, Jack,; CategoryThe connector The connector; File Size65KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

133389 Overview

Telecom and Datacom Connector, 24 Contact(s), Female, Straight, Solder Terminal, Jack,

133389 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	4 PORTS, 6-POSITIONS EACH
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYESTER
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

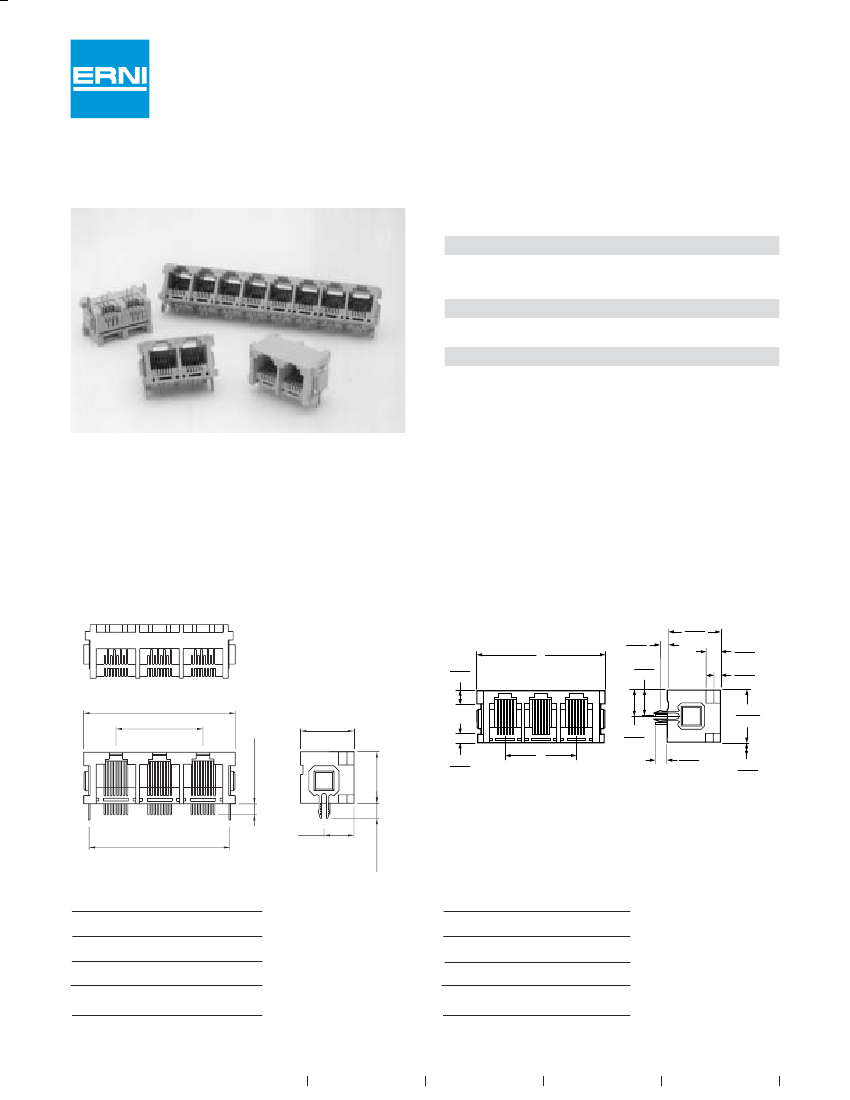

MJG Series: 6 or 8 Position, Right Angle & Vertical,

Ganged, Non-Shielded

Performance Specifications

Materials and Finish

Housing:

Contacts:

Glass filled polyester, UL 94V-0 rated, gray

Phosphor bronze, gold plated round wire

Mechanical Characteristics

Mounting Bracket: Phosphor bronze, tin plated

Electrical Characteristics

Current/Voltage:

Dielectric Withstanding Voltage:

Insulation Resistance:

Contact Resistance:

150 Vac at 1.5 amps

maximum at 25°C

1000 Vac RMS minimum,

60 Hz

500 megaohms minimum

20 milliohms maximum

Features

•

UL and C-UL approved E145613

Meets FCC requirements

Dimensions

Right Angle

Dimensions

Vertical

16.00

[.630]

4.60

[.181]

2.10

[.082]

15.40

[.606]

8.68

[.342]

15.40

[.606]

4.00

[.157]

1.78

[.070]

8.20

[.323]

3.25±0.25

[.128±.010]

16.00

[.630]

2.50

[.098]

3.50

[.138]

4.80

[.189]

6 Position – Number of Ports

Dimensions 2

28.20

39.20

50.20

1.110

1.543

1.976

25.00

36.00

47.00

0.984

1.417

1.850

11.00

22.00

33.00

0.433

0.866

1.299

4.50±0.50

[.177±.020]

8.97

[.353]

8 Position – Number of Ports

Dimensions 2

32.28

45.28

58.28

1.271

1.783

2.294

29.00

42.00

55.00

1.142

1.654

2.165

13.00

26.00

39.00

0.512

1.024

1.535

Catalog MCMJ74a

03/04

Edition 3

www.erni.com
