CD54FCT821BTEN datasheet, PDF - EEWORLD Datasheet

CD54FCT821BTEN: DescriptionBus Driver, FCT Series, 1-Func, 10-Bit, True Output, BICMOS, PDIP24; Categorylogic logic; File Size186KB，5 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric View All

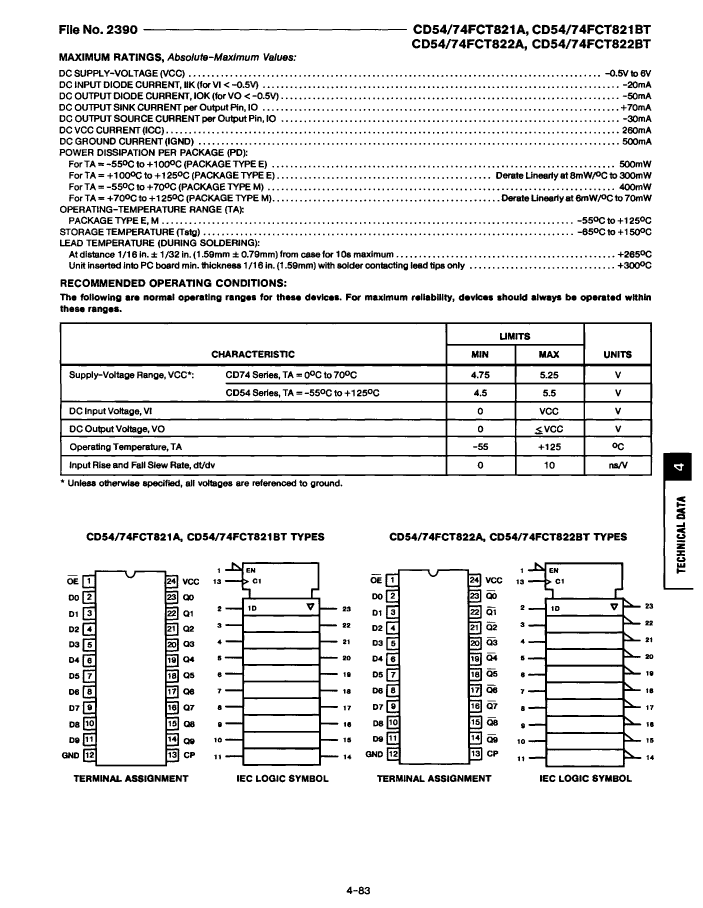

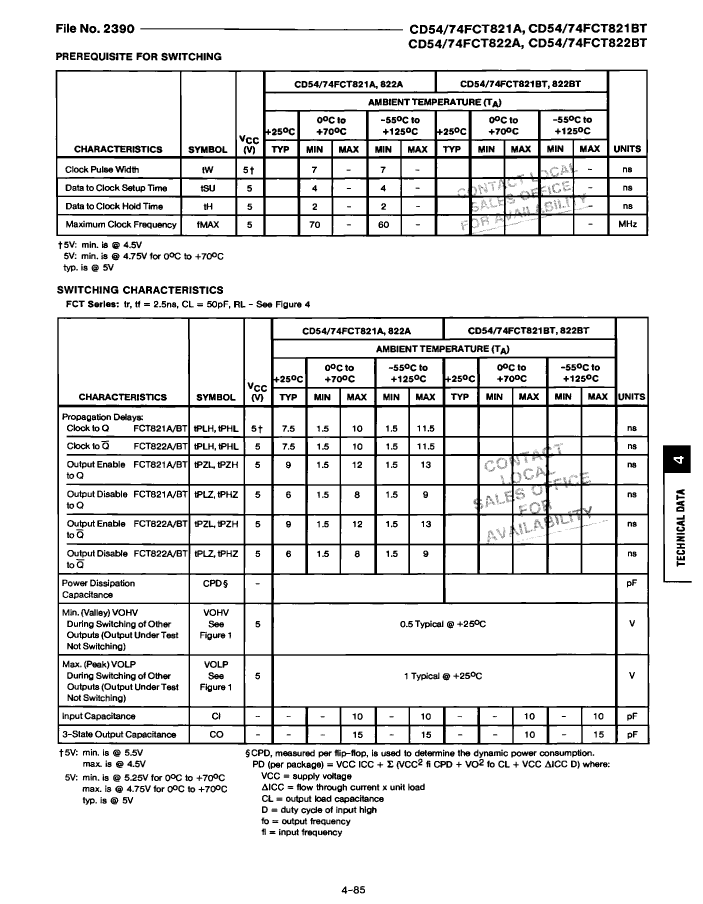

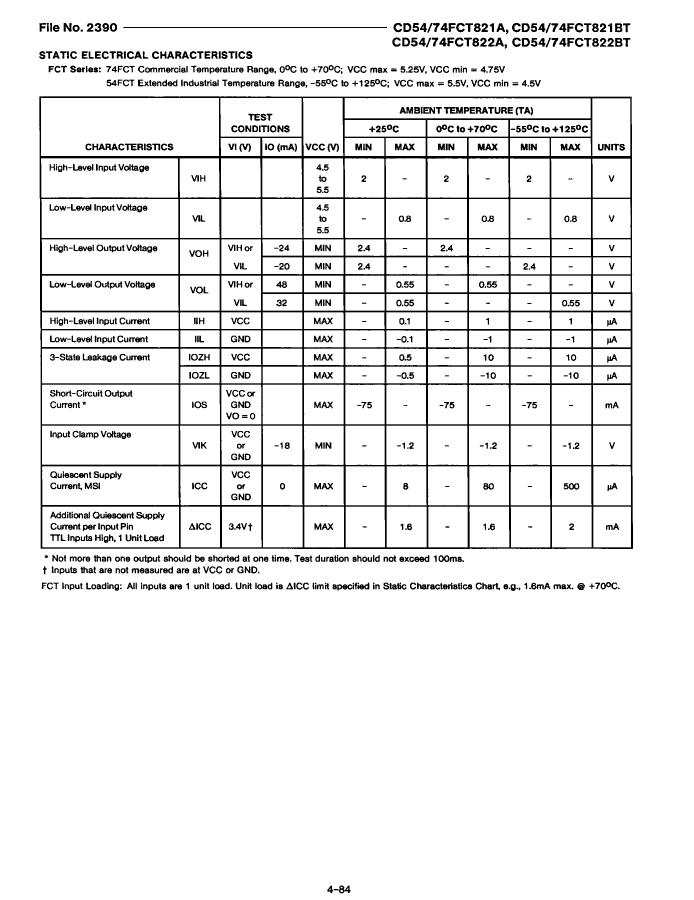

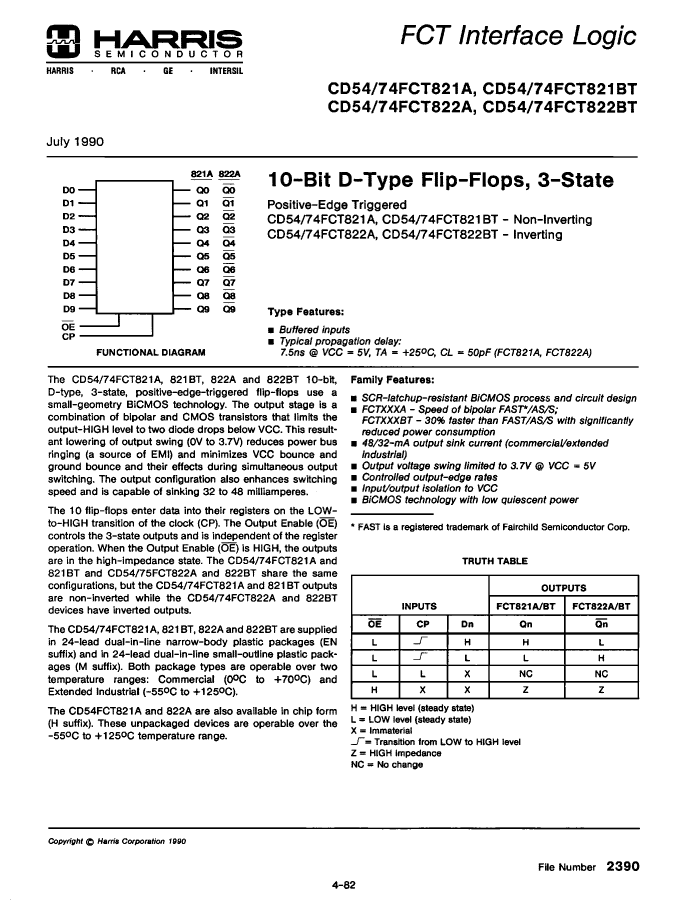

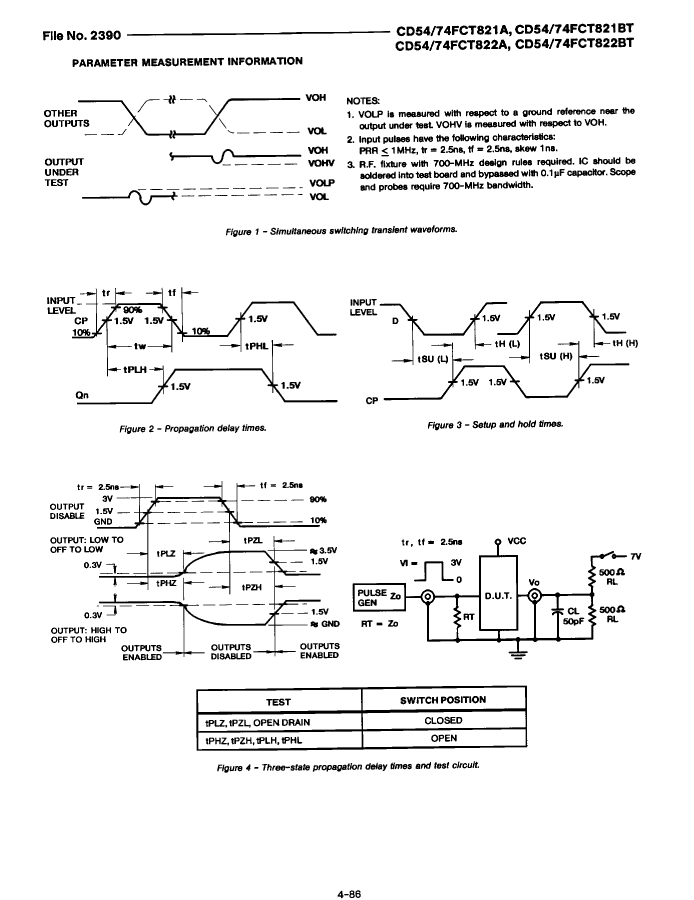

CD54FCT821BTEN Overview

Bus Driver, FCT Series, 1-Func, 10-Bit, True Output, BICMOS, PDIP24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP24,.3
Reach Compliance Code	unknown
Is Samacsys	N
Other features	TYPICAL VOLP = 1V AT VCC = 5V,TA = 25 DEGREE C
series	FCT
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.032 A
Number of digits	10
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	0.5 mA
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
Base Number Matches	1
