68024-106H

Description
Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size742KB，8 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

68024-106H Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

68024-106H Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknow
Other featuresPOLY BAG PACKAGING, HIGH TEMP
body width0.095 inch
subject depth0.1 inch
body length0.6 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number68024
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature130 °C
Minimum operating temperature-65 °C
PCB contact patternRECTANGULAR
Plating thickness30u inch
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.15 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts6

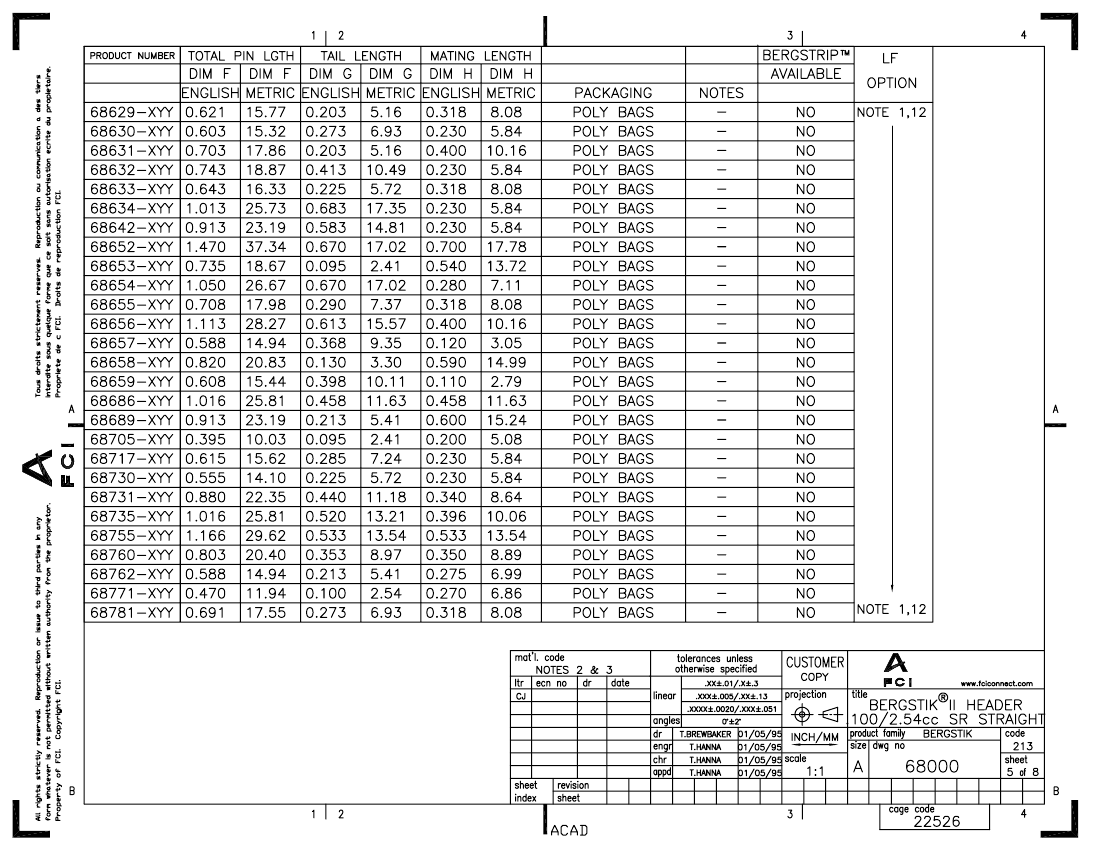

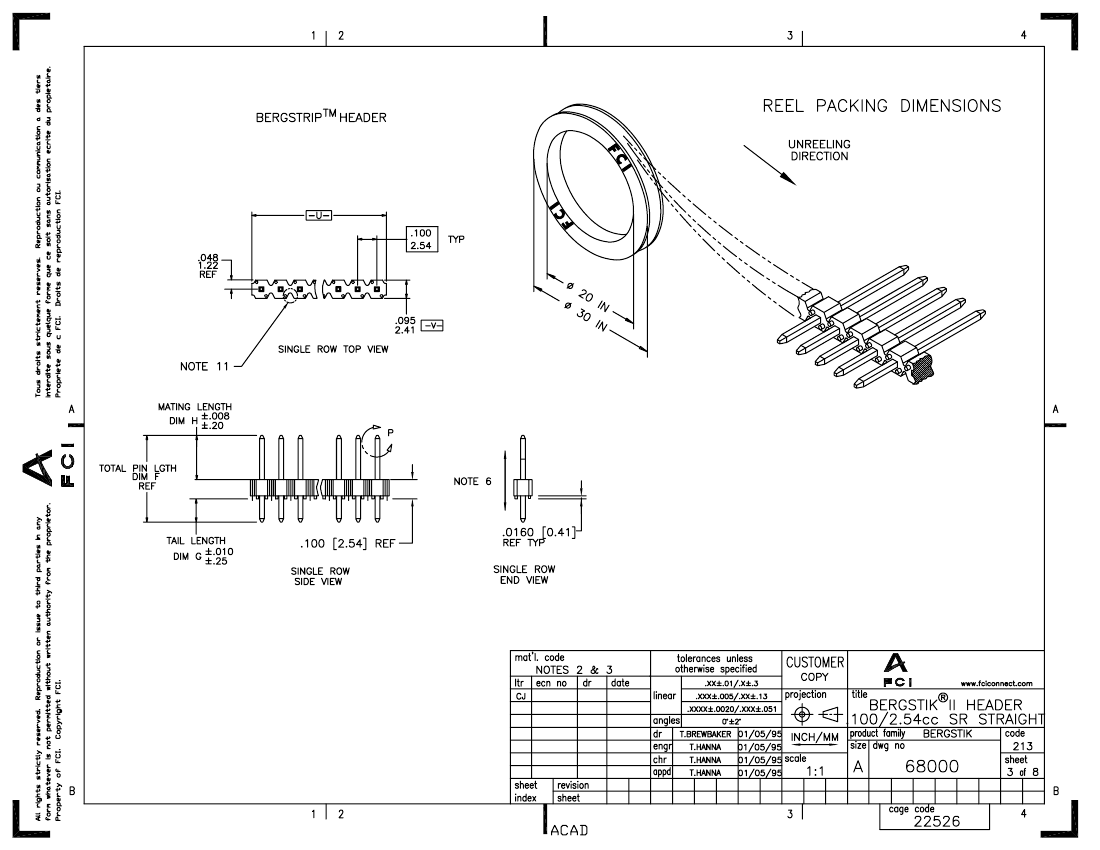

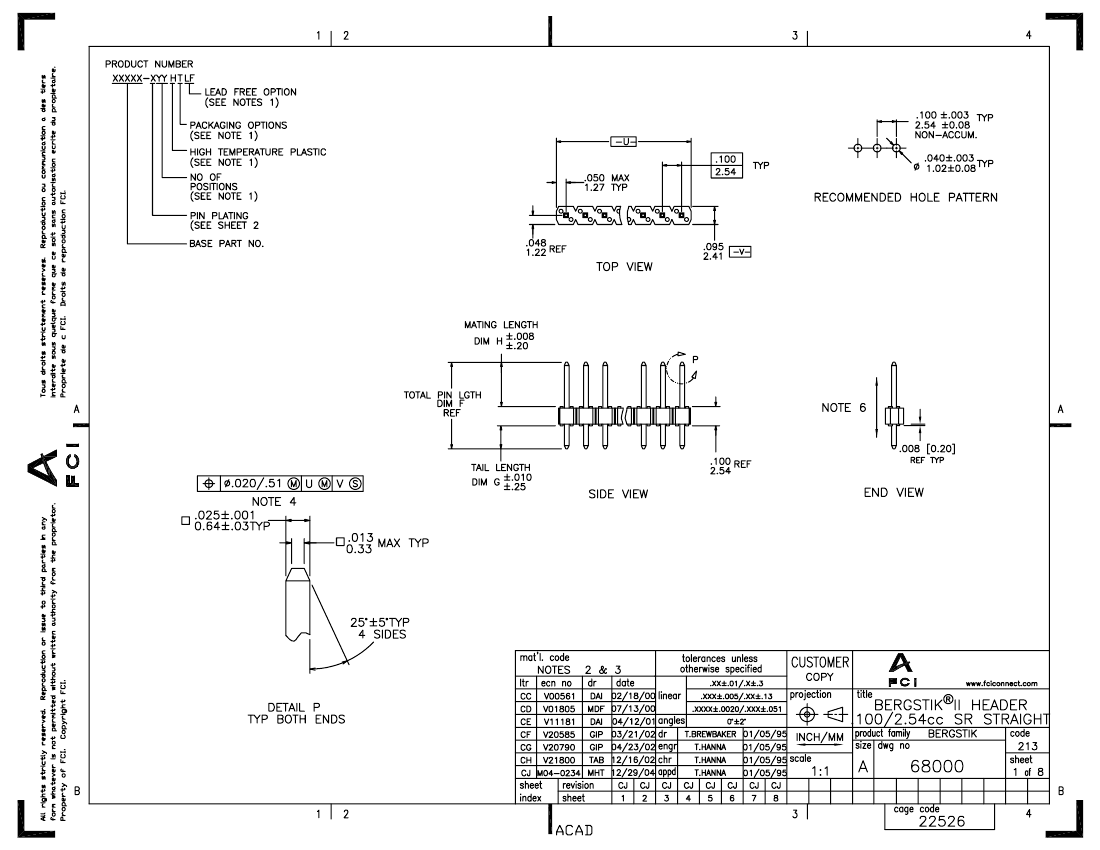

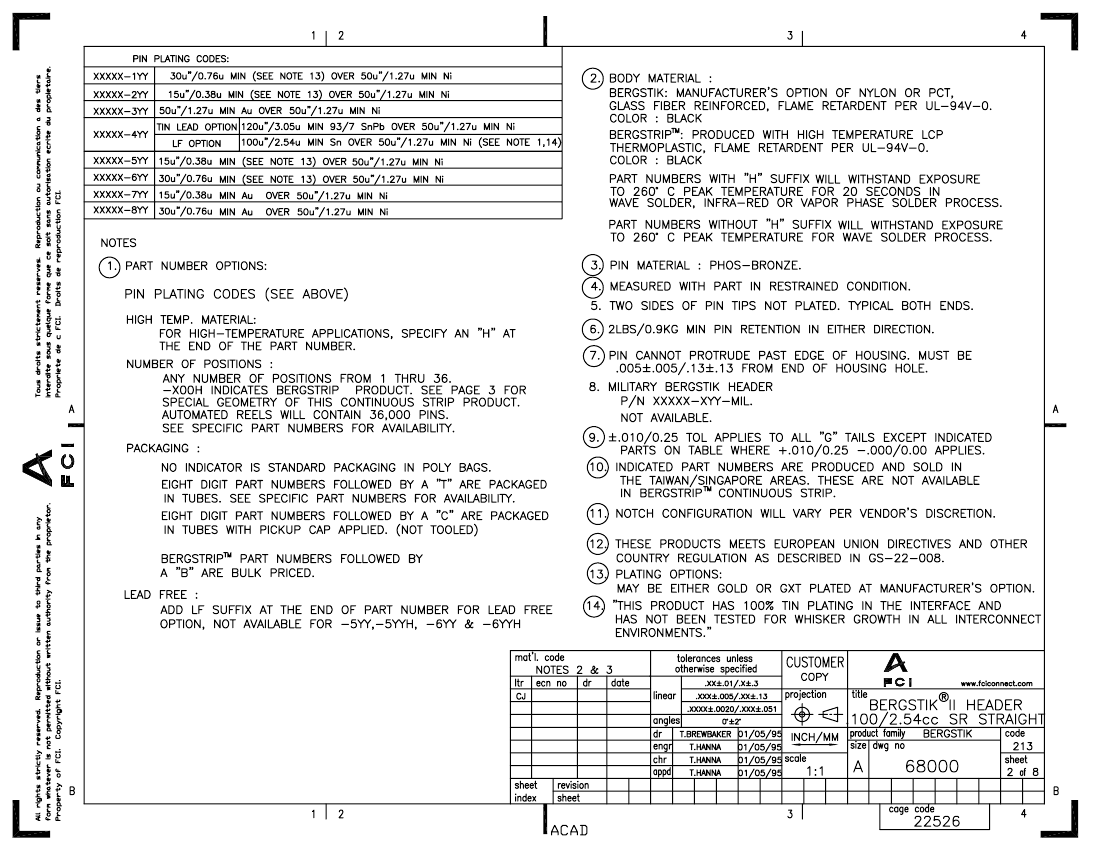

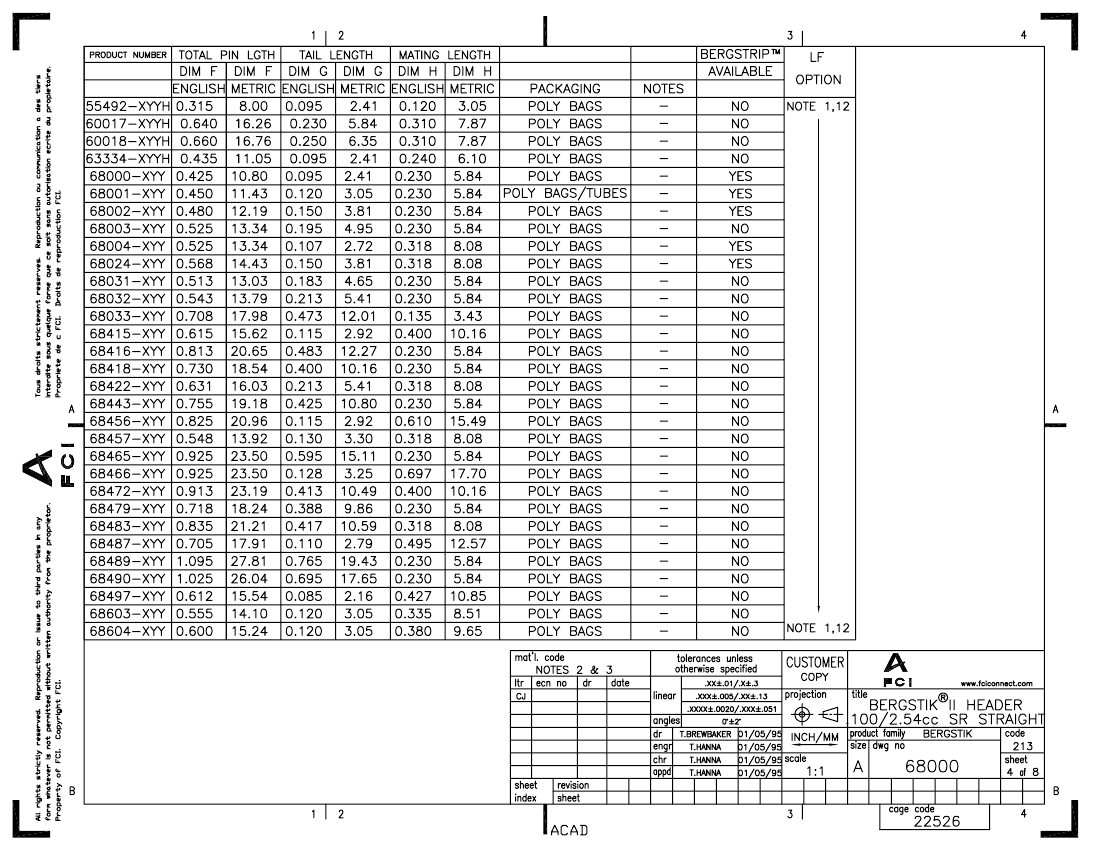

Preview

Download Datasheet
PDM: Rev:CJ
STATUS:
Released
Printed: May 11, 2005
.

68024-106H Related Products

68024-106H 68024-108H 68024-109H 68024-112H 78511-108T 68603-108H 68653-120H 68024-136H 68457-108H 68024-103H
Description Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle Board Connector, 20 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, Board Connector, 36 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle
Reach Compliance Code unknow unknow compliant compli compliant compliant compliant unknown compliant unknown
body width 0.095 inch 0.095 inch 0.095 inch 0.095 inch 0.095 inch 0.095 inch 0.095 inch 0.095 inch 0.095 inch 0.095 inch
subject depth 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch
body length 0.6 inch 0.8 inch 0.9 inch 1.2 inch 0.8 inch 0.8 inch 2 inch 3.6 inch 0.8 inch 0.3 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI
Contact completed and terminated GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL GOLD GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL
Contact point gender MALE MALE MALE MALE MALE MALE MALE MALE MALE MALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Dielectric withstand voltage 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V
Insulation resistance 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω
Insulator color BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK
Plug contact pitch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE ONE ONE ONE ONE ONE
PCB row number 1 1 1 1 1 1 1 1 1 1
Number of rows loaded 1 1 1 1 1 1 1 1 1 1
Maximum operating temperature 130 °C 130 °C 130 °C 130 °C 130 °C 130 °C 130 °C 130 °C 130 °C 130 °C
Minimum operating temperature -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Plating thickness 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch
Rated current (signal) 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A
Guideline UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA
Terminal length 0.15 inch 0.15 inch 0.15 inch 0.15 inch 0.12 inch 0.12 inch 0.095 inch 0.15 inch 0.13 inch 0.15 inch
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 6 8 9 12 8 8 20 36 8 3
Maker Amphenol Amphenol - Amphenol Amphenol Amphenol - Amphenol Amphenol Amphenol
Other features POLY BAG PACKAGING, HIGH TEMP POLY BAG PACKAGING, HIGH TEMP POLY BAG PACKAGING, HIGH TEMP POLY BAG PACKAGING, HIGH TEMP - POLY BAG PACKAGING, HIGH TEMP POLY BAG PACKAGING, HIGH TEMP POLY BAG PACKAGING, HIGH TEMP POLY BAG PACKAGING, HIGH TEMP POLY BAG PACKAGING, HIGH TEMP
insulator material LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER LIQUID CRYSTAL POLYMER (LCP) - LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number 68024 68024 - 68024 78511 68603 - 68024 68457 68024
reliability COMMERCIAL COMMERCIAL - COMMERCIAL COMMERCIAL COMMERCIAL - COMMERCIAL COMMERCIAL COMMERCIAL
