HLMP-1600, HLMP-1601, HLMP-1620, HLMP-1621
HLMP-1640, HLMP-1641, HLMP-3600, HLMP-3601
HLMP-3650, HLMP-3651, HLMP-3680, HLMP-3681
T‑1
3
/
4
(5 mm), T‑1 (3 mm), 5 Volt, 12 Volt,
Integrated Resistor LED Lamps
Data Sheet
Description
The 5 volt and 12 volt series lamps contain an integral
current limiting resistor in series with the LED. This allows
the lamp to be driven from a 5 volt/12 volt source without
an external current limiter. The red LEDs are made from
GaAsP on a GaAs substrate. The High Efficiency Red and
Yellow devices use GaAsP on a GaP substrate.
The green devices use GaP on a GaP substrate. The diffused
lamps provide a wide off-axis viewing angle.
The T-1
3
/
4
lamps are provided with sturdy leads suitable
for wire wrap applications. The T-1
3
/
4
lamps may be front
panel mounted by using the HLMP-0103 clip and ring.
Features
•
Integral current limiting resistor
•
TTL compatible
Requires no external current Limiter with 5 volt/12 volt
supply
•
Cost effective
Saves space and resistor cost
•
Wide viewing angle
•
Available in all colors
Red, High Efficiency Red, Yellow, and High Performance
Green in T-1 and T-13/4 packages
Package Dimensions
1.14 (.045)
0.51 (.020)
3.43 (.135)
2.92 (.115)
Ø
3.17 (.125)
2.67 (.105)
4.70 (.185)
4.19 (.165)
6.35 (.250)
5.58 (.220)
(0.022) 0.55 SQ. TYP.
(0.016) 0.40
1.32 (0.052)
1.02 (0.040)
23.0
MIN.
(0.90)
0.46 (0.018)
SQUARE NOMINAL
24.1(.95) MIN.
0.65 (0.026) max.
1.52 (.060)
1.02 (.040)
12.34 (0.486)
11.54 (0.454)
0.89 (0.035)
0.64 (0.025)
2.79 (.110)
2.29 (.090)
5.08 (0.200)
4.57 (0.180)
9.19 (0.362)
8.43 (0.332)

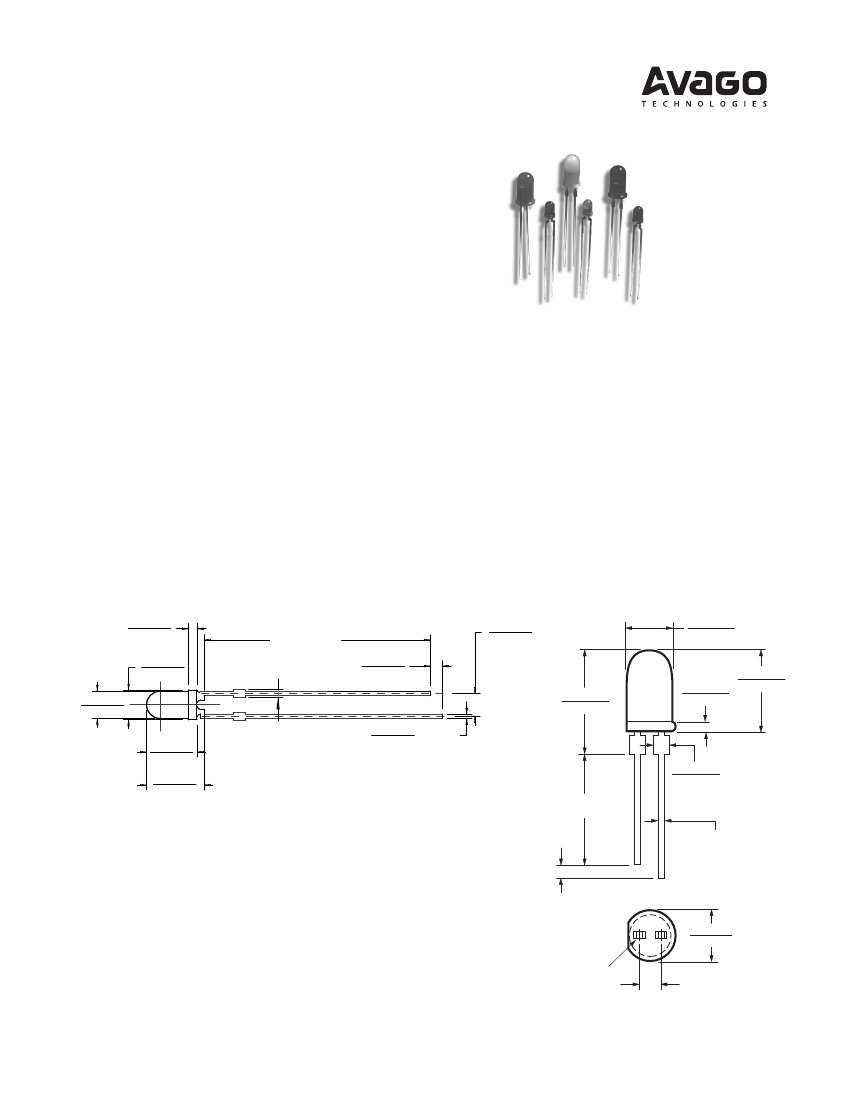

Figure A. T-1 package.
Notes:
1. All dimensions are in mm (inches).
2. An epoxy meniscus may extend about 1 mm (0.040") down the leads.
3. For PCB hole recommendations, see the Precautions section.
1.27 (0.050)
NOM.
6.1 (0.240)
5.6 (0.220)
CATHODE
2.54 (0.100)
NOM.
Figure B. T-1
3
/
4
package.
Selection Guide
Package
Outline
A
Color
Red
Package Description
T-1 Tinted Diffused
2q
1/2[1]
60
60
Operating
Voltage (V)
5
12
Part Number
HLMP-
1600
1600-D00xx
1601
1601-D00xx
1601-GH0xx
Luminous Intensity
Iv (mcd)
Min.
2.1
2.1
2.1
2.1
8.6
2.1
2.1
2.1
2.1
2.2
2.2
2.2
3.4
2.2
2.2
2.2
2.2
2.2
2.2
1.6
1.6
1.6
4.2
1.6
1.6
1.6
1.6
1.6
1.6
-
-
-
-
Max.
-
-
-
-
27.6
-
-
-
-
-
-
-
10.8
-
-
-
-
-
-
-
-
-
13.4
-
T-1 3/4 Tinted Diffused
B
60
60
5
12
5
3600
3600-D00xx
3601
3601-D00xx
1620
1620-C00xx
1620-C0Bxx
1620-EFBxx
Yellow
T-1 Tinted Diffused
A
60
60
T-1 3/4 Tinted Diffused
B
60
60
Green
T-1 Tinted Diffused
A
60
12
5
12
5
1621
1621-C00xx
3650
3650-C00xx
3651
3651-C00xx
1640
1640-B00xx
1640-B0Dxx
1640-DE0xx
60
T-1 3/4 Tinted Diffused
B
60
60
12
5
12
1641
1641-B00xx
3680
3680-B00xx
3681
3681-B00xx
Note:
1.
q
1/2
is the off-axis angle at which the luminous intensity is 1/2 the axial luminous intensity.
2
Part Numbering System
HLMX-X 6 X X
X
X X XX
Mechanical Option
00: Bulk
01: Tape & Reel, Crimped Leads
02: Tape & Reel, Straight Leads
A1,B1: Right Angle Housing, Uneven Leads
A2,B2: Right Angle Housing, Even Leads
Color Bin Options
0: Full color bin distribution
B: Color bin 2&3 only
D: Color bin 4&5 only
Maximum Iv Bin Options
0: Open (No. max. limit)
Others: Please refer to the Iv bin Table
Minimum Iv Bin Options
Operating Voltage
0: 5 V
1: 12 V
Please refer to the Iv bin Table
Color Options
0: GaP HER
2,5: GaP Yellow
4,8: GaP Green
Package Options
3: T-1
3
/
4
(5 mm)
1: T-1 (3 mm)
Absolute Maximum Ratings at T
A
= 25°C
Red/HER/Yellow
5 Volt Lamps
DC Forward Voltage (TA = 25°C)
Reverse Voltage (IR = 100
μA)
Operating Temperature Range
Storage Temperature Range
7.5 Volts
[2]
5 Volts
-40°C to 85°C
-40°C to 100°C
Red/HER/Yellow
12 Volt Lamps
15 Volts
[3]
5 Volts
-40°C to 85°C
-40°C to 100°C
Green
5 Volt Lamps
7.5 Volts
[2]
5 Volts
-20°C to 85°C
-40°C to 100°C
Green
12 Volt Lamps
15 Volts
[3]
5 Volts
-20°C to 85°C
-40°C to 100°C
Notes:
2. Derate from T
A
= 50°C at 0.071 V/°C, see Figure 3.
3. Derate from T
A
= 50°C at 0.086 V/°C, see Figure 4.
3
Electrical/Optical Characteristics at T
A
= 25°C
High Efficiency Red
Symbol
l
P
l
d
Dl
1
/
2
Rq
J-PIN
Yellow
Min.
Typ.
583
585
36
290
Green
Max.
Min.
Typ.
565
569
28
290
Description
Peak
Wavelength
Dominant
Wavelength
Spectral Line
Halfwidth
Thermal
Resistance
Thermal
Resistance
Forward Current
12 V Devices
Forward Current
5 V Devices
Luminous
Efficacy
Reverse
Breakdown
Voltage
Min.
Typ.
635
626
40
290
Max.
Max.
Unit
nm
nm
nm
°C/W
Test Condition
Note 4
Junction to
Cathode Lead
(Note 6)
Junction to
Cathode Lead
(Note 7)
V
F
= 12 V
V
F
= 5 V
Note 2
I
R
= 100
μA
Rq
J-PIN
210
210
210
°C/W
I
F
I
F
h
V
V
R
13
10
145
5.0
20
15
13
10
500
5.0
20
15
13
10
595
5.0
20
15
mA
mA
lumen
/Watt
V
Notes:
4. The dominant wavelength,
l
d
, is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the
device.
5. Radiant intensity, I
e
, in watts/steradian, may be found from the equation I
e
= l
V
/h
V
, where l
V
is the luminous intensity in candelas and
h
V
is the
luminous efficacy in lumens/Watt.
6. For Figure A package type.
7. For Figure B package type.
4
24
20
I
F
– FORWARD CURRENT – mA
16
12
8
4
0
I
F
– FORWARD CURRENT – mA
0
2
8
10 12 14 16
15
7.5
V
CC
– APPLIED FORWARD VOLTAGE – V
4
6
24
20
16
12
8
4
0
0
2
8
10 12 14 16
15
7.5
V
CC
– APPLIED FORWARD VOLTAGE – V
4
6

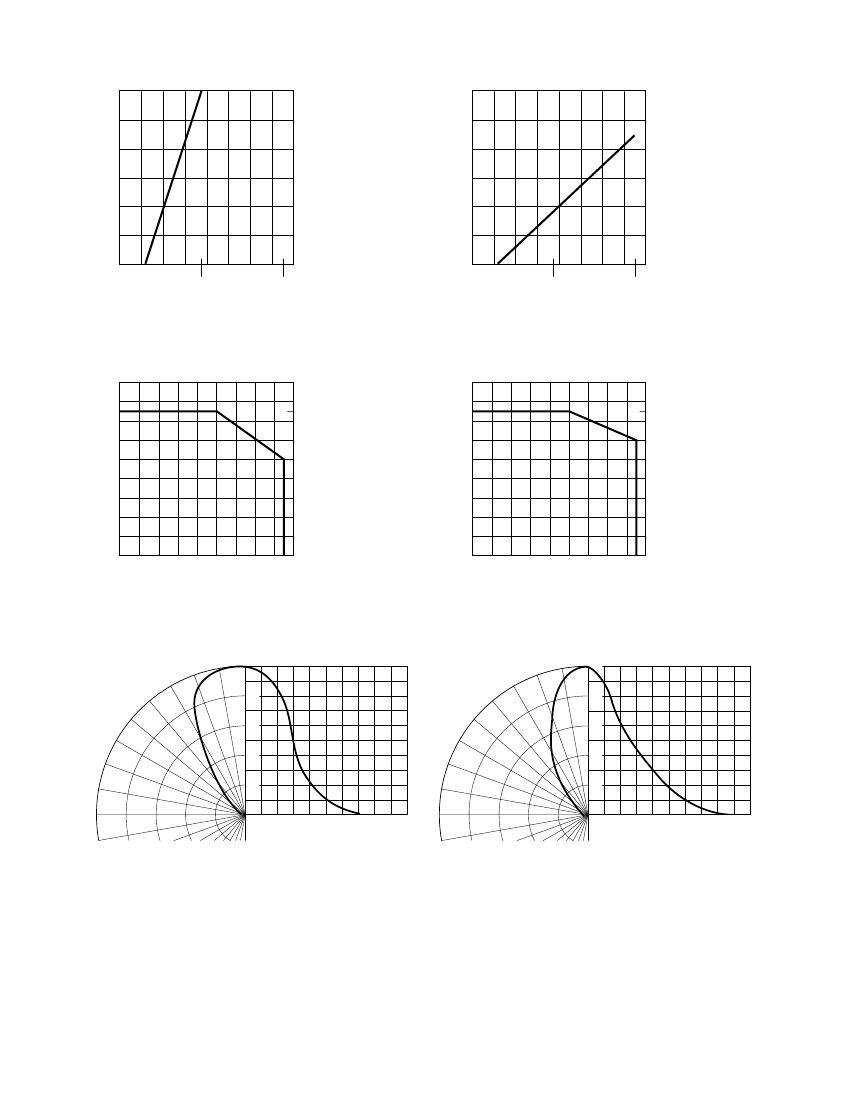

Figure 1. Forward current vs. applied forward voltage. 5 volt devices.
Figure 2. Forward current vs. applied forward voltage. 12 volt devices.
V
CC
– APPLIED FORWARD VOLTAGE – V
V
CC
– APPLIED FORWARD VOLTAGE – V
0
20
40
60
80 85
8
7.5
6
16
15
12
4
8
2
4
0
0
0
20
40
60
80 85
T
A
– AMBIENT TEMPERATURE – C
T
A
– AMBIENT TEMPERATURE – C
Figure 3. Maximum allowed applied forward voltage vs.
ambient temperature Rq
JA
= 175°C/W. 5 volt devices.
10
0
1.0
Figure 4. Maximum allowed applied forward voltage vs.
ambient temperature Rq
JA
= 175°C/W. 12 volt devices.
10
0
20
30
40
50
60
70
80
90
20
30
40
50
60
1.0
0.8
0.6
0.4
0.2
0.8
0.6
0.4
0.2
70
80
90
10
20
30
40
50
60
70
80
90 100
10
20
30
40
50
60
70
80
90 100
Figure 5. Relative luminous intensity vs. angular displacement for T-1
package.
Figure 6. Relative luminous intensity vs. angular displacement for T-1
3
/
4
package.
5
