8387-15-15-1: DescriptionBoard Connector, 15 Contact(s), 1 Row(s), Female, Straight, 0.07 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size75KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8387-15-15-1 Overview

Board Connector, 15 Contact(s), 1 Row(s), Female, Straight, 0.07 inch Pitch, Solder Terminal, Locking, Black Insulator

8387-15-15-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.098 inch
subject depth	0.165 inch
body length	1.058 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
maximum insertion force	2.4464 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8387
Plug contact pitch	0.07 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	1.778 mm
Termination type	SOLDER
Total number of contacts	15
Evacuation force-minimum value	.29468 N
Base Number Matches	1

Preview

Download Datasheet

View All

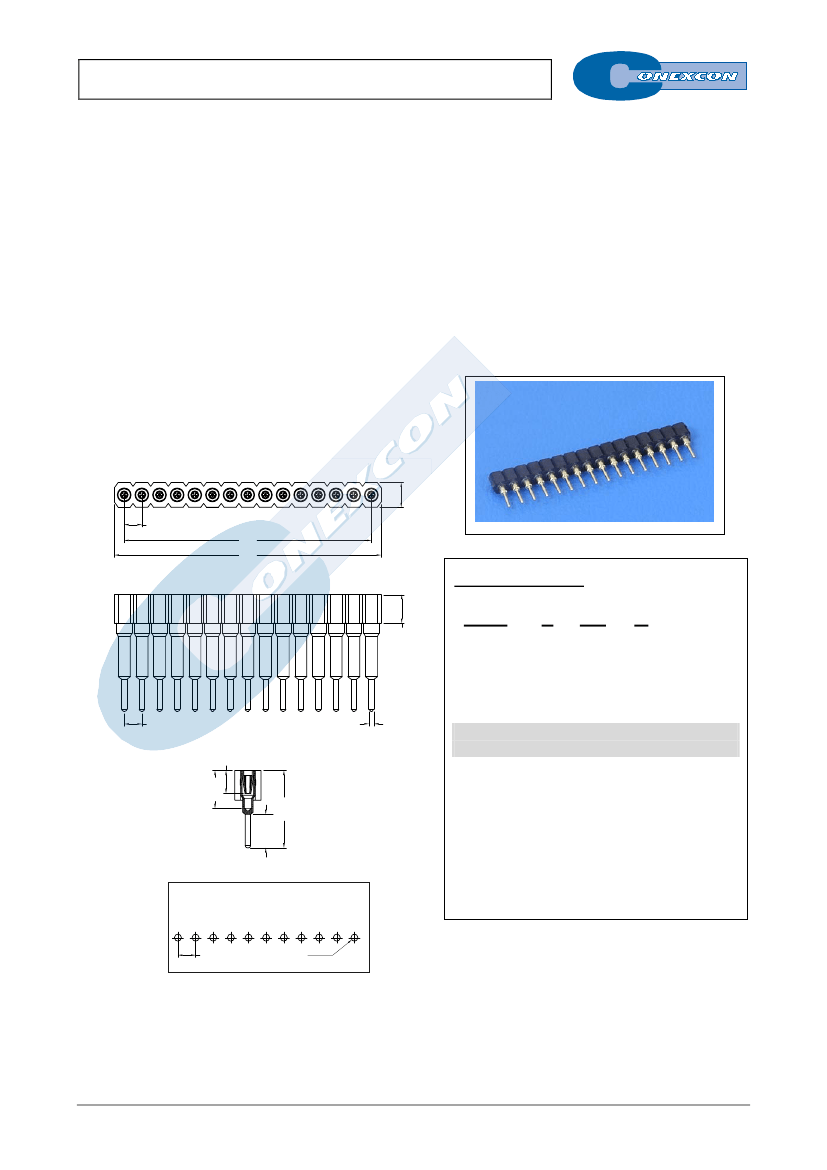

SINGLE ROW VERTICAL SOCKET

8387 SERIES.

1.78 mm. (0.070”) pitch. Machined contact.

General Features

Electrical Features



Available in 2 through 40 circuits

Mates with sockets 1.78 mm. pitch 8388 series

Accept round pin 0.40 mm to 0.56 mm

Machined contact with different plating



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Clip(4 fingers): Beryllium copper

Sleeve: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Insertion force per pin: < 0.25 Kgf (round pin 0.41 mm)



Withdrawal force per pin: > 0.03 Kgf (round pin 0.41 mm)



Durability: 500 Cycles

Dimension Information

1

2

3

1.778±0.10

A

B

2.50±0.15

Ordering Information:

8387 -

2.85±0.15

T-

2

XX-

3

C

4

1

1. Connector Series

2. (T) Contact Plating

1.778

2.20

ø0.53



T =

3.

gold flash over 30-50µ" Ni overall

Recommended Finish

H

L

3.20



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

3. (XX) Number of circuits



Available in 2 through 40 circuits

4. Connector Lenght

RECOMMENDED HOLE PATTERN

(Tolerance ±0.05)



C=1. Dimensión H=3.63 mm. L= 7.40



C=2. Dimensión H=7.05 mm. L= 11.70

1.778

ø 0.70

-0.06

+0.09

Dimensions:

(In mm.)

A

= 1.778 x (XX*-1)

B

= 1.778 x (XX*)+0.20

* XX

(Number of circuits)

A-XX
