SLA-370LT3FXE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> SLA-370LT3FXE

SLA-370LT3FXE: DescriptionSingle Color LED, Red, Transparent Clear, T-1, 3mm,; CategoryLED optoelectronic/LED photoelectric; File Size184KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SLA-370LT3FXE Overview

Single Color LED, Red, Transparent Clear, T-1, 3mm,

SLA-370LT3FXE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Is Samacsys	N
Other features	HIGH RELIABILITY
color	RED
Configuration	SINGLE
Maximum forward current	0.05 A
JESD-609 code	e1
Lens type	TRANSPARENT CLEAR
Nominal luminous intensity	58.5 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5.2 mm
method of packing	BULK
peak wavelength	660 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal pitch	2.5 mm
perspective	25 deg
Base Number Matches	1

Preview

Download Datasheet

View All

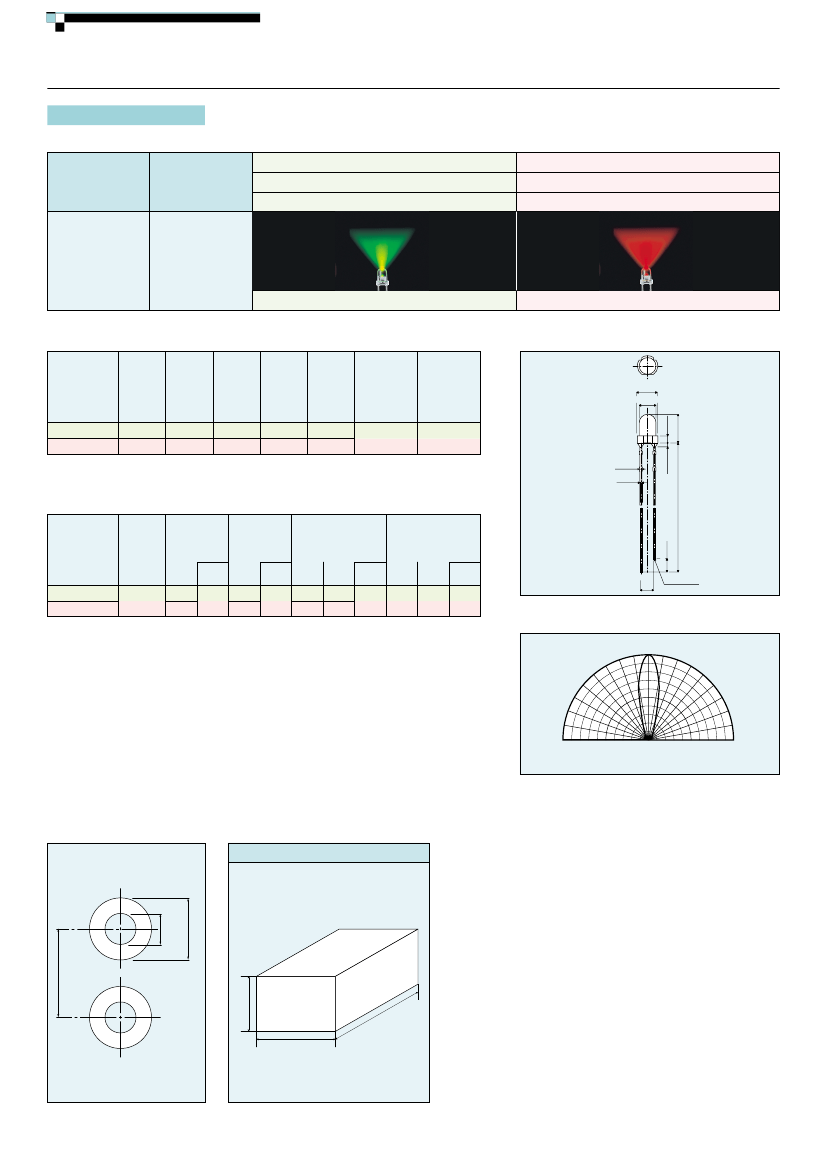

CONVENTIONAL LED LAMPS

High Brightness Type φ3.1 Circular Type LED Lamps〈Mid Focus Type 2θ 1/2:25°

〉

SLA-370 Series

Green

Shape

Emitting Surface

Dimension (mm)

GaP

563nm

Red

GaAlAs on GaAs

660nm (single)

Circular Type

φ3.1

SLA-370MT

SLA-370LT

■

Absolute Maximum Ratings（Ta=25℃）

Peak

Reverse Operating

Stotage

Power Forward

forward

Emitting

dissipation current

voltage temperature temperature

current

color

opr

stg

＊I

（mW）（mA）

（V）

（°C）

（mA）

Green

Red

100

-25 to +85

-30 to +100

■

External Dimensions（Unit：mm）

φ3.8±0.3

φ3.0±0.2

（1.3）

5.2±0.3

4−0.5

□0.4

1.0Max.

2.5±1.0

（2.5）

CATHODE

0°

30°

Part No.

SLA-370MT

SLA-370LT

＊

measured under duty

≦1/

5,pulse width

≦1ms.

■

Electrical Optical Characteristics（Ta=25℃）

Forward

voltage

Typ.

(V)

SLA-370MT

SLA-370LT

(mA)

Part No.

Resin Color

Reverse

current

Max.

(µA)

100

(V)

Light wavelength

Peak Half-wave

∆λ

λp

Typ.

(nm)

563

660

Typ.

(nm)

(mA)

Brightness

Min.

(

mcd

)

Typ.

(mcd) (mA)

Tolerance:±0.2

Transparent

Clear

2.3

1.75

100

■

Directivity

24.0Min.

60°

90°

100

90°

100

Relative Luminous Intensity

(%)

(Typ.)

■

Recommemded Pad Layout

■

Packaging Spacifications（Unit：mm）

Packaging

Bulk 3F）

（

：2000pcs/Box

1.0

±0.1

2.0

2.5

170

100

（Unit：mm）

SLA-370LT3FXE Related Products

	SLA-370LT3FXE	SLA-370LT3FXH	SLA-370LT3FXF	SLA-370LT3FXG	SLA-370MT3FXF	SLA-370MT3FXH	SLA-370MT3FXE
Description	Single Color LED, Red, Transparent Clear, T-1, 3mm,	Single Color LED, Red, Transparent Clear, T-1, 3mm,	Single Color LED, Red, Transparent Clear, T-1, 3mm,	Single Color LED, Red, Transparent Clear, T-1, 3mm,	Single Color LED, Green, Transparent Clear, T-1, 3mm,	Single Color LED, Green, Transparent Clear, T-1, 3mm,	Single Color LED, Green, Transparent Clear, T-1, 3mm,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
color	RED	RED	RED	RED	GREEN	GREEN	GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A	0.025 A	0.025 A	0.025 A
JESD-609 code	e1	e1	e1	e1	e1	e1	e1
Lens type	TRANSPARENT CLEAR	TRANSPARENT CLEAR	TRANSPARENT CLEAR	TRANSPARENT CLEAR	TRANSPARENT CLEAR	TRANSPARENT CLEAR	TRANSPARENT CLEAR
Nominal luminous intensity	58.5 mcd	187.5 mcd	85.5 mcd	127.5 mcd	85.5 mcd	187.5 mcd	58.5 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	660 nm	660 nm	660 nm	660 nm	563 nm	563 nm	563 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1	T-1
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
perspective	25 deg	25 deg	25 deg	25 deg	25 deg	25 deg	25 deg
Is Samacsys	N	N	N	N	-	-	-
Base Number Matches	1	1	1	1	-	-	-
