VGE1 / FER1

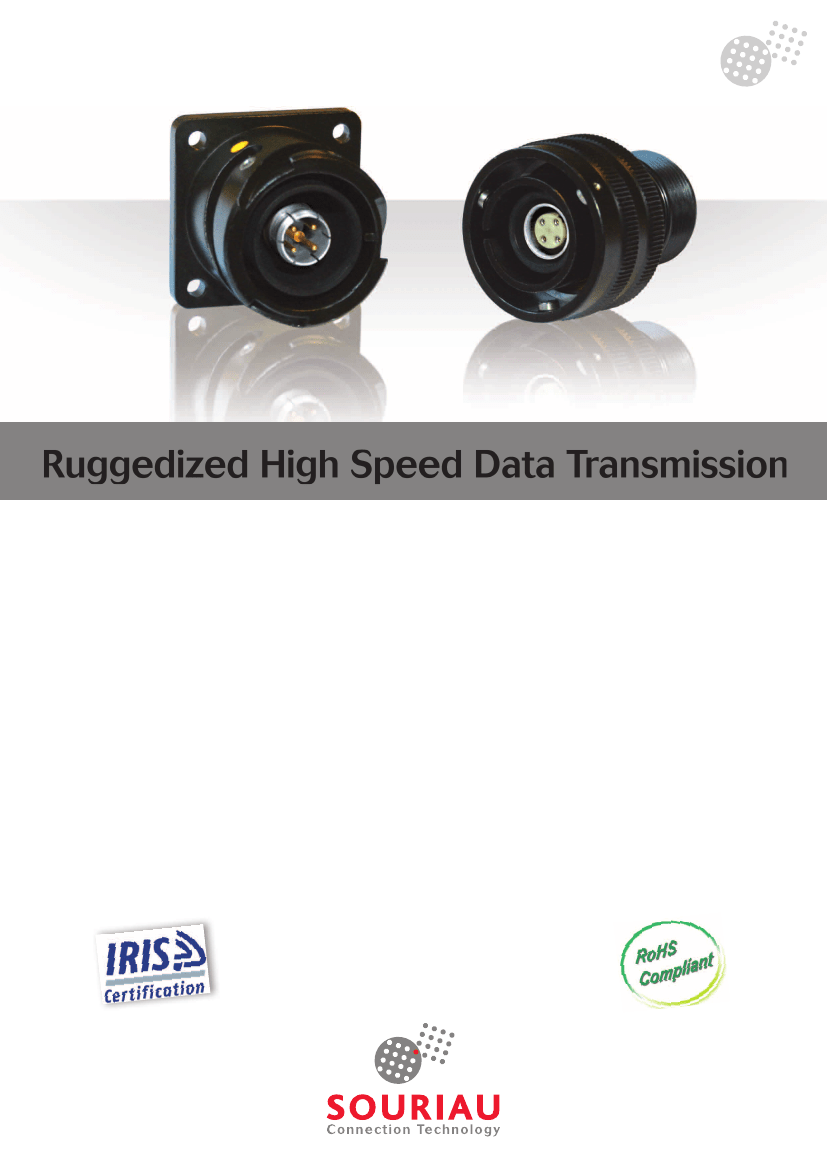

Ruggedized High Speed Data Transmission
The solution for outdoor / indoor data transmission in harsh
environments facing increasing new needs of data information.
2 technical solutions for High
Speed Data Transmission
Excellent Data Transmission
Compliant to railway standards
✓
✓
✓
✓
Standard version with 4 contacts #16
Quadrax version with 1 cell
1 Gbps per Quadrax contacts
100 Mbps with standard contacts
NFF61030
I2F3 according to NFF16101 & NFF16102
(Fire & smoke standards)
Standard shell
Standard contacts
Standard accessories
Standardization oriented
VGE1 / FER1
Technical features
Mechanical, electrical and environmental features according to NFF61030 Railway standards.
Data Transmission
•
Standard version with 4 contacts #1 Cat5 - 1 Mbps
6:
00
Cat5
Cat6
C6 cable 1 m
00
Cat5
Iso channel Classe D
Frequency MHz
Quad cable configuration
Quad cable configuration
Frequency MHz
•
Quadrax version: Cat6 - 1 Gbps
Quadrax
Quadrax
Cat5
Cat5
Cat6
Cat6
Frequency MHz
Frequency MHz
Mechanical
•
Shell:
Aluminium alloy
•
Shell plating:
Black zinc cobalt
•
Insulator:
Hard thermoplastic in accordance
with NFF16101-16102 exigence I2F3 (Fire
& smoke emissions) for installations on
equipments category A1 UL94-V0
•
O’ring & interfacial seal:
Silicone
•
Retaining insulator ring:
Carbon steel
•
Endurance:
500 mating/unmating
•
Vibrations:
- Sinus vibrations: 10 - 100 Hz
- Acceleration: 2 g
•
Shocks:
- Acceleration: 30 g
- Duration: 18 ms
•
Insulation resistance:
- Contacts #16:
≥ 5000 MΩ under 500 Vcc
≥ 4000 MΩ under 220 Vcc
- Quadrax:
≥ 3000 MΩ
(contacts #20)
•
Electrical continuity:
20 mΩ max.
Electrical
•
Contact type:
Contacts
#1
6
= Standard
version
or
Contacts
Quadrax
Description
Cell
Contacts #20
Environmental
•
Temperature range:
-40°C to +100 °C
• Salt spray resistance:
500 hours
• Sealing:
IP67 (immersion under 1 m max.
of water during 30 min.) when mated &
used with backnut and grommet, or suitable
accessories.
•
Contact resistance following NFF61
030:
- Contacts #16: 2.5 mΩ
- Quadrax:
≤
6 mΩ
(contacts #20)
≤
2 mΩ
(cell)
•
Withstanding voltage:
- Contacts #16: 2550 Vrms
- Quadrax:
≥
1000V
(between contacts #20)
≥
500V
(between cell / contacts #20)
2
VGE1 / FER1
Ordering information
Standard version with 4 contacts #1 - Up to 1 Mbps
6
00
Connector - VGE1 & FER1
Type *
Shell type
Shell size
Layout
Contact type
B:
D:
1
8
1
9:
P:
S:
4 contacts #16
Pin contact
Socket contact
Rear mounting receptacle
Plug
VGE1
FER1
B
B
1
8
1
8
-1
9
-1
9
P
P
N
N
--
--
Insert orientation N, X, Y
0:
For insulator not installed in the shell
Specification
Please consult us
* Delivered without contact / ** VGE1: Bayonet coupling - FER1: Screw coupling
Contact #16 - for both VGE1 & FER1 connectors
Contact type Male
RM1
6M23K
Gold all over,
over nickel
Female
RC1
6M23K
Gold all over,
over nickel
min. max.
Cable size: 0.52 1.5
(mm²)
0.52
1.5
Quadrax version - Up to 1 Gbps
Connector - VGE1 & FER1
Type *
Shell type
Shell size
Layout
Contact type
B:
D:
1
8
A1:
1 Quadrax contact
P:
S:
Pin contact
Socket contact
Rear mounting receptacle
Plug
VGE1
FER1
B
B
1
8
1
8
-A1
-A1
P
P
N
N
--
--
Insert orientation N
Specification
Please consult us
* Delivered without contact / ** VGE1: Bayonet coupling - FER1: Screw coupling
Quadrax contact - for both VGE1 & FER1 connectors
Contact type Male
8380 2035A
Copper alloy
Female
8380 2034A
Copper alloy
min. max.
Cable size: 0.21 0.93
(mm²)
0.21 0.93
3
VGE1 / FER1
Ordering information
Backshell
- for both VGE1 & FER1 connectors
Type
Backshell *
R:
C:
S:
J:
K:
T:
VS:
S:
E:
1
8
1
9:
00:
1
0:
00:
M:
L:
Grommet (only for standard version)
Without grommet
Long
Short - or other specification code
Male
Female
Backnut
Cable clamp
Backshell for PMA tube
Cable clamp with sealing gland
Cable clamp with sealing gland (trumpet)
Cable clamp with sealing gland for shielding
Long adaptor with cable gland
Straight backshell
Elbow backshell
VGE1
FER1
J
C
S
S
1
8
1
8
-00
-1
9
00
00
M
Backshell type
Shell size
Layout
Adaptor type
Grommet type
if grommet needed
* Please refer to the VGE1 catalog
Contact layouts
Size 1
8
1 -1
8 9
(from front face of female connector)
1 - A1
8
4 #1
6
Cabling:
Contact insertion in red cavities
Empty cavities
1 Quadrax
4
VGE1 / FER1
Range presentation
VGE1 standard version with 4 contacts #1
6
Plug
45.60 max.
1’’x20 UNEF -
Class 2A
25.50 max.
37.30 max.
35.00 max.
27.00
±0.1
35.00 max.
Receptacle
4.00
±0.2
1’’x20 UNEF -
Class 2A
ø 25.50 max.
45.50 max.
23.05
+0.4
0
1 max.
4 holes Ø3.25
+0.15
0
Cabling:
Contact insertion in red cavities
Empty cavities
Cabling:
Contact insertion in red cavities
Empty cavities
VGE1 Quadrax version with 1 Quadrax cell
Plug
35.00
±0.3
ø 37.30 max.
45.60 max.
1’’x20 UNEF -
Class 2A
25.50 max.
27.00
±0.1
Receptacle
4.00
±0.2
1’’x20 UNEF - Class 2A
45.50 max.
23.05
+0.4
0
ø 25.50 max.
0
ø 30.80
-0.15
35.00
±0.3
27.00
±0.1
Contact for cable #18 to #24
4 holes
ø 3.25
+0.15
0
Examples of connectors with backshell
Plug with VS type backshell
Capacity Ø7 / 1
4
1 5.00 max.
1
Backshell for cable
clamp with grommet
Receptacle with VS type backshell
Capacity Ø3.5 / 1
5
105.00 max.
30
±0.5
1 max.
1 max.
Backshell
with grommet
4
±0.2
23.05
Connector
+0.4
-0
For other backshell types, please refer to the VGE1 catalog.
Note : all dimensions are in mm
5
Ø30.8
+0 5
-0.1
ø 30.80
0
-0.1
5
