RN1441(TE85R2)

Description
TRANSISTOR 300 mA, 20 V, NPN, Si, SMALL SIGNAL TRANSISTOR, 2-3F1A, S-MINI, SC-59, TO-236MOD, 3 PIN, BIP General Purpose Small Signal
CategoryDiscrete semiconductor    The transistor
File Size697KB,9 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric View All

RN1441(TE85R2) Overview

TRANSISTOR 300 mA, 20 V, NPN, Si, SMALL SIGNAL TRANSISTOR, 2-3F1A, S-MINI, SC-59, TO-236MOD, 3 PIN, BIP General Purpose Small Signal

RN1441(TE85R2) Parametric

Parameter NameAttribute value
Parts packaging codeSOT-23
package instructionSMALL OUTLINE, R-PDSO-G3
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Other featuresBUILT-IN BIAS RESISTOR
Maximum collector current (IC)0.3 A
Collector-emitter maximum voltage20 V
ConfigurationSINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)200
JESD-30 codeR-PDSO-G3
Number of components1
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountYES
Terminal formGULL WING
Terminal locationDUAL
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)30 MHz
Base Number Matches1

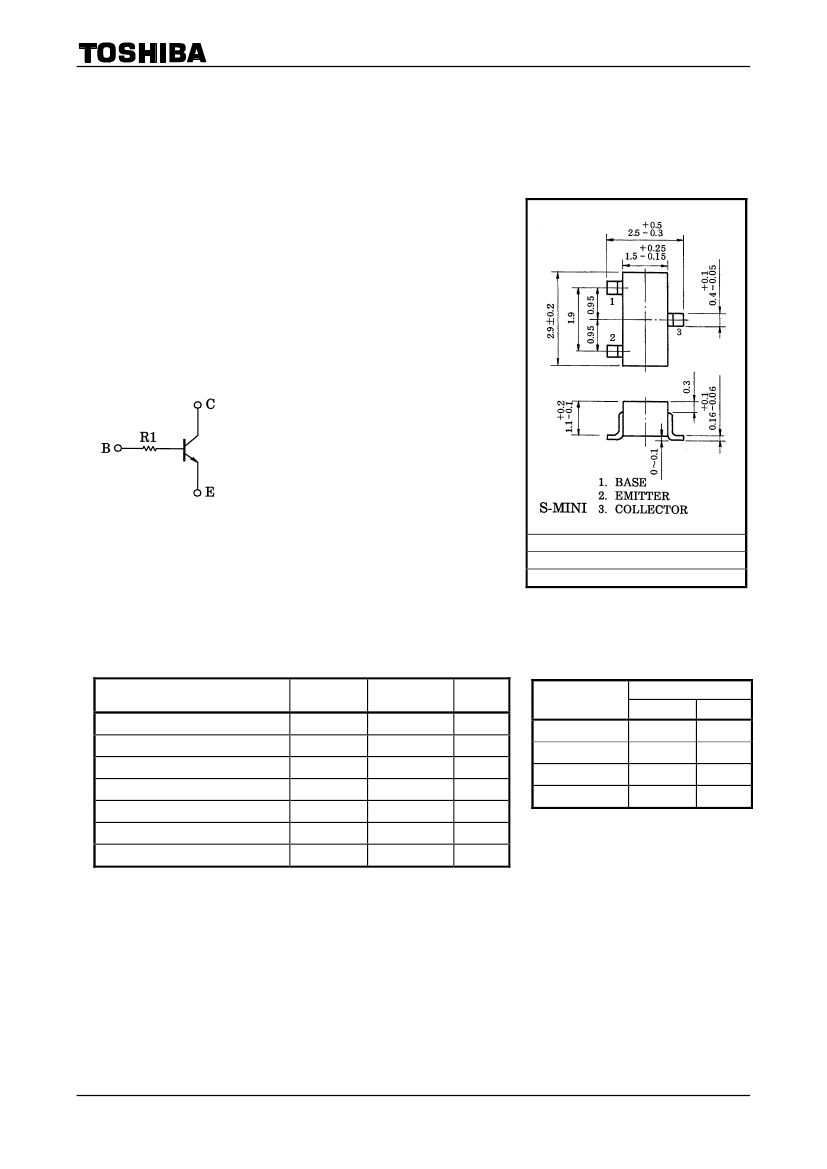

RN1441∼RN1444
TOSHIBA Transistor
Silicon NPN Epitaxial Type (PCT Process)
RN1441,RN1442,RN1443,RN1444
Muting and Switching Applications
High emitter-base voltage: V
EBO
= 25V (min)
High reverse h
FE
: reverse h
FE
= 150 (typ.) (V
CE
=
−2V,
I
C
=
−4mA)
Low on resistance: R
ON
= 1Ω (typ.) (I
B
= 5mA)
With built-in bias resistors
Simplify circuit design
Reduce a quantity of parts and manufacturing process
Unit in mm
Equivalent Circuit
JEDEC
TO-236MOD
JEITA
SC-59
TOSHIBA
2-3F1A
Weight: 0.012g (typ.)
Absolute Maximum Ratings
(Ta = 25°C)
Characteristic
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j
T
stg
Rating
50
20
25
300
200
150
−55~150
Unit
V
V
V
mA
mW
°C
°C
Type No.
RN1441
RN1442
RN1443
RN1444
Marking
H
FE
classification
A
KA
LA
NA
CA
B
KB
LB
NB
CB
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).

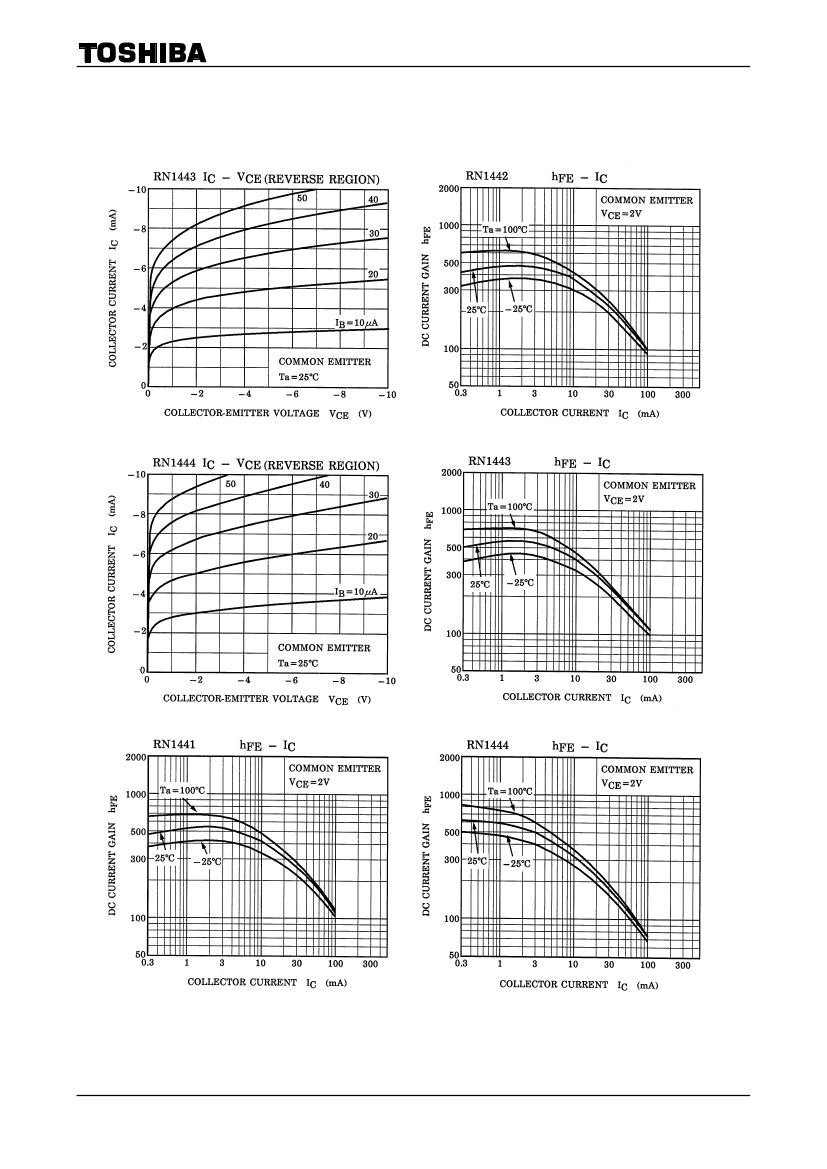

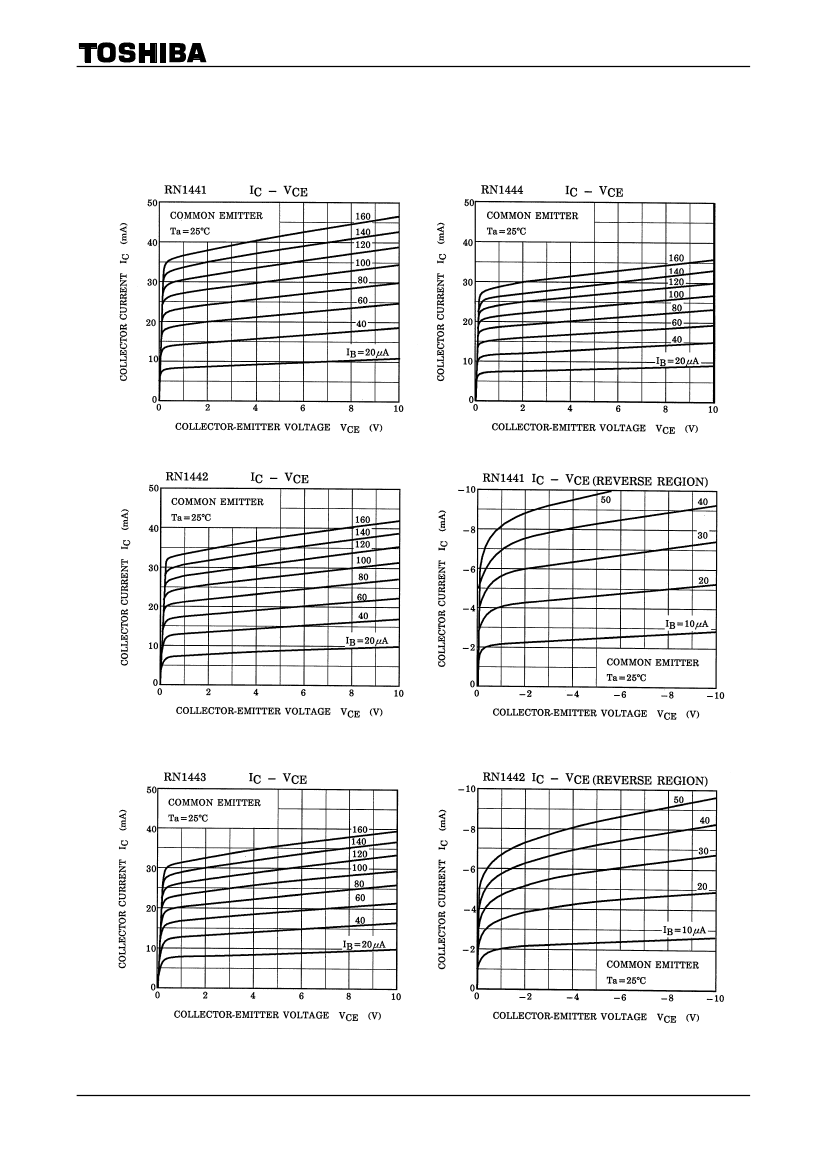

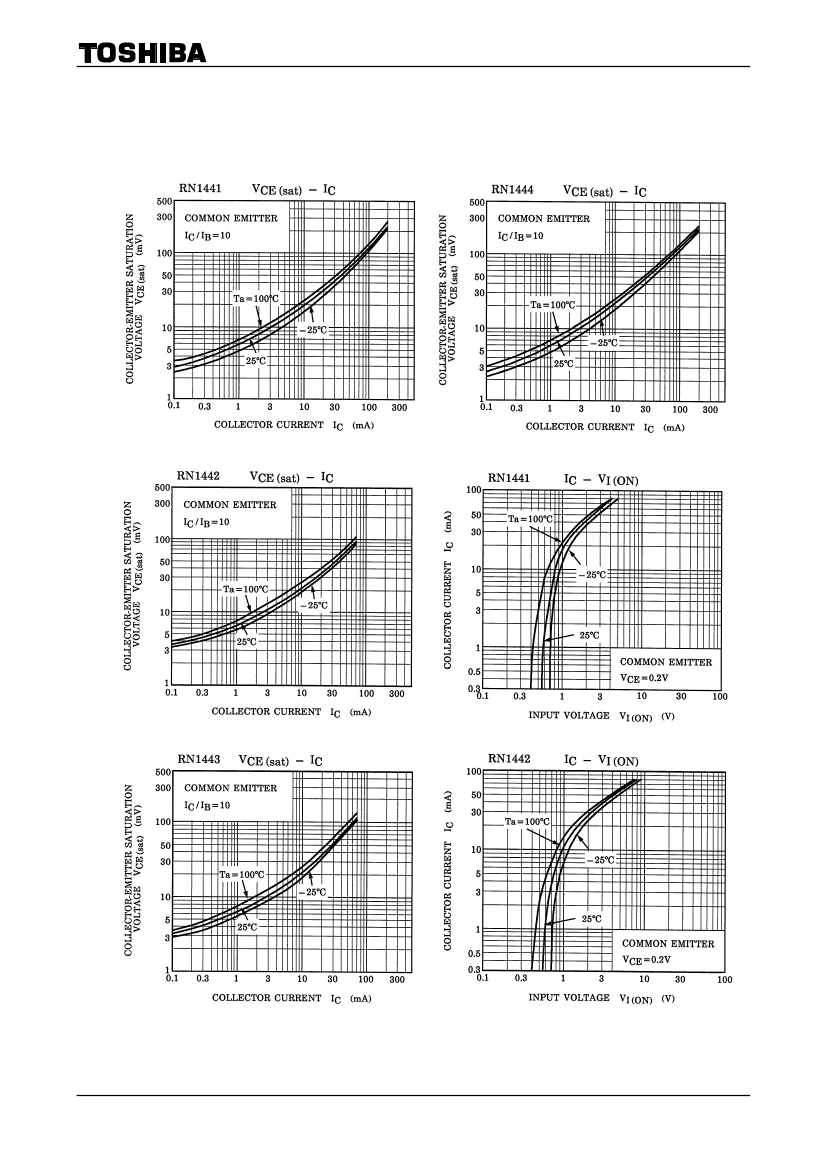

1
2007-11-01
