LT1080IJ datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> LT1080IJ

Preview

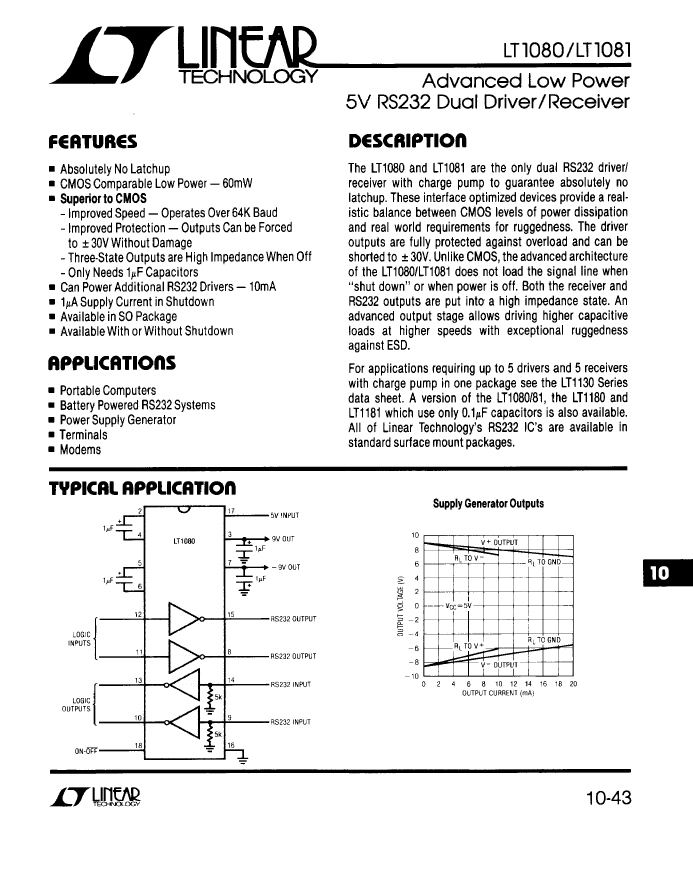

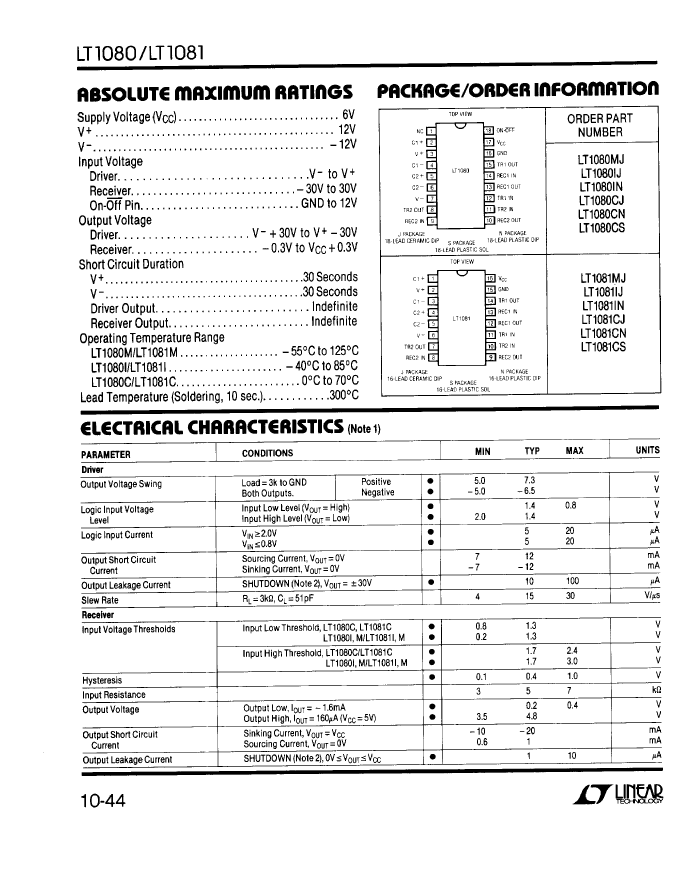

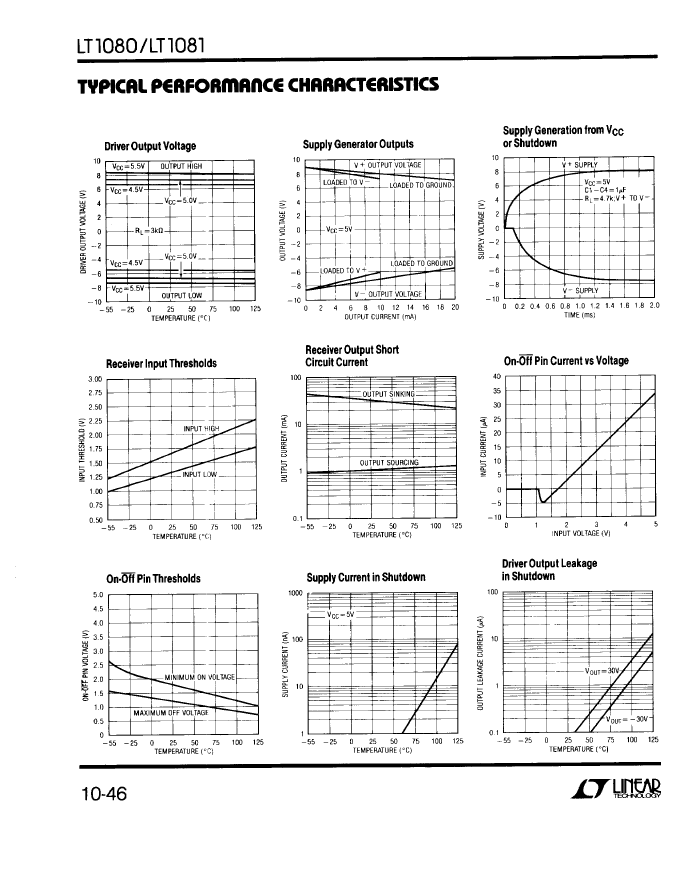

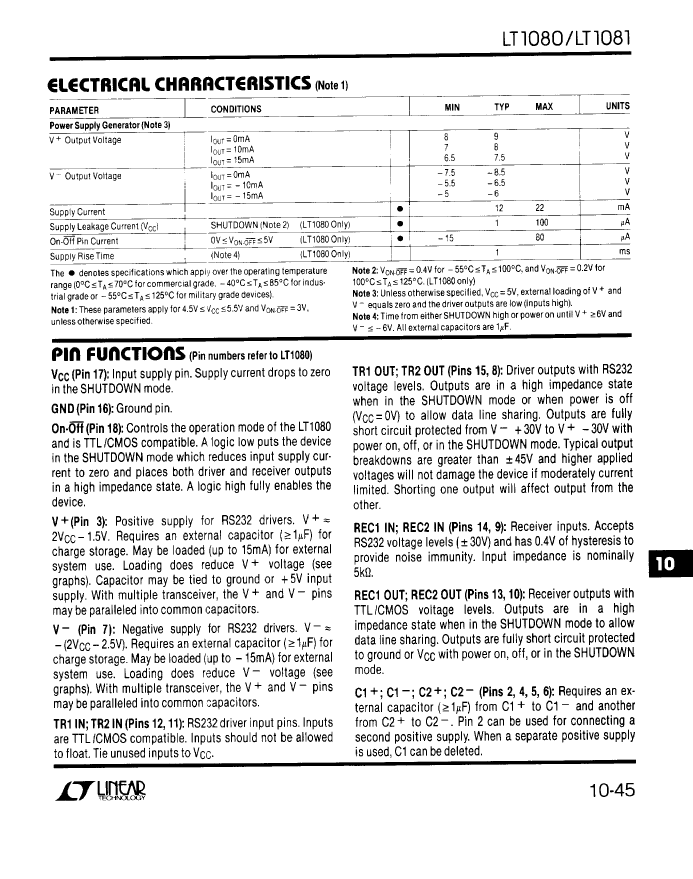

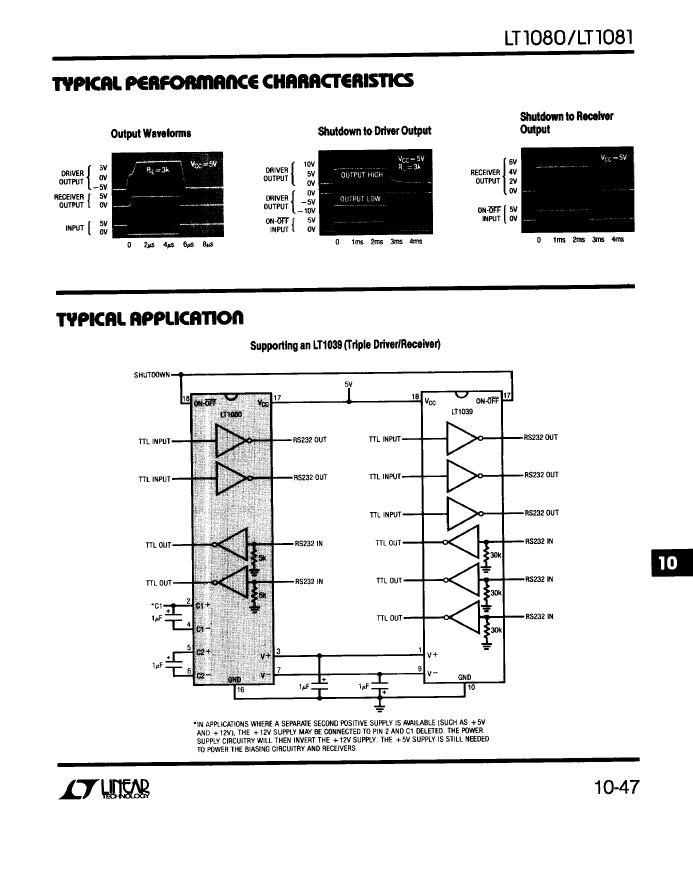

LT1080IJ: DescriptionIC LINE TRANSCEIVER, CDIP18, CERDIP-18, Line Driver or Receiver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size325KB，8 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LT1080IJ Overview

IC LINE TRANSCEIVER, CDIP18, CERDIP-18, Line Driver or Receiver

LT1080IJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP18,.3
Contacts	18
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	EXTERNAL CHARGE PUMP
Differential output	NO
Number of drives	2
High level input current maximum value	0.00002 A
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232
JESD-30 code	R-GDIP-T18
JESD-609 code	e0
Number of functions	1
Number of terminals	18
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum output swing	10 V
Output characteristics	3-STATE
Maximum output low current	0.0016 A
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum receive delay
Number of receiver bits	2
Maximum seat height	5.08 mm
Maximum slew rate	22 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

LT1080IJ Related Products

	LT1080IJ	LT1081IJ
Description	IC LINE TRANSCEIVER, CDIP18, CERDIP-18, Line Driver or Receiver	IC LINE TRANSCEIVER, CDIP16, CERDIP-16, Line Driver or Receiver
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	DIP
package instruction	DIP, DIP18,.3	DIP, DIP16,.3
Contacts	18	16
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	EXTERNAL CHARGE PUMP	EXTERNAL CHARGE PUMP
Differential output	NO	NO
Number of drives	2	2
High level input current maximum value	0.00002 A	0.00002 A
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER	LINE TRANSCEIVER
Interface standards	EIA-232	EIA-232
JESD-30 code	R-GDIP-T18	R-GDIP-T16
JESD-609 code	e0	e0
Number of functions	1	1
Number of terminals	18	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Minimum output swing	10 V	10 V
Output characteristics	3-STATE	TOTEM-POLE
Maximum output low current	0.0016 A	0.0016 A
Output polarity	INVERTED	INVERTED
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Number of receiver bits	2	2
Maximum seat height	5.08 mm	5.08 mm
Maximum slew rate	22 mA	22 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
Base Number Matches	1	1
